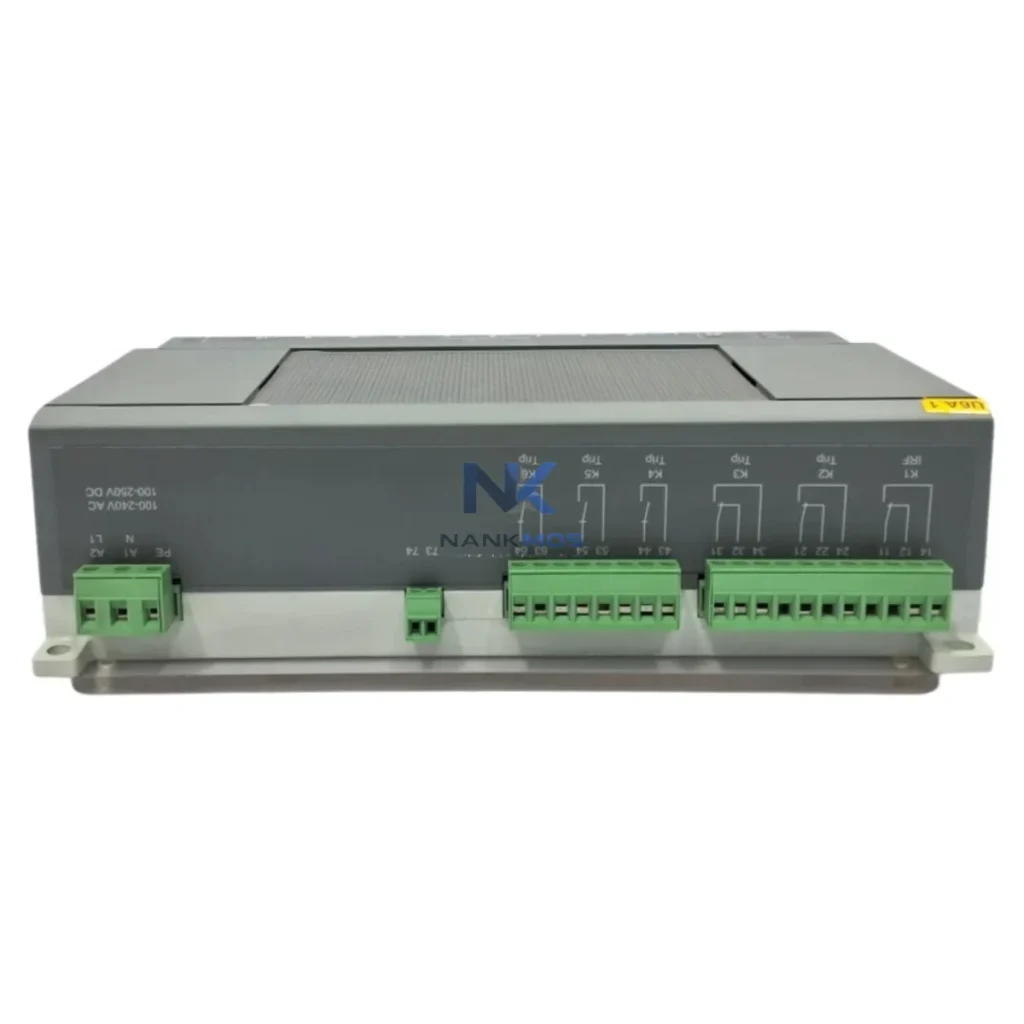

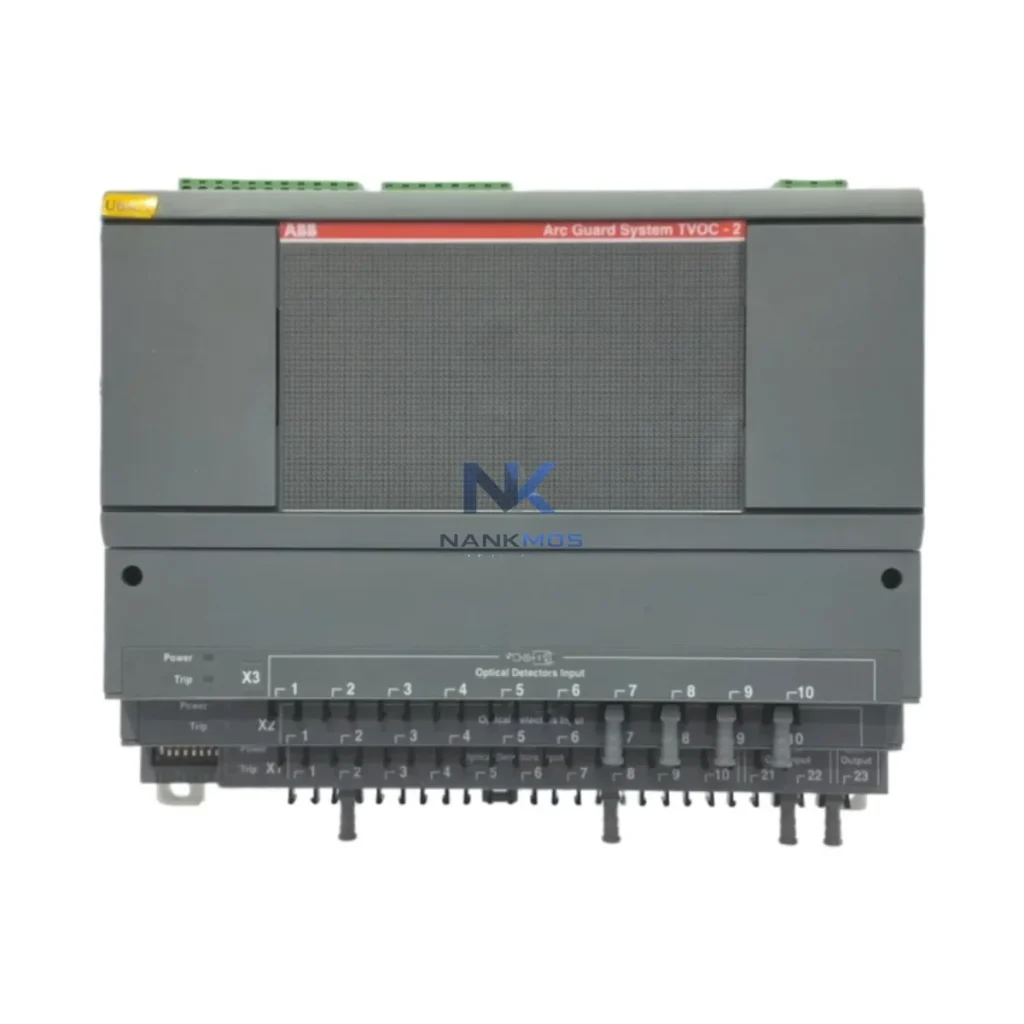

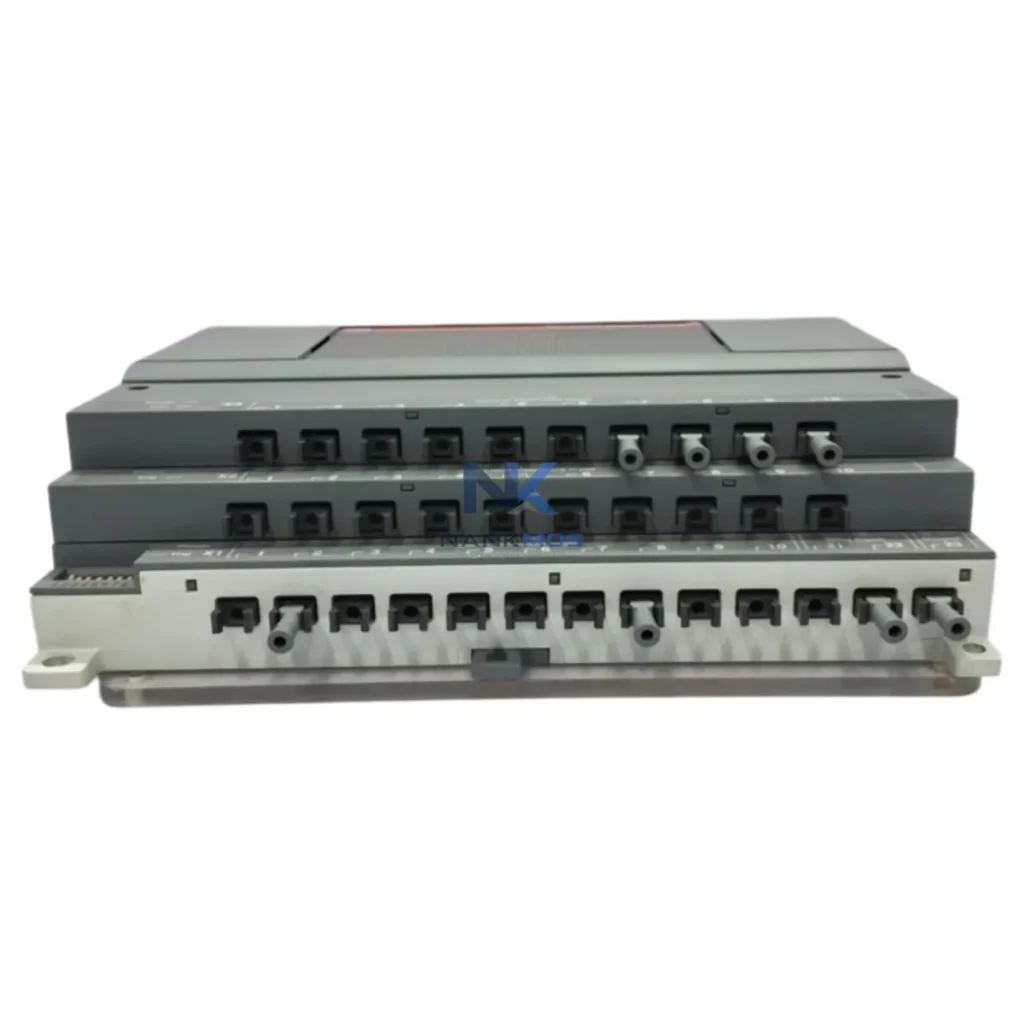

ABB 1SFA664001R1001 TVOC-2-240 Arc Flash Monitor

Product Details

1SFA664001R1001 TVOC-2-240 Product Description

The ABB 1SFA664001R1001 (TVOC-2-240) is a high-performance arc flash detection monitor engineered for seamless integration within modern industrial control architectures. Designed to protect medium-voltage and low-voltage switchgear panels, this unit delivers sub-millisecond arc flash detection response, ensuring personnel safety and equipment continuity across demanding automation environments. Its role within a layered control system extends far beyond simple fault detection — it functions as a critical protection-layer node that communicates upstream to the control layer, coordinates with the I/O layer for trip signal routing, and supports long-term diagnostic efficiency across the full automation platform.

In a complete industrial automation architecture, the TVOC-2-240 occupies the protection layer, working in concert with the control layer (such as ABB AC500 series PLCs or REF615 feeder protection relays), the I/O layer (including ABB CI502-PNIO PROFINET I/O modules), and the communication layer (via hardwired trip outputs and optional fiber-optic sensor loops). This layered integration ensures that arc flash events are detected, isolated, and logged within the same unified control framework — reducing response time, minimizing arc flash energy, and maintaining system-wide operational continuity.

The ABB 1SFA664001R1001 TVOC-2-240 achieves its full potential when deployed as part of a cohesive, multi-layer automation platform. In a typical MV/LV switchgear installation, the TVOC-2-240 interfaces directly with the ABB REF615 feeder protection relay, which provides overcurrent supervision signals to enable combined light-and-current arc flash detection — the most reliable detection mode per IEC 62606. The trip output from the TVOC-2-240 is wired to the ABB REX640 protection relay or directly to the switchgear's main circuit breaker shunt trip coil, ensuring sub-cycle fault clearance.

At the control layer, the ABB AC500 PM573 CPU module receives status and alarm signals from the TVOC-2-240 via hardwired digital inputs on the ABB DC532 digital I/O module, enabling the PLC to log arc flash events, trigger alarm sequences, and initiate controlled shutdown procedures. The ABB CI501-PNIO PROFINET communication interface allows the AC500 platform to relay arc flash event data upstream to the SCADA system or DCS, maintaining full system transparency and audit trail integrity.

For power supply redundancy within the same control cabinet, the ABB CP-E 24/5.0 power supply unit provides stable 24 V DC to the TVOC-2-240 and associated I/O modules, while the ABB UPS24.241 uninterruptible power supply module ensures continued protection layer operation during mains disturbances. On the HMI layer, the ABB CP635 touch panel can display real-time arc flash status, sensor health, and historical event logs, giving operators immediate situational awareness without requiring separate diagnostic tools.

In installations requiring fiber-optic arc flash detection across large switchgear lineups, the TVOC-2-240 supports looped fiber-optic sensor cables that can span multiple cubicles, eliminating the need for individual point sensors in each bay. This approach, combined with the ABB TVOC-2 fiber-optic sensor accessories and ABB REM615 motor protection relay for motor feeder bays, creates a unified protection architecture that covers the entire switchgear room from a single detection unit — reducing installation complexity, wiring cost, and long-term maintenance burden.

Power Distribution & Utilities: In primary and secondary power distribution substations, the TVOC-2-240 protects MV switchgear panels (6 kV, 10 kV, 35 kV) where arc flash incidents carry catastrophic risk. Integrated with feeder protection relays and SCADA systems, it enables automatic fault isolation and rapid restoration of healthy feeders, minimizing outage duration and protecting critical infrastructure.

Petrochemical & Refinery Plants: Process industries operating continuous production lines require arc flash protection that does not compromise process availability. The TVOC-2-240's selective zone protection capability — achieved by assigning separate sensor inputs to different switchgear zones — allows only the faulted zone to be isolated while adjacent zones remain energized, maintaining process continuity in refineries, compressor stations, and chemical plants.

Mining & Metallurgy: Underground mining and surface metallurgical facilities operate high-power motor drives and transformer feeders in environments with elevated dust and humidity. The TVOC-2-240's robust detection algorithm, combined with the ABB ACS880 industrial drive protection coordination, ensures that arc flash events in motor control centers (MCCs) are cleared before they escalate to bus faults, protecting both personnel and high-value drive assets.

Marine & Offshore: Shipboard power systems and offshore platform electrical rooms demand compact, vibration-resistant protection devices. The TVOC-2-240's DIN rail mounting, wide supply voltage range (100–240 V AC/DC), and IEC compliance make it suitable for marine switchboards, where it integrates with vessel automation systems to provide arc flash protection without requiring dedicated protection panels.

Packaging & Manufacturing Lines: High-speed packaging and automotive manufacturing facilities rely on uninterrupted power to servo drives, conveyor systems, and robotic cells. Arc flash protection at the MCC level, provided by the TVOC-2-240 in coordination with the plant's PLC-based control architecture, ensures that a single electrical fault does not cascade into a full production line shutdown.

Q1: Is the ABB 1SFA664001R1001 TVOC-2-240 compatible with third-party protection relays and PLC platforms outside the ABB ecosystem? A: Yes. The TVOC-2-240 uses hardwired relay outputs (NO contacts, 250 V AC / 5 A rated) for its trip signals, making it inherently compatible with any protection relay, PLC digital input module, or circuit breaker shunt trip coil regardless of manufacturer. While it is optimized for integration with ABB REF615, REX640, and AC500 platforms, it can be deployed alongside Siemens SIPROTEC relays, Schneider Electric Sepam units, or Rockwell Automation ControlLogix I/O modules without protocol conversion. The light sensor inputs are also manufacturer-agnostic, accepting standard ABB TVOC-2 point sensors or compatible fiber-optic loops.

Q2: What are the installation and commissioning requirements for the TVOC-2-240 in a new switchgear project, and how does it affect overall panel design? A: The TVOC-2-240 mounts on a standard 35 mm DIN rail and requires a 100–240 V AC/DC auxiliary supply, which is typically available from the switchgear's auxiliary bus. Sensor cables (point sensors or fiber-optic loops) are routed inside the switchgear cubicles to the areas of highest arc flash risk — typically busbar compartments, cable compartments, and circuit breaker draw-out zones. Trip output wiring connects to the protection relay's binary input or directly to the circuit breaker's shunt trip coil. Commissioning involves sensor sensitivity adjustment (via front-panel potentiometer), functional testing with a calibrated light source, and verification of trip output continuity. Total commissioning time for a standard installation is typically 2–4 hours per panel, and no special software tools are required.

Q3: What does the 12-Month Warranty cover, and what is the stock availability and lead time for the ABB 1SFA664001R1001? A: NANKMOS provides a 12-Month Warranty on the ABB 1SFA664001R1001 TVOC-2-240, covering manufacturing defects, component failures under normal operating conditions, and functional non-conformance to published ABB specifications. Each unit undergoes pre-shipment functional testing — including supply voltage verification, sensor input response check, and trip output continuity test — before dispatch. Stock is maintained for immediate shipment, with standard lead times of 3–7 business days for international orders. For urgent project requirements or bulk procurement, please contact [email protected] or call +86 18359268345 to confirm real-time availability and arrange expedited logistics.
