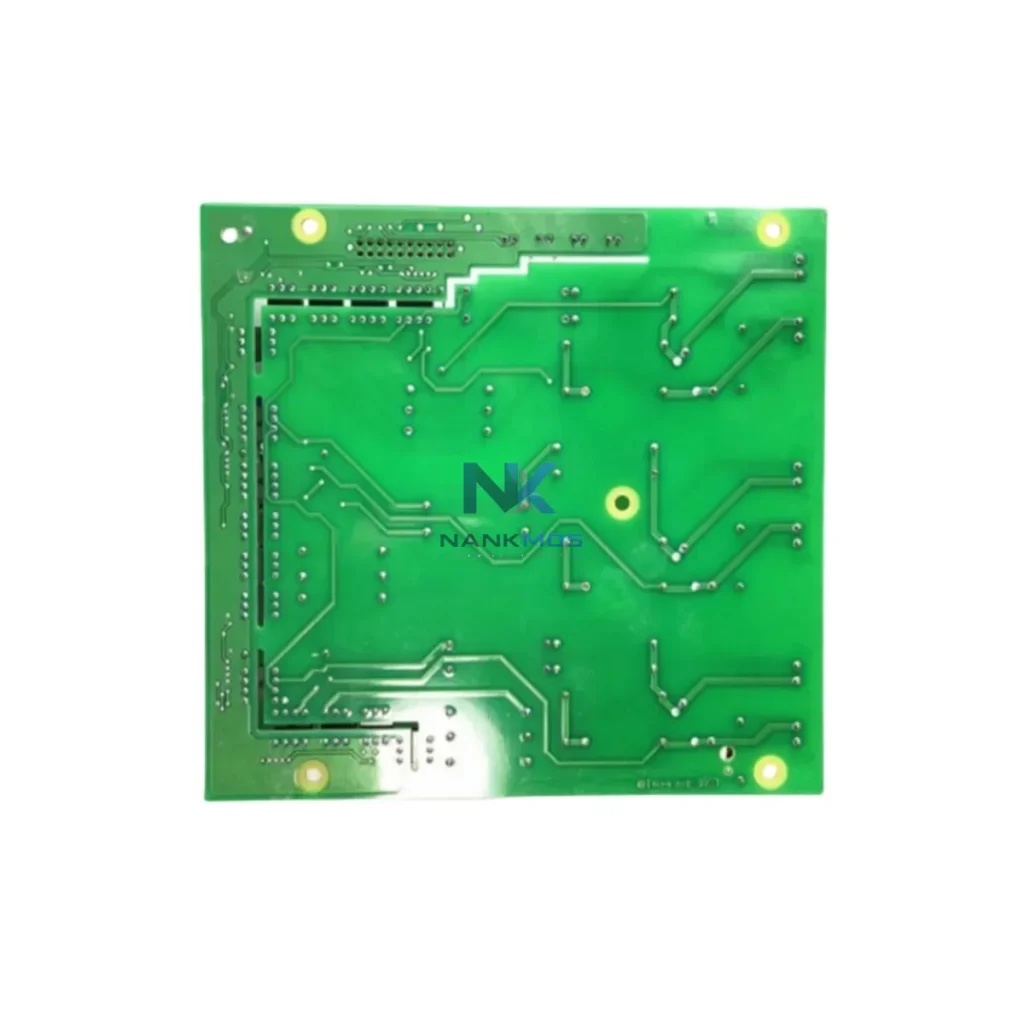

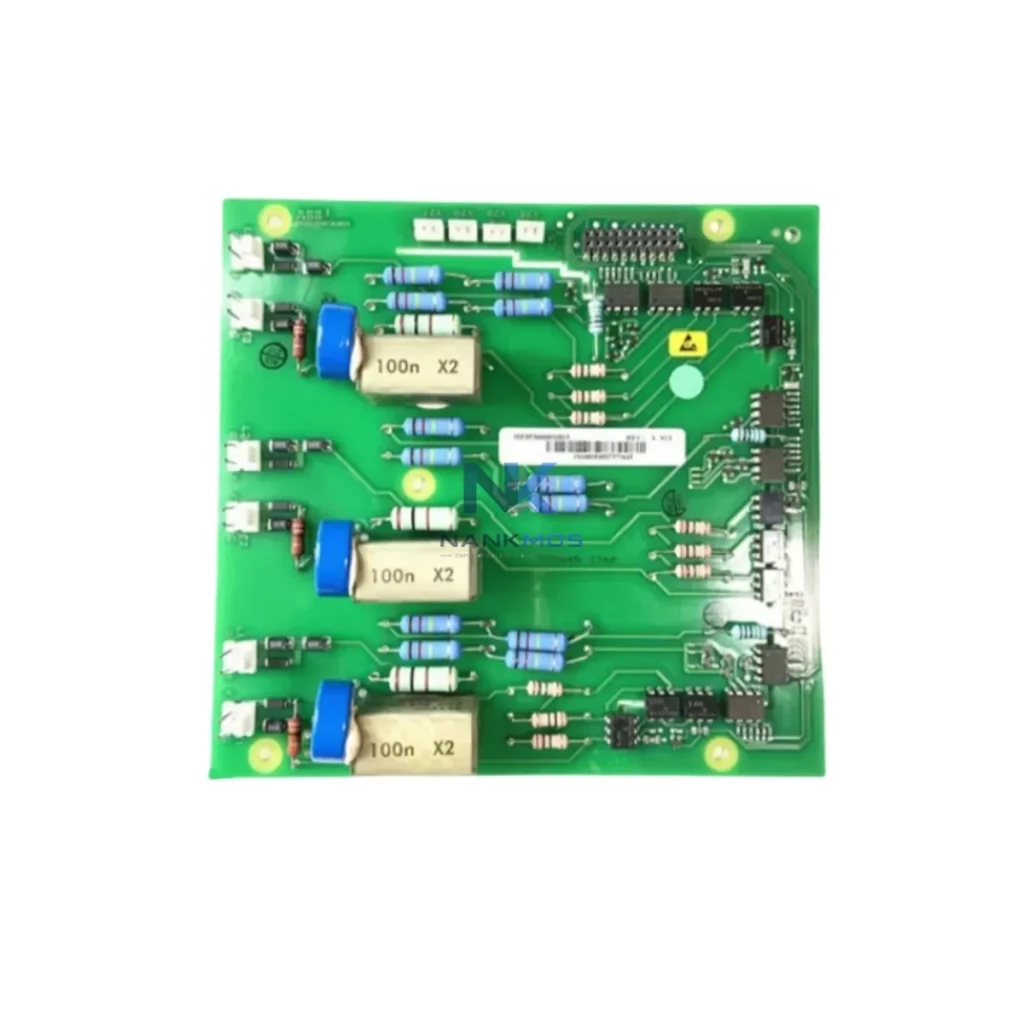

ABB 1SFB536068D1003 Drive Control PCB

Product Details

1SFB536068D1003 Product Description

The ABB 1SFB536068D1003 Drive Control PCB is the central intelligence layer within the ACS800 variable frequency drive, governing IGBT gate firing sequences, real-time motor flux vector calculations, and fault signal routing. Its role within a complete industrial automation architecture extends well beyond the drive enclosure itself — it is the coordination node that links the power conversion layer to the supervisory control layer, ensuring that motor speed, torque, and energy consumption remain precisely aligned with process demands.

In a typical ACS800-based control cabinet, the 1SFB536068D1003 operates alongside the AINT-02C power interface board, which manages the DC bus voltage feedback and pre-charge relay sequencing. The APOW-01C power supply board provides the regulated 24 VDC and 5 VDC rails that the control PCB depends on for stable logic operation. Together, these three boards form the core of the ACS800 drive's internal control architecture, and any replacement or maintenance activity must treat them as a coordinated subsystem rather than isolated components.

At the communication layer, the 1SFB536068D1003 supports integration with the RDCO-02 and RDCO-03 DDCS fiber-optic communication adapters, enabling high-speed, noise-immune data exchange between the drive and an ABB AC800M or AC500 PLC platform. This fiber-optic link is particularly valuable in high-voltage switchgear environments where copper-based fieldbus cables are susceptible to electromagnetic interference from large motor starters or transformer switching transients. The DDCS protocol supports master-follower drive configurations, allowing multiple ACS800 units to synchronize torque and speed references across a shared process line — a configuration common in paper machine drives, extruder lines, and winding systems.

For I/O expansion and signal conditioning, the ACS800 platform accommodates optional I/O extension modules such as the RAIO-01 analog I/O extension and RDIO-01 digital I/O extension, both of which interface directly with the control PCB's internal option slot bus. These modules extend the drive's ability to accept process feedback signals — pressure transmitters, flow meters, temperature sensors — without requiring an external PLC I/O rack, reducing panel footprint and wiring complexity in compact machine control cabinets.

At the HMI layer, the ACS-CP-C control panel connects to the drive's control PCB via the panel bus interface, providing local parameter access, fault history review, and real-time monitoring of output frequency, motor current, and DC bus voltage. In distributed installations, the panel can be remote-mounted using a panel mounting kit, allowing operators to interact with the drive from the front of a control cabinet without opening the drive enclosure. This is a critical ergonomic and safety consideration in high-power drive installations where the drive itself may be located in a restricted-access section of the switchroom.

For protection and safety integration, the ACS800 control PCB coordinates with the drive's internal AGPS-21C gate driver board to implement short-circuit protection, overcurrent trip, and IGBT desaturation detection. In applications requiring functional safety compliance, the FSPS-21 safety functions module can be integrated to provide SIL 2 / PLd Safe Torque Off (STO) and Safe Stop 1 (SS1) functions, with the control PCB serving as the logic interface between the safety module and the drive's main control loop. This architecture is increasingly specified in machinery directive applications across the EU and in process industries where personnel safety interlocks must be integrated at the drive level.

In multi-drive system architectures — such as those found in crane hoisting systems, rolling mill drives, or regenerative test benches — the 1SFB536068D1003 supports the ACS800's built-in direct torque control (DTC) algorithm, which delivers faster torque response than conventional V/Hz or sensorless vector drives. The control PCB's processing capability enables sub-millisecond torque reference tracking, which is essential for maintaining tension control in winding applications or precise positioning in overhead crane systems where load swing must be minimized.

Manufacturing and Assembly Lines: In automotive body shop conveyor systems and general assembly line drives, the ABB 1SFB536068D1003 enables precise speed synchronization across multiple ACS800 drives controlling conveyor sections. The control PCB's DTC algorithm ensures smooth acceleration and deceleration profiles, reducing mechanical stress on gearboxes and chain drives while maintaining line speed consistency. Replacement of a faulty control PCB restores full drive functionality without requiring drive replacement, significantly reducing downtime and capital expenditure.

Power Generation and Utilities: In hydroelectric plant auxiliary systems and thermal power station boiler feed pump drives, the ACS800 platform with the 1SFB536068D1003 control PCB provides reliable variable speed control for high-inertia pump and fan loads. The PCB's fault diagnostic capability — logging overcurrent events, ground faults, and communication timeouts — supports predictive maintenance programs by providing actionable fault data to the plant DCS via the DDCS fiber-optic link.

Petrochemical and Process Industries: Compressor drives and extruder drives in petrochemical plants demand continuous, uninterrupted operation. The 1SFB536068D1003's role in maintaining the ACS800's internal control loop integrity is critical in these applications. Its compatibility with the FSPS-21 safety module supports SIL 2 STO functions required by IEC 61511 process safety standards, ensuring that emergency shutdown sequences can be executed reliably without mechanical brake intervention.

Water and Wastewater Treatment: Municipal water treatment plants operating large centrifugal pump arrays benefit from the ACS800's energy optimization algorithms, which are executed by the 1SFB536068D1003 control PCB. By continuously adjusting pump speed to match demand, the drive reduces energy consumption by 30–50% compared to throttle-controlled fixed-speed pumps. The PCB's long-term reliability in humid, chemically aggressive environments is supported by ABB's conformal coating options on the ACS800 control board assembly.

Mining and Metals: In underground mine ventilation fan drives and surface conveyor systems, the ACS800 with the 1SFB536068D1003 provides robust performance under high-dust, high-vibration conditions. The control PCB's ability to interface with the RDCO fiber-optic adapter eliminates ground loop issues common in long cable runs between surface control rooms and underground drive installations, ensuring reliable communication even in electrically noisy mining environments.

Q1: Is the ABB 1SFB536068D1003 compatible with all ACS800 drive frame sizes, and what system checks should be performed before installation? The 1SFB536068D1003 is designed for specific ACS800 frame sizes — confirm compatibility by cross-referencing the drive's type designation plate against ABB's spare parts catalog for the ACS800 series. Before installation, verify that the APOW-01C power supply board and AINT-02C interface board are functional, as a faulty power supply rail will prevent the replacement control PCB from initializing correctly. Perform a full parameter backup using the ACS-CP-C control panel or DriveStudio software before removing the original PCB, and restore parameters after replacement to avoid reconfiguration errors. Our pre-shipment testing protocol validates the 1SFB536068D1003 against standard ACS800 initialization sequences, and the 12-Month Warranty covers functional defects identified during commissioning.

Q2: Can the 1SFB536068D1003 support DDCS fiber-optic communication for multi-drive master-follower configurations, and what additional hardware is required? Yes — the ACS800 control PCB supports DDCS communication when paired with the RDCO-02 or RDCO-03 fiber-optic adapter, which plugs into the control board's option slot. In a master-follower configuration, the master drive transmits torque or speed references to follower drives via the DDCS ring, with the control PCB on each drive executing the received reference within its DTC control loop. The fiber-optic medium eliminates EMI-induced communication errors common in copper fieldbus installations near large power cables. Ensure that the DDCS ring topology is correctly terminated and that all drives in the ring are configured with unique node addresses before commissioning the multi-drive system.

Q3: What is the recommended maintenance and inventory strategy for the ABB 1SFB536068D1003 in critical process applications, and how does the 12-Month Warranty support long-term asset management? For critical process applications where drive downtime results in significant production loss, we recommend maintaining at least one spare 1SFB536068D1003 control PCB on-site, particularly for installations with multiple ACS800 drives of the same frame size. The PCB's long-term availability from our verified stock — pre-tested and covered by a 12-Month Warranty from the date of shipment — supports a cost-effective spares strategy without requiring large capital commitments to OEM service contracts. Our global shipping capability ensures that emergency replacement orders can be dispatched within 24 hours, minimizing exposure to extended unplanned downtime. The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions, providing documented assurance for maintenance budget planning and asset lifecycle management.
