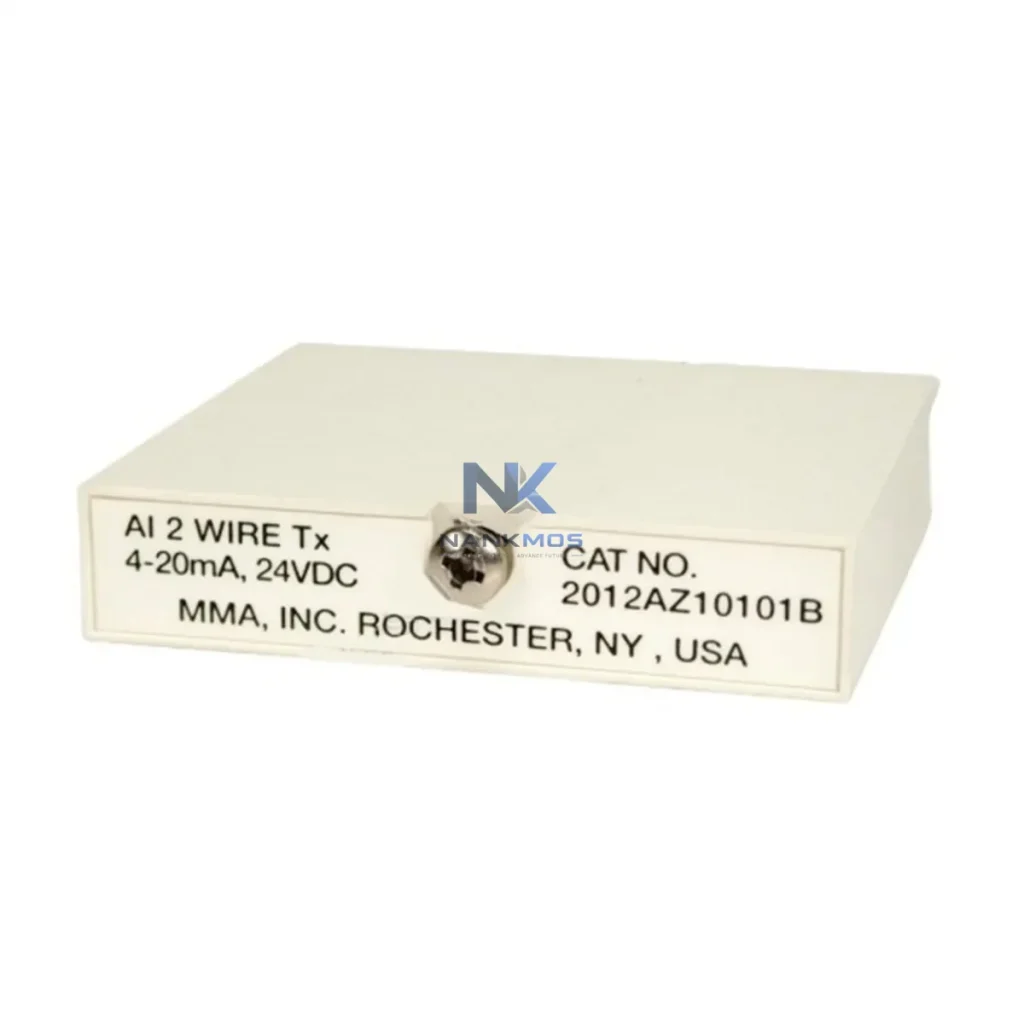

ABB 2012AZ10101B HART Analog Input Module

Product Details

2012AZ10101B Product Description

The ABB 2012AZ10101B is a 2-wire HART Analog Input Module engineered for the S800 I/O platform, delivering precision signal acquisition and seamless protocol bridging across modern smart factory architectures. Designed to operate within ABB's distributed control ecosystem, this module captures 4-20mA field signals from transmitters, sensors, and actuators while simultaneously carrying HART digital communication over the same two-wire loop — eliminating the need for separate diagnostic wiring and reducing installation complexity on the production floor.

In a connected factory environment, the 2012AZ10101B serves as the critical first node in the data chain: field instruments such as pressure transmitters, flow meters, and temperature sensors feed live process values directly into the S800 I/O rack. From there, the ABB AC800M controller aggregates these signals and forwards structured data upstream to the DCS backbone, where SCADA platforms — including ABB System 800xA — visualize real-time process states, trigger alarm logic, and log historical trends for predictive maintenance analysis.

The 2012AZ10101B sits at the intersection of field instrumentation and plant-level intelligence. In a typical smart factory deployment, field-mounted HART transmitters — such as ABB's TTF300 temperature transmitters or LD301 differential pressure transmitters — connect directly to the 2012AZ10101B input channels. The module reads both the primary 4-20mA process variable and the secondary HART digital data stream, passing the combined signal set to the S800 I/O bus without signal degradation or latency penalty.

The S800 I/O rack, managed by the ABB AC800M controller, routes this data through the control network to the System 800xA DCS platform. Here, operators gain full visibility into field device health, calibration status, and process deviations — all from a centralized HMI workstation. When anomalies are detected, the 800xA alarm management layer triggers structured alerts, which can be forwarded via OPC-UA or Modbus TCP to higher-level MES or ERP systems for production reporting and maintenance scheduling.

For sites requiring protocol bridging, the 2012AZ10101B integrates cleanly with HART-to-PROFIBUS gateways such as the ABB CI854 communication interface, enabling legacy HART field devices to participate in modern PROFIBUS DP networks without hardware replacement. Similarly, pairing with an ABB CI840A PROFINET adapter extends connectivity to Ethernet-based control architectures, supporting real-time data exchange with Siemens S7 PLCs, Rockwell ControlLogix systems, or third-party SCADA servers over standard industrial Ethernet infrastructure.

Edge computing nodes — such as ABB Edge Connect or compatible third-party industrial gateways — can subscribe to the HART data stream via the AC800M OPC-UA server, enabling local analytics, anomaly detection, and bandwidth-optimized cloud forwarding. This architecture supports IIoT initiatives without requiring a full DCS replacement, protecting existing S800 I/O investments while extending data reach to cloud-based dashboards and remote diagnostic portals.

Power supply stability is maintained through ABB's SD series 24VDC DIN-rail power supplies, which provide clean, regulated power to the S800 I/O rack and field loop circuits. Redundant power configurations are supported, ensuring continuous signal acquisition even during partial power events — a critical requirement for process industries where unplanned downtime carries significant operational cost.

Many industrial facilities operate with fragmented automation layers: legacy HART field devices that cannot communicate with modern Ethernet-based SCADA systems, analog signals that are never digitized beyond the control room, and maintenance teams that rely on manual walkarounds rather than remote diagnostics. The 2012AZ10101B directly addresses these data gaps by making HART digital information — device ID, diagnostic codes, secondary variables, and calibration data — available to the DCS and upstream systems without additional field wiring.

Protocol fragmentation is resolved through the module's native HART support combined with ABB's gateway ecosystem. Sites running mixed PROFIBUS and HART architectures can use the 2012AZ10101B as the HART acquisition layer, with CI854 or CI840A adapters handling protocol translation to the plant network. This eliminates data silos between field instrumentation and the control layer, enabling a single unified data model across the entire production line.

Remote monitoring and alarm tracking become significantly more reliable when HART diagnostic data is continuously streamed to the SCADA layer. Operators can identify sensor drift, loop failures, or device faults from the control room before they escalate into process upsets. Scheduled maintenance can be replaced with condition-based maintenance strategies, reducing spare parts consumption and unplanned downtime. For multi-site operations, the OPC-UA data path from AC800M to cloud platforms enables centralized remote diagnostics across geographically distributed facilities.

System scalability is built into the S800 I/O architecture: additional 2012AZ10101B modules can be added to the I/O rack without controller reconfiguration, supporting production line expansion or process redesign with minimal engineering effort. All modules shipped by NANKMOS undergo pre-shipment functional testing to verify channel accuracy, HART communication integrity, and bus communication before dispatch.

Q1: Does the ABB 2012AZ10101B support simultaneous 4-20mA and HART communication on the same loop? Yes. The 2012AZ10101B is designed for 2-wire HART operation, where the HART digital signal is superimposed on the 4-20mA analog loop. Both the primary process variable (analog) and HART digital data (device diagnostics, secondary variables) are acquired simultaneously without interference, in full compliance with the HART Communication Protocol standard.

Q2: Is this module compatible with third-party SCADA and PLC systems beyond ABB's ecosystem? Yes, with appropriate gateway hardware. The 2012AZ10101B connects natively to the ABB AC800M controller and System 800xA DCS. For integration with Siemens, Rockwell, Schneider, or other third-party platforms, HART-to-PROFIBUS or HART-to-Modbus gateways (such as the ABB CI854 or compatible third-party devices) enable cross-platform data exchange. OPC-UA server functionality on the AC800M further extends compatibility to any OPC-UA client, including most modern SCADA and MES platforms.

Q3: What is the communication latency for HART data acquisition through this module? HART communication operates at 1200 baud, with typical polling cycles of 250-500ms per device depending on network configuration and the number of HART devices on the loop. For time-critical process control, the primary 4-20mA analog signal is always available with sub-millisecond response, while HART digital data is used for diagnostics and secondary variables where higher latency is acceptable. The S800 I/O bus scan time is configurable within the AC800M controller to balance throughput and latency for specific application requirements.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the 2012AZ10101B? All ABB 2012AZ10101B modules supplied by NANKMOS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing including channel accuracy verification, HART communication integrity check, and S800 I/O bus communication validation before dispatch. In-stock units are available for same-week shipping globally. For technical support or warranty claims, contact [email protected] or +86 18359268345.
