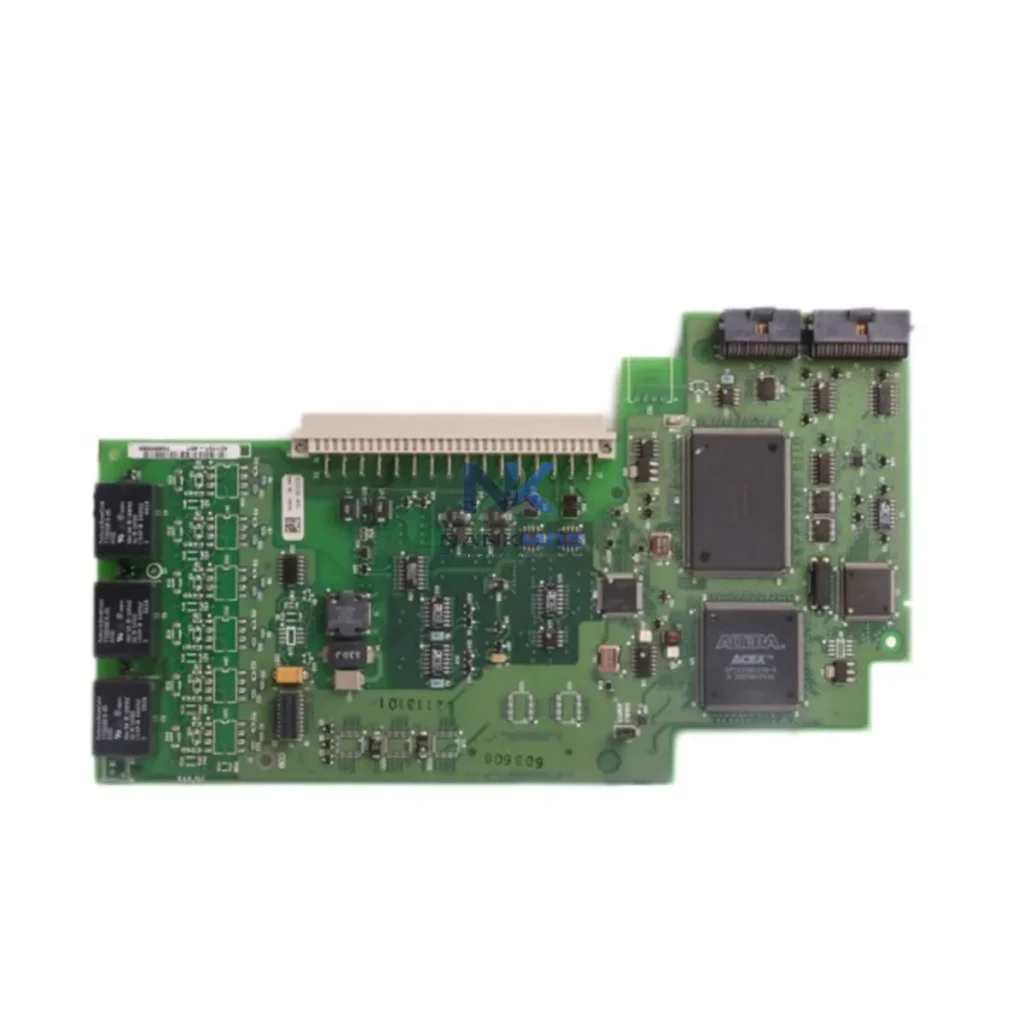

ABB 321131-A01 Fieldbus Communication Module

Product Details

321131-A01 Product Description

The ABB 321131-A01 is a dedicated fieldbus communication module engineered for the RMIO series control boards used in ABB ACS800 and ACS600 variable frequency drives. Designed to bridge the gap between field-level drive hardware and plant-wide automation networks, this module enables seamless protocol conversion, real-time data exchange, and remote diagnostics across industrial Ethernet and legacy fieldbus architectures. In smart factory environments where data continuity from sensor to SCADA is non-negotiable, the 321131-A01 delivers the connectivity backbone that keeps production lines transparent, responsive, and fully integrated.

As industrial sites evolve toward IIoT-ready architectures, the demand for reliable fieldbus gateways has never been greater. The ABB 321131-A01 addresses this need by supporting multi-protocol communication between ACS800 drive systems and upstream control platforms including Profibus DP, DeviceNet, CANopen, and Modbus RTU — enabling plant engineers to standardize data flow without replacing existing drive infrastructure. Whether deployed in energy management, water treatment, or discrete manufacturing, this module acts as the critical data link between rotating machinery and the digital control layer.

In a typical smart factory deployment, the ABB 321131-A01 sits at the intersection of the physical drive layer and the digital automation network. Signal acquisition begins at the field level, where sensors and encoders feed real-time process data — speed references, torque feedback, fault codes, and energy consumption metrics — into the ACS800 drive's RMIO control board. The 321131-A01 module then converts this drive-native data into structured fieldbus frames compatible with the plant's communication backbone.

Upstream, a Siemens S7-300 or Allen-Bradley ControlLogix PLC receives cyclic process data from the 321131-A01 via Profibus DP, enabling closed-loop speed regulation and coordinated multi-drive sequencing across conveyor lines, pump stations, or compressor banks. Simultaneously, an ABB AC500 PLC or Beckhoff CX series controller can poll acyclic diagnostic parameters — thermal status, DC bus voltage, output current — for predictive maintenance routines without interrupting the primary control loop.

At the HMI layer, a Weintek MT8000 or Siemens TP700 Comfort panel visualizes live drive parameters sourced through the 321131-A01 gateway, giving operators immediate visibility into motor load, fault history, and energy efficiency KPIs. This data stream is simultaneously forwarded to a SCADA platform — such as Ignition by Inductive Automation or Wonderware System Platform — where historians log time-series drive data for trend analysis, OEE reporting, and alarm management.

For remote I/O expansion, the 321131-A01 integrates naturally with ABB S800 I/O modules or Phoenix Contact Axioline remote I/O stations connected via the same Profibus segment, allowing distributed sensor inputs and actuator outputs to share the same network infrastructure as the drive communication. Edge gateway devices such as the Moxa MGate MB3000 series or Advantech ADAM-3600 can further aggregate fieldbus data and publish it to cloud-based MES or ERP systems via MQTT or OPC-UA, completing the data chain from motor shaft to enterprise dashboard.

In multi-drive architectures, the 321131-A01 enables coordinated control of multiple ACS800 units through a single Profibus master, reducing wiring complexity and network latency. When paired with an ABB NPBA-12 Profibus adapter or NCAN-01 CANopen module on adjacent drive cabinets, engineers can build a unified drive network where all units share fault status, speed references, and energy data in real time — a prerequisite for synchronized production lines in automotive, paper, and chemical processing plants.

Many industrial sites operate with a fragmented communication landscape: legacy drives running proprietary protocols, PLCs expecting standard fieldbus frames, and SCADA systems unable to reach field devices without manual data entry. The ABB 321131-A01 directly resolves these data gaps by acting as a transparent protocol bridge between the ACS800/ACS600 drive ecosystem and the plant's existing automation infrastructure.

Protocol Fragmentation: Sites running mixed Profibus DP and DeviceNet segments can use the 321131-A01 to standardize drive communication under a single fieldbus master, eliminating the need for separate protocol converters or custom middleware. This reduces configuration overhead and minimizes points of failure in the communication chain.

Data Silos: Without a dedicated fieldbus module, drive diagnostic data — fault logs, energy consumption, thermal history — remains trapped inside the drive controller and inaccessible to SCADA historians. The 321131-A01 exposes this data as structured process variables readable by any Profibus-compatible master, enabling plant-wide data aggregation and cross-system correlation.

Remote Monitoring Gaps: In geographically distributed facilities or unmanned substations, the 321131-A01 enables remote diagnostics by making drive parameters available to SCADA systems over the fieldbus network. Operators can monitor motor health, acknowledge alarms, and adjust speed references from a central control room without dispatching field technicians — reducing response time and operational cost.

Production Line Transparency: By integrating drive data into the plant's HMI and SCADA layer, the 321131-A01 supports real-time OEE tracking, energy benchmarking, and alarm root-cause analysis. Production managers gain a complete view of drive-related downtime events, enabling faster corrective action and continuous improvement cycles.

System Scalability: The modular plug-in design of the 321131-A01 allows engineers to upgrade communication protocols on existing ACS800 drives without hardware replacement, protecting capital investment while enabling migration to newer network architectures as plant requirements evolve.

Q1: What communication protocols does the ABB 321131-A01 support, and is it compatible with modern industrial Ethernet networks? The 321131-A01 supports Profibus DP, DeviceNet, CANopen, and Modbus RTU depending on the specific adapter variant installed in the RMIO slot. While it is optimized for classic fieldbus architectures, it can be integrated into modern industrial Ethernet environments through protocol gateways such as the Moxa MGate series or Anybus X-gateway, enabling connectivity to PROFINET, EtherNet/IP, or Modbus TCP networks without replacing the drive hardware.

Q2: How does the 321131-A01 handle communication latency in time-critical drive control applications? The module supports cyclic data exchange with deterministic timing aligned to the Profibus DP bus cycle, typically achieving scan times under 10 ms for standard process data sets. For applications requiring tighter synchronization — such as coordinated multi-axis positioning or high-speed conveyor control — engineers should configure the Profibus master's bus parameters to match the drive's response time and minimize acyclic diagnostic polling during critical production windows.

Q3: Can the ABB 321131-A01 be used for remote diagnostics and predictive maintenance without interrupting the primary control loop? Yes. The 321131-A01 supports acyclic parameter read/write services alongside the primary cyclic process data channel. This allows SCADA systems or maintenance tools to poll drive diagnostic parameters — including fault history, thermal status, and energy counters — in the background without affecting the real-time control loop. This capability is essential for predictive maintenance programs that rely on continuous drive health monitoring.

Q4: What warranty and pre-shipment testing does the ABB 321131-A01 include? Every ABB 321131-A01 unit supplied by NANKMOS is covered by a 12-Month Warranty against manufacturing defects and communication failures. Prior to shipment, each module undergoes functional verification including fieldbus communication handshake testing, parameter read/write validation, and physical inspection of the RMIO connector interface. Units are shipped in anti-static packaging with full traceability documentation to ensure integrity upon arrival.
