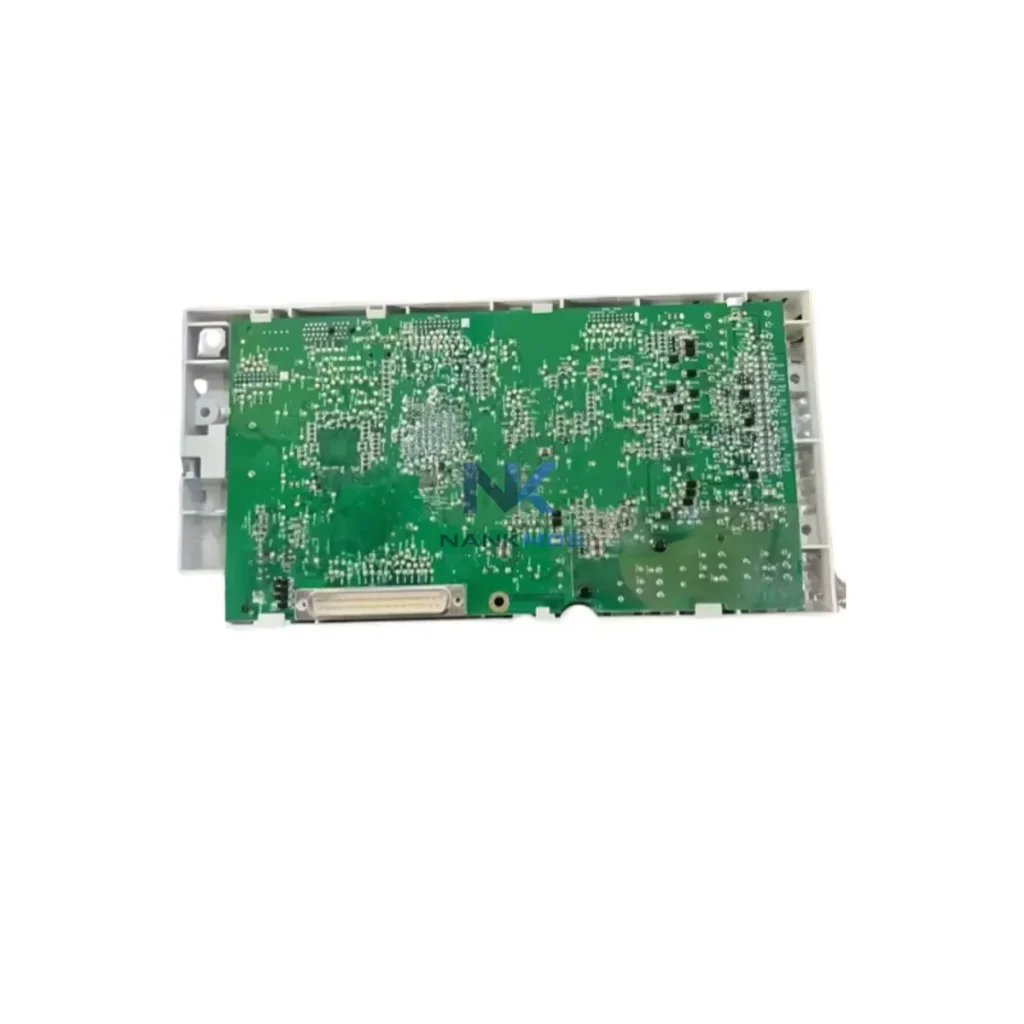

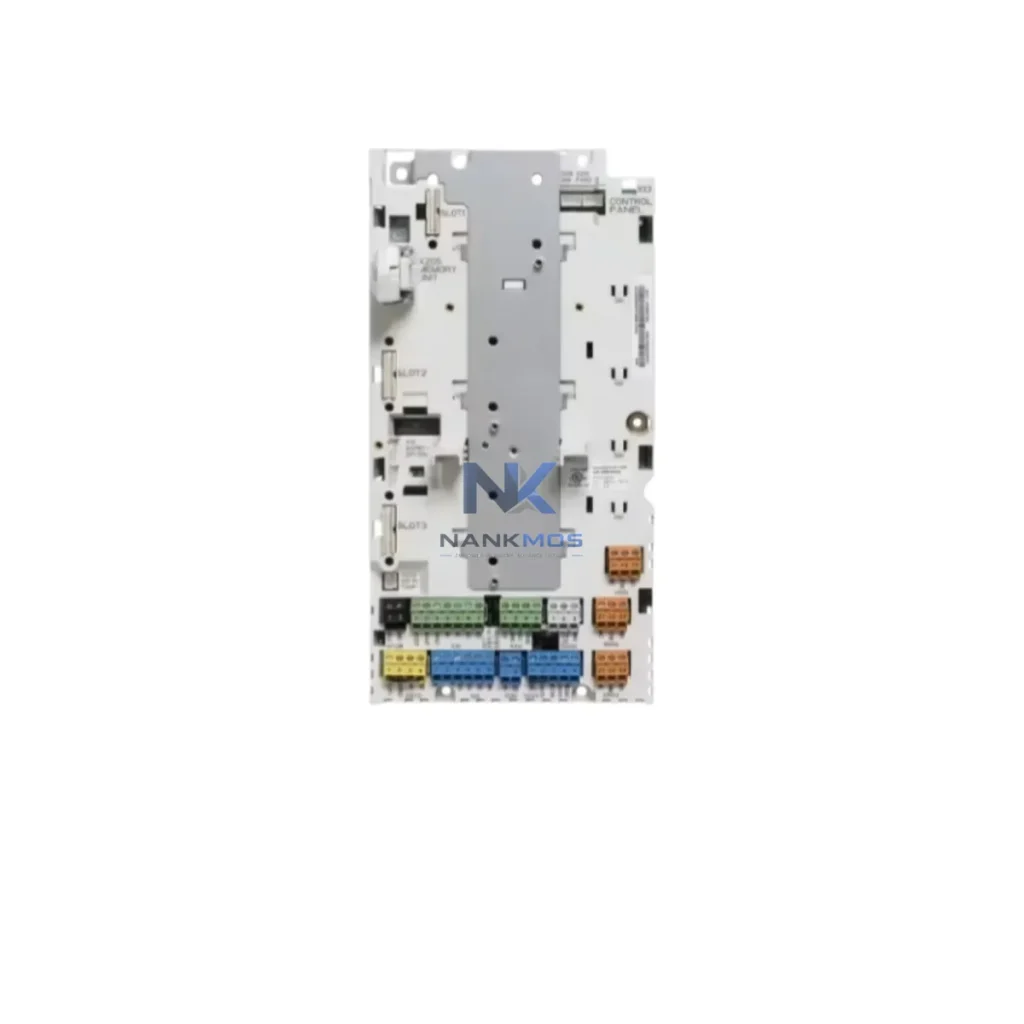

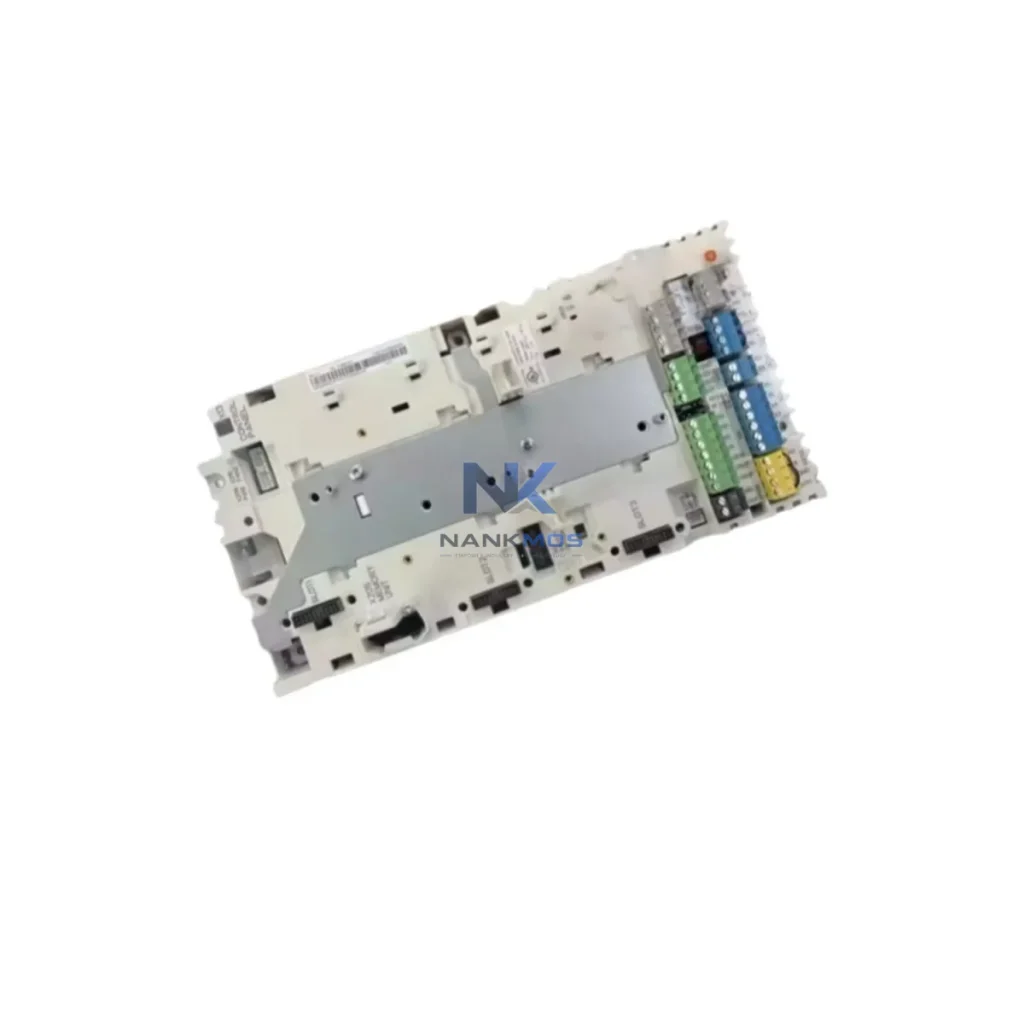

ABB 3AXD50000183012/ZCU-12 Control Unit

Product Details

3AXD50000183012/ZCU-12 Product Description

The ABB ZCU-12 (part number 3AXD50000183012) is a dedicated drive control unit engineered for seamless integration within the ACS880 industrial drive platform. As the central intelligence layer of the ACS880 single drive architecture, the ZCU-12 governs motor control algorithms, I/O coordination, fieldbus communication, and real-time diagnostics — making it a foundational component in any high-performance automation system. Designed for demanding industrial environments, the ZCU-12 delivers deterministic control response, robust signal integrity, and full contextual integration with ABB's broader drive and automation ecosystem.

In modern industrial control architectures, no component operates in isolation. The ZCU-12 is purpose-built to function as the control nucleus within a layered automation hierarchy — interfacing upward with PLC and DCS platforms, laterally with I/O expansion modules and communication gateways, and downward with motor feedback devices, encoders, and power electronics. Its architecture supports modular expansion, redundant communication paths, and long-term maintainability, making it equally suited for greenfield installations and retrofit upgrades across power generation, petrochemical, water treatment, mining, and marine propulsion applications.

Every ZCU-12 unit supplied by NANKMOS is pre-shipment tested, verified against ABB factory specifications, and backed by a 12-Month Warranty. In-stock availability ensures minimal lead times for critical maintenance and capital project schedules.

The ZCU-12 achieves its full operational value when deployed within a coherent, multi-layer automation architecture. At the control layer, it interfaces directly with ABB AC500 PLCs or third-party DCS platforms via PROFIBUS DP or EtherNet/IP, enabling centralized supervisory control and real-time parameter exchange. The DDCS fiber-optic link supports high-speed master-follower configurations, allowing multiple ACS880 drives to operate in synchronized multi-drive systems without signal degradation.

At the I/O layer, the ZCU-12 coordinates with FIO-01 digital I/O extension modules and FAIO-01 analog I/O modules to expand signal capacity beyond the base unit's onboard terminals. This modular I/O architecture eliminates the need for external signal conditioning in most applications, reducing panel footprint and wiring complexity. For applications requiring precise speed feedback, the FEN-01 or FEN-11 pulse encoder interface modules connect directly to the ZCU-12 option slots, delivering closed-loop vector control with encoder resolution up to 1024 PPR.

At the communication layer, the FPBA-01 PROFIBUS adapter and FENA-21 EtherNet/IP adapter modules extend the ZCU-12's native connectivity to plant-wide SCADA and MES systems, supporting OPC-UA data aggregation and Modbus TCP polling from historian platforms. This positions the ACS880 drive system as a fully integrated node within Industry 4.0 architectures, capable of delivering real-time energy consumption data, fault logs, and predictive maintenance signals to upper-level analytics platforms.

At the power layer, the ZCU-12 operates in conjunction with the ACS880 power unit's internal 24 VDC SMPS supply, with optional APBU-44C branching units supporting multi-drive cabinet configurations. For applications requiring uninterrupted control during mains disturbances, the ZCU-12's control logic remains active through the drive's internal UPS buffer, maintaining communication integrity and fault logging continuity. The BAMU-01 battery module further extends ride-through capability in critical process applications.

At the HMI layer, the ACS-AP-I or ACS-AP-W assistant control panels connect to the ZCU-12's panel bus port, providing local parameter access, fault history review, and drive commissioning without requiring a laptop or engineering workstation. For remote HMI integration, the ZCU-12 supports ABB Drive Composer Pro software over USB or Ethernet, enabling full parameter backup, trend logging, and firmware management from a central engineering station.

Power Generation: In gas turbine auxiliary systems and boiler feed pump drives, the ZCU-12 provides precise speed regulation and torque limiting, protecting mechanical equipment from transient overloads. Its DDCS master-follower capability supports load-sharing configurations across multiple pump drives on a common header.

Petrochemical & Oil and Gas: Compressor and pump drives in hazardous area installations rely on the ZCU-12's deterministic control response and robust fieldbus communication to maintain process stability under variable load conditions. Integration with DCS platforms via PROFIBUS DP ensures seamless interlock coordination with emergency shutdown systems.

Water and Wastewater Treatment: Variable speed pump control using the ZCU-12 reduces energy consumption by 30–50% compared to fixed-speed operation. PID process control embedded in the ZCU-12 firmware eliminates the need for external loop controllers in simple pressure or flow regulation applications.

Mining and Mineral Processing: Conveyor, crusher, and mill drives operating in dusty, high-vibration environments benefit from the ZCU-12's sealed control electronics and robust encoder interface. Torque proving functions prevent belt slip and mechanical shock during starting sequences.

Marine Propulsion and Thruster Control: The ZCU-12's fast torque response and multi-drive synchronization capability support dynamic positioning systems and azimuth thruster control, where precise speed matching between multiple drives is critical for vessel maneuverability.

Packaging and Discrete Manufacturing: In servo-class positioning applications, the ZCU-12 with FEN-11 encoder feedback delivers positioning accuracy suitable for web tension control, winding, and cut-to-length applications on high-speed production lines.

Q1: Is the ZCU-12 (3AXD50000183012) compatible with all ACS880 single drive frame sizes? The ZCU-12 is the standard control unit for ACS880-01, ACS880-04, and ACS880-07 single drive variants across frame sizes R1 through R11. It is not interchangeable with the ZCU-14 used in ACS880 multidrives or the BCU-02/12/22 units used in ACS880 cabinet drives. Always verify the drive type and frame size against ABB's hardware compatibility matrix before ordering a replacement control unit.

Q2: Can the ZCU-12 support redundant communication in a critical process architecture? Yes. The ZCU-12 supports dual fieldbus communication through simultaneous use of its onboard DDCS port and an option slot-mounted adapter such as the FENA-21 (EtherNet/IP) or FPBA-01 (PROFIBUS DP). In architectures requiring communication redundancy, the FENA-21 supports media redundancy protocol (MRP) ring topologies, ensuring continued supervisory control if a single Ethernet segment fails. This configuration is recommended for continuous process applications where drive communication loss would trigger a process shutdown.

Q3: What is the warranty coverage and supply assurance for the ZCU-12 sourced from NANKMOS? All ZCU-12 units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing against ABB factory acceptance criteria before dispatch. NANKMOS maintains in-stock inventory of ZCU-12 and related ACS880 option modules including FIO-01, FEN-01, FPBA-01, and FENA-21, supporting both planned maintenance schedules and emergency replacement requirements with short lead times.
