ABB FEN-01 Encoder Interface Module

Product Details

FEN-01 Product Description

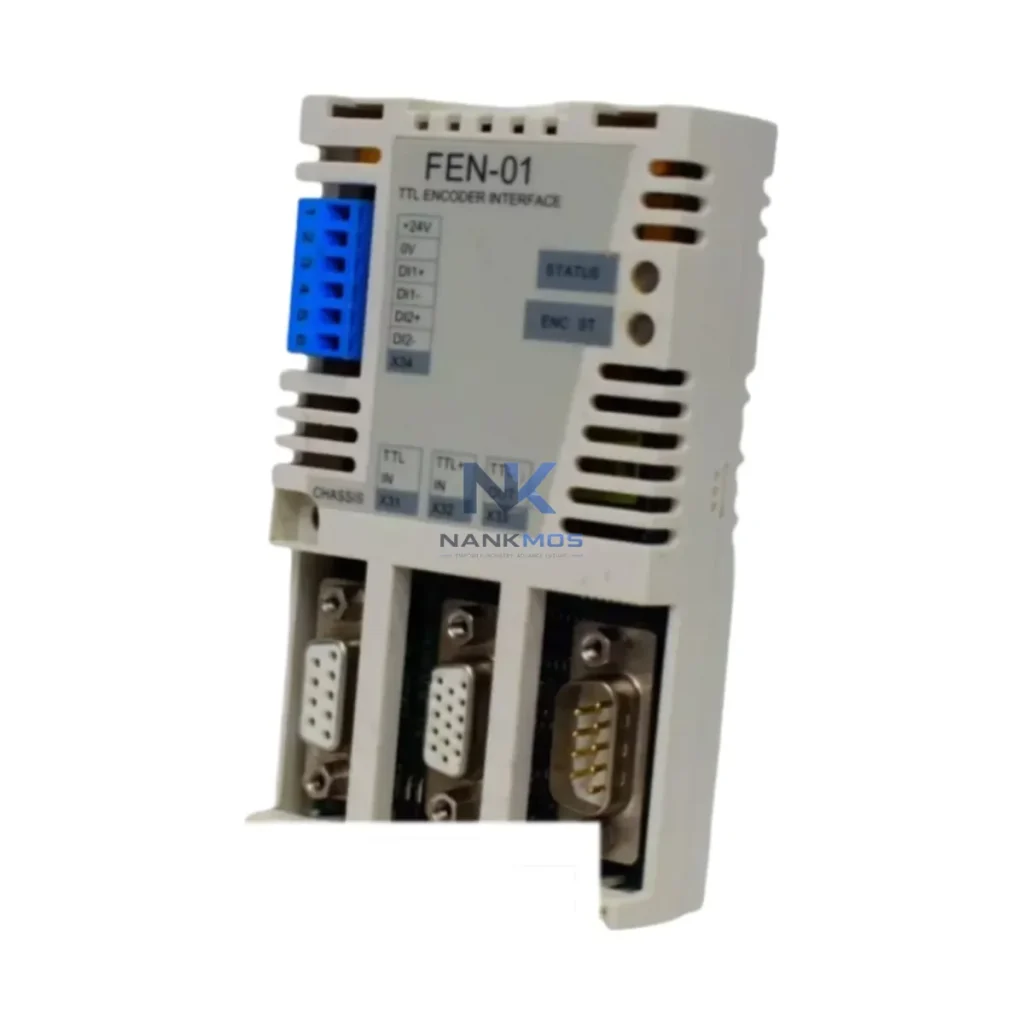

The ABB FEN-01 is a precision encoder feedback interface module engineered for seamless integration within ABB ACS series variable frequency drive (VFD) architectures. Designed to bridge the feedback layer between rotating machinery and the drive control platform, the FEN-01 delivers high-resolution position and speed data that underpins closed-loop vector control, servo-class positioning, and advanced process regulation across demanding industrial environments. Its role within the control architecture extends far beyond a simple signal conduit — the FEN-01 is a critical enabler of system coherence, diagnostic transparency, and long-term operational reliability.

In modern industrial automation, the integrity of the feedback signal chain directly determines the quality of motor control. The FEN-01 accepts incremental and absolute encoder inputs, converting raw positional data into structured feedback that the ACS drive's control layer can act upon with microsecond-level precision. This capability is essential in applications where speed regulation accuracy, torque linearity, and position repeatability are non-negotiable — including CNC machining centers, high-speed packaging lines, precision winding systems, and servo-driven conveyor architectures.

The FEN-01 is designed as an option module that slots directly into the ACS880, ACS580, ACS380, and ACS310 drive platforms, maintaining full electrical and firmware compatibility within the ABB drive ecosystem. This plug-in architecture eliminates the need for external signal conditioning hardware, reduces panel wiring complexity, and ensures that encoder feedback is processed natively within the drive's real-time control kernel — minimizing latency and maximizing closed-loop bandwidth.

Within a layered automation architecture, the FEN-01 operates at the intersection of the I/O layer and the control layer. It receives encoder pulses from the motor-mounted feedback device and delivers structured position and velocity data upward to the drive's speed controller and, via the drive's fieldbus interface, to the supervisory PLC or DCS. When paired with an FCAN-01 CANopen adapter or FPBA-01 PROFIBUS adapter mounted in an adjacent option slot, the FEN-01's feedback data becomes available across the entire control network — enabling coordinated multi-axis motion, centralized diagnostics, and real-time process optimization from the SCADA or HMI layer.

The module supports both single-ended and differential encoder signal types, with configurable input voltage levels to accommodate a wide range of encoder hardware from leading manufacturers. Its onboard signal processing filters noise and compensates for cable-induced signal degradation, ensuring feedback integrity even in electrically noisy environments typical of heavy industrial installations. This robustness is particularly valuable in applications adjacent to high-power switchgear, variable-speed pump stations, or large induction motor banks where EMI levels are elevated.

From a system redundancy perspective, the FEN-01 supports dual-encoder configurations on compatible ACS platforms, enabling primary and secondary feedback paths for safety-critical or high-availability applications. In the event of primary encoder failure, the drive can seamlessly transition to the secondary feedback source, maintaining process continuity and avoiding unplanned shutdowns. This capability is especially relevant in continuous process industries such as petrochemical refining, pulp and paper production, and water treatment, where drive downtime carries significant operational and financial consequences.

Installation and commissioning of the FEN-01 follow ABB's standardized option module procedure. The module is inserted into the designated option slot on the drive's control unit, secured with the retention latch, and recognized automatically by the drive firmware upon power-up. Parameter configuration is performed via the drive's keypad, DriveStudio PC tool, or remotely through the connected fieldbus master. Encoder type, pulse count, signal level, and feedback channel assignment are all configurable without hardware modification, supporting rapid adaptation to different motor and encoder combinations across a fleet of drives.

For maintenance engineers, the FEN-01 provides onboard diagnostic registers accessible via the drive's parameter interface. Encoder signal status, pulse count integrity, and feedback channel health are continuously monitored and reported, enabling predictive maintenance workflows and reducing mean time to repair (MTTR) when encoder-related faults occur. Integration with ABB's Ability™ digital platform or third-party CMMS systems via OPC-UA or Modbus TCP allows these diagnostic data streams to be incorporated into plant-wide asset health monitoring programs.

Every ABB FEN-01 supplied by NANKMOS is sourced from authorized distribution channels, pre-shipment tested against ABB's functional verification criteria, and covered by a 12-Month Warranty. Stock is maintained to support both immediate replacement requirements and planned project deployments, with expedited shipping available for critical maintenance scenarios.

The FEN-01 achieves its full value when deployed as part of a cohesive ABB automation platform. In a typical ACS880 multi-drive cabinet installation, the FEN-01 occupies option slot 1 or 2 on the drive's ZCU control unit, while an FPBA-01 PROFIBUS DP adapter or FENA-21 Ethernet/IP adapter in an adjacent slot provides the fieldbus uplink to the plant PLC — typically an ABB AC500 series controller or a Siemens S7-300/400 system. The PLC receives real-time speed and position feedback from the FEN-01 via the drive's cyclic process data channel, enabling coordinated multi-axis control without additional hardware.

In the power layer, the ACS880 drive is typically fed from an ABB ACH580 line reactor or du/dt filter to limit voltage stress on motor windings, while an ABB UNS0881A or similar brake chopper module manages regenerative energy during deceleration cycles. The FEN-01's feedback data informs the drive's flux optimization algorithm, reducing motor losses and improving energy efficiency — a measurable benefit in high-duty-cycle applications such as centrifugal compressors or large pump stations.

At the HMI layer, an ABB CP600 panel or third-party Weintek/Siemens TP series HMI connects to the PLC via Ethernet, displaying real-time speed, torque, and position data derived from the FEN-01 feedback stream. Alarm management, trend logging, and recipe management functions at the HMI level all depend on the accuracy and latency of the encoder feedback chain anchored by the FEN-01.

For installations requiring functional safety, the FEN-01 can be combined with an FSO-12 safety functions module on the ACS880 platform, enabling STO (Safe Torque Off), SS1 (Safe Stop 1), and SLS (Safely Limited Speed) functions that reference the encoder feedback for speed monitoring. This combination supports SIL 2 / PLd safety architectures without external safety relays, simplifying panel design and reducing wiring costs.

In distributed I/O architectures, ABB ACSM1 servo drives equipped with FEN-01 modules can be networked via FMBA-01 Modbus RTU adapters to a central gateway, aggregating feedback data from multiple axes into a single Modbus TCP stream for SCADA integration. This architecture is common in multi-pump water treatment stations, multi-zone HVAC systems, and multi-axis material handling lines where centralized monitoring is required but individual drive intelligence is preserved.

Power Generation & Utilities: In gas turbine auxiliary systems and boiler feed pump drives, the FEN-01 provides the closed-loop speed feedback that enables precise flow regulation and load-following response. Its dual-encoder capability supports redundant feedback architectures required by power plant safety standards.

Petrochemical & Oil and Gas: Compressor and pump drives in hazardous area installations rely on the FEN-01's robust signal processing to maintain feedback integrity despite high EMI levels from adjacent high-voltage equipment. The module's compatibility with ATEX-rated motor encoders ensures compliance with zone classification requirements.

Water Treatment & Municipal Infrastructure: Variable-speed pump stations equipped with ACS880 drives and FEN-01 modules achieve precise pressure and flow control, reducing energy consumption and extending pump service life through optimized speed profiles derived from accurate encoder feedback.

Mining & Minerals Processing: Conveyor drives, crusher drives, and hoist systems in mining applications demand high torque accuracy at low speeds — a capability that depends directly on the quality of encoder feedback delivered by the FEN-01. Its wide operating temperature range supports installation in surface and underground environments.

Marine Propulsion & Offshore: Thruster drives and winch systems on offshore vessels use the FEN-01 to maintain dynamic positioning accuracy and load control under variable sea conditions. The module's vibration resistance and sealed connector interface support the mechanical demands of marine installations.

Packaging & Converting: High-speed web tension control, register control, and cut-to-length systems in packaging lines require sub-millisecond feedback latency — a requirement met by the FEN-01's direct integration with the ACS drive's real-time control kernel.

Q1: Is the FEN-01 compatible with all ACS series drives, and how is it configured for different encoder types?The FEN-01 is compatible with ACS880, ACS580, ACS380, and ACS310 drives that feature the standard ABB option slot interface. Configuration is performed via drive parameters (parameter group 92 on ACS880) using the drive keypad, DriveStudio, or fieldbus master. Encoder type (TTL/HTL incremental or SSI absolute), pulse count, and signal voltage are all software-configurable without hardware modification, supporting rapid adaptation across different motor and encoder combinations.

Q2: Can the FEN-01 be used in a redundant feedback architecture, and what happens if the primary encoder fails?Yes. On ACS880 platforms with dual option slots, two FEN-01 modules can be installed to provide primary and secondary encoder feedback paths. The drive firmware monitors both channels continuously and can be configured to switch automatically to the secondary feedback source upon detection of a primary encoder fault, maintaining closed-loop control and process continuity. This capability supports high-availability applications in continuous process industries where unplanned drive trips are unacceptable.

Q3: What warranty and supply assurance does NANKMOS provide for the FEN-01?Every FEN-01 supplied by NANKMOS carries a 12-Month Warranty covering manufacturing defects and functional performance. All units undergo pre-shipment functional testing against ABB's verification criteria before dispatch. Stock is maintained for immediate availability, with expedited shipping options for critical maintenance and emergency replacement scenarios. Long-term supply continuity is supported through authorized distribution channels, ensuring consistent access to genuine ABB option modules for ongoing project and maintenance requirements.
