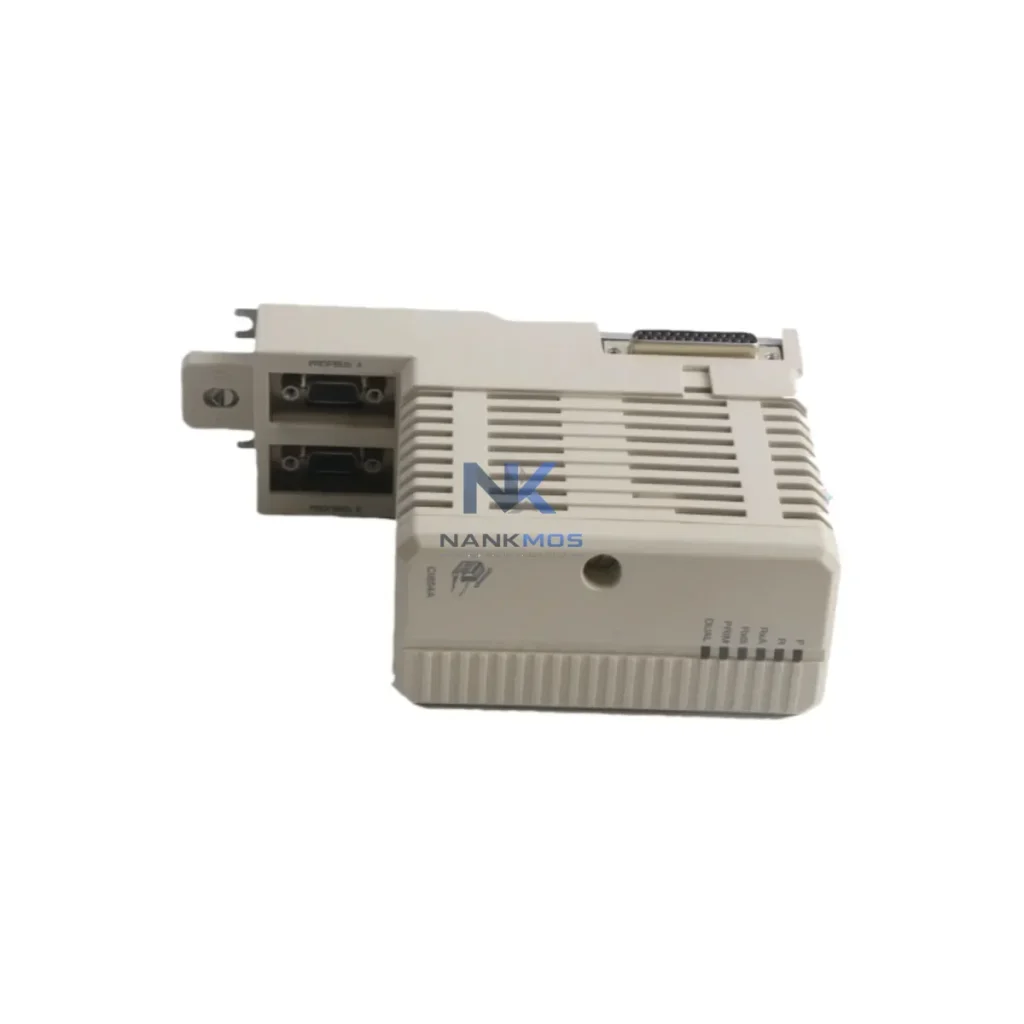

ABB 3BDH000395R0001 Protocol Gateway

Product Details

3BDH000395R0001 Product Description

The ABB 3BDH000395R0001 is a high-performance PROFIBUS DP Master Communication Module engineered for seamless integration within ABB's AC800M Distributed Control System architecture. Designed to serve as the critical data link between field-level devices and upper-layer control and monitoring systems, this module enables deterministic, real-time communication across complex industrial network topologies. Whether deployed in power generation, petrochemical processing, oil and gas facilities, water treatment plants, or advanced smart factory environments, the 3BDH000395R0001 delivers the protocol conversion, network stability, and data throughput required for modern industrial automation.

At its core, the 3BDH000395R0001 functions as a PROFIBUS DP Master, orchestrating cyclic and acyclic data exchange between the AC800M controller and a wide range of field devices including remote I/O stations, variable frequency drives, intelligent motor controllers, pressure transmitters, flow meters, and distributed sensor arrays. By acting as the protocol gateway between the AC800M's internal communication bus and the PROFIBUS DP network segment, this module eliminates data silos that commonly arise when legacy field instruments cannot natively communicate with modern DCS platforms. The result is a unified, transparent data flow from the sensor level all the way to the SCADA and HMI layers.

In a typical smart factory deployment, the 3BDH000395R0001 sits at the heart of the field communication architecture. Field signals originating from S800 I/O modules, ABB HART-enabled transmitters, and third-party PROFIBUS DP slave devices are aggregated and forwarded through the module to the AC800M PM866 or PM891 processor. From there, process data is made available to ABB's 800xA System 1 platform for real-time visualization, alarm management, and historian logging. Operators at HMI workstations gain immediate visibility into field device status, loop performance, and network health — all without manual polling or data reconciliation delays.

The module's protocol conversion capability is particularly valuable in brownfield modernization projects where existing PROFIBUS DP infrastructure must be preserved while the upper-layer control system is upgraded. Rather than replacing field wiring and instrumentation, engineers can retain proven PROFIBUS DP slave devices — such as Siemens ET 200S remote I/O, ABB ACS880 variable frequency drives, and Endress+Hauser Promass Coriolis flow meters — and connect them directly to the AC800M environment through the 3BDH000395R0001. This approach dramatically reduces migration risk, capital expenditure, and production downtime.

Network stability is a defining characteristic of the 3BDH000395R0001. The module supports PROFIBUS DP data rates up to 12 Mbit/s and manages bus timing, token passing, and error recovery autonomously, ensuring that transient network disturbances do not propagate into the control loop. Redundant communication paths can be configured at the AC800M system level, and the module integrates with ABB's built-in diagnostics framework to surface bus fault conditions, slave device dropouts, and CRC error rates directly within the 800xA engineering environment. This enables remote diagnostics without requiring a site visit — a critical capability for unmanned substations, offshore platforms, and geographically distributed process plants.

For SCADA integration, the 3BDH000395R0001 supports OPC DA and OPC UA data publication through the AC800M and 800xA middleware stack, making process variables, device diagnostics, and alarm states available to third-party SCADA platforms, MES systems, and cloud-based data analytics engines. This positions the module as a foundational component in Industry 4.0 data architectures where edge-to-cloud connectivity, predictive maintenance, and digital twin synchronization are operational priorities. Paired with ABB's AC800M OPC Server and System 1 condition monitoring software, the 3BDH000395R0001 enables continuous equipment health tracking and anomaly detection across rotating machinery, heat exchangers, and critical process loops.

Every 3BDH000395R0001 unit supplied by NANKMOS is pre-shipment tested against ABB factory acceptance criteria, verifying PROFIBUS DP master functionality, cyclic data exchange integrity, and communication timing compliance before dispatch. Units are supplied with a 12-month warranty covering manufacturing defects and communication performance, backed by in-stock availability for rapid deployment. Whether you are commissioning a new AC800M DCS installation, expanding an existing PROFIBUS DP network segment, or replacing a failed communication module in a live production environment, NANKMOS provides verified, ready-to-install hardware with full traceability.

In a fully connected smart factory, the 3BDH000395R0001 anchors the field communication layer of the AC800M DCS. At the lowest level, field instruments — including ABB HART transmitters, Endress+Hauser Promag electromagnetic flow meters, and Yokogawa EJA pressure transmitters configured as PROFIBUS DP slaves — transmit process values cyclically to the module at scan rates as fast as 1 ms per cycle. The module aggregates these signals and delivers them to the AC800M PM866 processor via the internal backplane bus, where control logic executes in real time.

Above the controller layer, the AC800M communicates with ABB's 800xA Distributed Control System platform, which serves as the central SCADA and HMI environment. Operators interact with process graphics, trend displays, and alarm lists that are populated directly from the PROFIBUS DP data collected by the 3BDH000395R0001. Simultaneously, the 800xA historian archives time-stamped process data for regulatory compliance, performance benchmarking, and root cause analysis.

For drives integration, ABB ACS880 variable frequency drives and ACS580 general-purpose drives connected as PROFIBUS DP slaves report speed references, torque feedback, fault codes, and energy consumption data through the 3BDH000395R0001 to the AC800M. This enables closed-loop speed control, energy optimization, and predictive maintenance scheduling without additional wiring or signal converters. Similarly, Siemens ET 200SP remote I/O stations and Phoenix Contact Axioline F distributed I/O modules can be integrated as PROFIBUS DP slaves, extending the I/O footprint of the AC800M system across large plant areas without running individual signal cables back to the control room.

At the edge layer, ABB's AC800M OPC Server publishes PROFIBUS DP process data to third-party SCADA platforms, MES systems, and cloud analytics engines via OPC UA. This enables integration with Wonderware InTouch HMI, Ignition SCADA, and OSIsoft PI historian systems, creating a unified data fabric that spans from field sensor to enterprise dashboard. Remote diagnostics are supported through the 800xA Remote Engineering Station, allowing control engineers to monitor PROFIBUS DP bus health, reconfigure slave parameters, and acknowledge alarms from any network-connected workstation.

Industrial automation sites frequently suffer from fragmented communication architectures where field devices speak different protocols, data is trapped in isolated control islands, and operators lack real-time visibility into process performance. The ABB 3BDH000395R0001 directly addresses these challenges by providing a standardized PROFIBUS DP master interface that unifies diverse field devices under a single, deterministic communication framework.

Protocol Fragmentation: Sites with mixed PROFIBUS DP, HART, and analog 4–20 mA instrumentation can consolidate field data through the 3BDH000395R0001 by connecting PROFIBUS DP-capable devices directly and routing HART and analog signals through PROFIBUS DP-enabled remote I/O modules such as the ABB S800 I/O series. This eliminates the need for separate protocol converters and reduces wiring complexity.

Data Silos: Legacy DCS installations often store process data in proprietary formats that cannot be accessed by modern SCADA or MES platforms. By publishing PROFIBUS DP data through the AC800M's OPC UA server, the 3BDH000395R0001 breaks down these silos and makes process variables available to any OPC-compliant client application, enabling cross-system data correlation and enterprise-wide reporting.

Remote Monitoring Gaps: Unmanned substations, remote pump stations, and offshore platforms require reliable remote diagnostics without on-site personnel. The 3BDH000395R0001's integration with the AC800M's built-in diagnostic framework enables remote monitoring of PROFIBUS DP bus health, slave device status, and communication error rates through the 800xA Remote Engineering Station, reducing the need for costly site visits.

Production Line Transparency: Manufacturing sites seeking to implement OEE (Overall Equipment Effectiveness) tracking require real-time data from every machine and process unit. The 3BDH000395R0001 enables continuous data collection from PROFIBUS DP-connected drives, motors, and sensors, feeding production KPIs directly into MES and analytics platforms for real-time OEE calculation and downtime analysis.

Alarm Management and System Expansion: As production requirements evolve, the PROFIBUS DP network can be expanded by adding new slave devices without modifying the AC800M control program. The 3BDH000395R0001 supports dynamic slave configuration, allowing new instruments and drives to be commissioned online with minimal disruption to running processes.

Q1: What is the maximum number of PROFIBUS DP slave devices the 3BDH000395R0001 can manage? The 3BDH000395R0001 supports up to 125 PROFIBUS DP slave addresses per network segment, consistent with the PROFIBUS DP standard (EN 50170). In practice, the number of active slaves is constrained by the total cyclic data volume and the configured bus cycle time. For high-density installations, multiple 3BDH000395R0001 modules can be deployed across separate PROFIBUS DP segments within the same AC800M system to distribute the communication load and maintain deterministic scan times.

Q2: Is the 3BDH000395R0001 compatible with third-party PROFIBUS DP slave devices from other manufacturers? Yes. The 3BDH000395R0001 is fully compliant with the PROFIBUS DP standard (EN 50170) and supports interoperability with any certified PROFIBUS DP V0, V1, or V2 slave device, regardless of manufacturer. This includes Siemens ET 200 remote I/O, Endress+Hauser field instruments, Yokogawa transmitters, Phoenix Contact I/O modules, and ABB ACS series drives. GSD (General Station Description) files for third-party devices are imported through the AC800M engineering tool to configure slave parameters.

Q3: How does the 3BDH000395R0001 support remote diagnostics and network health monitoring? The module integrates with the AC800M's built-in diagnostic framework to report PROFIBUS DP bus fault conditions, slave device dropouts, token loss events, and CRC error rates directly within the ABB 800xA engineering environment. Diagnostic data is accessible remotely through the 800xA Remote Engineering Station over standard Ethernet, enabling control engineers to monitor network health, identify failing devices, and initiate corrective actions without requiring physical access to the control cabinet. This capability is particularly valuable for unmanned facilities and geographically distributed plant networks.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the 3BDH000395R0001? Every 3BDH000395R0001 unit supplied by NANKMOS undergoes pre-shipment functional testing that verifies PROFIBUS DP master initialization, cyclic data exchange with test slave devices, and communication timing compliance at multiple baud rates including 1.5 Mbit/s and 12 Mbit/s. Units are supplied with a 12-month warranty covering manufacturing defects and communication performance degradation. In-stock units are available for immediate dispatch, supporting urgent replacement requirements in live production environments.
