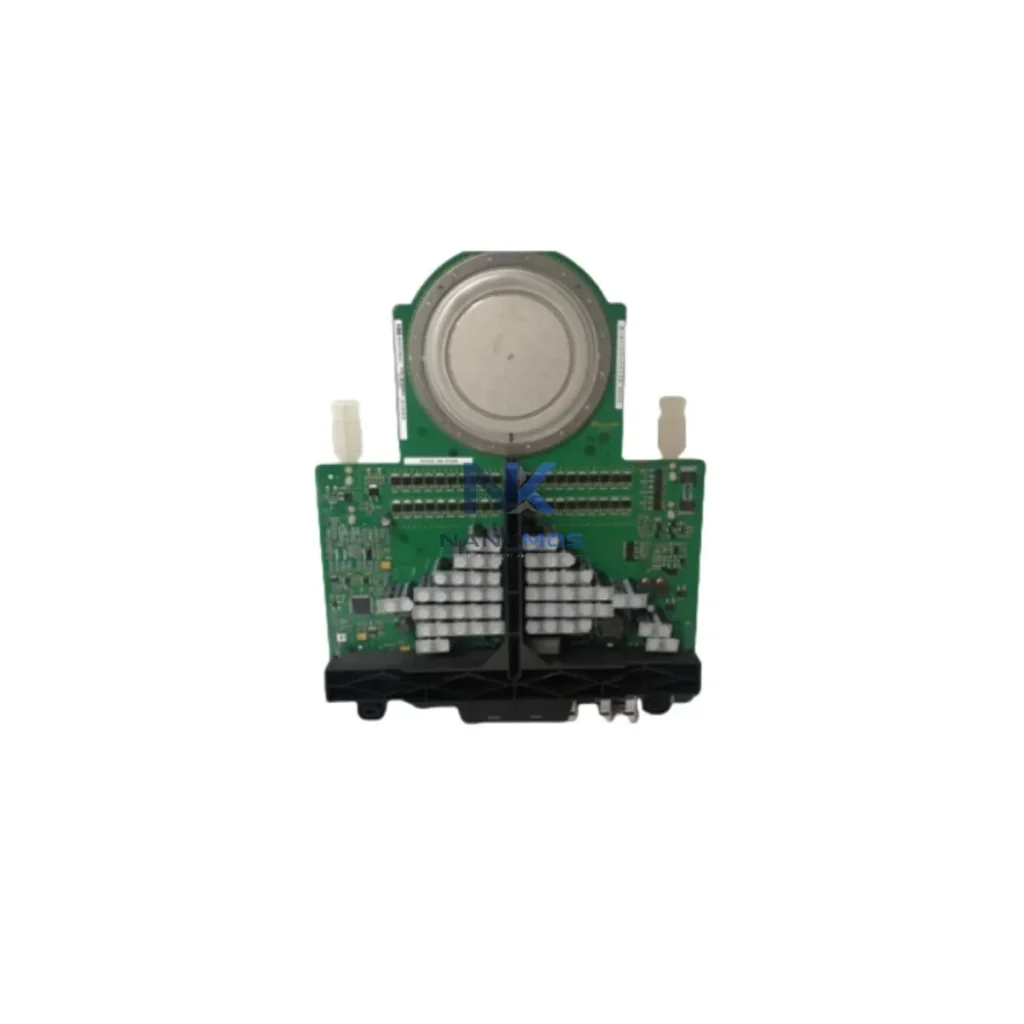

3BHB020720R0002 5SHY3545L0016 Product Description

The ABB 3BHB020720R0002 (5SHY3545L0016) is a high-power Integrated Gate-Commutated Thyristor (IGCT) module engineered for deployment within ABB's ACS6000 and PCS6000 medium-voltage drive platforms. As a core switching element in the power conversion stack, this IGCT module defines the boundary between the control architecture and the high-voltage power circuit, enabling precise, low-loss commutation at multi-megawatt output levels. Its role is not peripheral — it is the functional heart of the inverter stage, and its compatibility with the surrounding control, gate-drive, and protection layers determines the reliability and performance of the entire drive system.

In modern industrial automation, medium-voltage drives are no longer standalone devices. They are integrated nodes within a layered control architecture that spans the field level, the process control level, and the enterprise management level. The 5SHY3545L0016 IGCT is designed with this architectural reality in mind. Its electrical characteristics — including gate trigger requirements, di/dt ratings, and thermal dissipation profile — are matched to the ABB ACS6000 gate unit and snubber circuit topology, ensuring that the module slots into the existing power stack without requiring redesign of adjacent components. This system-matched approach reduces commissioning time, eliminates compatibility risk, and preserves the integrity of the drive's protection coordination.

The 3BHB020720R0002 IGCT module does not operate in isolation. Its performance is inseparable from the coherence of the surrounding automation platform. Within the ACS6000 drive cabinet, the IGCT works in concert with the ABB 3BHB013088R0001 gate unit, which delivers the precisely timed, high-current gate pulses required for unity-gain turn-off. The gate unit itself receives firing commands from the ACS6000 inverter control board (AINT), which executes the direct torque control (DTC) algorithm and coordinates switching sequences across all six IGCT positions in the three-phase inverter bridge.

At the DC link level, the IGCT interfaces with the ACS6000 DC capacitor bank assembly, which buffers the rectified supply voltage and absorbs the transient energy released during commutation. The integrity of this capacitor bank directly affects the voltage stress seen by the IGCT during turn-off, making its condition a critical factor in IGCT service life. Upstream of the DC link, the ACS6000 input transformer and rectifier section — typically a 12-pulse or 24-pulse diode rectifier — establishes the DC bus voltage that the IGCT must block and switch.

On the control side, the ABB AC800M controller or AC800PEC high-performance controller provides the supervisory process control layer, communicating with the ACS6000 drive via PROFIBUS DP or IEC 61850 depending on the application. For process industries requiring redundant control, the AC800M supports hot-standby redundancy, ensuring that a controller fault does not propagate to a drive trip. The ABB Panel 800 HMI or ABB CP600 operator panel provides local visualization of drive status, IGCT junction temperature trends, and fault history, enabling maintenance engineers to assess IGCT health without accessing the drive cabinet directly.

In multi-drive installations — common in compressor trains, pump stations, and rolling mill lines — the ABB INSUM medium-voltage switchgear interface coordinates the sequencing of multiple ACS6000 drives on a common MV bus, preventing simultaneous inrush events that could stress the IGCT modules across the installation. The ABB REF615 feeder protection relay provides upstream overcurrent and earth-fault protection, forming the first line of defense before the drive's internal IGCT protection logic activates.

For installations requiring condition monitoring, the ABB Ability™ Smart Sensor ecosystem can be integrated to track thermal and vibration signatures of the motor load, providing early warning of mechanical faults that would otherwise manifest as abnormal current profiles through the IGCT. This contextual integration of sensing, control, protection, and power conversion layers is what transforms a single IGCT module into a reliable, long-service-life component within a coherent automation architecture.

Oil & Gas Compression: In offshore and onshore gas compression platforms, the ACS6000 drive with 5SHY3545L0016 IGCT modules controls multi-megawatt centrifugal compressors. The IGCT's low switching losses reduce heat rejection requirements in enclosed, ventilation-limited equipment rooms, while the drive's DTC algorithm enables rapid speed response to process pressure fluctuations without mechanical throttling.

Power Generation & Grid-Tied Applications: In PCS6000 static frequency converter configurations for gas turbine starting and pumped-storage hydro, the 3BHB020720R0002 IGCT handles the high-current, high-voltage switching demands of machine-side and grid-side converters. The press-pack housing ensures reliable clamping force and thermal contact across the full operating cycle, critical for applications with frequent start-stop sequences.

Mining Hoists and Winders: Underground mine hoists demand four-quadrant drive operation with regenerative braking capability. The IGCT's bidirectional current capability within the ACS6000 active front-end topology enables full regeneration, returning braking energy to the MV grid and reducing net energy consumption across multi-shift operations.

Steel and Metals Processing: Rolling mill main drives require precise torque control at low speeds and high dynamic response during strip threading. The ACS6000 DTC algorithm, executed through the IGCT switching stage, delivers torque response times below 5 ms, enabling strip tension control without mechanical dancer rolls in tandem mill configurations.

Water and Wastewater Infrastructure: Large pumping stations serving municipal water supply or desalination plants use ACS6000 drives to control 3–8 MW vertical turbine pumps. Soft-start and variable-speed operation through the IGCT-based inverter eliminates water hammer events and reduces pipe stress, extending infrastructure service life.

Q1: Is the 3BHB020720R0002 a direct replacement for other 5SHY-series IGCT modules in the ACS6000? The 5SHY3545L0016 is a specific voltage and current class within the 5SHY press-pack IGCT family. Direct substitution requires verification of VDRM rating, average current rating, gate unit compatibility (specifically the 3BHB013088R0001 gate unit pairing), and snubber network values. ABB's ACS6000 service documentation specifies approved replacement part numbers for each drive rating. We recommend cross-referencing the drive's nameplate rating and the original BOM before installation. Our technical team can assist with compatibility verification prior to shipment.

Q2: What pre-shipment testing is performed, and how does the 12-Month Warranty apply to installed modules? Each 3BHB020720R0002 unit undergoes parameter verification including forward voltage drop (VT), gate trigger current threshold, and leakage current measurement prior to shipment. Units are shipped with test records. The 12-Month Warranty covers manufacturing defects and parameter non-conformance under normal operating conditions as defined by the ACS6000 installation manual. Warranty claims require documentation of correct installation, coolant quality compliance, and gate unit pairing. Contextual Integration support — including installation guidance and commissioning checklist — is available upon request.

Q3: How should IGCT module inventory be managed in a multi-drive installation to minimize unplanned downtime? For installations with three or more ACS6000 drives, maintaining one spare IGCT module per drive rating on-site is standard practice in critical process industries. The 5SHY3545L0016 has a defined shelf life under controlled storage conditions (temperature 15–35°C, humidity <75% RH, no vibration). Modules stored beyond 24 months should undergo re-verification of leakage current before installation. NANKMOS maintains bonded inventory of this part number to support emergency replenishment with lead times typically under 5 business days for verified stock.
