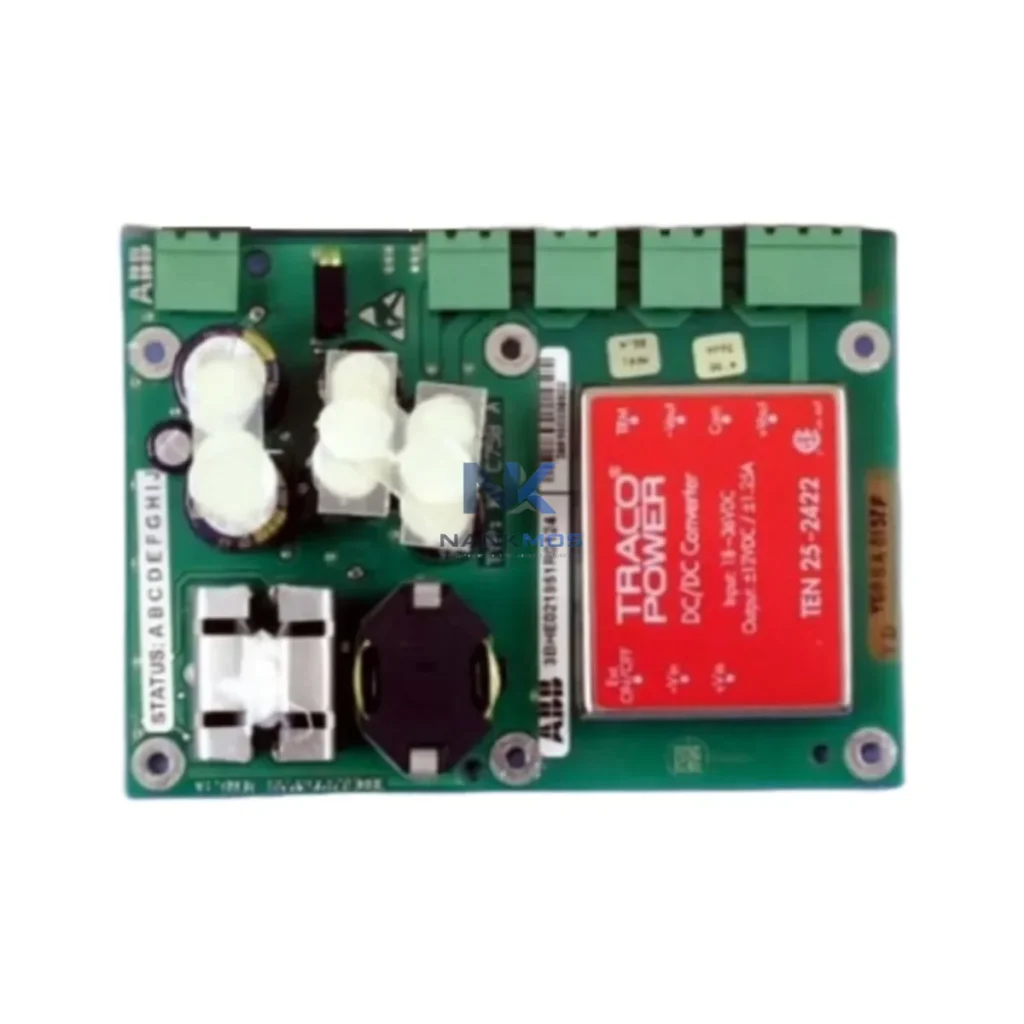

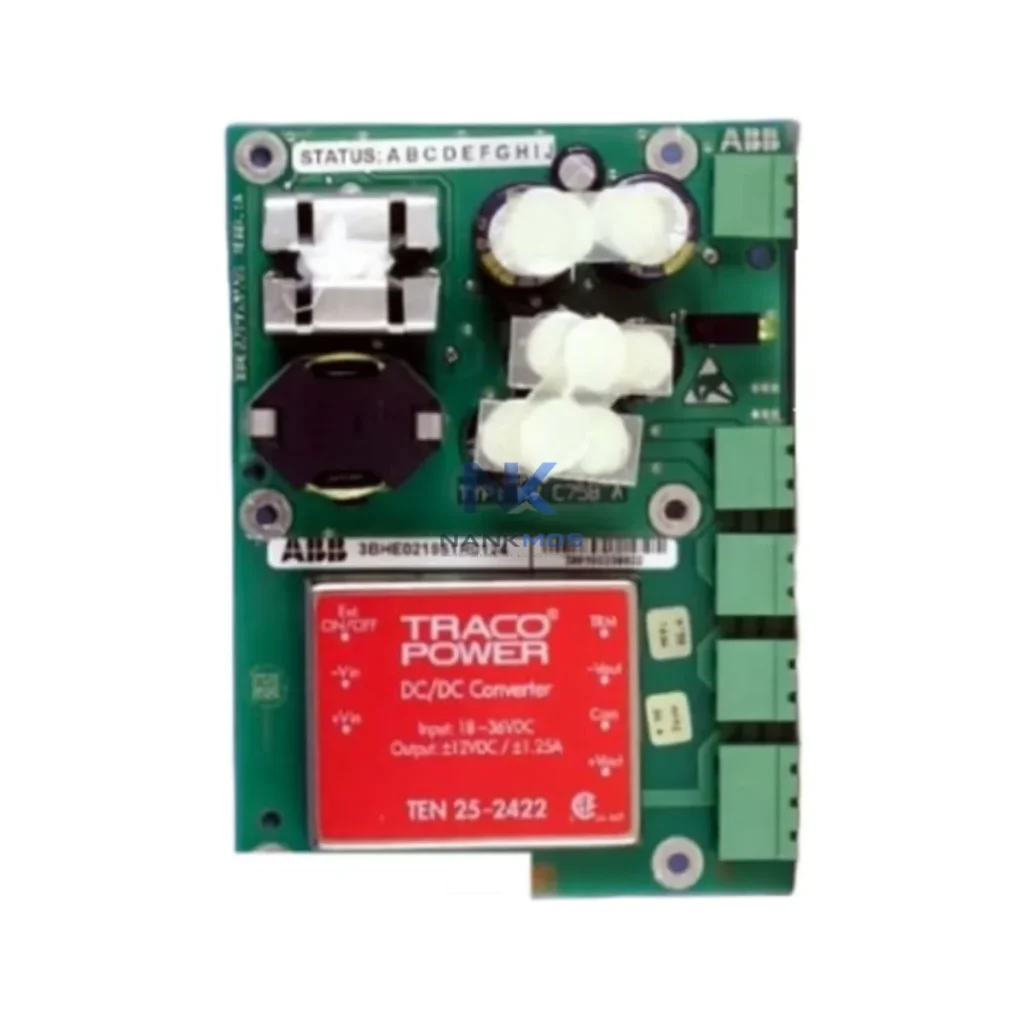

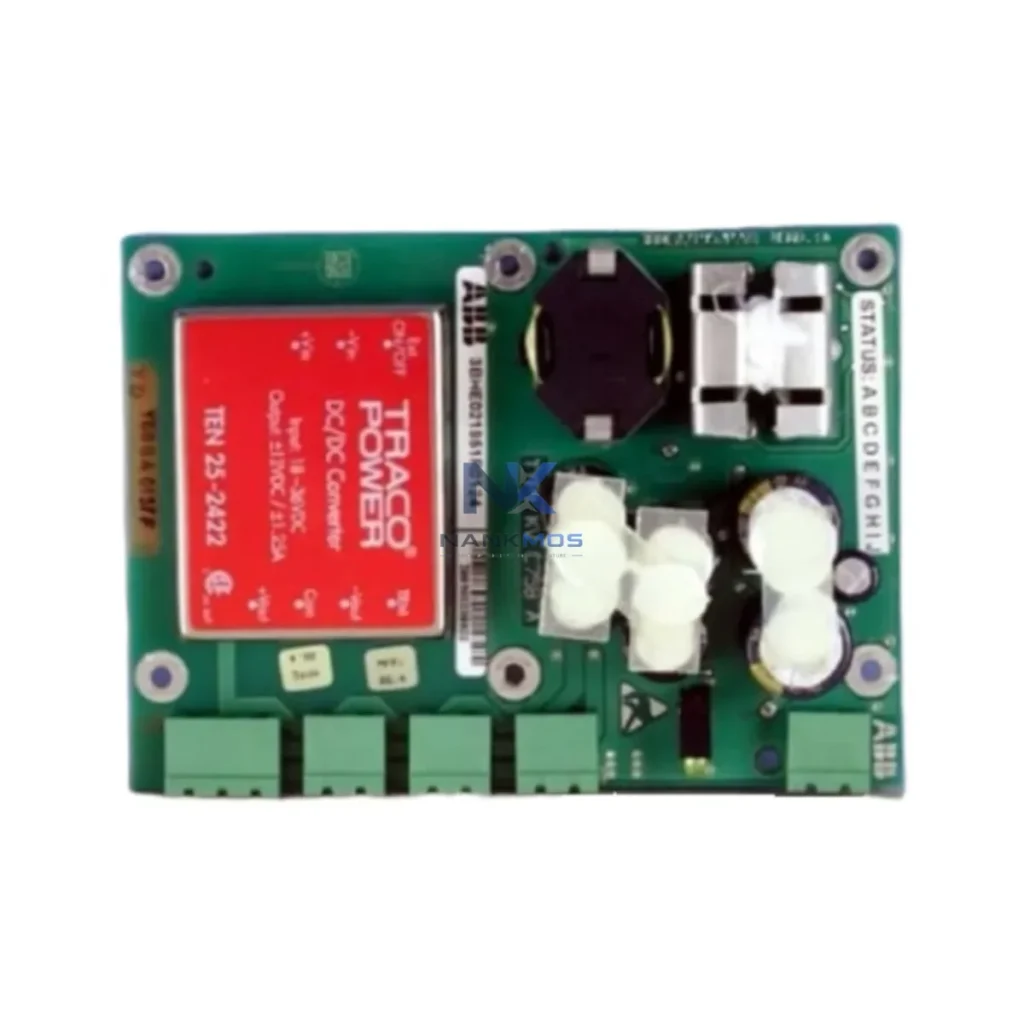

ABB 3BHE021951R0124 KVC758 A124 Dual Voltage Sub-Board

Product Details

3BHE021951R0124 KVC758 A124 Product Description

The ABB 3BHE021951R0124 KVC758 A124 is a precision-engineered dual voltage sub-board designed for deployment within ABB's UNITROL excitation control systems. In modern industrial environments where energy efficiency and load stability are mission-critical, this board plays a central role in regulating generator excitation voltage, minimizing reactive power losses, and maintaining optimal power factor across the production line. Its robust design supports continuous operation in high-demand environments including power generation plants, heavy manufacturing facilities, and process automation lines where uptime and energy accountability are non-negotiable.

Within a fully integrated smart production line, the ABB 3BHE021951R0124 KVC758 A124 dual voltage board does not operate in isolation — it is a key node in a broader energy-aware automation architecture. The board interfaces directly with the ABB UNITROL 5000 automatic voltage regulator (AVR), which governs excitation current to the synchronous generator, ensuring that voltage output remains stable even under fluctuating load conditions. This stability is essential for downstream equipment including ABB ACS880 variable frequency drives (VFDs), which depend on clean, regulated power to modulate motor speed and torque without introducing harmonic distortion into the grid.

On the control side, the board's operational status is monitored and managed through ABB AC500 PLCs, which collect real-time feedback signals from the excitation system and relay them to the plant's SCADA platform. This closed-loop architecture allows operators to detect anomalies — such as voltage drift or thermal overload — before they escalate into unplanned downtime. The ABB AC500 PLC communicates over PROFIBUS-DP and Modbus RTU protocols, enabling seamless integration with third-party I/O modules, power monitoring relays, and HMI panels deployed across the facility.

Power quality monitoring is further enhanced by pairing the KVC758 A124 board with ABB's M2M power measurement modules, which track active power, reactive power, and power factor in real time. These measurements feed directly into the plant's energy management system (EMS), enabling granular load profiling and demand-side optimization. When the excitation system is properly tuned via this dual voltage board, reactive power compensation is achieved at the source — reducing the burden on external power factor correction capacitors and lowering overall energy costs.

For motor-driven applications connected to the same power bus, ABB ACH580 HVAC drives and ABB ACS580 general-purpose drives benefit from the stable voltage environment maintained by the UNITROL excitation chain. Reduced voltage fluctuation translates directly into lower motor winding stress, extended bearing life, and fewer nuisance trips on thermal overload relays. The result is a measurable improvement in overall equipment effectiveness (OEE) across motor-driven production assets.

Communication between the excitation controller, PLC, and SCADA is further supported by ABB CI854 PROFIBUS communication modules, which provide deterministic, low-latency data exchange. This ensures that energy consumption data, fault diagnostics, and load trend information are available to plant engineers in real time — enabling proactive maintenance scheduling and energy budget forecasting.

Factories operating synchronous generators or large motor-generator sets face a persistent challenge: maintaining voltage stability while minimizing energy waste during partial-load and transient conditions. The ABB 3BHE021951R0124 KVC758 A124 addresses this challenge at the hardware level by providing dual-channel voltage regulation within the UNITROL excitation system. By precisely controlling field current, the board ensures that the generator operates at or near unity power factor, eliminating the reactive power penalties that inflate energy bills and stress distribution infrastructure.

During production line ramp-up — when motor loads surge simultaneously and voltage dip risk is highest — the KVC758 A124 board responds within milliseconds to compensate excitation and maintain bus voltage within acceptable limits. This rapid response prevents the cascade of events that typically leads to VFD fault trips, PLC watchdog resets, and unplanned line stoppages. The downstream effect is a smoother production rhythm, reduced scrap rates from process interruptions, and lower maintenance costs associated with voltage-stress-induced component failures.

Thermal load management is another area where this board delivers measurable value. By maintaining optimal excitation levels — neither over-exciting nor under-exciting the generator — the board prevents excessive heat buildup in the rotor windings and stator core. This extends the thermal life of the generator and reduces the cooling energy required to maintain safe operating temperatures in the machine room. Over a 12-month operational cycle, the cumulative energy savings from optimized excitation control can be significant, particularly in facilities running generators at variable loads across multiple shifts.

Predictive maintenance integration is supported through the board's compatibility with ABB Ability™ condition monitoring platforms, which analyze excitation system trends to forecast component wear before failure occurs. Maintenance teams can schedule board inspections and replacements during planned downtime windows rather than reacting to emergency failures — a shift from reactive to predictive maintenance that directly improves plant availability and reduces total cost of ownership.

Every ABB 3BHE021951R0124 KVC758 A124 unit supplied by NANKMOS undergoes comprehensive pre-shipment testing, including functional verification under simulated load conditions, insulation resistance checks, and output voltage calibration. Stock is maintained in our warehouse to support fast dispatch, and all units are covered by a 12-month warranty from the date of delivery.

Q1: How does the 3BHE021951R0124 KVC758 A124 contribute to energy savings in a generator-based power system?By precisely regulating excitation voltage within the ABB UNITROL system, this board maintains near-unity power factor operation, which eliminates reactive power losses and reduces the apparent power demand on the distribution network. This translates into lower energy consumption, reduced transformer loading, and decreased heat generation across the power system.

Q2: Is this board compatible with both ABB UNITROL 5000 and UNITROL 6000 excitation controllers?The KVC758 A124 dual voltage sub-board is designed for use within the ABB UNITROL excitation platform. Compatibility with specific controller variants (UNITROL 5000 or 6000 series) should be confirmed against the original equipment documentation or by consulting with our technical team. We recommend providing your full system configuration details when placing an order to ensure exact compatibility.

Q3: What is the recommended replacement procedure, and how quickly can a replacement unit be dispatched?Replacement should follow ABB's standard excitation system maintenance procedures, including de-energizing the excitation circuit, verifying isolation, and following ESD precautions during board handling. NANKMOS maintains ready stock of the 3BHE021951R0124 KVC758 A124, and orders are typically processed and dispatched within 1-3 business days. Expedited shipping options are available for urgent production line requirements.

Q4: What testing is performed before shipment, and what does the 12-month warranty cover?Each unit undergoes full functional testing under simulated operating conditions, including dual-channel voltage output verification, insulation resistance measurement, and thermal cycling checks. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside specified parameters.
