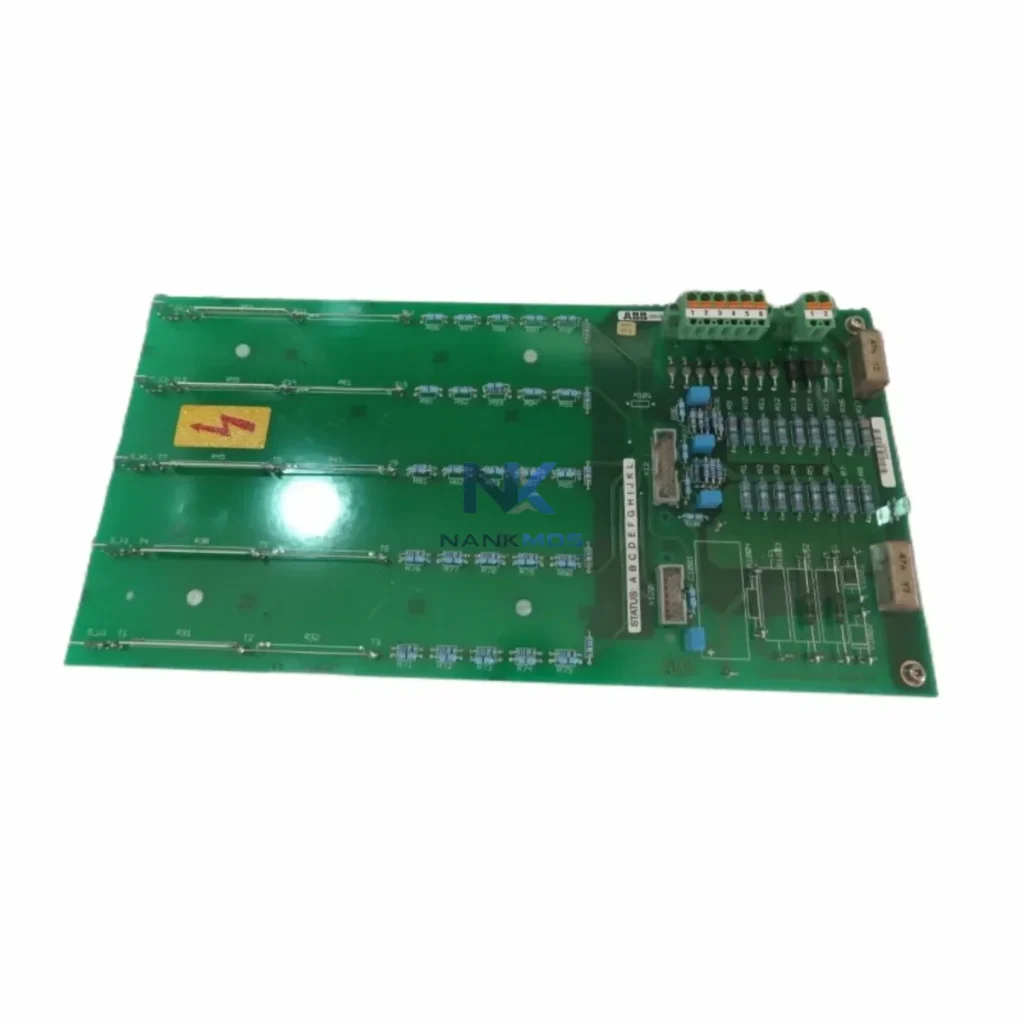

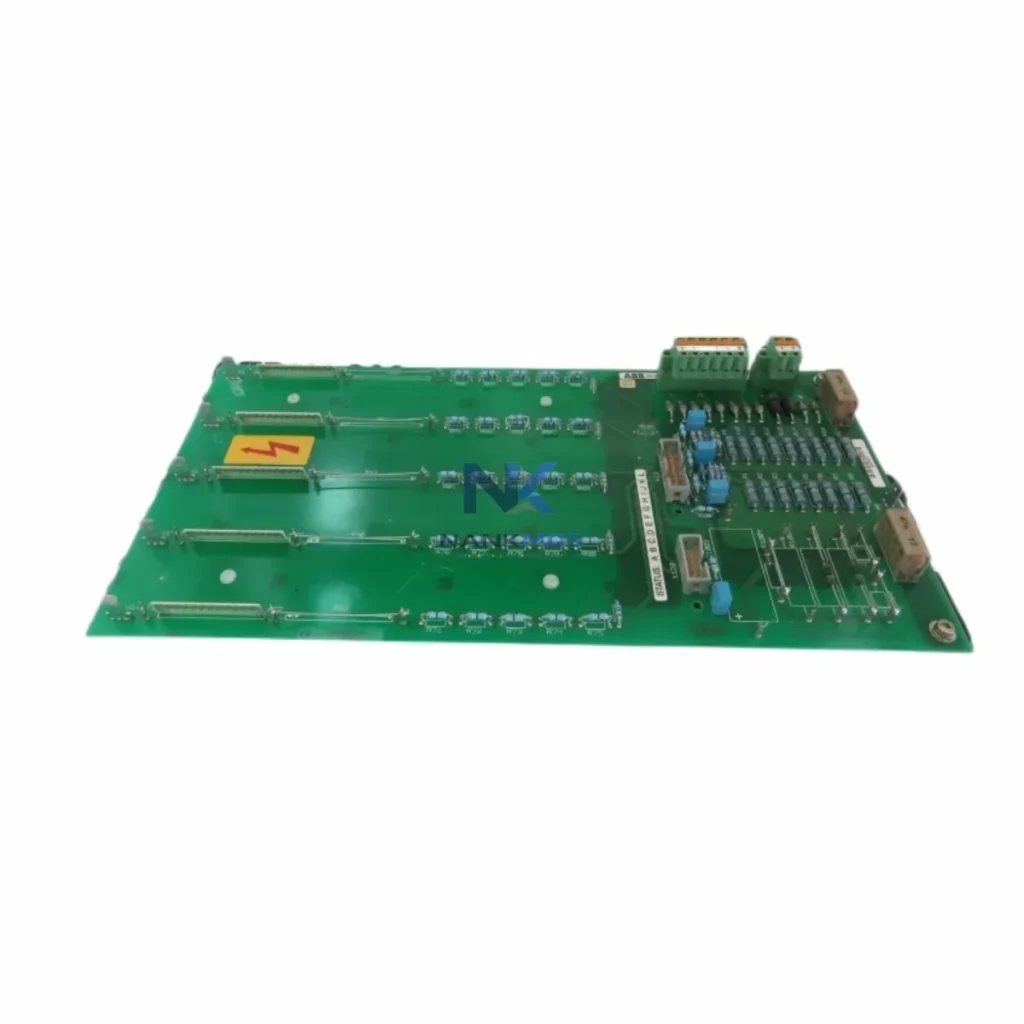

ABB 3BHE024747R0101 GDC801A101 Gate Drive Control Board

Product Details

3BHE024747R0101 GDC801A101 Product Description

The ABB 3BHE024747R0101 GDC801A101 is a high-performance gate drive control board engineered for seamless integration within industrial data networks and smart factory automation architectures. Designed for deployment in ABB ACS800 and ACS880 medium-voltage drive systems, this module serves as a critical node in the plant-wide data chain — bridging field-level power electronics with supervisory control, real-time monitoring, and remote diagnostic platforms. Its multi-protocol communication capability, combined with ABB's proven drive control logic, makes it an indispensable component for facilities pursuing full production transparency and connected factory operations.

In modern smart manufacturing environments, the flow of data from field devices to upper-level systems must be continuous, low-latency, and protocol-agnostic. The GDC801A101 addresses this requirement by supporting DDCS (Distributed Drive Control System) fiber-optic communication, PROFIBUS-DP, and Modbus RTU — enabling direct integration with ABB AC800M process controllers, ABB Freelance DCS platforms, and third-party SCADA systems such as Wonderware InTouch or Ignition. This multi-protocol flexibility ensures that drive status, fault codes, torque references, speed feedback, and energy consumption data are continuously available to plant operators and engineering teams without protocol conversion bottlenecks.

The data flow architecture supported by the 3BHE024747R0101 begins at the gate drive level, where the GDC801A101 captures real-time switching signals, thermal status, and fault diagnostics from the IGBT gate driver circuits. These signals are transmitted upstream via DDCS fiber links to the ABB RDCO-03 or RDCO-04 communication option boards installed in the main drive control unit. From there, data is forwarded to the plant's industrial Ethernet backbone — typically through ABB CI854A PROFIBUS master modules or Modbus TCP gateways — and made available to the SCADA layer for visualization, trending, and alarm management.

For facilities operating ABB 800xA System or ABB Ability™ platforms, the GDC801A101 integrates natively with the drive asset management layer, enabling predictive maintenance workflows based on real-time thermal and electrical performance data. Engineers can configure alarm thresholds, monitor gate drive health indices, and trigger remote diagnostic routines without physical access to the drive cabinet — a critical capability for high-voltage installations where safety interlocks limit manual intervention. This remote diagnostics capability is further enhanced when the GDC801A101 is paired with ABB NETA-21 remote monitoring tools or similar edge gateway devices that aggregate drive data and push it to cloud-based analytics platforms.

In multi-drive topologies — such as those found in steel rolling mills, cement kilns, paper machine drives, or offshore pump stations — the GDC801A101 supports synchronized operation across multiple ACS800 or ACS880 units via the DDCS master-follower architecture. Each drive node reports its operational state to the master controller, enabling coordinated speed and torque control across the production line. This architecture eliminates data silos between individual drive units and provides a unified view of the entire drive train within the plant's HMI or SCADA dashboard. Operators using ABB Panel Builder 800 HMI terminals or Siemens WinCC SCADA can monitor all drive nodes from a single interface, with drill-down capability to individual gate drive diagnostics.

The GDC801A101 also plays a key role in energy management and power quality monitoring. By continuously reporting active power, reactive power, and harmonic distortion data through the PROFIBUS or Modbus interface, it enables integration with energy management systems (EMS) and ISO 50001-compliant monitoring platforms. Facilities targeting carbon neutrality or energy efficiency certifications benefit from the granular, time-stamped energy data that the GDC801A101 provides — data that feeds directly into power analytics dashboards and supports demand response programs.

Every ABB 3BHE024747R0101 GDC801A101 unit supplied by NANKMOS undergoes pre-shipment functional verification, including gate signal integrity testing, communication port validation, and thermal performance checks. Units are sourced from verified supply channels and are accompanied by a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. Inventory is maintained in-stock for immediate dispatch, supporting urgent maintenance requirements and minimizing drive downtime in critical production environments.

In a fully connected smart factory deployment, the ABB 3BHE024747R0101 GDC801A101 operates as the data origination point within the drive's power electronics layer. Gate switching events, IGBT junction temperatures, and fault status are captured at microsecond resolution and transmitted via DDCS fiber links to the ABB RDCO-04 communication adapter — the first hop in the plant's drive data network. The RDCO-04 bridges the DDCS ring to the drive's main control board, where data is formatted for upstream transmission.

From the drive control layer, process variables are forwarded to the plant's PROFIBUS-DP segment via ABB CI854A fieldbus communication interface modules installed in the AC800M controller cabinet. The AC800M aggregates data from multiple drive nodes — including ACS800 units equipped with GDC801A101 boards, as well as ABB ACS580 low-voltage drives and ABB ACS6000 medium-voltage drives — and presents a unified process view to the ABB 800xA System operator station. Alarm conditions detected at the gate drive level are escalated through this chain in under 100 milliseconds, enabling rapid operator response and automated protective actions.

For facilities requiring Modbus TCP connectivity to third-party SCADA platforms, ABB NMBP-01 Modbus adapter modules or standalone Modbus TCP gateways convert the RS-485 Modbus RTU data stream from the GDC801A101 into Ethernet-compatible packets. These packets are routed through the plant's industrial Ethernet switch infrastructure — typically managed switches supporting IEEE 802.1Q VLAN segmentation — to the SCADA server. Ignition SCADA or Wonderware System Platform historians then archive the drive data at configurable scan rates, supporting long-term trend analysis and regulatory compliance reporting.

Edge computing nodes, such as ABB Ability™ Edge or third-party IIoT gateways running Node-RED or MQTT brokers, can subscribe to drive data streams from the GDC801A101 network and push selected KPIs to cloud analytics platforms. This architecture supports predictive maintenance models trained on historical gate drive performance data, enabling condition-based maintenance scheduling that reduces unplanned downtime and extends drive service life. Power meters, vibration sensors, and temperature transmitters installed on the driven equipment feed additional context data into the same edge node, creating a comprehensive asset health dataset that spans from the gate drive board to the mechanical load.

Industrial facilities operating legacy drive systems frequently encounter data gaps that undermine production transparency and complicate maintenance planning. The ABB 3BHE024747R0101 GDC801A101 addresses several of the most common connectivity and data integration challenges encountered in automation sites:

Protocol Fragmentation: Sites running mixed fleets of ABB, Siemens, and Rockwell drives often struggle with protocol incompatibility between DDCS, PROFIBUS, and EtherNet/IP networks. The GDC801A101's multi-protocol support — combined with protocol gateway devices — enables unified data collection without replacing existing infrastructure.

Data Silos Between Drive Nodes: In multi-drive topologies, individual drives operating without network integration create isolated data islands. The GDC801A101's DDCS master-follower capability links all drive nodes into a single data domain, eliminating silos and enabling cross-drive performance correlation.

Remote Monitoring Limitations: Facilities without remote diagnostic capability face high travel costs and extended response times for drive fault resolution. The GDC801A101's real-time fault reporting via PROFIBUS or Modbus enables remote engineers to diagnose gate drive faults, review fault history logs, and issue corrective commands without on-site presence.

Production Line Transparency: Without drive-level data integration, production managers lack visibility into energy consumption, throughput rates, and equipment health at the drive level. The GDC801A101 provides the data foundation for OEE dashboards and energy management systems that deliver actionable production insights.

Alarm Tracking and Escalation: Unstructured alarm management leads to alarm floods and missed critical events. The GDC801A101's structured fault code reporting enables alarm rationalization and priority-based escalation within SCADA and DCS alarm management frameworks.

System Expansion: As production capacity grows, adding new drive nodes to an existing DDCS ring or PROFIBUS segment is straightforward with GDC801A101-equipped drives, supporting incremental system expansion without network redesign.

Q1: What communication protocols does the ABB 3BHE024747R0101 GDC801A101 support, and how do they integrate with existing plant networks?The GDC801A101 supports DDCS fiber-optic communication for ABB drive-to-drive and drive-to-controller links, PROFIBUS-DP for integration with ABB AC800M, S7-300/400 PLCs, and other PROFIBUS masters, and Modbus RTU for connection to third-party SCADA systems and HMI terminals. Protocol gateways can extend connectivity to PROFINET, EtherNet/IP, or Modbus TCP networks as required.

Q2: How does the GDC801A101 support remote diagnostics and reduce unplanned downtime?The board continuously transmits gate drive health data — including IGBT status, thermal readings, and fault codes — via its communication interfaces to the plant's SCADA or DCS platform. Remote engineers can access this data through ABB 800xA, Ignition SCADA, or ABB NETA-21 remote monitoring tools, enabling fault diagnosis and corrective action without physical access to the drive cabinet. This capability is particularly valuable for high-voltage installations and geographically distributed sites.

Q3: Is the GDC801A101 compatible with both ACS800 and ACS880 drive platforms, and can it be used in multi-drive DDCS ring configurations?Yes. The 3BHE024747R0101 GDC801A101 is designed for use in ABB ACS800 and ACS880 medium-voltage drive systems and supports DDCS ring topologies with up to 12 drive nodes. In master-follower configurations, the board enables synchronized speed and torque control across multiple drives, with all nodes reporting status data to the master controller for centralized monitoring.

Q4: What pre-shipment testing and warranty coverage does NANKMOS provide for the GDC801A101?Every GDC801A101 unit undergoes pre-shipment functional verification covering gate signal integrity, communication port operation, and thermal performance. All units are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. In-stock inventory ensures rapid dispatch to support urgent maintenance requirements and minimize production downtime.
