ABB 3HAC033225-001 IRB6600 6650 3HAC033209-003 IRB66006640

Product Details

3HAC033225-001 IRB6600 6650 3HAC033209-003 IRB66006640 3HAC033207-001 Product Description

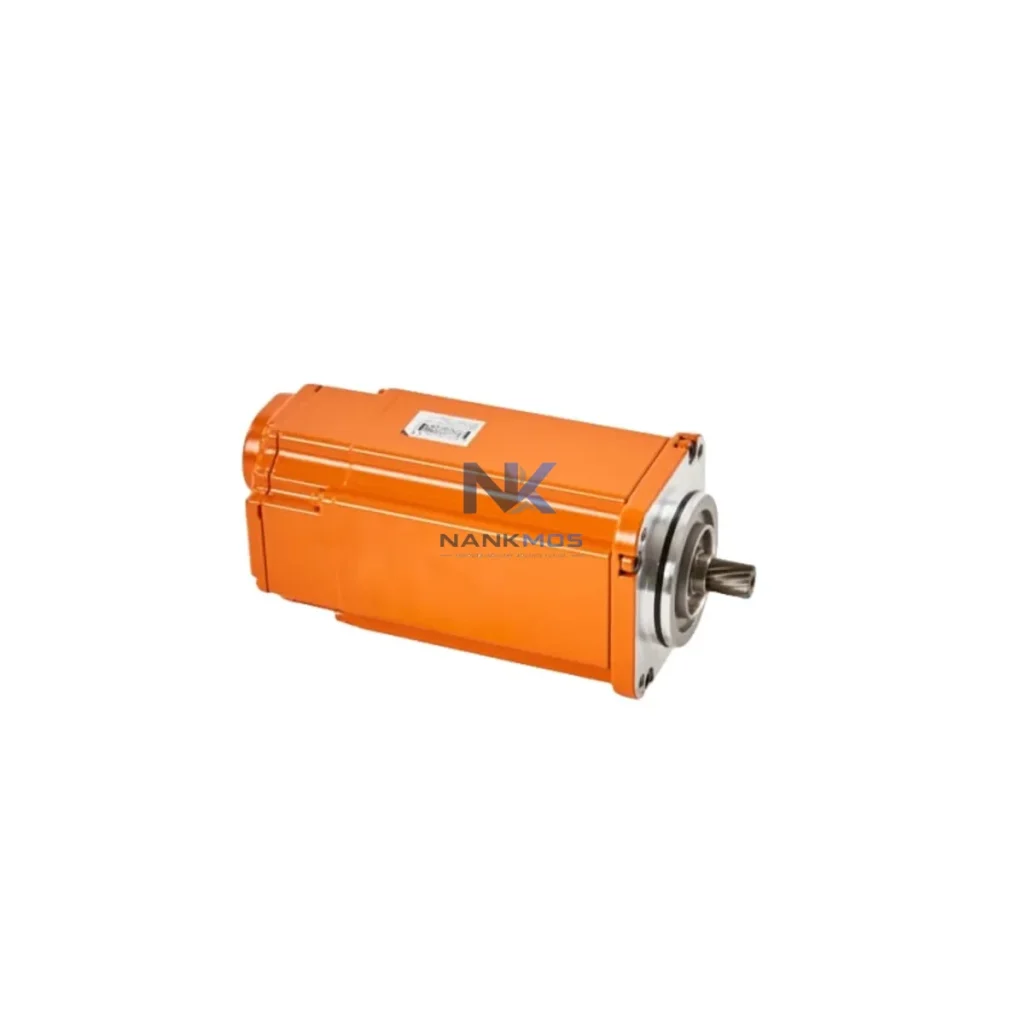

The ABB 3HAC033225-001 is a precision AC servo motor with pinion, engineered for the IRB6600, IRB6650, and IRB6640 robot series. Beyond its role as a high-torque drive component, this unit serves as a critical node in the smart factory data chain — bridging mechanical motion with real-time digital feedback across automation networks. In modern industrial environments where every axis of motion must be monitored, logged, and remotely diagnosed, the 3HAC033225-001 delivers the reliability and communication-readiness that system integrators demand.

Deployed across automotive assembly lines, heavy-duty material handling cells, and precision welding stations, this servo motor integrates directly with ABB's IRC5 controller platform. The IRC5 controller manages motion sequencing and communicates axis status — torque load, encoder position, fault codes — upstream to SCADA systems and MES platforms via industrial Ethernet protocols including PROFINET and EtherNet/IP. This closed-loop data path ensures that every movement of the IRB6600 arm is traceable, auditable, and remotely accessible.

In a fully connected smart factory cell, the ABB 3HAC033225-001 servo motor operates as the mechanical execution layer of a multi-tier data architecture. The motion command originates from the ABB IRC5 controller, which receives production instructions from a PLC — typically a Siemens S7-1500 or Allen-Bradley ControlLogix — via PROFINET or EtherNet/IP. The IRC5 translates these commands into precise axis movements, while simultaneously streaming encoder feedback, current draw, and fault diagnostics back through the fieldbus network.

At the network layer, an industrial managed Ethernet switch — such as those in the Hirschmann MICE or Phoenix Contact FL SWITCH series — ensures deterministic, low-latency packet delivery between the robot controller, the PLC rack, and the plant-level SCADA server. Redundant ring topology (MRP/RSTP) protects against single-point network failures, keeping the servo axis online even during partial network disruptions.

Remote I/O modules, such as the ABB AC500 remote I/O or Siemens ET 200SP distributed I/O, extend digital and analog signal collection from sensors mounted near the robot work envelope — proximity switches, torque sensors, and vision system triggers — feeding real-time process data into the same PROFINET backbone. This data is aggregated at an edge gateway (e.g., Moxa UC-8112 or Advantech WISE-5000 series), which pre-processes and forwards structured datasets to cloud-based MES or ERP platforms.

HMI panels — such as the ABB CP600 series or Siemens SIMATIC TP1200 — display live axis status, alarm histories, and production KPIs directly on the shop floor. Operators can acknowledge faults, trigger manual jog commands, or initiate diagnostic routines without leaving the workstation. Meanwhile, the SCADA layer — running on platforms like Wonderware InTouch or Ignition by Inductive Automation — archives all servo performance data, enabling trend analysis, predictive maintenance scheduling, and compliance reporting.

For applications requiring protocol bridging — for example, connecting the IRC5's PROFINET output to a legacy Modbus TCP historian — a protocol gateway such as the HMS Anybus X-gateway or Moxa MGate series handles transparent conversion without data loss or latency spikes. This ensures that even older plant infrastructure can participate in the smart factory data loop alongside the 3HAC033225-001 servo axis.

Variable frequency drives (VFDs) on adjacent conveyor or positioning axes — such as the ABB ACS880 industrial drive — share the same PROFINET segment, allowing coordinated motion sequencing between the robot arm and peripheral automation equipment. The result is a tightly synchronized, data-rich production cell where every actuator, sensor, and controller contributes to a unified operational picture.

Many industrial sites operating IRB6600-series robots face a common set of integration challenges: protocol fragmentation between legacy PLCs and modern robot controllers, data silos that prevent SCADA systems from accessing real-time servo diagnostics, and limited remote visibility into axis health between scheduled maintenance intervals.

The ABB 3HAC033225-001, when deployed within a properly architected IRC5 network, directly addresses these gaps. By leveraging the IRC5's built-in PROFINET and EtherNet/IP fieldbus options, servo axis data — position, speed, torque, temperature, and fault codes — becomes immediately available to any OPC-UA-capable SCADA or MES platform. This eliminates the need for manual data collection rounds and enables alarm-driven maintenance workflows: when the servo motor reports an overcurrent condition or encoder deviation, the SCADA system can automatically generate a work order, notify the maintenance team via SMS or email, and log the event with a timestamp for root-cause analysis.

For sites with mixed-protocol environments, deploying a fieldbus gateway alongside the IRC5 controller allows Modbus RTU, DeviceNet, or CC-Link devices to publish data into the same Ethernet backbone as the 3HAC033225-001 servo axis. This unified data layer supports production line transparency — operators and engineers can view the status of every connected device on a single dashboard, compare cycle times across shifts, and identify bottlenecks before they escalate into unplanned downtime.

System expansion is equally straightforward: additional IRB6600 or IRB6640 robot cells can be added to the PROFINET ring without reconfiguring the existing network topology, and the SCADA historian scales horizontally to accommodate new data sources. The 3HAC033225-001's compatibility with ABB's standard drive and controller ecosystem means that spare parts, firmware updates, and technical support are available globally, reducing mean time to repair (MTTR) and protecting long-term production continuity.

Q1: What communication protocols does the ABB 3HAC033225-001 support for SCADA integration?The 3HAC033225-001 servo motor interfaces with the ABB IRC5 controller, which supports PROFINET, EtherNet/IP, DeviceNet, and Modbus TCP fieldbus options. This allows direct integration with SCADA platforms via OPC-UA or standard industrial Ethernet, enabling real-time axis monitoring, alarm forwarding, and remote diagnostics without additional protocol converters in most modern plant environments.

Q2: How is network stability maintained in high-cycle robot applications?The IRC5 controller uses deterministic real-time Ethernet communication with configurable cycle times as low as 1 ms on PROFINET IRT. Managed industrial switches with MRP/RSTP ring redundancy ensure sub-50 ms network recovery in the event of a cable fault. The servo drive's encoder feedback loop operates independently of the fieldbus, so motion control continuity is maintained even during brief network interruptions.

Q3: Can the 3HAC033225-001 be remotely diagnosed without shutting down the production line?Yes. The ABB IRC5 controller supports remote diagnostic access via ABB RobotStudio and standard OPC-UA clients. Engineers can read live servo parameters — torque load, encoder counts, drive temperature, and fault registers — from any networked workstation or remote VPN connection. Alarm thresholds can be configured to trigger automatic notifications, enabling condition-based maintenance without production interruption.

Q4: What warranty and supply assurance does NANKMOS provide for this unit?Every ABB 3HAC033225-001 supplied by NANKMOS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify encoder integrity, winding resistance, and mechanical pinion engagement. Global inventory is maintained to support urgent replacement requirements, with expedited shipping available for critical production environments.
