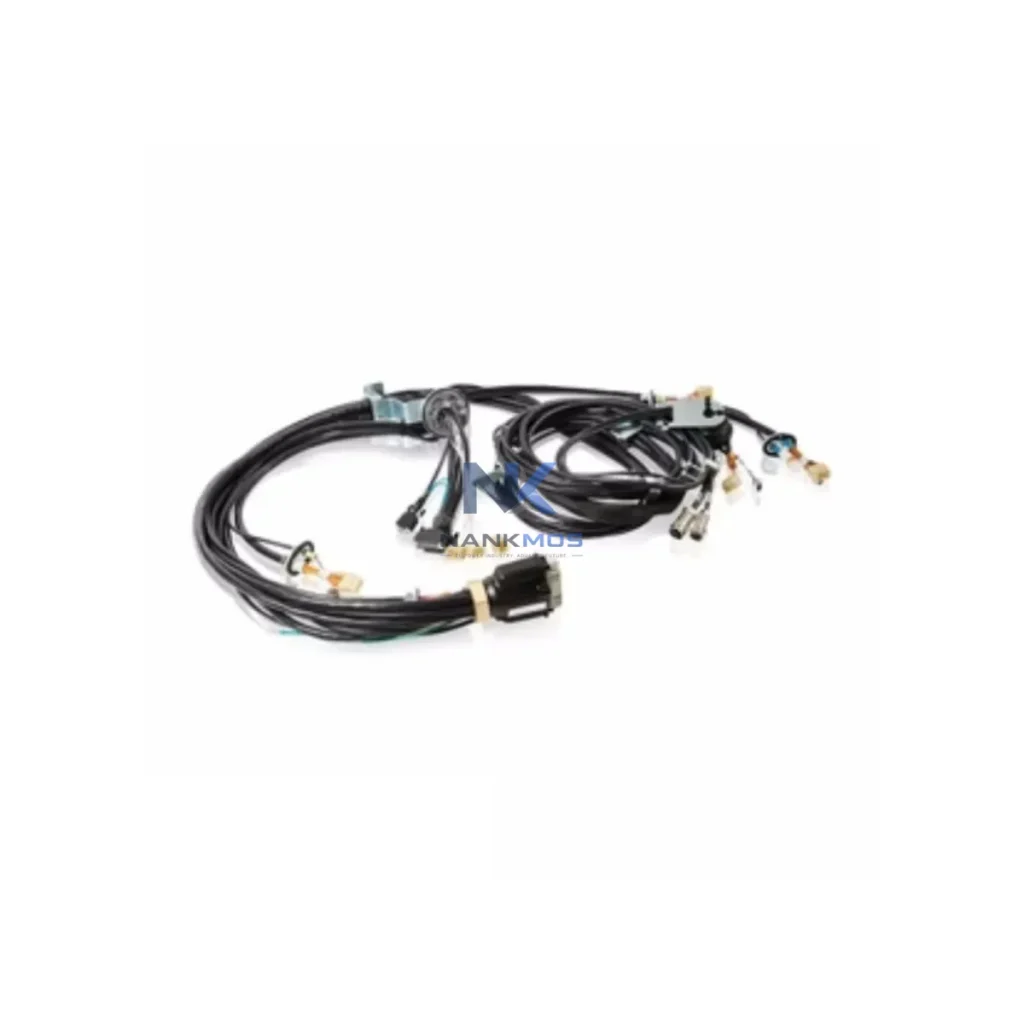

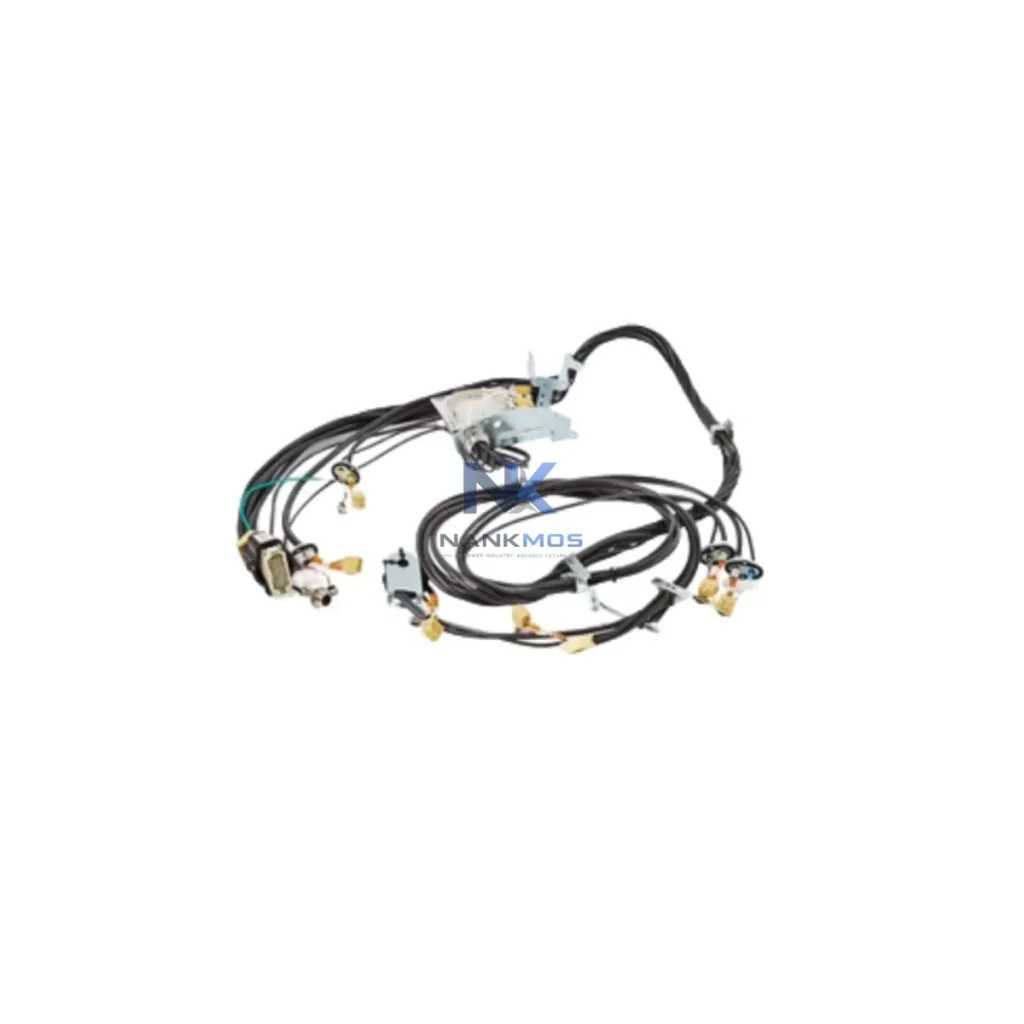

ABB 3HAC033388-001 Robot Cable Assembly

Product Details

3HAC033388-001 Product Description

The ABB 3HAC033388-001 cable harness is not a standalone component — it is a precision wiring layer that binds the IRC5 control architecture into a coherent, high-reliability automation system. Understanding its role requires examining the full signal and power chain that runs from the IRC5 controller cabinet through to the robot manipulator's six axes.

At the control layer, the IRC5 Main Computer Unit (MCU) — typically the DSQC1000 or DSQC679 — generates motion commands that are transmitted through the drive system to each axis motor. The 3HAC033388-001 harness forms the physical bridge between the IRC5 Drive Module (such as the DSQC663 or DSQC668 axis computer board) and the robot arm's motor connectors, carrying both power and resolver/encoder feedback signals simultaneously. Without a correctly rated, OEM-matched harness, signal degradation at the resolver feedback circuit will cause axis calibration drift, triggering fault codes such as 50001 or 50204 in the IRC5 event log.

At the I/O and signal layer, the harness interfaces with the Serial Measurement Board (SMB) — part numbers such as 3HAC14550-1 or 3HAC031670-001 — which aggregates position data from all six axes and relays it back to the MCU. The integrity of this feedback loop is entirely dependent on the shielding quality and connector seating of the axis cable harness. A compromised harness introduces noise into the SMB data stream, which manifests as erratic joint positioning or emergency stop events during high-speed path execution.

At the power layer, the IRC5 Power Supply Unit (PSU) — such as the DSQC661 or 3HAC024488-001 — distributes 24VDC logic power and higher-voltage servo bus power through the cabinet backplane. The 3HAC033388-001 harness routes the servo power segment from the drive modules to the axis motors, making its current-carrying capacity and insulation rating critical parameters for system stability under continuous duty cycles.

At the communication layer, the IRC5 platform supports PROFIBUS, DeviceNet, EtherNet/IP, and PROFINET through dedicated fieldbus adapter boards such as the DSQC688 (PROFINET) or DSQC612 (DeviceNet). While the axis harness does not carry fieldbus signals directly, its role in maintaining clean resolver feedback ensures that the motion controller can execute coordinated multi-axis moves commanded by the PLC or SCADA layer without position error accumulation — a prerequisite for deterministic fieldbus-synchronized motion.

At the HMI and programming layer, the FlexPendant (3HAC028357-001) and RobotStudio offline programming environment rely on accurate axis position data to display real-time joint angles and validate programmed paths. A degraded harness that introduces resolver noise will cause the FlexPendant to display inconsistent joint readouts, complicating commissioning and increasing calibration time during system startup or after maintenance interventions.

At the protection and safety layer, the IRC5 Safety Module (DSQC643 or equivalent) monitors axis motion against configured safety zones. Resolver signal integrity — maintained by the 3HAC033388-001 harness — is a direct input to the safety monitoring chain. Harness degradation can cause spurious safety stops, reducing OEE and triggering unnecessary safety system audits.

For maintenance and long-term reliability, stocking the 3HAC033388-001 alongside complementary components such as the SMB battery pack (3HAC044075-001), axis brake release unit, and IRC5 teach pendant cable (3HAC031683-001) creates a complete preventive maintenance kit. This approach minimizes unplanned downtime by ensuring that the most failure-prone wiring and signal components are available for same-shift replacement without waiting for international procurement lead times.

Automotive Manufacturing: In body-in-white welding lines and paint shop robot cells, the IRC5 platform with 3HAC033388-001 harnesses supports continuous multi-shift operation. The harness's robust shielding resists electromagnetic interference from welding power sources, maintaining resolver signal quality across all six axes during high-duty-cycle spot welding sequences.

Electronics Assembly & Clean Room: For IRB 1600 and IRB 2600 robots deployed in PCB handling, semiconductor wafer transfer, or precision dispensing, the cable harness must maintain sub-millimeter repeatability. The OEM-matched 3HAC033388-001 ensures that resolver feedback accuracy is preserved, supporting the tight path tolerances required in electronics manufacturing environments.

Palletizing & Logistics: High-throughput palletizing cells using IRB 4600 or IRB 6640 robots place significant mechanical stress on axis wiring through continuous large-angle joint rotation. The 3HAC033388-001 is engineered for the flex-cycle requirements of these applications, with strain-relief geometry and conductor cross-sections matched to the torque and speed profiles of the target robot models.

Process Industry & Petrochemical: In arc welding, plasma cutting, and material handling applications within process industries, robots operate in environments with elevated temperature, weld spatter, and chemical exposure. The harness sheathing and connector sealing on the 3HAC033388-001 provide the environmental protection necessary for reliable operation in these demanding conditions.

Power Generation & Utilities: Robotic inspection and maintenance systems in power generation facilities require long mean-time-between-failure (MTBF) performance. Deploying OEM-specification harnesses such as the 3HAC033388-001 — rather than aftermarket alternatives — ensures that the resolver feedback chain meets ABB's validated MTBF specifications, supporting the extended maintenance intervals required in utility applications.

Q1: Is the 3HAC033388-001 compatible with all IRC5 controller variants, including the Panel-Mounted Controller (PMC) and Dual Cabinet configurations? The 3HAC033388-001 is designed for the IRC5 platform and is compatible with Single Cabinet and Dual Cabinet IRC5 configurations for the applicable robot models (IRB 1600, IRB 2600, IRB 4600, IRB 6640 series). Compatibility with the Panel-Mounted Controller variant depends on the specific robot model and cabinet revision. We recommend confirming the robot serial number and controller revision against ABB's spare parts catalog or contacting our technical team before ordering to ensure exact fitment.

Q2: How does replacing the axis cable harness affect IRC5 system calibration, and is recalibration required after installation? Replacing the 3HAC033388-001 harness does not alter the mechanical calibration of the robot axes, as calibration data is stored in the SMB and the robot controller's system parameters. However, after harness replacement, it is standard practice to perform a resolver offset verification using RobotStudio or the FlexPendant calibration routine to confirm that all six axes are reading correctly within tolerance. This procedure typically takes 30–60 minutes per robot and should be performed before returning the cell to production. Our pre-shipment testing ensures the harness connectors are correctly assembled, reducing the risk of installation-related faults.

Q3: What is the warranty coverage for the 3HAC033388-001, and what support is available for inventory planning and long-term maintenance contracts? The 3HAC033388-001 is supplied with a 12-Month Warranty covering manufacturing defects, connector integrity, and signal continuity. We maintain in-stock inventory for immediate dispatch, supporting both emergency replacement and planned preventive maintenance programs. For customers managing multi-robot installations or long-term service contracts, we offer volume pricing and reserved stock arrangements to ensure harness availability aligns with your planned maintenance schedule. Contact [email protected] or +86 18359268345 to discuss inventory planning and support options.
