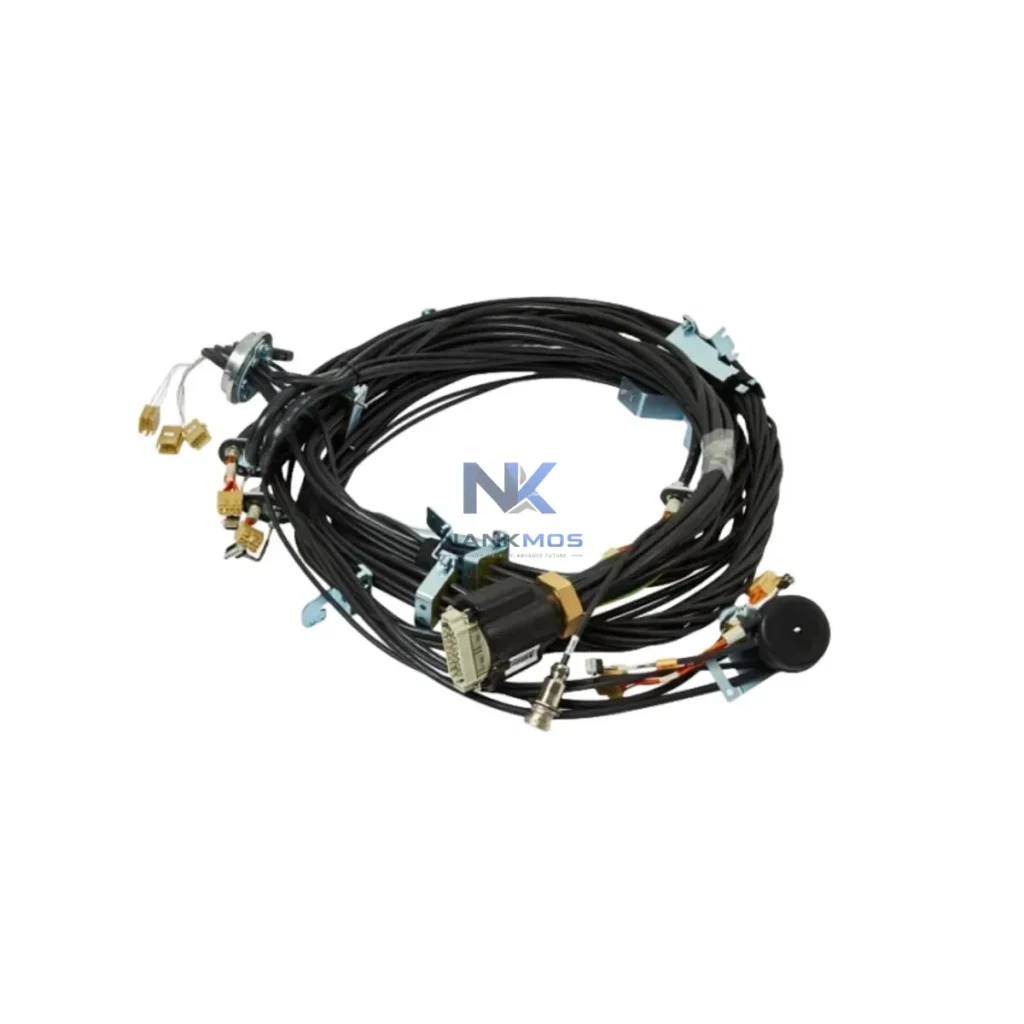

ABB 3HAC042840-001 IRB6700 Robot Cable Assembly

Product Details

3HAC042840-001 IRB6700 Product Description

The ABB 3HAC042840-001 is a factory-engineered manipulator harness assembly designed specifically for the IRB 6700 series industrial robot platform. Within a fully integrated automation architecture, this harness serves as the critical signal and power conduit between the robot controller and the manipulator arm — ensuring deterministic signal transmission, mechanical integrity, and long-term operational reliability across demanding industrial environments. Its role extends beyond simple cable routing: it is a system-level component that directly influences control loop stability, diagnostic transparency, and maintenance efficiency across the entire robot cell.

In modern industrial control architectures, every layer — from the controller and I/O modules to the power supply, communication gateway, and HMI — depends on the integrity of the physical interconnect layer. The 3HAC042840-001 occupies this foundational position within the IRB 6700 system, bridging the IRC5 robot controller's drive and signal outputs to the manipulator's servo motors, encoders, and brake circuits. Any degradation in this harness directly propagates as positional error, axis fault, or emergency stop events at the controller level, underscoring its architectural significance.

The 3HAC042840-001 does not operate in isolation — it is one node in a tightly coupled automation platform. Understanding its system context is essential for correct specification, installation, and long-term maintenance planning.

At the control layer, the IRC5 controller (including the DSQC661 main computer board and DSQC662 axis computer) generates the motion commands and safety supervision signals that travel through this harness to each axis motor. The harness must maintain signal fidelity across all six axes simultaneously, supporting the IRC5's real-time motion interpolation without introducing latency or noise. Alongside the IRC5, the DSQC663 drive unit conditions the power stage output before it enters the harness, making the drive unit and harness a matched pair in the power delivery chain.

At the I/O layer, the IRB 6700 cell typically integrates ABB's DSQC652 digital I/O module or DSQC651 analog I/O module to manage peripheral signals — conveyor interlocks, gripper solenoids, and safety gate inputs. These I/O signals are coordinated by the IRC5 controller and must remain synchronized with the axis motion commands carried by the 3HAC042840-001 harness. Any timing mismatch between I/O state changes and axis position feedback — often caused by harness degradation — manifests as process errors or safety faults.

At the communication layer, the IRC5 platform supports PROFINET, EtherNet/IP, and DeviceNet via dedicated fieldbus adapter modules such as the DSQC688 PROFINET device adapter. The harness supports the encoder feedback loop that underpins the IRC5's position reporting to the supervisory PLC or DCS — ensuring that the data visible at the SCADA or MES level accurately reflects actual manipulator position. Harness integrity is therefore a prerequisite for reliable fieldbus-level position data.

At the power layer, the IRB 6700 system relies on the IRC5 transformer unit and internal power supply modules to deliver conditioned DC power to the drive units. The 3HAC042840-001 harness carries this conditioned power from the drive units to the axis motors, and its insulation integrity directly determines the effectiveness of the IRC5's ground fault detection and motor overload protection circuits.

At the HMI layer, the FlexPendant (IRC5 teach pendant) provides the operator interface for jogging, program execution, and fault acknowledgment. When axis faults are triggered by harness-related signal anomalies, the FlexPendant displays the specific error code and axis identifier — enabling rapid fault isolation. A correctly installed 3HAC042840-001 minimizes nuisance faults and reduces the diagnostic burden on the operator.

At the execution layer, the IRB 6700's six servo axes — each driven by a dedicated motor and gearbox — depend on the harness for both power delivery and position feedback. The harness routing through the manipulator arm is engineered to accommodate the full range of motion across all axes without mechanical stress, cable fatigue, or connector fretting. This is particularly critical for high-cycle applications in automotive body-in-white welding, heavy material handling, and foundry automation.

At the protection layer, the IRC5 controller's safety supervision module (including the DSQC400 safety board in legacy configurations or the integrated safety functions in newer IRC5 variants) monitors brake control signals carried by the harness. Brake circuit continuity is verified at power-up and during operation; a harness fault in the brake circuit triggers an immediate controlled stop and safety fault log entry.

At the maintenance layer, the 3HAC042840-001 is a scheduled replacement item in ABB's preventive maintenance program for the IRB 6700. Maintaining an in-stock spare reduces unplanned downtime from hours to minutes. When paired with a documented harness replacement procedure and a calibration routine using the IRC5's built-in axis calibration function, the replacement cycle can be completed within a single maintenance window — preserving production schedule integrity.

Automotive Manufacturing: In body-in-white welding lines and press-tending cells, IRB 6700 robots operate at high cycle rates with precise positional repeatability requirements. The 3HAC042840-001 harness sustains the encoder feedback accuracy needed for weld gun positioning and part transfer, where positional errors of even fractions of a millimeter result in weld quality failures or tooling collisions.

Heavy Material Handling & Foundry: In foundry and forging environments, the IRB 6700 handles payloads up to 235 kg in high-temperature, high-vibration conditions. The harness is engineered to withstand thermal cycling and mechanical vibration without connector loosening or insulation breakdown — critical for maintaining axis control integrity in these harsh environments.

Palletizing & Packaging Lines: High-throughput palletizing applications demand continuous multi-shift operation. The 3HAC042840-001 supports the sustained duty cycle of the IRB 6700 in these applications, with the pre-shipment testing protocol ensuring that replacement units are verified before installation — eliminating commissioning delays on active production lines.

Process Industry & Chemical Plants: In process industry applications where robot cells operate in controlled atmospheres or with chemical exposure, the harness's connector sealing and cable jacket material selection are critical for long-term reliability. The 12-Month Warranty provides procurement teams with a defined quality assurance baseline for spare parts planning.

Metal Fabrication & Welding: Arc welding and laser cutting applications generate significant electromagnetic interference. The 3HAC042840-001's shielding architecture maintains signal integrity for encoder feedback and safety signals in high-EMI environments, preventing spurious axis faults that would interrupt welding programs and require manual restart procedures.

Q1: Is the 3HAC042840-001 compatible with all IRC5 controller variants, and does it support the IRC5's SafeMove safety supervision functions? The 3HAC042840-001 is designed for the IRB 6700 series and is compatible with IRC5 Single Cabinet, IRC5 Compact, and IRC5 Panel Mounted controller configurations. It carries the brake control and encoder feedback signals required by the IRC5's SafeMove2 safety supervision module, supporting safe speed monitoring, safe axis range supervision, and safe standstill functions without requiring additional signal conditioning hardware.

Q2: What is the recommended replacement interval, and how does harness condition affect overall system diagnostic efficiency? ABB's preventive maintenance guidelines for the IRB 6700 recommend harness inspection at each major service interval (typically every 10,000–20,000 operating hours depending on application duty cycle) and replacement upon detection of insulation degradation, connector fretting, or recurring axis fault codes. A degraded harness increases the frequency of nuisance faults, extends fault diagnosis time, and can mask genuine mechanical faults in the axis gearboxes — making timely harness replacement a key factor in maintaining diagnostic efficiency and overall equipment effectiveness (OEE).

Q3: What does the 12-Month Warranty cover, and what is the stock availability for urgent maintenance requirements? The 12-Month Warranty covers manufacturing defects, connector integrity, and signal continuity for the 3HAC042840-001 from the date of shipment. Each unit undergoes pre-shipment testing including full continuity verification, insulation resistance measurement, and connector seating inspection before dispatch. Units are maintained in-stock for immediate availability, supporting urgent maintenance requirements and minimizing robot cell downtime. For time-critical procurement, contact [email protected] or +86 18359268345 for expedited shipping arrangements.
