ABB 3HAC069655-001 IRB6601-63HAC022544-008 IRB6601-63HAC0225

Product Details

3HAC069655-001 IRB6601-63HAC022544-008 IRB6601-63HAC022544-001 Product Description

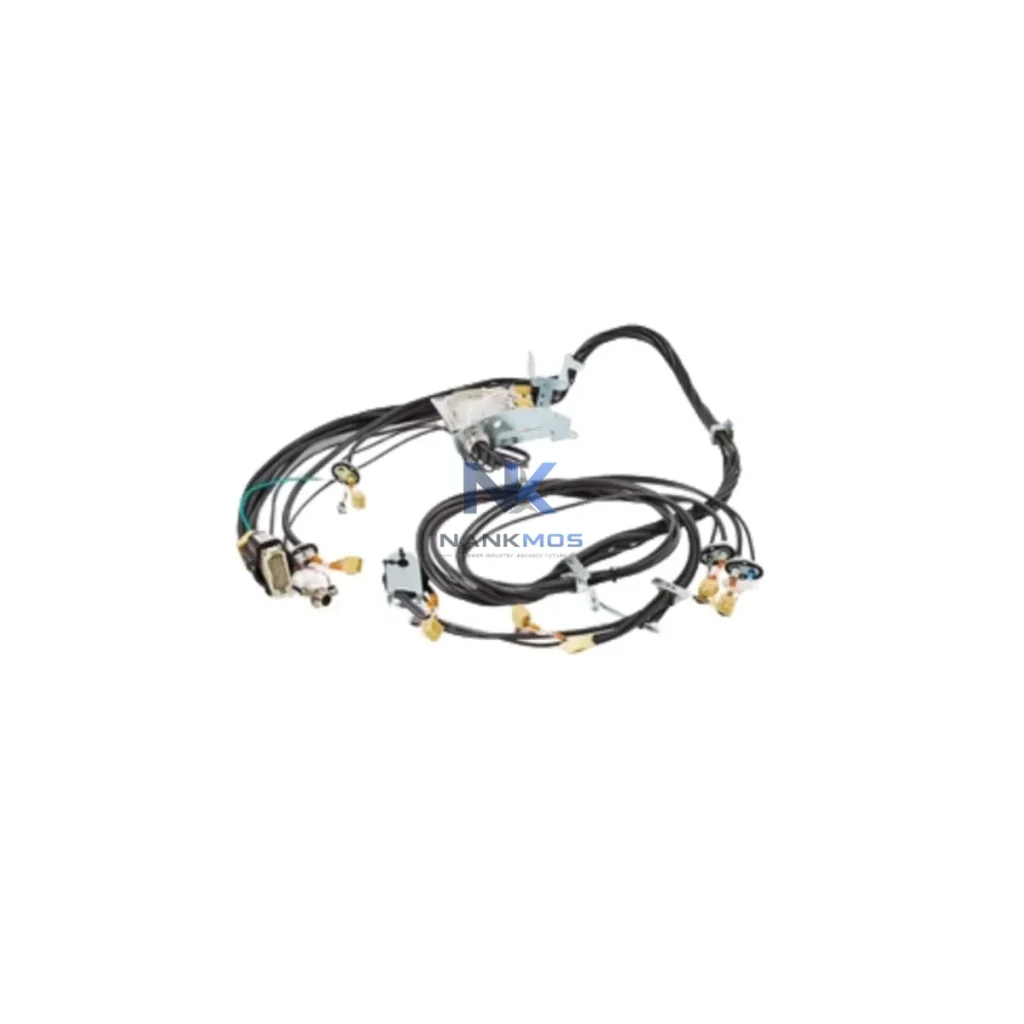

The ABB 3HAC069655-001 is a factory-engineered cable harness designed specifically for the IRB6601 industrial robot series, serving as a critical signal and power interconnect within ABB's integrated robot control architecture. As a system-matched component, it ensures full electrical compatibility with the IRC5 controller platform, maintaining signal integrity across the control layer, I/O layer, and drive layer without requiring field modification or custom termination. For automation engineers specifying replacement or commissioning components, this harness eliminates the risk of impedance mismatch, connector incompatibility, and EMI-induced signal degradation that commonly arise when non-OEM alternatives are substituted into precision robot wiring systems.

In a complete IRB6601 automation cell, the 3HAC069655-001 harness operates as the physical backbone connecting the IRC5 controller cabinet to the robot manipulator's internal wiring nodes. It interfaces directly with the DSQC series drive units and the axis computer boards, ensuring that encoder feedback, brake control signals, and motor power are routed with the correct shielding topology and connector pinout. This level of system coherence is essential in high-cycle manufacturing environments — including automotive body-in-white lines, foundry tending, and heavy-part palletizing — where cable fatigue, connector wear, and signal dropout are primary causes of unplanned downtime.

From a control architecture perspective, the harness supports the layered signal flow that ABB's robot system depends on: the IRC5 controller issues motion commands through the drive module, which are transmitted via this harness to the servo motors at each axis. Simultaneously, encoder signals travel in the reverse direction, providing real-time position feedback to the motion controller. Any degradation in this bidirectional signal path — caused by a damaged or incompatible harness — directly impacts path accuracy, cycle repeatability, and safety function response time. The 3HAC069655-001 is rated for the full dynamic flex range of the IRB6601's working envelope, including the high-torsion zones at axes 1, 2, and 3.

The 3HAC069655-001 is most effectively deployed as part of a complete ABB IRC5-based automation platform. In a fully integrated cell, the IRC5 controller cabinet houses the DSQC663 axis computer, DSQC661 drive units, and DSQC662 I/O modules, all of which depend on the cable harness to maintain synchronized communication with the IRB6601 manipulator. The DSQC1000 main computer board coordinates motion planning and safety supervision, while the 3HAC026254-001 teach pendant provides operator-level access to program execution and diagnostic data.

On the power layer, the 3HAC028357-001 power supply unit conditions incoming AC power for the drive system, and the harness ensures that power delivery to each axis motor is correctly sequenced and protected. For installations requiring fieldbus integration, the DSQC688 PROFINET device module or the DSQC378B DeviceNet board connects the IRC5 to the plant-level PLC — typically a Siemens S7-1500 or Allen-Bradley ControlLogix — enabling coordinated motion triggers, I/O handshaking, and alarm propagation across the automation network.

In multi-robot cells, the 3HAC069655-001 harness supports consistent wiring architecture across all IRB6601 units, simplifying spare parts management and reducing the skill requirement for maintenance technicians. When paired with the IRC5 MultiMove option, multiple robots can be coordinated under a single controller, and the standardized harness design ensures that cable replacement on any unit follows the same procedure — reducing mean time to repair (MTTR) and supporting lean maintenance strategies. Additional components such as the 3HAC022544-008 and 3HAC022544-001 axis cable sets complete the internal wiring topology of the IRB6601, and should be inspected and replaced as a matched set during scheduled maintenance intervals.

Automotive Manufacturing: In body-in-white welding and assembly lines, the IRB6601 is deployed for heavy-part handling, spot welding, and press tending. The 3HAC069655-001 harness maintains signal fidelity under the high-cycle, high-vibration conditions of automotive production, where robot uptime directly impacts line throughput. OEM harness replacement ensures that safety-rated signals — including emergency stop and axis brake release — operate within the response time specifications required by ISO 10218-1.

Foundry and Metal Processing: Foundry environments expose robot wiring to thermal cycling, metal splash, and airborne particulates. The multi-layer shielding of the 3HAC069655-001 provides protection against EMI generated by induction furnaces and resistance welding equipment, while the connector sealing maintains electrical continuity in high-humidity, high-temperature conditions. Scheduled harness replacement at defined cycle intervals is a standard preventive maintenance practice in foundry automation.

Petrochemical and Process Industries: In process automation applications — including valve actuation, sampling, and material transfer — the IRB6601 operates in environments with strict electrical safety requirements. The OEM harness ensures that the robot's functional safety architecture, including SafeMove2 speed and position monitoring, operates with the correct signal routing and shielding topology required for SIL-rated applications.

Packaging and Palletizing Lines: High-speed packaging lines demand consistent robot performance across multi-shift operations. The 3HAC069655-001 supports rapid harness replacement during planned maintenance windows, minimizing production interruption. Its direct-fit connector design eliminates the need for specialist wiring technicians, allowing maintenance to be performed by trained production staff following ABB's standard service documentation.

Q1: Is the 3HAC069655-001 compatible with all IRC5 controller variants, including the IRC5 Compact and Panel Mounted Controller? The 3HAC069655-001 is engineered for the IRB6601 manipulator and is designed to interface with the standard IRC5 single-cabinet and dual-cabinet configurations. Compatibility with the IRC5 Compact or Panel Mounted Controller variants depends on the specific drive module configuration and cabinet layout. We recommend verifying the controller serial number and drive module type against ABB's spare parts documentation before ordering. Our technical team can assist with compatibility confirmation based on your controller's hardware revision.

Q2: What is the recommended replacement interval for the 3HAC069655-001 harness in high-cycle applications, and does replacement affect the robot's calibration? ABB recommends inspecting the cable harness at each scheduled maintenance interval — typically every 10,000 operating hours or annually, whichever occurs first — with replacement triggered by visual inspection findings including jacket abrasion, connector wear, or intermittent signal faults. Harness replacement does not affect the robot's kinematic calibration, as the calibration data is stored in the IRC5 controller's DSQC1000 memory. However, after replacement, a functional test of all axis signals and brake circuits should be performed using ABB's RobotStudio or the FlexPendant diagnostic tools before returning the robot to production.

Q3: What warranty coverage applies to the 3HAC069655-001, and what is the stock availability for urgent replacement orders? All 3HAC069655-001 units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and electrical integrity failures. Units are pre-tested prior to dispatch to verify connector continuity, shielding integrity, and dimensional conformance to ABB's OEM specifications. For urgent replacement requirements, we maintain dedicated stock of high-demand ABB robot cable harnesses and can support expedited global shipping to minimize production downtime. Contact [email protected] or +86 18359268345 for real-time stock confirmation and lead time.
