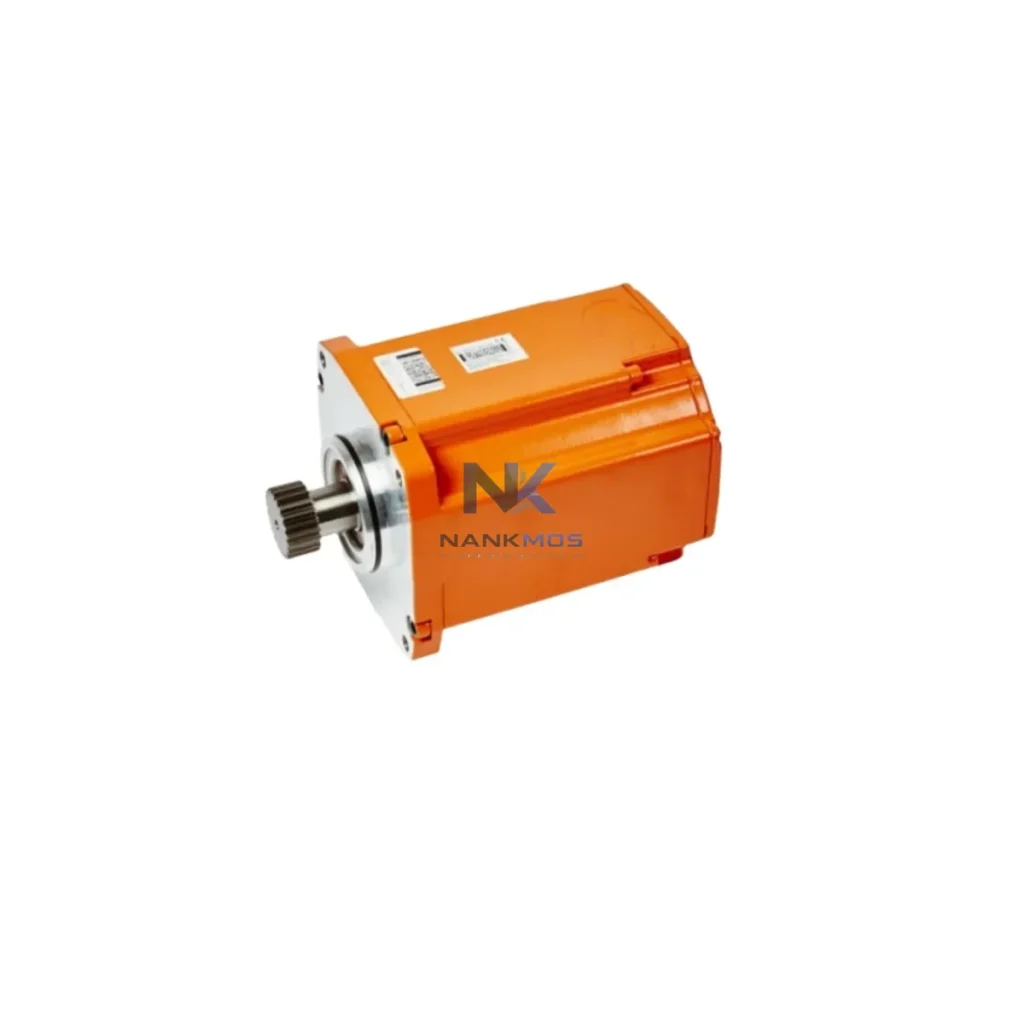

ABB 3HAC17484-7/04 Robot Motor

Product Details

3HAC17484-7/04 Product Description

The ABB 3HAC17484-7/04 is a precision servo motor engineered for seamless integration within ABB's IRB-series robotic control architecture. Designed to operate as a system-matched drive component, this motor unit supports the full motion control hierarchy — from the IRC5 controller's axis computer down through the drive unit, resolver feedback loop, and mechanical transmission. Its role within the automation stack is not merely as a standalone actuator, but as a contextually integrated element that sustains signal fidelity, positional accuracy, and long-term mechanical reliability across multi-axis robotic cells.

In modern industrial automation environments, the performance of any individual motor is inseparable from the architecture it inhabits. The 3HAC17484-7/04 is factory-matched to ABB's IRB 1600, IRB 2400, IRB 4400, and related IRB-family platforms, ensuring that torque curves, encoder resolution, and thermal ratings align precisely with the IRC5 drive module's control expectations. This system-level compatibility eliminates tuning drift, reduces commissioning time, and preserves the integrity of the robot's dynamic model — a critical factor in high-throughput manufacturing and precision assembly applications.

The 3HAC17484-7/04 motor does not operate in isolation — it is one node within a tightly coupled automation platform. In a fully deployed IRB-series robotic cell, this motor interfaces directly with the ABB IRC5 Drive Unit (3HAC025338-001), which governs torque and velocity commands via the axis computer. The axis computer itself receives motion trajectories from the ABB IRC5 Main Computer (DSQC639 / 3HAC026254-001), which executes RAPID programs and manages real-time path interpolation.

Power delivery to the motor is conditioned through the ABB IRC5 Power Supply Unit (3HAC024488-001), which stabilises DC bus voltage and protects against transient overloads. On the signal integrity side, the resolver feedback from the 3HAC17484-7/04 is processed by the ABB Axis Computer Board (DSQC668), ensuring sub-millisecond position update cycles that are essential for coordinated multi-axis motion.

For cells requiring fieldbus connectivity to upstream PLCs or SCADA systems, the IRC5 controller integrates with ABB DSQC688 DeviceNet Gateway or DSQC679 PROFIBUS Adapter modules, enabling the robotic cell to participate in plant-wide communication architectures. Where safety-rated I/O is required, the ABB DSQC643 Safety I/O Board provides hardwired emergency stop and safeguarding integration without compromising cycle time.

In multi-robot installations, the ABB IRC5 MultiMove Controller coordinates up to four IRB-series robots sharing a common workspace, with each axis motor — including the 3HAC17484-7/04 — synchronised to a unified motion supervisor. Teach pendant interaction is handled via the ABB FlexPendant (3HAC028357-001), which provides real-time axis status, fault diagnostics, and manual jog capability directly at the cell level.

For installations requiring extended reach or payload, the 3HAC17484-7/04 is architecturally compatible with ABB IRB 4400 and IRB 6600 series platforms when used in the appropriate axis position, broadening its deployment scope across heavy-duty welding, material handling, and machine-tending applications.

Automotive Manufacturing: In body-in-white welding lines, the 3HAC17484-7/04 drives the wrist or elbow axis of IRB 2400 robots performing MIG/MAG welding. The motor's thermal stability and resolver accuracy sustain weld path repeatability at ±0.05 mm across multi-shift production schedules, directly supporting OEE targets in high-volume press shops and assembly plants.

Electronics and Semiconductor Assembly: IRB 1600-series robots equipped with this motor perform high-speed pick-and-place, dispensing, and screw-driving operations in cleanroom-adjacent environments. The motor's low cogging torque and tight velocity regulation ensure component placement accuracy compatible with IPC-A-610 Class 3 assembly standards.

Food and Beverage Packaging: In hygienic packaging lines, the 3HAC17484-7/04 supports IRB-series robots performing case packing, palletising, and label application. Its IP54 rating and sealed bearing design withstand washdown-adjacent environments, while the IRC5 controller's hygienic mode limits unnecessary axis movement during sanitation cycles.

Metal Fabrication and Foundry: In arc welding and plasma cutting cells, the motor sustains consistent torch orientation and travel speed under high thermal and electromagnetic interference conditions. The resolver feedback system's inherent noise immunity — compared to optical encoders — makes the 3HAC17484-7/04 particularly well-suited to foundry and heavy fabrication environments.

Petrochemical and Process Industries: Where robotic inspection or sampling arms are deployed in hazardous zones, the IRB-series platform with this motor can be configured with ATEX-rated enclosures, with the motor's electrical characteristics remaining within the drive unit's safe operating envelope across extended duty cycles.

Logistics and Warehouse Automation: In goods-to-person fulfilment systems, IRB 1600 robots with this motor perform bin picking and sortation tasks guided by 3D vision systems. The motor's dynamic response supports the rapid acceleration and deceleration profiles required for high-throughput order fulfilment without mechanical fatigue accumulation.

Q1: Is the ABB 3HAC17484-7/04 directly compatible with the IRC5 Single Cabinet Controller without additional adapters? Yes. The 3HAC17484-7/04 is factory-matched to the IRC5 drive unit's electrical and mechanical interface specifications. No additional signal conditioning or mechanical adapters are required for standard IRB 1600, IRB 2400, or IRB 4400 axis positions. Commissioning requires only the standard ABB motor calibration procedure via the FlexPendant, using the robot's stored calibration offset data. If replacing a failed motor in an existing cell, the SMB (Serial Measurement Board) battery backup should be verified to preserve axis calibration data during the swap.

Q2: How does this motor support long-term maintenance efficiency and predictive diagnostics within the IRC5 architecture? The IRC5 controller continuously monitors motor current draw, temperature, and resolver signal quality for each axis. Deviations from baseline — such as increased bearing friction or resolver signal degradation — are flagged as predictive maintenance alerts via the controller's event log, accessible through ABB RobotStudio or the FlexPendant. This allows maintenance teams to schedule motor replacements during planned downtime rather than responding to unplanned failures. NANKMOS maintains stock of the 3HAC17484-7/04 to support rapid replacement cycles, with each unit pre-shipment tested and covered by a 12-Month Warranty from dispatch date.

Q3: What is the recommended inventory strategy for the 3HAC17484-7/04 in multi-robot production environments? For facilities operating three or more IRB-series robots sharing this motor variant across common axis positions, a minimum of one spare unit per five robots is recommended as a critical spare holding. Given that motor failure on a wrist or elbow axis results in immediate cell downtime, the cost of a single unplanned stoppage in a high-OEE environment typically exceeds the cost of maintaining a spare by a significant margin. NANKMOS provides direct supply with short lead times, pre-shipment electrical testing, and 12-Month Warranty coverage, making it practical to maintain a lean but reliable critical spare inventory without long-term capital lock-up.
