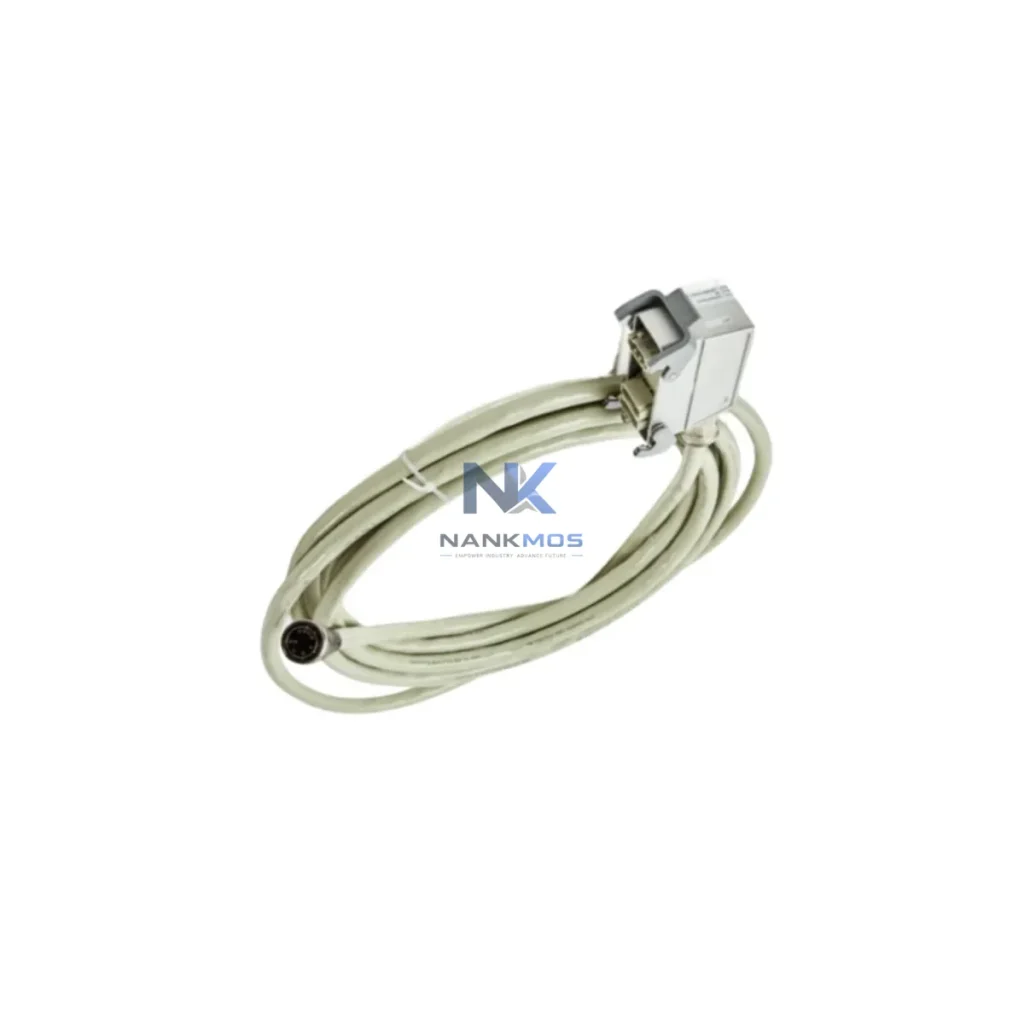

ABB 3HEA800736-002 Industrial Robot Cable

Product Details

3HEA800736-002 Product Description

The ABB 3HEA800736-002 is a factory-engineered Power Floor Cable designed for seamless integration within ABB IRB-series robot control architectures. As a critical component of the robot's power distribution layer, this cable harness ensures stable, low-impedance power delivery between the IRC5 controller cabinet and the robot base, directly supporting the mechanical and electrical integrity of the entire automation cell. Its role extends beyond simple connectivity — it is a structural element of the control system's power layer, enabling consistent drive performance, reduced EMI interference, and long-term mechanical reliability across demanding industrial environments.

The 3HEA800736-002 Power Floor Cable does not operate in isolation — it is one node in a tightly coordinated automation architecture. In a fully deployed ABB IRB robot cell, the power layer anchored by this cable interfaces directly with the IRC5 Single Cabinet Controller (3HAC032140-001), which houses the drive modules, main computer, and I/O processing units. The controller's DSQC 661 Main Computer Board governs all motion planning and axis coordination, while the DSQC 652 Digital I/O Board manages discrete signal exchange with the production line PLC.

On the power distribution side, the IRC5 Drive Module (3HAC17484-1) converts incoming AC supply into regulated DC bus voltage for each servo axis. The 3HEA800736-002 cable carries this conditioned power from the cabinet to the robot base, where it feeds the axis computer and motor power distribution block inside the manipulator. Any degradation in this cable — whether from connector oxidation, insulation breakdown, or mechanical stress — directly impacts drive stability across all six axes.

Signal integrity is maintained in parallel through the SMB (Serial Measurement Board, 3HAC14550-2), which handles resolver feedback from each joint motor. While the SMB cable runs separately, both the power and signal harnesses must be routed and secured together to prevent cross-interference. The 3HEA800736-001 Signal Floor Cable is the natural companion to this power cable, and both should be replaced as a matched set during scheduled maintenance to ensure system-level consistency.

At the control layer, the DSQC 1000 FlexPendant Interface Unit provides operator-level access to motion programs and safety configurations. The FlexPendant communicates over the internal EtherNet/IP backbone of the IRC5 cabinet, which also connects to upstream SCADA systems or MES platforms via the DSQC 604 Ethernet Switch Module. This communication layer depends on stable power delivery — any voltage fluctuation introduced by a degraded floor cable can manifest as axis faults, communication timeouts, or emergency stop events at the controller level.

For cells requiring higher availability, ABB's IRC5 Dual Cabinet configuration separates the drive and control functions into two enclosures, with the floor cable routing adapted accordingly. In redundant architectures, a spare 3HEA800736-002 should be maintained on-site to minimize mean time to repair (MTTR) during unplanned downtime. Pairing this cable with the 3HAC025338-001 Robot Mounting Base Kit ensures correct mechanical alignment and strain relief at the robot base connector, preventing premature wear in high-cycle applications.

Automotive Body-in-White (BIW) Lines: In high-throughput spot welding and material handling cells, the 3HEA800736-002 supports continuous-duty power delivery to IRB 6640 and IRB 6700 manipulators. Cable routing in these environments must account for weld spatter shielding and floor-level thermal exposure. The cable's robust insulation and ABB-certified connector design ensure reliable performance across multi-shift production schedules.

Semiconductor and Electronics Assembly: Cleanroom-compatible IRB 1600 and IRB 2600 cells used for PCB handling, dispensing, and inspection require precise, low-vibration power delivery. The 3HEA800736-002 supports the low-noise power requirements of these precision applications, where axis jitter caused by power instability would directly impact placement accuracy and yield rates.

Petrochemical and Energy Sector: In hazardous area robot deployments — such as inspection robots in refineries or offshore platforms — the power floor cable must meet stringent mechanical protection standards. While the standard 3HEA800736-002 is rated for general industrial environments, its use in Ex-zone adjacent installations requires additional conduit protection per local electrical codes. The cable's shielded construction minimizes interference from variable-frequency drives and high-voltage switchgear common in these facilities.

Food and Beverage Packaging Lines: IRB 360 FlexPicker and IRB 4600 cells deployed in hygienic packaging environments benefit from the cable's sealed connector design, which resists ingress from washdown procedures. Scheduled cable inspection intervals should align with the facility's sanitation cycle to maintain both electrical integrity and compliance with food-grade installation standards.

Metal Fabrication and Welding Automation: Arc welding cells using IRB 1520ID or IRB 2600ID integrated dress-pack robots route the power floor cable through dedicated cable management channels to isolate it from welding current return paths. Proper grounding of the IRC5 cabinet and robot base — verified during commissioning — prevents ground loop currents from degrading cable insulation over time.

Q1: Is the 3HEA800736-002 compatible with all IRC5 controller variants, including the Compact and Panel Mounted versions? The 3HEA800736-002 is engineered for the standard IRC5 Single Cabinet and Dual Cabinet configurations used with full-size IRB manipulators. The IRC5 Compact Controller (used with smaller robots such as the IRB 120 and IRB 140) uses a different cable harness family. Always verify the controller variant and robot model against the ABB spare parts catalog or the robot's original equipment list (OEL) before ordering. Our technical team can assist with cross-referencing if the original documentation is unavailable.

Q2: What is the recommended replacement interval, and how does the 12-Month Warranty apply to in-service cables? ABB recommends inspecting floor cables during each scheduled preventive maintenance cycle — typically every 6,000 operating hours or annually, whichever comes first. The 12-Month Warranty covers manufacturing defects, connector failures, and insulation integrity from the date of shipment. It does not cover damage resulting from improper installation, mechanical abuse, or routing outside ABB's specified bend radius. Warranty claims are processed with photographic documentation of the installation and failure mode.

Q3: Can the 3HEA800736-002 be used as a direct replacement for older IRB-generation power cables, and is stock available for immediate shipment? The 3HEA800736-002 supersedes earlier power floor cable variants for compatible IRB platforms. Cross-compatibility depends on the specific robot generation and controller firmware version — our team verifies this against the robot's serial number and controller configuration before confirming fitment. Stock is maintained for immediate dispatch, with pre-shipment continuity and insulation resistance testing completed on every unit. Lead times for confirmed orders are typically 3–7 business days for standard destinations.
