Product Details

66403HAC030829-001 3HAC057549-005 3HAC17484-10 IRB66406600 3HAC026787-001/02/03 Product Description

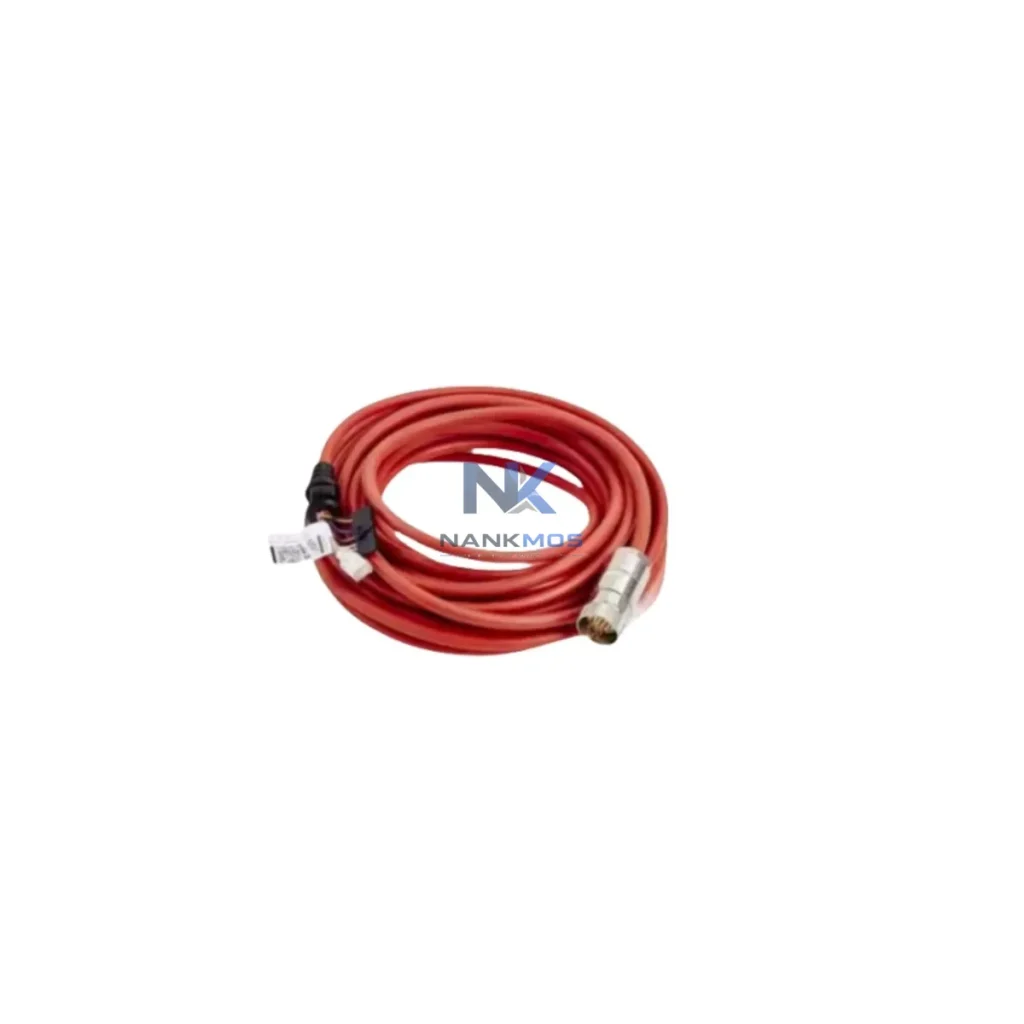

The ABB 3HAC026787-001 is a factory-engineered robot control cable designed for seamless integration within the IRB6640 and IRB6600 robotic control architecture. As a precision signal and power interconnect component, this cable serves as the structural backbone linking the IRC5 controller to the robot manipulator arm, ensuring uninterrupted signal flow, electrical integrity, and long-term mechanical reliability across demanding industrial environments. Whether deployed in automotive body-in-white welding lines, semiconductor handling cells, or heavy-duty palletizing stations, the 3HAC026787-001 delivers the system-level consistency that modern automation platforms demand.

In a fully integrated ABB robotic cell, every layer of the control architecture depends on the quality and compatibility of its interconnects. The 3HAC026787-001 is not simply a cable — it is a system-matched component engineered to maintain signal fidelity between the IRC5 Single Cabinet Controller (or IRC5 Compact) and the IRB6640 manipulator across all six axes of motion. Its shielded construction suppresses electromagnetic interference generated by servo drives, frequency converters, and adjacent industrial switching equipment, preserving the integrity of resolver feedback signals and encoder data that the DSQC 661 / DSQC 679 main computer board relies upon for real-time motion control.

The 3HAC026787-001 operates at the intersection of the control layer and the execution layer, making it a critical enabler of system-wide coherence. Within a typical IRB6640 robotic cell, the control architecture spans multiple interdependent layers:

At the control layer, the IRC5 Single Cabinet Controller houses the main computer board (DSQC 661 or DSQC 679), axis computer (DSQC 668), and drive units (DSQC 601 / DSQC 617) that generate motion commands and process feedback in real time. The 3HAC026787-001 cable carries these signals from the controller cabinet to the robot arm with zero tolerance for signal degradation. Any attenuation or interference in this cable path directly impacts path accuracy, cycle time, and safety function response.

At the I/O layer, the DSQC 652 Digital I/O Board and DSQC 378B I/O Unit manage discrete signals for tooling, grippers, and safety interlocks. These signals are routed through the IRC5 backplane and ultimately depend on the stable power and ground references maintained by the 3HAC026787-001 interconnect. Voltage fluctuations or ground loops introduced by a degraded cable can cause spurious I/O faults that are difficult to diagnose without proper signal tracing tools.

At the communication layer, the IRC5 platform supports PROFIBUS-DP, DeviceNet, EtherNet/IP, and PROFINET fieldbus protocols via dedicated communication boards (DSQC 667 / DSQC 669). The 3HAC026787-001 cable's shielding architecture is designed to coexist with these high-frequency communication environments without introducing cross-talk or common-mode noise into the servo feedback loop.

At the power layer, the DSQC 609 Power Supply Unit and 3HAC025338-001 transformer assembly provide regulated DC bus voltage to the drive units. The 3HAC026787-001 carries brake release signals and motor power to the IRB6640's joint motors, requiring robust insulation and connector retention to withstand the mechanical stress of continuous robot motion cycles — often exceeding 1,000,000 cycles per year in high-throughput applications.

At the HMI layer, the FlexPendant (IRC5 Teach Pendant, 3HAC028357-001) connects to the IRC5 controller and provides the operator interface for jogging, program editing, and fault acknowledgment. The accuracy of position feedback displayed on the FlexPendant is directly dependent on the signal integrity maintained by the 3HAC026787-001 cable — a degraded cable can produce erratic position readouts that mislead maintenance personnel during troubleshooting.

At the protection layer, the IRC5 safety system relies on the DSQC 400 Safety Board and external safety PLCs (such as the ABB Pluto Safety Controller or third-party Pilz PNOZ units) to monitor emergency stop circuits, speed monitoring, and zone protection. The 3HAC026787-001 cable carries safety-relevant brake signals that must remain electrically isolated and mechanically intact to ensure SIL-compliant safety function performance.

The ABB 3HAC026787-001 control cable is deployed across a wide spectrum of industrial automation sectors where the IRB6640 and IRB6600 robot platforms are standard:

Automotive Manufacturing: In body-in-white welding lines and press-tending cells, the IRB6640 operates at high duty cycles with frequent acceleration and deceleration. The 3HAC026787-001 must withstand continuous flexing, weld spatter exposure, and elevated ambient temperatures while maintaining resolver signal accuracy to within ±0.02 mm repeatability specifications.

Petrochemical & Energy: In hazardous area robotic inspection and valve manipulation applications, the cable's shielding integrity is critical for maintaining control signal stability in environments with high levels of electromagnetic interference from variable frequency drives, high-voltage switchgear, and RF communication equipment.

Metal Fabrication & Foundry: IRB6640 robots deployed in die casting extraction and machine tending applications subject the 3HAC026787-001 to thermal cycling, coolant mist, and mechanical vibration. The cable's connector retention system and jacket material selection are engineered to maintain electrical continuity under these conditions.

Packaging & Palletizing: High-speed palletizing lines running 24/7 operations demand cable assemblies with predictable service life and minimal unplanned downtime. Stocking the 3HAC026787-001 as a critical spare reduces mean time to repair (MTTR) from days to hours when cable-related faults occur.

Semiconductor & Electronics Assembly: In cleanroom-compatible robotic assembly cells, the cable's EMI shielding prevents interference with sensitive measurement equipment and vision systems operating in close proximity to the robot controller.

Q1: Is the ABB 3HAC026787-001 compatible with both the IRC5 Single Cabinet and IRC5 Compact controllers? Yes. The 3HAC026787-001 is designed for use with the full IRC5 controller family, including the Single Cabinet, Compact, and Panel Mounted variants, when paired with the IRB6640 or IRB6600 manipulator. Always verify the cable length variant (3HAC026787-001, -002, or -003) against your installation's controller-to-robot distance to ensure proper cable management and avoid excessive slack or tension that could accelerate connector wear.

Q2: How does replacing the 3HAC026787-001 affect system calibration and axis configuration? Cable replacement itself does not alter the robot's calibration data, which is stored in the IRC5 controller's SMB (Serial Measurement Board, 3HAC17484-10) and axis computer. However, after cable replacement, it is recommended to perform a fine calibration verification using the FlexPendant's calibration routine to confirm that resolver signal levels are within specification. If the SMB battery (3HAC057549-005) has not been replaced recently, this is an ideal time to do so to prevent calibration data loss during future power cycles.

Q3: What is the warranty coverage and supply lead time for the 3HAC026787-001? All 3HAC026787-001 units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and electrical failure under normal operating conditions. Units are pre-tested prior to shipment to verify connector integrity and insulation resistance. For most regions, standard lead time is 3–7 business days for in-stock units, with expedited shipping available for critical maintenance situations. Contact [email protected] or +86 18359268345 for real-time stock confirmation and volume pricing.
