ABB 76003HAC12641-1 IRB76003HAC12641-1 IRB76003HAC17272-1

Product Details

76003HAC12641-1 IRB76003HAC12641-1 IRB76003HAC17272-1 Product Description

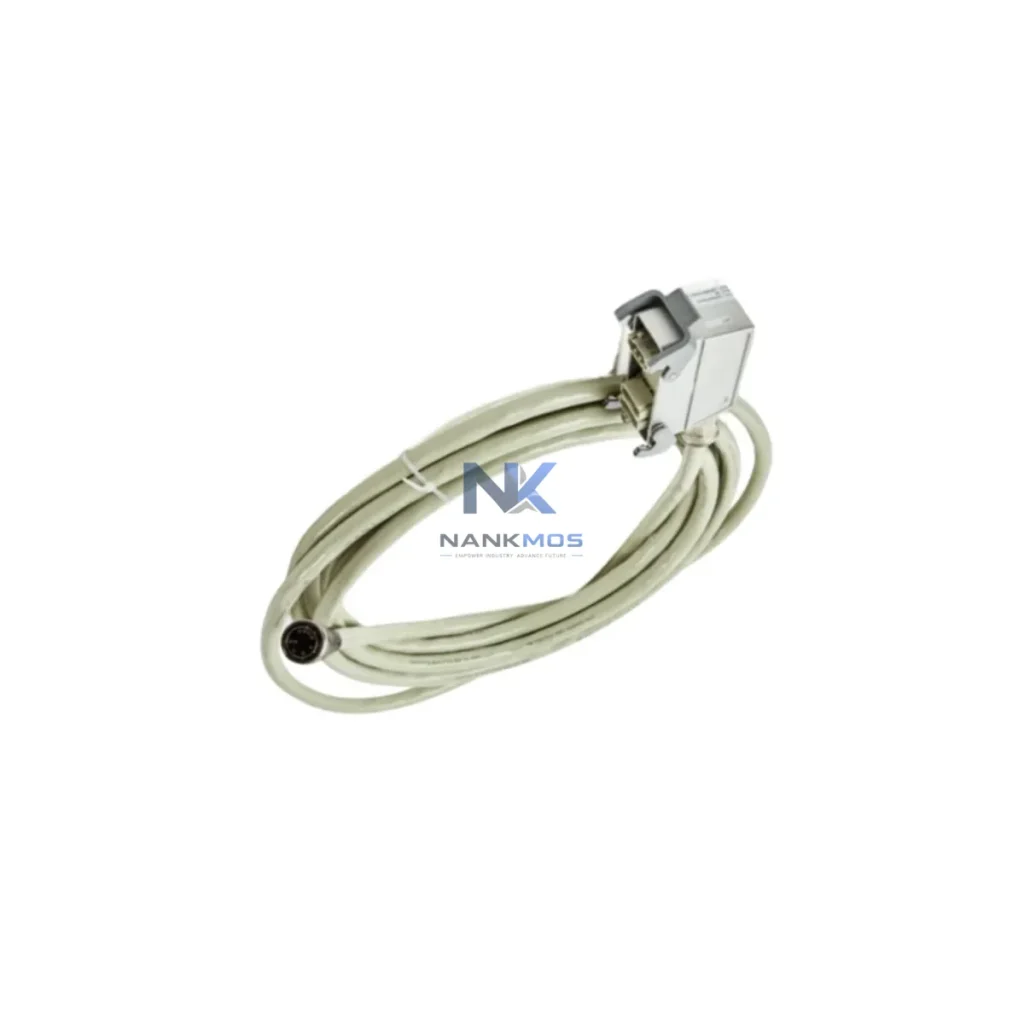

The ABB 3HAC12641-1 is a factory-engineered robot cable assembly purpose-built for the IRB 7600 series — ABB's heavy-duty industrial robot platform rated for payloads up to 500 kg. Within a fully integrated automation architecture, this cable is not merely a passive conductor; it is a precision-matched signal and power pathway that sustains the operational integrity of the entire robotic cell. Designed to interface directly with the IRC5 robot controller, the 3HAC12641-1 ensures deterministic signal transmission between the controller cabinet and the robot manipulator, preserving motion accuracy, I/O synchronization, and safety circuit continuity across demanding industrial cycles.

In modern control architectures, every layer — from the PLC control layer down through the I/O layer, communication layer, power layer, HMI layer, actuation layer, protection layer, and maintenance layer — depends on the physical integrity of interconnecting cables. The 3HAC12641-1 occupies a critical position in this hierarchy: it bridges the IRC5 controller's drive modules and the IRB 7600's axis motors, encoder feedback circuits, and brake control lines. Any degradation in this cable directly impacts servo loop stability, encoder signal fidelity, and emergency stop response time. Specifying the correct OEM cable eliminates impedance mismatches, shielding discontinuities, and connector wear patterns that arise from non-matched substitutes.

The ABB 3HAC12641-1 achieves its full value when deployed within a coherent ABB automation platform. In a typical IRB 7600 robotic cell, the IRC5 controller cabinet houses the main computer module (DSQC1000 or DSQC679), drive modules for each robot axis, and the I/O system based on ABB's DSQC651 or DSQC652 digital I/O boards. The 3HAC12641-1 cable connects the drive module outputs directly to the robot's axis motors and encoder assemblies, forming the physical backbone of the servo control loop.

At the control layer, the IRC5 main computer executes RAPID programs and motion planning algorithms, issuing torque commands to each axis drive. These commands travel through the drive modules and then through the 3HAC12641-1 cable to the axis motors. Simultaneously, encoder feedback signals return via the same cable bundle, closing the position and velocity control loops with microsecond-level latency. Any interruption or degradation in this cable path directly manifests as position error, axis fault codes (e.g., 50024 Motor Current Error or 50301 Joint Collision), or emergency stop events.

At the communication layer, the IRC5 controller integrates with plant-level PROFINET or DeviceNet networks via option boards such as the DSQC688 PROFINET Device or DSQC679 DeviceNet Master. These fieldbus connections carry production commands from the PLC (e.g., ABB AC500 or Siemens S7-1500) to the IRC5, while the 3HAC12641-1 ensures that the physical execution of those commands — axis motion, gripper actuation, and weld gun firing — occurs with the signal integrity required for repeatable, high-precision operation.

The power layer is anchored by the IRC5 transformer and power supply unit, which conditions incoming three-phase power for the drive modules. The 3HAC12641-1 cable must be rated to carry the peak current demands of the IRB 7600's large-frame servo motors without voltage drop or thermal degradation. Complementary components in this layer include the IRC5 drive module (3HAC025338-004) and the capacitor bank assembly that supports regenerative braking energy recovery.

For HMI integration, the FlexPendant (3HAC028357-001) connects to the IRC5 via a dedicated pendant cable, providing operators with real-time axis position data, program execution status, and fault diagnostics. When the 3HAC12641-1 is correctly installed and functioning, the FlexPendant displays clean encoder counts and zero axis error flags — a direct confirmation of cable integrity. The SafeMove2 safety module, integrated within the IRC5, also relies on dual-channel encoder signals carried by this cable to enforce speed and position limits in collaborative zones.

At the I/O and terminal layer, the DSQC651 digital I/O board interfaces with external sensors, conveyors, and end-of-arm tooling. Signal isolation modules and terminal blocks within the control cabinet ensure that noise from the high-current motor cables — including the 3HAC12641-1 — does not corrupt low-level I/O signals. Proper cable routing, grounding, and shielding termination at both the IRC5 cabinet and the robot base connector are essential for maintaining this isolation in high-cycle production environments.

Automotive Body-in-White Manufacturing: In automotive stamping and welding lines, IRB 7600 robots handle heavy body panels and operate resistance spot welding guns. The 3HAC12641-1 cable sustains the high-cycle, high-current demands of these applications, where axis motors operate near rated torque continuously across three-shift production schedules. Reliable encoder feedback through this cable is essential for maintaining weld gun positioning accuracy within ±0.1 mm tolerances.

Foundry and Heavy Material Handling: In die casting and foundry environments, IRB 7600 robots extract castings from molds and transfer them to cooling stations. The oil-resistant, thermally stable jacket of the 3HAC12641-1 withstands the elevated ambient temperatures and hydraulic fluid contamination typical of these environments. Correct cable specification prevents premature jacket cracking and connector corrosion that would otherwise cause unplanned downtime.

Petrochemical and Energy Sector Automation: In process plant automation, IRB 7600 robots perform valve manipulation, heavy component assembly, and inspection tasks in areas with stringent EMI requirements from variable frequency drives and high-voltage switchgear. The multi-layer shielding of the 3HAC12641-1 maintains encoder signal integrity in these electrically noisy environments, preventing spurious axis faults that would trigger safety shutdowns.

Shipbuilding and Offshore Fabrication: Large-scale welding and material handling in shipyard environments demand robots capable of operating in humid, salt-laden atmospheres. The 3HAC12641-1's robust connector sealing and jacket material provide the environmental protection needed for reliable operation in these conditions, supporting continuous production without cable-related interruptions.

Metallurgy and Steel Processing: In steel mill automation, IRB 7600 robots handle billets, slabs, and finished sections at elevated temperatures. The thermal rating and mechanical flexibility of the 3HAC12641-1 ensure that repeated flexing during robot motion cycles does not cause conductor fatigue or insulation breakdown, maintaining system uptime in 24/7 production environments.

Q1: Is the ABB 3HAC12641-1 compatible with all IRC5 controller variants, including the IRC5 Compact and Panel Mounted versions? The 3HAC12641-1 is engineered specifically for the IRB 7600 series in conjunction with the standard IRC5 single-cabinet controller. Compatibility with IRC5 Compact or Panel Mounted variants depends on the specific robot configuration and cable routing requirements of the installation. We recommend verifying the controller variant and robot axis configuration against the ABB circuit diagram (3HAC026816-001) before ordering. Our technical team can assist with configuration verification as part of our pre-shipment support process, covered under the 12-Month Warranty terms.

Q2: What installation and commissioning checks should be performed after replacing the 3HAC12641-1 cable? After installation, perform the following verification sequence: (1) Visual inspection of all connector seating and locking collar engagement at both the IRC5 cabinet and robot base; (2) IRC5 boot sequence monitoring for axis communication errors (Event Log category Motion); (3) Manual jogging of all six axes through full range of motion to verify encoder feedback continuity and absence of position error accumulation; (4) Execution of the ABB CalibWare or LoadID routine to confirm that axis calibration offsets remain within specification. All replacement cables supplied by NANKMOS are pre-tested for continuity, insulation resistance, and shield integrity prior to shipment, reducing commissioning risk.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS support long-term inventory supply for the 3HAC12641-1? The 12-Month Warranty covers manufacturing defects, connector integrity, conductor continuity, and shielding effectiveness under normal operating conditions as defined by ABB's installation guidelines. In the event of a warranty claim, NANKMOS provides direct replacement or full refund following technical verification. For long-term maintenance planning, NANKMOS maintains dedicated stock of the 3HAC12641-1 and related IRB 7600 spare parts — including the 3HAC17272-1 upper arm cable and the 3HAC025338-004 drive module — to support planned maintenance intervals and emergency breakdown requirements. Contact [email protected] or +86 18359268345 for volume pricing and scheduled delivery programs.
