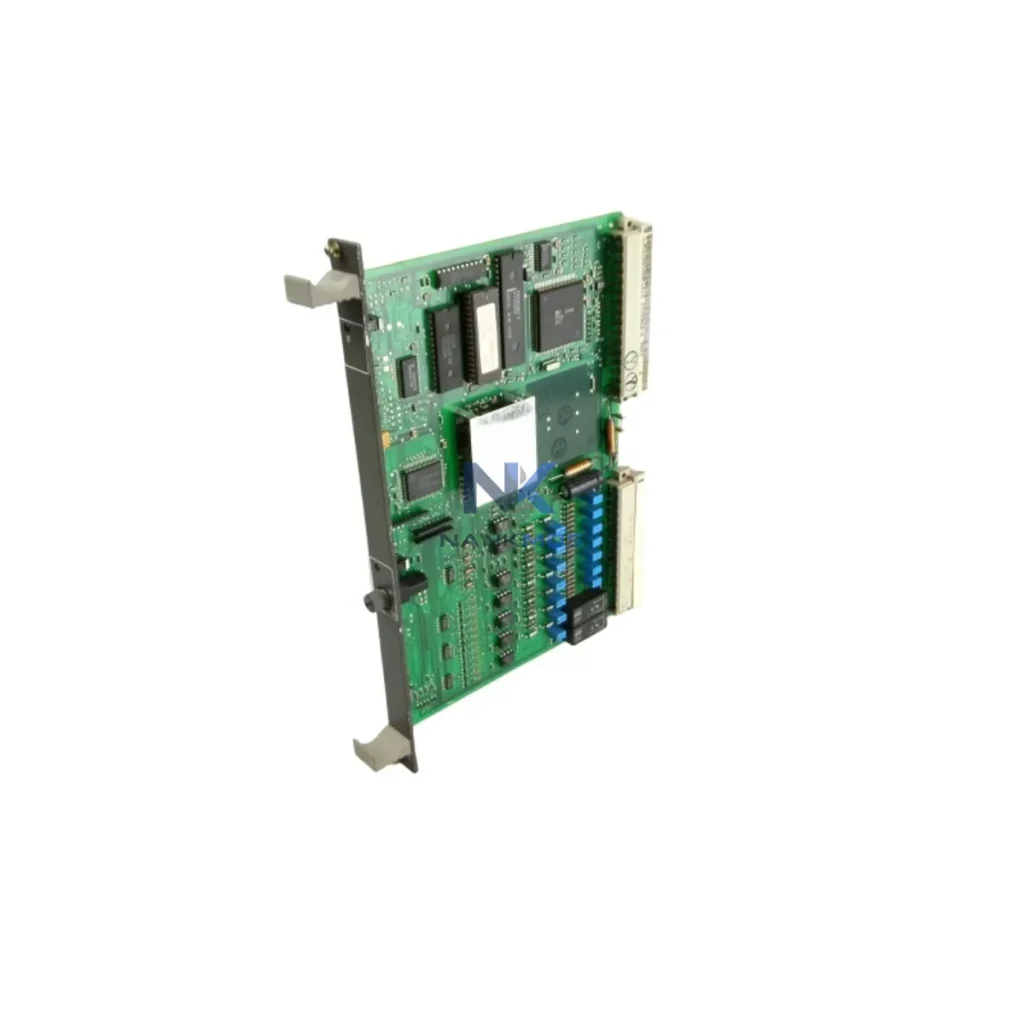

ABB 83SR06E GJR2388300R1010 DCS Control Module

Product Details

83SR06E GJR2388300R1010 Product Description

The ABB 83SR06E (part number GJR2388300R1010) is a dedicated DCS control module engineered for deployment within the ABB 800xA System 800xA distributed control architecture. Designed to operate as a core processing and I/O coordination element, this module delivers deterministic scan cycle performance, robust signal handling, and seamless integration across the layered automation hierarchy. Its role extends beyond standalone operation — it functions as a precision-matched component within a broader control ecosystem, enabling consistent system behavior from the field device layer through to the supervisory and historian levels.

In modern industrial automation, no control module operates in isolation. The 83SR06E is architected to interface directly with ABB's S800 I/O modules, including AI810, AO810, DI810, and DO810 series, providing structured signal acquisition and output command distribution across analog and digital field loops. The module's backplane communication is optimized for the ModuleBus protocol, ensuring low-latency, high-integrity data exchange between the controller and its associated I/O clusters without introducing bottlenecks at the process interface layer.

At the control layer, the 83SR06E coordinates with the AC800M controller family — including the PM861, PM864, and PM866 processor modules — to maintain synchronized execution across redundant or distributed controller nodes. This coordination is critical in applications where split-second process decisions must be validated across multiple controller instances before actuation commands are issued to field devices. The module supports hot-standby redundancy configurations, allowing seamless failover without process interruption, a requirement in continuous process industries such as oil refining, chemical production, and power generation.

Communication architecture is a defining strength of the 83SR06E within the 800xA platform. The module supports integration with ABB's AF100 fieldbus and is compatible with PROFIBUS DP gateway configurations via CI854 or CI858 communication interface modules. This enables the control architecture to extend its reach into legacy field device networks while maintaining centralized diagnostic visibility. For Ethernet-based plant networks, the module operates within segments managed by ABB's Industrial Ethernet switches and can be monitored through the 800xA Information Management layer, providing real-time process data to historian and reporting systems.

Power supply integrity is maintained through ABB's SD series DIN-rail power supply units, which provide regulated 24 VDC to the controller and I/O subsystems. In redundant power configurations, dual SD821 or SD822 units are deployed with diode ORing modules to eliminate single points of failure at the power distribution layer. The 83SR06E's internal power consumption profile is optimized for high-density cabinet installations, supporting compact panel designs without thermal derating under continuous duty cycles.

HMI integration is achieved through the 800xA Operator Workplace, where the 83SR06E's process variables, diagnostic alarms, and module health status are presented in real time. Operators can access loop tuning parameters, force I/O states for commissioning, and review historical trend data without leaving the unified operator environment. This tight coupling between the control module and the HMI layer reduces mean time to diagnose (MTTD) during process upsets and accelerates corrective action cycles.

For protection and safety applications, the 83SR06E can be deployed alongside ABB's Safety Manager or integrated within SIL-rated control segments where the 800xA Safety layer governs interlock logic. Signal isolation between standard and safety I/O channels is maintained through dedicated barrier modules and galvanic isolators, preserving SIL integrity across the control cabinet boundary. This architecture supports IEC 61511 compliance for process safety instrumented systems in sectors including upstream oil and gas, LNG terminals, and chemical batch processing.

Long-term maintainability is a core design principle of the 83SR06E. The module supports online replacement without controller shutdown in hot-swap capable rack configurations, minimizing planned maintenance windows. Diagnostic data — including module temperature, communication error counters, and I/O channel status — is continuously logged to the 800xA Asset Optimization layer, enabling predictive maintenance scheduling based on actual module health metrics rather than fixed calendar intervals. This capability directly reduces unplanned downtime and extends the operational lifecycle of the control system investment.

NANKMOS maintains verified stock of the ABB 83SR06E GJR2388300R1010, sourced through authorized industrial distribution channels. Each unit undergoes pre-shipment functional testing to confirm communication integrity, I/O channel response, and firmware version compatibility before dispatch. Global logistics support ensures delivery to manufacturing sites, engineering contractors, and MRO procurement teams across Asia, Europe, the Middle East, and the Americas. All units are covered by a 12-Month Warranty against manufacturing defects and operational failure under normal service conditions.

The 83SR06E achieves its full performance potential when deployed as part of a cohesive ABB 800xA automation platform. At the controller layer, it operates in conjunction with the PM864A AC800M processor module, which manages the execution of control strategies and coordinates data exchange across the system network. Redundant controller configurations pair the PM864A with a standby processor connected via the CI860 ControlNet Interface, ensuring uninterrupted control during primary processor maintenance or failure events.

I/O expansion is handled through the TB820V2 ModuleBus Optical Port, which extends the I/O bus over fiber-optic links to remote I/O clusters located in field junction boxes or satellite control panels. This architecture eliminates the need for long analog signal cable runs, reducing noise susceptibility and installation cost in large-footprint process plants. Analog signal conditioning is provided by AI810 8-channel analog input modules and AO810 8-channel analog output modules, which interface directly with 4–20 mA transmitters and control valves across the process field.

Digital field devices are connected through DI810 digital input and DO810 digital output modules, handling discrete signals from motor starters, valve position switches, and protective relay contacts. For PROFIBUS DP field networks, the CI854A PROFIBUS DP Interface bridges the 800xA controller domain with intelligent field devices including variable frequency drives, smart valve positioners, and remote I/O stations from third-party vendors.

Power distribution within the control cabinet is managed by ABB SD821 24 VDC power supply units, with redundant configurations using diode ORing modules to maintain supply continuity. Cabinet-level network connectivity is provided through ABB industrial Ethernet switches supporting PROFINET and standard TCP/IP traffic, enabling seamless integration with the plant-wide information network and remote engineering workstations.

The ABB 83SR06E GJR2388300R1010 is deployed across a broad spectrum of industrial sectors where process reliability, system scalability, and long-term maintainability are non-negotiable requirements.

In oil refining and petrochemical processing, the module manages continuous distillation column control, reactor temperature regulation, and compressor surge protection loops, where scan cycle determinism and redundancy are critical to safe operation. Power generation facilities — including combined-cycle gas turbine plants and coal-fired boilers — deploy the 83SR06E for turbine control, boiler drum level management, and auxiliary system sequencing, leveraging its hot-standby redundancy to meet high-availability requirements.

In water and wastewater treatment, the module coordinates pump sequencing, chemical dosing control, and filtration process management across geographically distributed pump stations connected via fiber-optic ModuleBus extensions. Mining and mineral processing applications utilize the 83SR06E in crusher control systems, conveyor sequencing, and flotation cell management, where the module's robust operating temperature range supports installation in non-air-conditioned field enclosures.

Pharmaceutical and food-grade manufacturing environments deploy the module within 21 CFR Part 11-compliant 800xA systems, where audit trail logging and batch record management are integrated directly into the control architecture. Pulp and paper mills and steel and metals processing facilities rely on the 83SR06E for continuous web tension control, furnace temperature management, and rolling mill speed regulation, where process upsets translate directly into product quality losses and equipment damage.

Q1: Is the ABB 83SR06E GJR2388300R1010 compatible with existing 800xA System 5.x and 6.x installations? The 83SR06E is designed for integration within the ABB 800xA platform and is compatible with System 800xA versions 5.1 and later, subject to firmware revision alignment. When retrofitting into an existing installation, it is recommended to verify the firmware version of the replacement module against the system's current software baseline using ABB's compatibility matrix. NANKMOS can provide firmware version documentation upon request to support pre-installation engineering review.

Q2: Can the 83SR06E be replaced online without shutting down the controller or the process? In hot-swap capable rack configurations with redundant controller architecture, the 83SR06E supports online module replacement without requiring a controller shutdown or process interruption. The standby controller assumes full control responsibility during the replacement procedure, and the new module is automatically synchronized to the active controller state upon reinsertion. For non-redundant configurations, a planned maintenance window is required. NANKMOS recommends maintaining a spare unit in local inventory to minimize replacement lead time.

Q3: What warranty and post-shipment support does NANKMOS provide for the ABB 83SR06E? All ABB 83SR06E GJR2388300R1010 units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and operational failure under normal service conditions. Each unit undergoes pre-shipment functional testing including communication integrity verification, I/O channel response confirmation, and firmware version documentation. In the event of a warranty claim, NANKMOS provides direct technical support and replacement unit dispatch to minimize system downtime. Contact [email protected] or +86 18359268345 for warranty registration and support inquiries.
