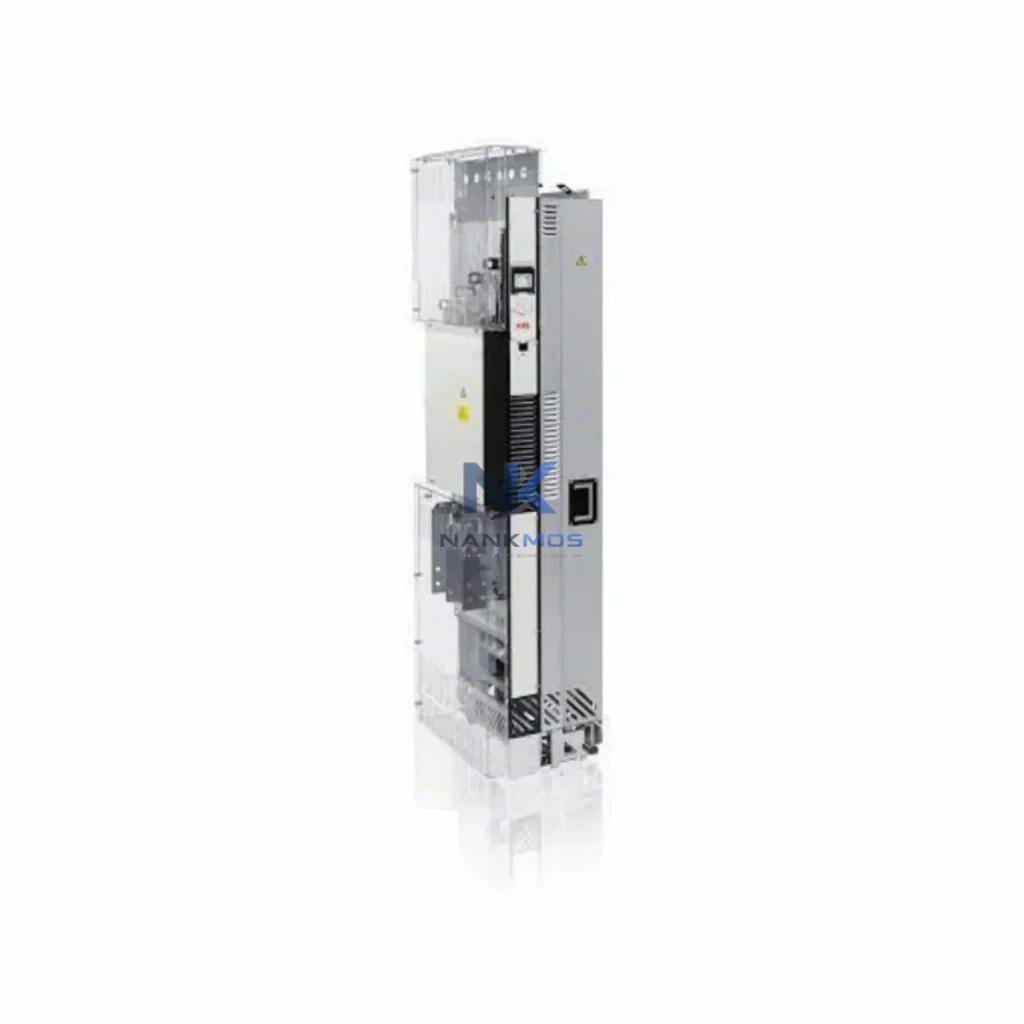

ABB ACS880-04-330A-7 AC Variable Frequency Drive

Product Details

ACS880-04-330A-7 Product Description

The ABB ACS880-04-330A-7 is engineered as a cabinet-built drive module within the ACS880 multi-drive architecture, designed for seamless contextual integration across every layer of an industrial automation platform. Rather than functioning as a standalone inverter, this unit is conceived as a coordinated drive layer node that communicates upward to the control layer, sideways to peer drives sharing a common DC bus, and downward to motor and mechanical loads — delivering system-level coherence that isolated drives cannot achieve.

At the control layer, the ACS880-04-330A-7 interfaces directly with ABB AC500 PLCs or third-party controllers via PROFINET or EtherNet/IP fieldbus adapters (FENA-21). The RDCU-02C control unit embedded in the drive supports ABB's Direct Torque Control algorithm, enabling sub-millisecond torque response without encoder feedback in most applications. For high-precision servo-class positioning, the RTAC-01 pulse encoder interface module can be added to the drive's option slot, extending the control resolution to match the demands of winding, extruding, or crane applications.

At the I/O and signal layer, the RAIO-01 analog I/O extension module expands the drive's native signal capacity, supporting 4–20 mA process feedback loops from field transmitters, pressure sensors, or flow meters. This makes the ACS880-04-330A-7 a natural fit for pump and fan control in water treatment or HVAC systems, where PID regulation must be embedded at the drive level to reduce PLC scan-cycle load. Digital I/O terminals connect to safety relays, motor thermistors (PTC/PT100), and external interlocks, ensuring that the drive's protective logic is fully integrated into the plant-wide safety architecture.

At the communication layer, the FPBA-01 PROFIBUS DP adapter enables integration into legacy DCS environments running Siemens SIMATIC S7 or Yokogawa CENTUM VP, while the FMBA-01 Modbus TCP adapter supports SCADA connectivity for energy monitoring and remote diagnostics. This dual-protocol flexibility means the ACS880-04-330A-7 can coexist in mixed-vendor control architectures without requiring protocol converters or additional gateways, reducing cabinet footprint and wiring complexity.

At the power and DC bus layer, the ACS880-04 module is designed to share a common DC bus with other ACS880-04 drive modules within the same multi-drive cabinet. This DC bus sharing enables regenerative energy from decelerating drives (such as crane lowering or winder unwind sections) to be consumed by accelerating drives on the same bus, dramatically reducing net energy consumption and eliminating the need for braking resistors in balanced multi-drive systems. The ACS880-07 regenerative supply unit or ACS880-17 active front end can serve as the common rectifier, feeding the shared DC bus that powers multiple ACS880-04 inverter modules simultaneously.

At the HMI and diagnostics layer, the ACS-AP-I assistant control panel provides a local operator interface with a graphical display, parameter navigation, and fault history logging. For remote monitoring, the ABB Ability Drive Analyzer or third-party SCADA systems can poll drive parameters via Modbus TCP, enabling predictive maintenance workflows based on motor current signature analysis, thermal load trending, and run-hour accumulation. The drive's built-in data logger captures fault waveforms at 1 ms resolution, accelerating root-cause analysis during commissioning or unplanned shutdowns.

At the protection and safety layer, the ACS880-04-330A-7 integrates STO (Safe Torque Off) as a standard hardware function, certified to IEC 61508 SIL 3 and EN ISO 13849-1 PLe. This allows the drive to be wired directly into a safety relay circuit (such as the ABB JOKAB PLUTO or Pilz PNOZ) without an external motor contactor for STO-based emergency stop, simplifying cabinet design and reducing component count. For applications requiring SS1 (Safe Stop 1) or SLS (Safely Limited Speed), the FSO-12 safety functions module can be installed in the drive's option slot.

Related components and modules that are commonly deployed alongside the ACS880-04-330A-7 in a complete multi-drive cabinet include: the ACS880-07-0430A-7 active front end supply unit for regenerative rectification; the ACS880-04-210A-7 as a smaller peer drive module on the same DC bus for auxiliary motor control; the FENA-21 EtherNet/IP and PROFINET dual-port adapter for controller integration; the RAIO-01 analog I/O extension for process signal expansion; the RTAC-01 pulse encoder interface for closed-loop speed control; the FSO-12 safety functions module for SIL 3 safety integration; the ACS-AP-I assistant control panel for local HMI; the FPBA-01 PROFIBUS DP adapter for legacy DCS connectivity; and the ACH580 series drives for HVAC auxiliary systems within the same facility, sharing the same ABB Drive Composer commissioning toolchain.

The ACS880-04-330A-7 is deployed across a broad spectrum of heavy industrial applications where high-current motor control, system redundancy, and long-term maintainability are non-negotiable requirements.

In oil, gas, and petrochemical facilities, the drive controls compressor trains, booster pump stations, and cooling tower fans operating on 690 V distribution networks. Its STO safety function integrates with ESD (Emergency Shutdown) systems, and its PROFINET connectivity allows the DCS to monitor drive health parameters in real time, enabling condition-based maintenance scheduling that reduces unplanned downtime.

In mining and minerals processing, the ACS880-04-330A-7 drives conveyor belt systems, ball mill drives, and slurry pump stations where load torque varies significantly with ore density. The DTC control algorithm provides full torque at zero speed without encoder feedback, enabling smooth starting of fully loaded conveyors without mechanical shock. DC bus sharing between the conveyor drive and the hoist drive recovers regenerative energy during lowering cycles, improving overall energy efficiency of the mine haulage system.

In power generation and utilities, the drive is used for boiler feed pump variable speed control, induced draft fan regulation, and cooling water pump management in thermal power plants. Its ability to interface with Yokogawa CENTUM VP or Emerson DeltaV DCS systems via PROFIBUS DP ensures seamless integration into existing plant control architectures without requiring control system upgrades.

In marine and offshore applications, the ACS880-04-330A-7 is installed in thruster drive systems, ballast pump drives, and cargo pump control panels aboard vessels and floating production platforms. Its IP20 rating within a sealed marine-grade cabinet, combined with vibration-resistant construction, meets DNV GL and ABS classification society requirements for shipboard electrical equipment.

In metals and steel production, the drive controls rolling mill auxiliary drives, cooling bed conveyors, and coiler/uncoiler systems where precise speed synchronization between multiple drives is critical. The common DC bus architecture allows the ACS880-04-330A-7 to participate in a coordinated multi-drive system where speed references are distributed from the master PLC via PROFINET with deterministic cycle times below 4 ms.

In water and wastewater treatment, the drive manages high-power centrifugal pump stations and aeration blower systems, where energy savings from variable speed operation can reduce electricity consumption by 30–50% compared to throttle-valve control. The drive's built-in PID controller and sleep/wake function enable autonomous pump station operation with minimal PLC intervention.

Q1: Is the ACS880-04-330A-7 compatible with existing ACS880 multi-drive cabinets, and can it share a DC bus with other ACS880-04 modules of different current ratings? Yes. The ACS880-04-330A-7 is fully compatible with the ACS880 multi-drive cabinet system and can share a common DC bus with other ACS880-04 inverter modules regardless of their current rating, provided the supply unit (ACS880-07 or ACS880-17) is sized for the total combined load. DC bus voltage is nominally 1,000–1,100 V DC for the 690 V AC voltage class. All modules on the same bus must use the same voltage class (Class 7 for 690 V). Mixed current ratings (e.g., 210A and 330A modules on the same bus) are fully supported and commonly used in multi-motor drive systems.

Q2: What fieldbus adapters are required for PROFINET integration with a Siemens S7-1500 PLC, and what is the typical commissioning procedure? For PROFINET integration, install the FENA-21 dual-port EtherNet/IP and PROFINET adapter in option slot 1 of the ACS880-04-330A-7. Configure the drive's PROFINET device name and IP address using ABB Drive Composer Pro or the ACS-AP-I panel. Import the drive's GSDML file into TIA Portal and assign the drive as a PROFINET IO device under the S7-1500 controller. Map the drive's control word, speed reference, status word, and actual speed to PLC data blocks. Commissioning typically requires 2–4 hours for a single drive, including parameter backup, motor identification run (ID run), and functional test of all I/O signals.

Q3: What does the 12-Month Warranty cover, and what is the typical lead time and supply availability for the ACS880-04-330A-7? The 12-Month Warranty covers all hardware defects including the power stage (IGBTs, DC bus capacitors, gate driver boards), control unit (RDCU-02C), and all factory-installed option modules. Warranty claims are processed through NANKMOS with direct coordination with ABB's service network. Pre-shipment testing includes a full functional power-on test, insulation resistance measurement (>1 GΩ at 1,000 V DC), and parameter configuration verification. The ACS880-04-330A-7 is maintained in stock for immediate dispatch, with standard lead time of 3–7 business days for international shipments. Expedited shipping is available for urgent plant maintenance requirements. Contact [email protected] or +86 18359268345 for real-time stock confirmation and technical pre-sales support.
