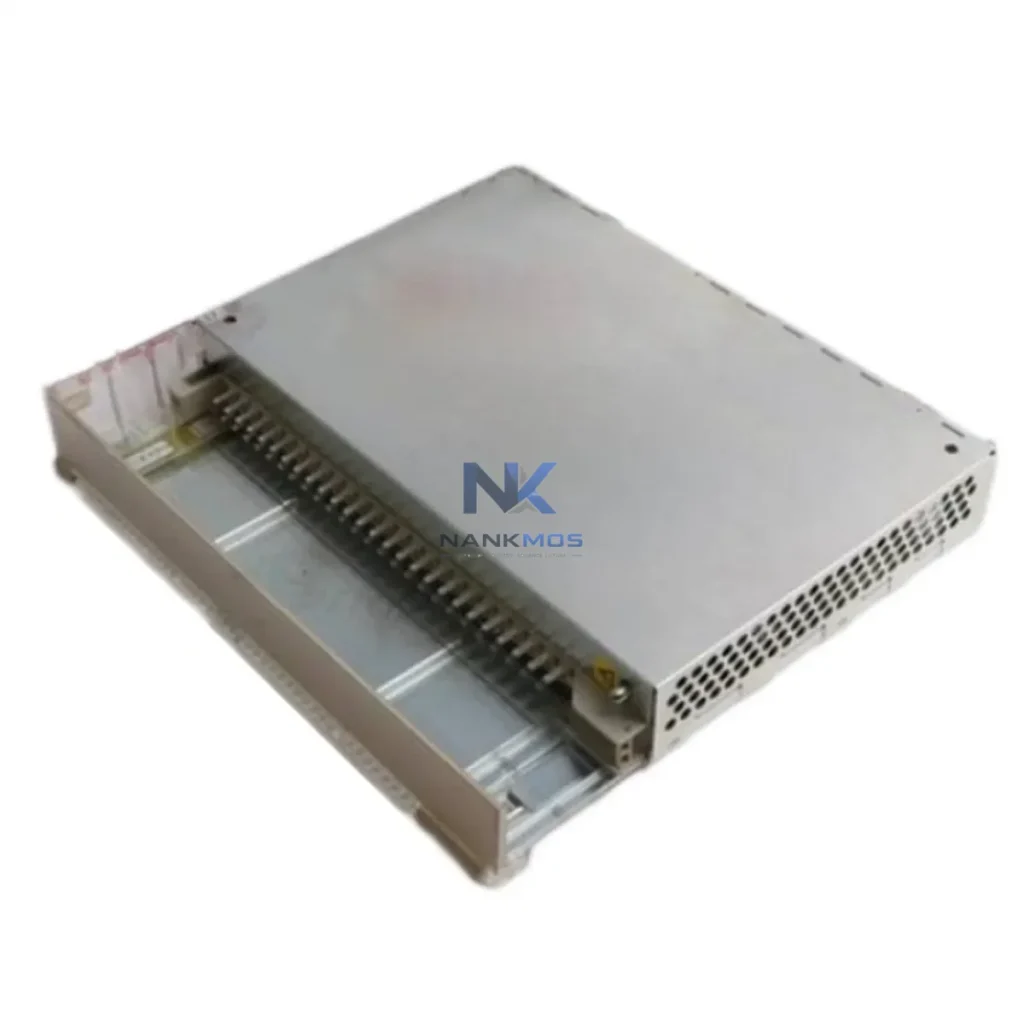

ABB AI610 3BHT300000R1 Analog Input Module

Product Details

AI610 3BHT300000R1 Product Description

The ABB AI610 3BHT300000R1 is an 8-channel analog input module engineered for the ABB Symphony Plus (S+) Distributed Control System platform. Designed to serve as a critical data acquisition node in modern smart factory architectures, the AI610 bridges the gap between field-level sensors and upper-layer control networks — enabling real-time signal ingestion, protocol-transparent data forwarding, and seamless integration with SCADA, HMI, and edge computing layers. With galvanic isolation on every channel and support for both 4–20 mA current loops and 0–10 V voltage signals, this module delivers the measurement fidelity and network reliability demanded by continuous process industries including power generation, chemical processing, water treatment, and advanced manufacturing.

In a connected factory environment, the AI610 3BHT300000R1 functions as the first link in a multi-tier data chain. Field transmitters — pressure, temperature, flow, and level sensors — feed analog signals directly into the module's isolated input channels. The Symphony Plus backplane then routes digitized process values through the ABB AC800M controller or S+ Operations server, where data is aggregated, contextualized, and published to plant-wide SCADA systems. This architecture eliminates signal degradation across long cable runs and ensures that every measurement reaching the control layer is electrically clean and timestamped with sub-millisecond precision.

The AI610's role extends beyond simple signal conversion. Within a Symphony Plus node, it operates alongside modules such as the ABB AO610 3BHT300000R2 analog output module and the ABB DI610 3BHT300000R3 digital input module, forming a cohesive I/O cluster that supports coordinated closed-loop control. When paired with the ABB CI854A 3BSE030220R1 PROFIBUS DP communication interface, the AI610's data can be forwarded upstream to third-party PLCs, variable frequency drives, or remote I/O stations operating on PROFIBUS networks — effectively acting as a protocol gateway between the Symphony Plus fieldbus domain and broader plant automation infrastructure.

A typical smart factory deployment built around the AI610 3BHT300000R1 begins at the sensor layer. Field instruments — including ABB 266 series pressure transmitters and ABB TSP temperature sensors — output 4–20 mA signals that are wired directly into the AI610's eight isolated input channels. The module digitizes these analog values and places them on the Symphony Plus backplane, where the ABB AC800M PM891 controller reads process data at high scan rates and executes regulatory control algorithms in real time.

From the controller level, process values are published via the ABB S+ Operations OPC UA server to plant SCADA systems, historian databases, and HMI terminals. Operators monitoring the process through ABB Ability System 800xA or third-party SCADA platforms receive live analog readings, trend data, and alarm states derived directly from the AI610's channel outputs. This unbroken data chain — from sensor wire to control room display — is what defines the AI610's value in an Industry 4.0 architecture.

For sites requiring cross-protocol communication, the AI610 works in tandem with the ABB CI854A PROFIBUS DP interface module to export Symphony Plus process data to external networks. Variable frequency drives such as the ABB ACS880 series connected via PROFIBUS can receive setpoint commands derived from AI610 measurements, enabling closed-loop speed control based on real-time flow or pressure feedback. Similarly, remote I/O stations and ABB S800 I/O modules distributed across the plant floor can be coordinated through the same network backbone, with the AI610 serving as the primary analog data source for multi-zone process control.

At the edge layer, data aggregated from the AI610 and its companion modules can be forwarded to industrial edge gateways running ABB Ability Edge or third-party platforms, where machine learning models perform predictive maintenance analysis on analog signal trends. Deviations in 4–20 mA loop currents — indicating sensor drift, cable faults, or process upsets — are flagged automatically and routed to maintenance management systems, reducing unplanned downtime and enabling condition-based maintenance strategies across the entire connected plant.

Many industrial sites operate with fragmented automation architectures — legacy PLCs running proprietary protocols alongside modern DCS platforms, with no unified data layer connecting them. The AI610 3BHT300000R1 addresses this challenge by providing a standardized, high-integrity analog input interface within the Symphony Plus ecosystem, which supports open protocol gateways to PROFIBUS, Modbus, and OPC UA networks. This means that analog field data captured by the AI610 can be made available to any SCADA or MES system on the plant network, regardless of the underlying communication protocol.

Data silos — where process values are trapped within a single controller or I/O subsystem — are eliminated through the Symphony Plus distributed architecture. The AI610's channel data is accessible to all nodes on the S+ network simultaneously, enabling cross-functional visibility for operations, engineering, and maintenance teams. Remote monitoring becomes straightforward: with OPC UA connectivity through the S+ Operations server, plant managers can access live analog readings from any networked device, including mobile HMI terminals and cloud-connected dashboards.

Alarm tracking and event logging are handled natively within the Symphony Plus platform. Each AI610 channel supports configurable high/low alarm limits, rate-of-change detection, and sensor fault diagnostics. Alarm events are timestamped and stored in the S+ historian, providing a complete audit trail for regulatory compliance and root-cause analysis. For sites expanding their automation footprint, the modular Symphony Plus architecture allows additional AI610 modules to be added to existing nodes without system downtime, supporting incremental capacity growth aligned with production demands.

Q1: What communication protocols does the ABB AI610 3BHT300000R1 support for SCADA integration? The AI610 operates natively on the Symphony Plus fieldbus and publishes data through the ABB S+ Operations OPC UA server, which is compatible with all major SCADA platforms. For PROFIBUS DP connectivity, the CI854A communication interface module acts as a protocol gateway, enabling the AI610's analog data to be accessed by third-party PLCs, HMI systems, and remote I/O stations on PROFIBUS networks.

Q2: How does the AI610 ensure network stability and signal integrity in electrically noisy industrial environments? Each of the AI610's eight input channels features galvanic isolation, which physically separates the field wiring from the backplane electronics. This prevents ground loops, common-mode noise, and transient voltage spikes from corrupting analog measurements. The Symphony Plus backplane communication is also designed for deterministic, low-latency data transfer, ensuring stable network performance even in high-EMI environments typical of motor control centers and switchgear rooms.

Q3: Can the AI610 3BHT300000R1 support remote diagnostics and predictive maintenance applications? Yes. The AI610 integrates with the ABB S+ Operations diagnostic framework, which monitors channel health, loop integrity, and module status in real time. Diagnostic data is accessible remotely via OPC UA, allowing maintenance engineers to identify sensor faults, cable degradation, or out-of-range conditions without physical site visits. When connected to ABB Ability Edge or similar edge computing platforms, AI610 signal trends can be analyzed by predictive maintenance algorithms to forecast equipment failures before they occur.

Q4: What is the warranty coverage and pre-shipment testing process for the AI610 3BHT300000R1? All ABB AI610 3BHT300000R1 modules supplied by NANKMOS are covered by a 12-month warranty from the date of shipment. Each unit undergoes functional testing prior to dispatch, verifying channel accuracy, isolation integrity, and backplane communication. Modules are shipped in anti-static packaging with full documentation. For urgent project requirements, expedited dispatch is available — contact our team for lead time confirmation.
