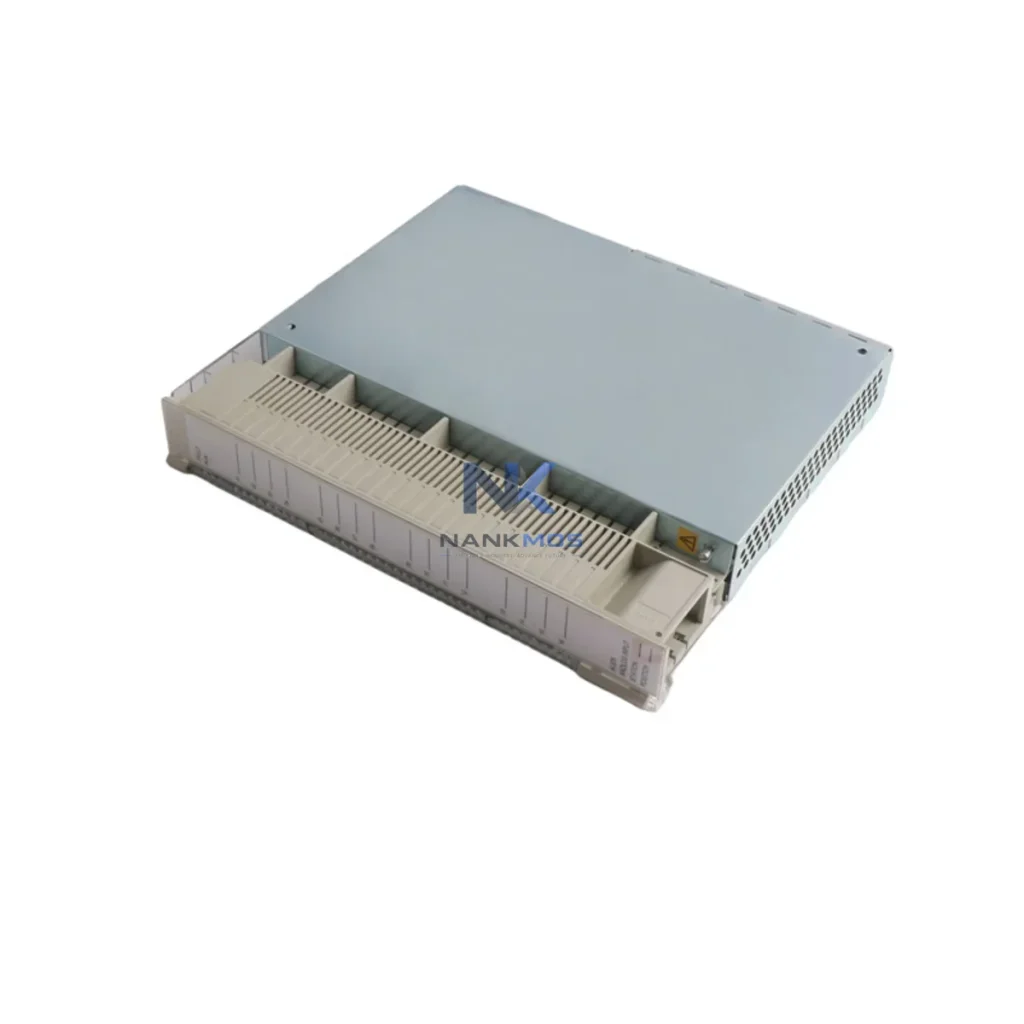

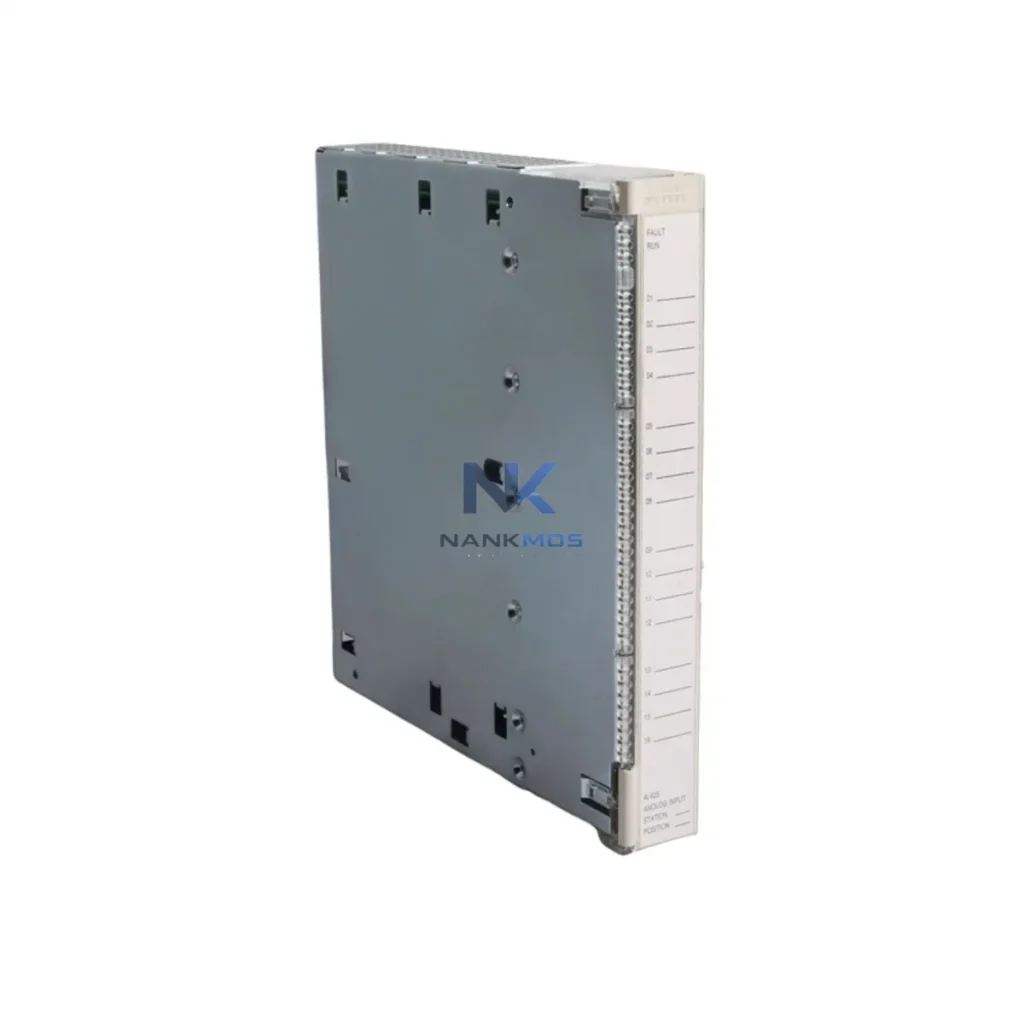

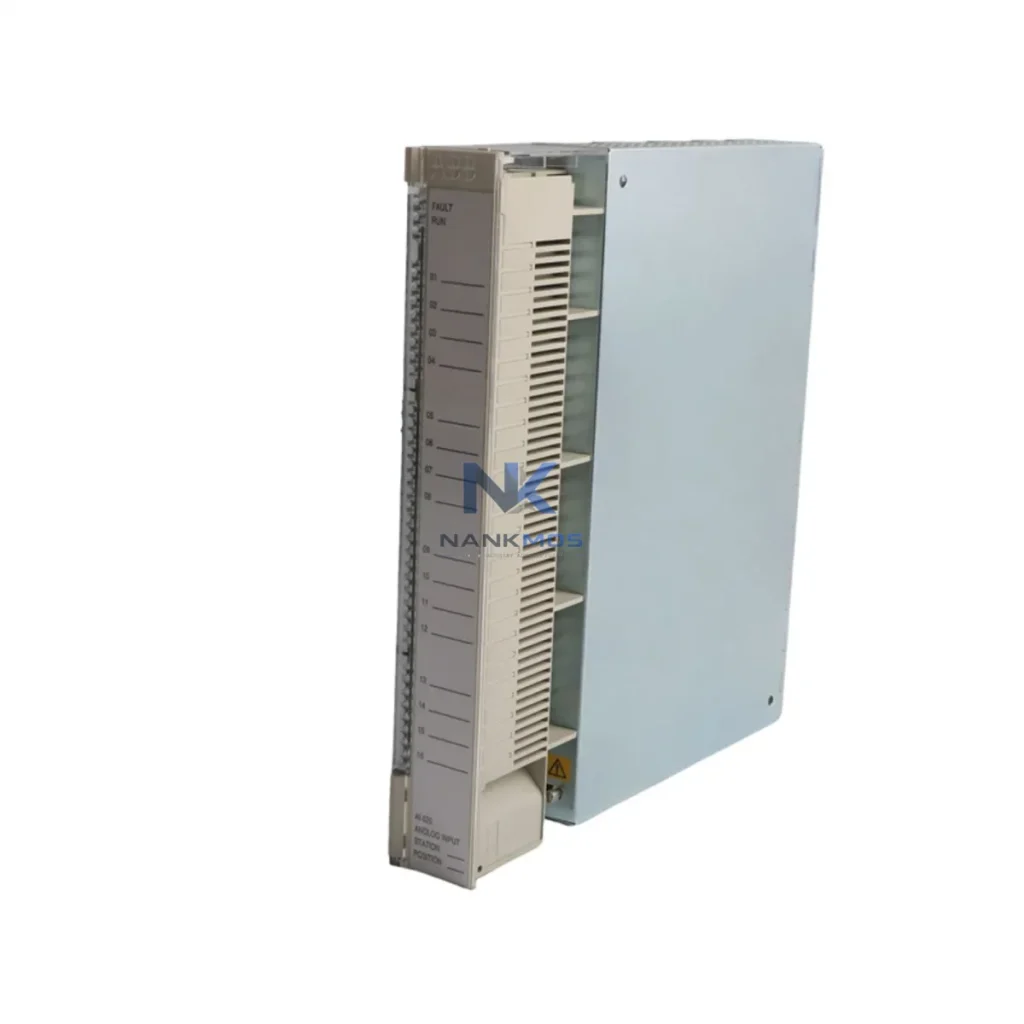

ABB AI625 3BHT300036R1 Analog Input Module

Product Details

AI625 3BHT300036R1 Product Description

The ABB AI625 (3BHT300036R1) is a high-integrity analog input module engineered for deployment within ABB's S800 I/O system — a distributed I/O platform purpose-built for the AC800M process automation controller family. Designed to deliver precise, noise-immune signal acquisition across demanding industrial environments, the AI625 serves as a foundational sensing layer component in control architectures spanning power generation, petrochemical processing, water treatment, metallurgy, and continuous manufacturing. Its role extends beyond simple signal conversion: within a fully integrated S800 rack, the AI625 contributes to system-wide signal consistency, diagnostic transparency, and long-term maintainability — qualities that define reliable process control infrastructure.

The AI625 does not operate in isolation — its value is realized within the broader S800 I/O station and AC800M controller ecosystem. In a typical process control cabinet, the AI625 occupies a slot on an S800 I/O station baseplate alongside complementary modules such as the AO820 analog output module, DI810 digital input module, and DO810 digital output module, all communicating upstream via the TB820 ModuleBus Modem to the AC800M controller — commonly the PM856 or PM860 CPU module mounted in a TP830 controller unit.

Power integrity for the I/O station is maintained through the SD821 or SD822 power supply modules, which provide regulated 24 VDC to the S800 rack. For installations requiring fieldbus connectivity to field devices, the AF100 FOUNDATION Fieldbus interface or CI854 PROFIBUS DP interface module extends the architecture into the field instrument layer, enabling the AI625 to coexist with HART-capable transmitters and smart positioners within the same control loop topology.

In redundant control architectures — common in power plant DCS and refinery applications — the AI625 is deployed in mirrored I/O stations supported by redundant TB825 ModuleBus Optical Modem links, ensuring that analog signal acquisition remains uninterrupted during controller switchover events. This redundancy model, combined with the module's built-in channel diagnostics, allows maintenance engineers to isolate faults at the channel level without disrupting adjacent loops — a critical capability in continuous-process environments where unplanned shutdowns carry significant operational cost.

For HMI and SCADA integration, the AC800M controller hosting the AI625 data typically interfaces with ABB System 800xA or third-party SCADA platforms via OPC DA/UA, with the AI625's process values appearing as structured tags in the control network. This contextual integration ensures that analog measurements from the AI625 are available for trending, alarming, and advanced process control functions without additional signal conditioning hardware.

The AI625 3BHT300036R1 is deployed across a wide spectrum of industrial sectors where analog signal fidelity and system architecture consistency are non-negotiable:

Q1: Is the AI625 3BHT300036R1 compatible with all AC800M controller variants?The AI625 is designed for the S800 I/O system and communicates via the ModuleBus protocol, making it compatible with all AC800M controller variants — including PM851, PM856, PM860, and PM866 — when connected through a TB820 or TB825 ModuleBus Modem. Verify your controller firmware version against ABB's S800 I/O compatibility matrix to confirm module recognition in your specific system revision.

Q2: Can the AI625 be used in a redundant I/O configuration, and what additional hardware is required?Yes. Redundant I/O deployment requires mirrored S800 I/O stations, dual TB825 optical modem links, and a redundant AC800M controller pair (e.g., dual PM860 with TP830 redundancy kit). The AI625 itself does not require special configuration for redundancy — the redundancy logic is managed at the controller and ModuleBus modem level. Consult ABB's S800 I/O System Product Guide (3BSE020924) for station-level redundancy wiring diagrams.

Q3: What does the 12-Month Warranty cover, and how is long-term spare parts availability managed?All AI625 3BHT300036R1 units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing prior to dispatch. For long-term maintenance planning, NANKMOS maintains stock of S800 I/O modules to support installed-base continuity — reducing lead-time risk for plants operating legacy AC800M architectures. Contact [email protected] for volume pricing, exchange programs, and multi-year supply agreements.
