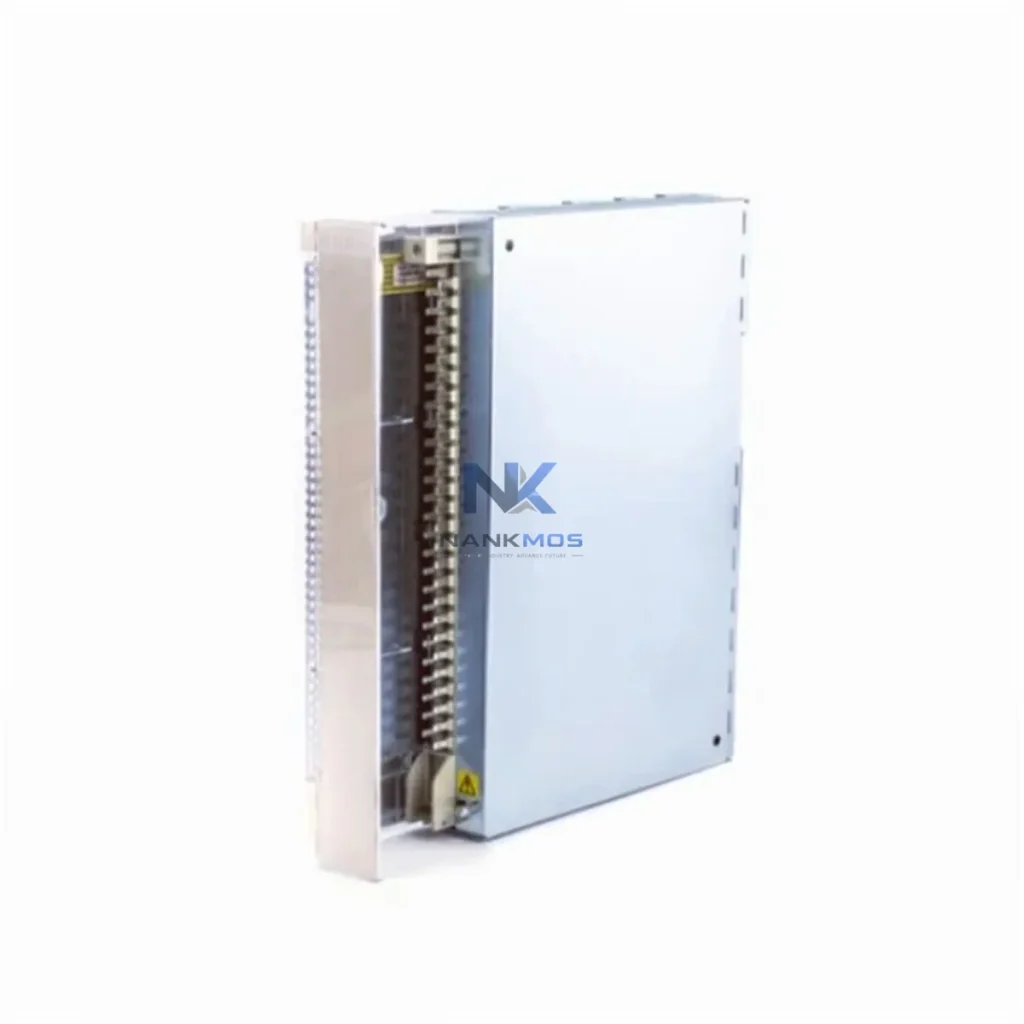

ABB AI630 3BHT300011R1 Analog Input Module

Product Details

AI630 3BHT300011R1 Product Description

The ABB AI630 (3BHT300011R1) is a high-density analog input module engineered for seamless integration within the ABB S800 I/O system — one of the most widely deployed distributed I/O platforms in process automation. Designed to operate in direct coordination with the AC800M controller family, the AI630 delivers precision signal acquisition across multi-channel configurations, supporting 4–20 mA current loop inputs with optional HART communication capability. Its role within the control architecture extends beyond simple signal conversion: it serves as a critical interface layer between field instrumentation and the supervisory control platform, ensuring signal fidelity, loop integrity, and real-time diagnostic transparency across the entire process chain.

In modern industrial control architectures, analog input modules are not standalone components — they are load-bearing elements of a layered system. The AI630 is designed with this principle at its core. Whether deployed in a single-controller cabinet or distributed across a redundant DCS backbone, the module maintains consistent electrical performance, supports hot-swap capability within the S800 rack, and integrates natively with ABB's fieldbus communication infrastructure. This makes it a preferred choice for engineers specifying control systems in power generation, oil and gas, chemical processing, water treatment, and advanced manufacturing environments.

The AI630 3BHT300011R1 achieves its full engineering value when deployed as part of a cohesive ABB automation platform. In a typical S800-based control cabinet, the module is mounted on an S800 backplane — commonly the TB820V2 or TB840A — which provides both mechanical support and inter-module communication via the Modulebus. The backplane connects to the AC800M controller through a Modulebus coupler such as the CI830B or CI840A, establishing a deterministic, high-speed data path between field signals and the controller's process image.

At the controller layer, the AC800M PM864A or PM866A CPU processes the analog values delivered by the AI630, executing control logic, PID loops, and alarm management in real time. For redundant architectures — common in critical process industries — a secondary CPU module and redundant Modulebus coupler can be configured to ensure zero-interruption failover, with the AI630 continuing to deliver signal data to the standby controller without reconfiguration.

On the output side, the AI630 works in close coordination with analog output modules such as the AO810V2 or AO820, which translate controller commands into 4–20 mA signals for control valves, positioners, and variable-speed drives. Digital I/O modules including the DI810 and DO810 handle discrete field signals — limit switches, solenoid valves, motor contactors — completing the I/O layer of the control architecture.

For HART-enabled field devices, the AI630's per-channel HART support allows secondary variable data, device diagnostics, and configuration parameters to be passed alongside the primary process value — without additional wiring or multiplexers. This capability integrates naturally with ABB's Asset Monitor and third-party HART asset management tools, enabling predictive maintenance workflows directly from the control system.

Communication beyond the local cabinet is handled by fieldbus gateways and industrial Ethernet switches. The CI854A PROFIBUS DP coupler or CI873AK PROFINET interface module can extend the S800 I/O system across distributed plant topologies, connecting remote I/O stations to the central AC800M controller over industrial-grade networks. Managed industrial Ethernet switches with ring redundancy (e.g., RSTP/MRP) ensure communication continuity even under single-link failure conditions.

At the HMI and SCADA layer, process values acquired by the AI630 are visualized through ABB's 800xA System or third-party SCADA platforms via OPC DA/UA interfaces. Operators monitor analog trends, configure alarm thresholds, and initiate loop tuning directly from the engineering workstation — with all data traceable back to the AI630's channel-level diagnostics. This end-to-end data transparency, from field sensor to operator display, is the defining characteristic of a well-integrated S800-based control architecture.

Power Generation & Utilities: In thermal and hydroelectric power plants, the AI630 monitors critical process variables including steam pressure, feedwater flow, turbine bearing temperature, and generator cooling parameters. Its 16-bit resolution and galvanic isolation ensure measurement accuracy in electrically noisy generator environments, while HART diagnostics support predictive maintenance of transmitters without process interruption.

Oil, Gas & Petrochemical: Upstream and downstream process facilities rely on the AI630 for continuous monitoring of wellhead pressure, separator levels, heat exchanger temperatures, and compressor discharge conditions. The module's compatibility with SIL-rated control architectures and its integration with ABB's safety instrumented system (SIS) platforms makes it suitable for both basic process control and safety-critical measurement loops.

Water & Wastewater Treatment: Municipal and industrial water treatment plants deploy the AI630 to monitor flow rates, pH levels, dissolved oxygen, turbidity, and chemical dosing parameters. Its hot-swap capability minimizes process disruption during module replacement, and its Modulebus integration allows centralized alarm management across distributed pump stations and treatment stages.

Mining & Metallurgy: In ore processing, smelting, and refining operations, the AI630 handles analog signals from load cells, belt scales, furnace thermocouples (via transmitters), and hydraulic pressure sensors. Its robust operating temperature range and vibration tolerance support deployment in harsh industrial environments typical of mining and heavy metallurgical applications.

Packaging & Discrete Manufacturing: High-speed packaging lines and assembly systems use the AI630 to monitor servo drive feedback, tension control signals, and vision system analog outputs. Integration with the AC800M's high-speed task execution ensures that analog data is processed within the control cycle time required for precision motion coordination.

Q1: Is the ABB AI630 3BHT300011R1 compatible with both AC800M and AC800F controller platforms? The AI630 is natively designed for the S800 I/O system, which is the standard distributed I/O platform for the AC800M controller family. Compatibility with AC800F (Foundation Fieldbus controller) depends on the specific coupler and communication interface configuration. For AC800M-based architectures using Modulebus couplers (CI830B, CI840A), the AI630 is fully supported. Engineers specifying mixed-platform architectures should verify coupler compatibility and firmware revision requirements with ABB's system documentation before commissioning.

Q2: Can the AI630 be replaced in a live system without shutting down the controller or the process? Yes. The S800 I/O system supports hot-swap module replacement, allowing the AI630 to be removed and reinserted while the backplane and controller remain powered. The controller will detect the module removal, log a diagnostic event, and automatically re-initialize the replacement module upon insertion — restoring channel data to the process image without requiring a controller restart. This capability is critical for high-availability processes where planned shutdowns are operationally costly. Operators should verify that the replacement module carries the same firmware version and hardware revision to ensure seamless re-integration.

Q3: What does the 12-Month Warranty cover, and what is the typical lead time for replacement units? All AI630 3BHT300011R1 units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. The warranty covers module-level replacement and includes pre-shipment functional testing to verify channel accuracy, HART communication, and Modulebus interface integrity. Replacement units are maintained in stock to support fast global shipping, with typical lead times of 3–7 business days for standard destinations. For critical sparing requirements or urgent plant shutdowns, expedited shipping options are available. Contact [email protected] or +86 18359268345 for availability confirmation and lead time commitments.
