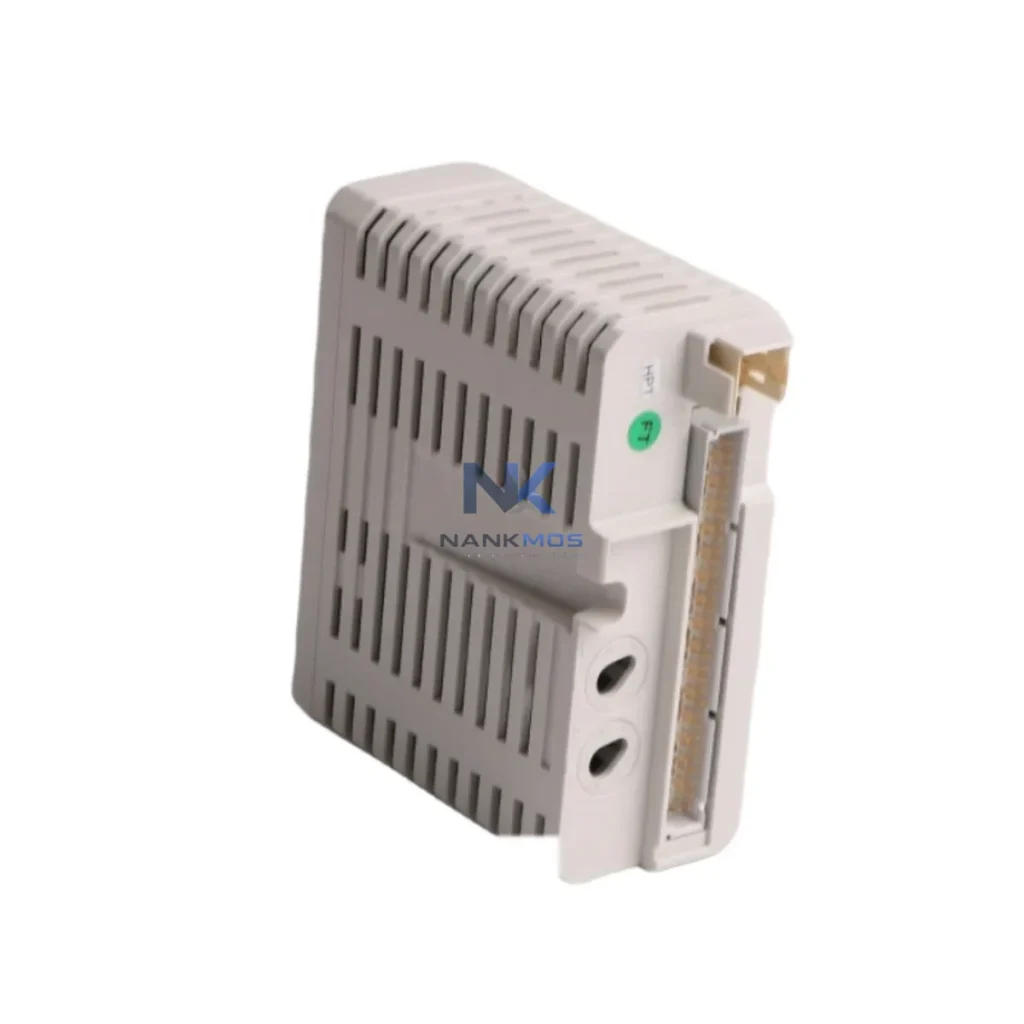

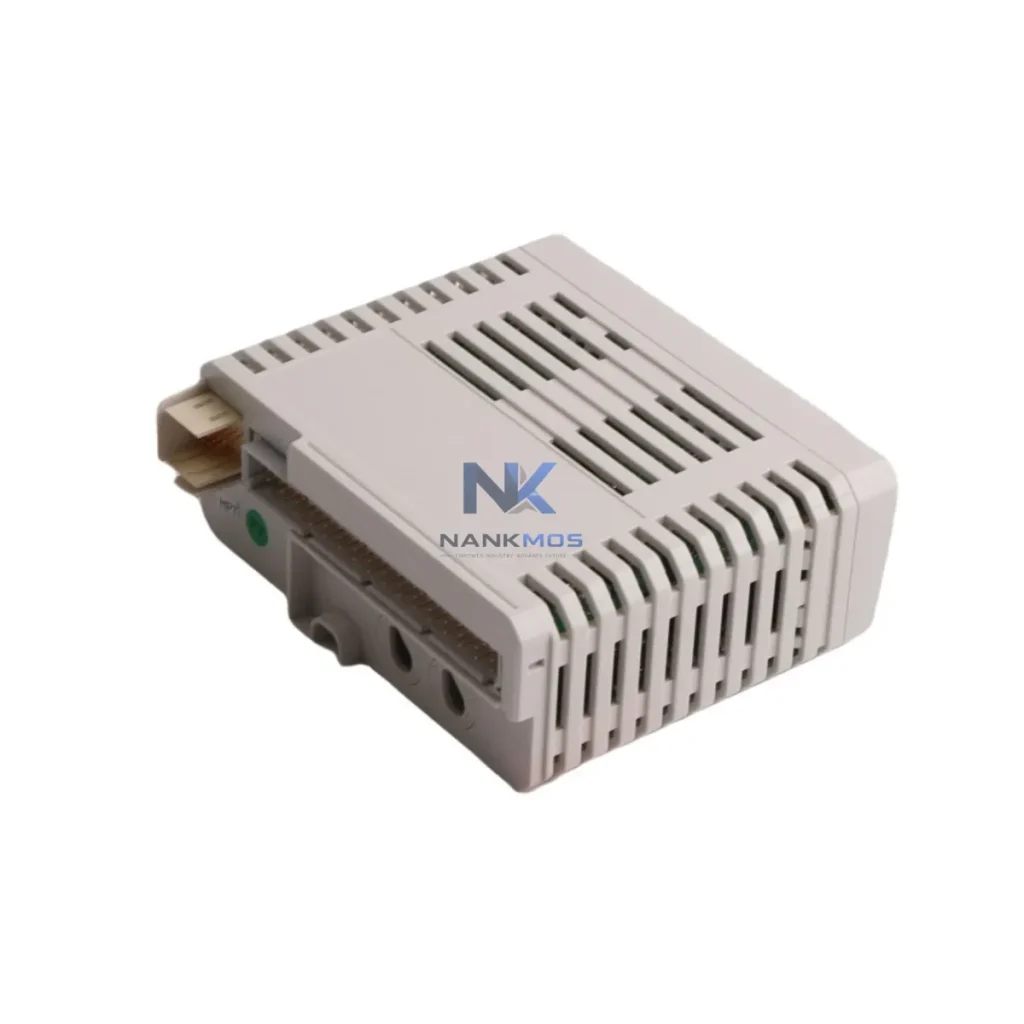

ABB AI815 3BSE052604R1 Analog Input Module

Product Details

AI815 3BSE052604R1 Product Description

The ABB AI815 3BSE052604R1 is a high-performance analog input module engineered for the AC800M Distributed Control System (DCS) platform. Designed to serve as a critical node in the industrial data chain, this module bridges field-level signal acquisition with upper-layer control and monitoring systems — enabling seamless, real-time data flow across the entire smart factory architecture. Whether deployed in continuous process industries, discrete manufacturing, or hybrid automation environments, the AI815 delivers the signal fidelity, protocol compatibility, and network stability that modern industrial connectivity demands.

In a fully connected smart factory, the ABB AI815 3BSE052604R1 sits at the heart of the field-to-cloud data pipeline. It begins at the sensor layer: 4–20 mA transmitters measuring temperature, pressure, flow, and level feed their analog signals directly into the AI815's eight input channels. These signals are digitized with high resolution and passed via the S800 I/O backplane bus to the ABB PM866 AC800M controller, which executes the control logic and manages process coordination.

From the AC800M controller, process data travels upstream through a Profibus-DP segment — a proven fieldbus backbone that connects the AI815's host controller to remote I/O clusters, variable frequency drives (VFDs), and intelligent field devices distributed across the plant floor. In parallel, a Modbus TCP gateway — such as the ABB CI854A Profibus DP Interface or a third-party protocol converter — bridges the Profibus segment to the plant's Ethernet LAN, making real-time process values available to SCADA servers and historian databases without latency-inducing polling delays.

At the SCADA and HMI layer, operators interact with live data sourced from the AI815 through visualization platforms connected via OPC-UA or Modbus TCP. An ABB Panel 800 HMI or equivalent operator station displays trend curves, alarm states, and process KPIs derived directly from the analog input channels managed by the AI815. When an analog value drifts beyond its configured threshold, the AC800M generates an alarm that propagates through the ABB System 800xA SCADA platform, triggering notifications to maintenance teams and logging the event in the historian for root-cause analysis.

For remote diagnostics and predictive maintenance, the AI815's data stream is accessible through an industrial edge gateway — for example, an ABB Edge Connect or compatible IIoT gateway — which aggregates field data, applies edge analytics, and forwards compressed datasets to cloud-based dashboards. This architecture enables maintenance engineers to monitor analog channel health, detect sensor drift, and schedule calibration interventions without requiring physical access to the control cabinet. The ABB S800 I/O system supports hot-swap module replacement, minimizing downtime during maintenance windows.

Network stability is further reinforced by deploying the AI815 within a ring-topology industrial Ethernet backbone using managed industrial switches — such as the ABB AF series or equivalent — configured with RSTP/MRP redundancy protocols. This ensures that a single cable fault does not interrupt the data flow between the field I/O layer and the control room. The combination of deterministic Profibus-DP communication at the field level and redundant Ethernet at the supervisory level creates a resilient, multi-layer network architecture suited for 24/7 continuous process operations.

In applications involving variable speed drives, the AI815 provides the analog setpoint signals that the ABB ACS880 drive or similar VFD uses to regulate motor speed and torque. The drive's feedback signals — current, speed, fault status — are returned to the AC800M via the same Profibus-DP segment, closing the control loop and enabling coordinated multi-drive automation sequences. This tight integration between analog I/O, fieldbus communication, and drive control is a hallmark of the AC800M / S800 I/O ecosystem.

Data visualization and reporting are handled at the MES/ERP integration layer, where the ABB Ability™ Manufacturing Operations Management (MOM) platform or a third-party MES consumes real-time and historical data from the SCADA historian. The AI815's contribution to this data chain — accurate, high-resolution analog measurements delivered with deterministic timing — ensures that production reports, OEE calculations, and energy consumption analyses are grounded in reliable field data.

Many industrial sites face persistent challenges: legacy field devices that speak only 4–20 mA analog, controllers that lack native Profibus or Modbus support, and SCADA systems that cannot reach isolated process islands. The ABB AI815 3BSE052604R1 directly addresses these data gaps by providing a standardized, protocol-agnostic analog input interface that integrates into both legacy and modern control architectures.

Protocol fragmentation is resolved by pairing the AI815 with the AC800M's built-in protocol stack, which supports Profibus-DP, Modbus RTU/TCP, and OPC-UA simultaneously. A single controller can aggregate data from Profibus field devices, Modbus energy meters, and HART-enabled smart transmitters — all feeding into the same process database without requiring separate protocol converters for each segment.

Data silos are eliminated by connecting the AC800M to the plant's Ethernet backbone via the CI854A or equivalent communication interface, making all AI815 channel data available to SCADA, MES, and cloud platforms in real time. Operators gain full production transparency: every analog measurement, every alarm event, and every control action is logged, timestamped, and accessible from any authorized workstation or mobile device.

Remote monitoring is enabled through the edge gateway integration described above, allowing off-site engineers to access live process data, acknowledge alarms, and perform diagnostic checks without traveling to the plant. This capability is particularly valuable for multi-site operations where a central engineering team supports multiple production facilities.

System scalability is inherent in the S800 I/O architecture: additional AI815 modules can be added to the I/O rail without controller reconfiguration, and the AC800M supports up to 64 S800 I/O modules per controller node. As production capacity grows, the control system scales proportionally — no forklift upgrades required.

All units supplied by NANKMOS undergo pre-shipment functional testing, including channel-by-channel analog verification, communication loop checks, and firmware version confirmation. Each AI815 3BSE052604R1 ships with a 12-month warranty, backed by in-stock inventory and fast global logistics.

Q1: What communication protocols does the ABB AI815 3BSE052604R1 support?The AI815 operates on the S800 I/O backplane bus and communicates with the AC800M controller via the internal I/O bus. At the supervisory level, the AC800M supports Profibus-DP, Modbus RTU/TCP, and OPC-UA, making AI815 data accessible to any SCADA, HMI, or MES platform that supports these standard industrial protocols. HART pass-through is also supported for smart transmitter diagnostics.

Q2: How does the AI815 ensure network stability in 24/7 continuous process environments?The AI815 benefits from the AC800M's deterministic scan cycle and the S800 I/O system's hot-swap capability, which allows module replacement without shutting down the controller. At the network level, deploying managed industrial switches with RSTP/MRP redundancy on the Ethernet backbone ensures that communication between the field I/O layer and the SCADA system remains uninterrupted even in the event of a cable fault or switch failure.

Q3: Can the AI815 3BSE052604R1 be integrated with third-party SCADA and HMI systems?Yes. The AC800M controller exposes AI815 data via OPC-UA and Modbus TCP, which are supported by virtually all major SCADA platforms including Wonderware, Ignition, Siemens WinCC, and Rockwell FactoryTalk. The AI815 is therefore compatible with mixed-vendor automation environments and can serve as the analog input backbone in systems where the HMI or SCADA layer is not ABB-branded.

Q4: What does the 12-month warranty from NANKMOS cover, and how is pre-shipment testing performed?Every ABB AI815 3BSE052604R1 supplied by NANKMOS is tested prior to shipment: each analog input channel is verified against a calibrated signal source, the backplane bus communication is confirmed with an AC800M test rig, and the firmware version is documented. The 12-month warranty covers functional defects arising under normal operating conditions. NANKMOS maintains in-stock inventory for fast dispatch, and replacement units are available to minimize production downtime in the event of a warranty claim.
