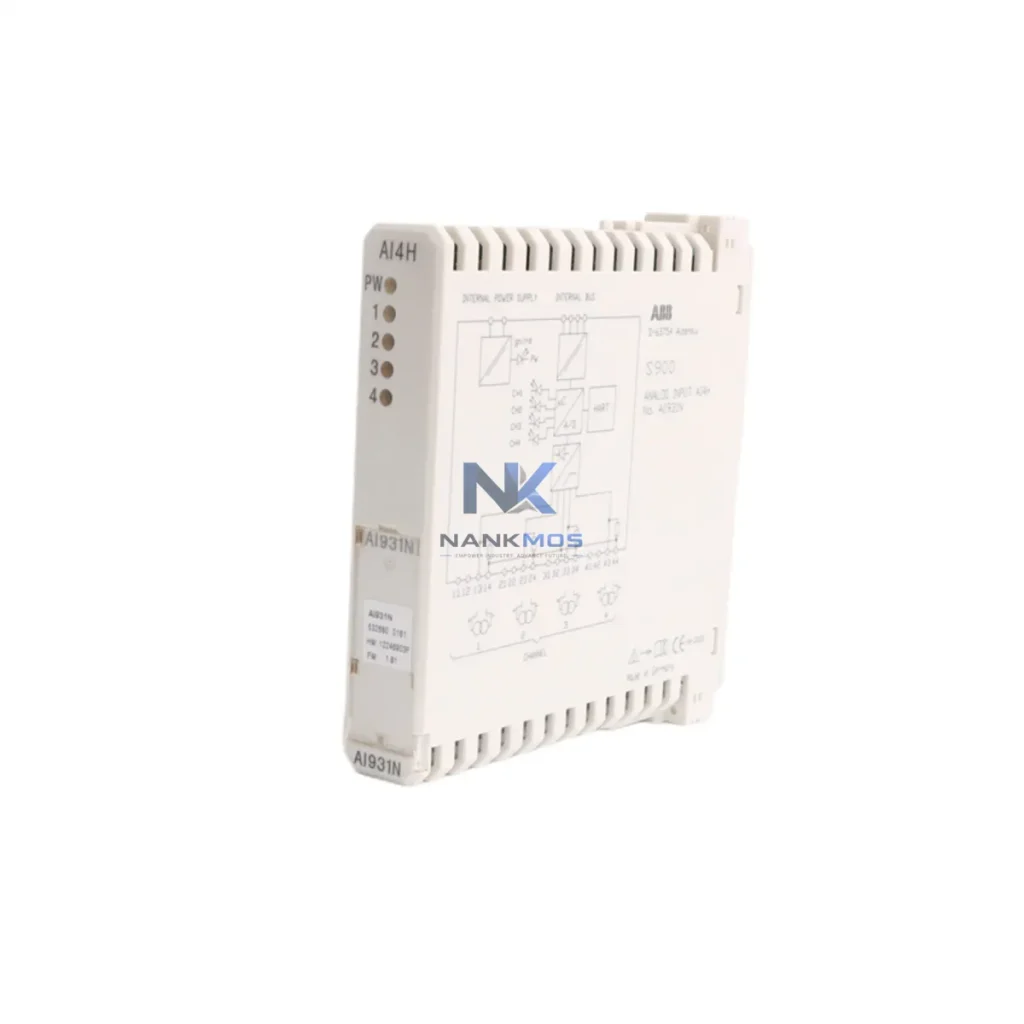

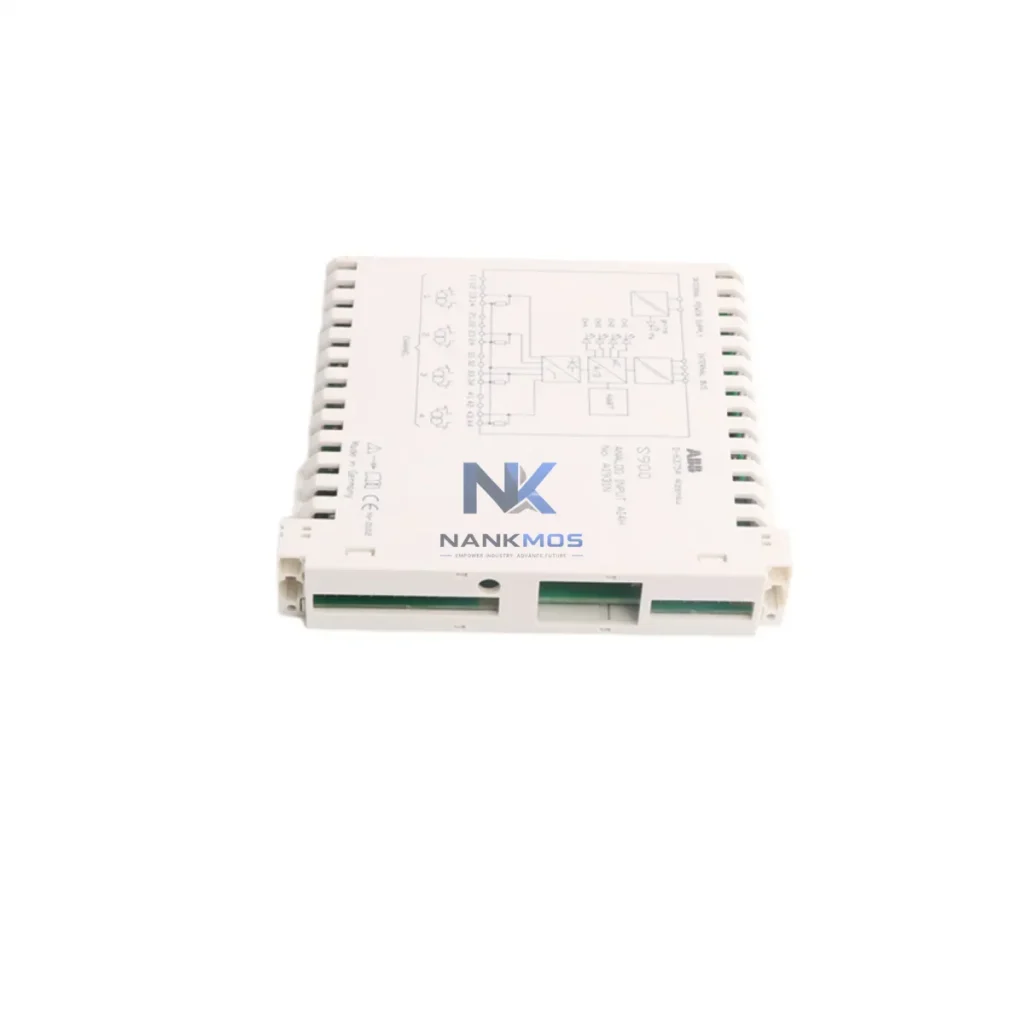

ABB AI931N 3KDE175513L9310 HART Analog Input Module

Product Details

AI931N 3KDE175513L9310 Product Description

The ABB AI931N (part number 3KDE175513L9310) is a high-performance HART Analog Input Module engineered for the ABB AC800M Distributed Control System platform. Designed to bridge the gap between field instrumentation and upper-level automation networks, the AI931N enables seamless HART protocol communication across the S800 I/O bus, delivering real-time process variable data to SCADA systems, DCS controllers, and HMI platforms. In smart factory environments where data transparency and network reliability are non-negotiable, the AI931N serves as a critical node in the industrial data chain — from sensor signal acquisition through to enterprise-level analytics and remote diagnostics.

Deployed across process industries including oil and gas, chemical, water treatment, power generation, and pharmaceutical manufacturing, the AI931N supports up to 8 analog input channels with simultaneous HART communication capability. Each channel can independently acquire primary process variables (PV), secondary variables (SV), and device status information from HART-enabled field transmitters, flow meters, pressure sensors, and temperature instruments. This multi-variable acquisition capability eliminates the need for separate HART multiplexers, reducing panel footprint and wiring complexity while increasing data density per I/O slot.

In a fully integrated smart factory architecture, the AI931N 3KDE175513L9310 operates at the field-to-controller data boundary. Field instruments — including ABB 266 series pressure transmitters, ABB TSP temperature sensors, and third-party HART-compatible flow meters — connect directly to the AI931N input channels via standard 4–20 mA loops. The module reads both the analog signal and the superimposed HART digital data simultaneously, forwarding structured process data to the AC800M PM866 or PM891 controller over the S800 ModuleBus.

From the AC800M controller, process data flows upstream through communication interface modules such as the CI854A PROFIBUS DP interface or the CI857 PROFINET interface, connecting the DCS to plant-wide SCADA platforms including ABB System 800xA, Wonderware InTouch, or Ignition SCADA. HMI panels — whether ABB CP600 series or third-party Siemens TP series — receive live process values for operator visualization and alarm management. The AI931N's HART pass-through capability also enables ABB Asset Vision or FieldCare asset management software to communicate directly with field devices for calibration, diagnostics, and predictive maintenance without interrupting the primary control loop.

For remote I/O architectures, the AI931N integrates with S800 Remote I/O stations connected via the TB820V ModuleBus Optical Interface, extending the data network across large plant areas without signal degradation. Edge gateway devices — such as the ABB Edge Computing Controller or third-party Moxa MGate HART-to-Ethernet gateways — can tap into the HART data stream for IIoT applications, forwarding device health data to cloud analytics platforms or MES systems. Industrial Ethernet switches with managed VLAN support ensure network segmentation between the control network and the information network, maintaining cybersecurity compliance while enabling data visibility across the enterprise.

Variable frequency drives (VFDs) connected to motor-driven pumps and compressors in the same process loop can be monitored through adjacent AO820 analog output modules and AI810 standard analog input modules within the same S800 I/O rack, creating a unified data acquisition layer. The AI931N's multi-channel HART capability means that a single module can simultaneously monitor a pressure transmitter, a level sensor, a flow meter, and a temperature element — all feeding real-time data into the AC800M control strategy and the 800xA historian for trend analysis and compliance reporting.

Many industrial facilities face persistent challenges with data fragmentation: legacy 4–20 mA field devices that carry rich HART diagnostic data but have no path to deliver it to the control system. The AI931N 3KDE175513L9310 directly addresses this by enabling HART communication on every input channel without requiring additional HART multiplexers or separate communication infrastructure. This eliminates the data island problem where field device health — valve position feedback, sensor drift warnings, loop integrity alerts — remains invisible to the control room.

Protocol inconsistency is another common barrier. Sites running mixed instrumentation from multiple vendors often struggle to normalize data formats across PROFIBUS PA, FOUNDATION Fieldbus, and HART devices. The AI931N, operating within the AC800M ecosystem, allows HART device data to be mapped directly into the 800xA process graphics and alarm management system using standard function blocks, removing the need for custom protocol converters or middleware. This standardization accelerates commissioning timelines and reduces integration risk during plant expansions or upgrades.

Remote monitoring and alarm tracking are significantly enhanced by the AI931N's HART diagnostic pass-through. Maintenance teams can remotely interrogate field devices from the 800xA engineering workstation or a mobile device running ABB FieldCare, identifying issues such as sensor fouling, wiring faults, or calibration drift before they escalate into process upsets. This capability supports predictive maintenance strategies and reduces unplanned downtime — a key performance indicator in smart factory operations. For multi-site operations, the AI931N's data can be aggregated through OPC UA servers connected to the AC800M, enabling centralized remote diagnostics across geographically distributed plants.

System scalability is built into the S800 I/O architecture. Additional AI931N modules can be added to existing S800 racks without controller reconfiguration, supporting phased plant expansions. The modular design also simplifies spare parts management — a single AI931N module covers 8 HART channels, reducing the number of unique spare part types required in the maintenance inventory.

Q1: Does the AI931N 3KDE175513L9310 support simultaneous HART communication on all 8 channels? Yes. The AI931N supports HART communication on all 8 analog input channels simultaneously. Each channel independently acquires primary and secondary process variables along with device status and diagnostic information from connected HART field instruments, without any channel multiplexing delay that would affect real-time control performance.

Q2: What SCADA and asset management systems are compatible with the AI931N? The AI931N integrates natively with ABB System 800xA for process control, historian, and alarm management. It is also compatible with third-party SCADA platforms via OPC DA/UA servers connected to the AC800M controller. For asset management, ABB FieldCare and Asset Vision software can access HART device data through the AI931N without interrupting the primary 4–20 mA control signal.

Q3: How does the AI931N ensure network stability in high-noise industrial environments? The AI931N is designed to operate reliably in electrically noisy industrial environments. The S800 ModuleBus provides galvanic isolation between the field wiring and the controller backplane. HART communication uses frequency-shift keying (FSK) superimposed on the 4–20 mA signal, which is inherently resistant to common-mode electrical noise. The module also supports hot-swap replacement without powering down the I/O station, ensuring continuous network availability during maintenance.

Q4: What is the warranty and pre-shipment testing policy for the AI931N 3KDE175513L9310? Every AI931N 3KDE175513L9310 unit supplied by NANKMOS is covered by a 12-Month Warranty from the date of shipment. All units undergo functional testing prior to dispatch to verify channel accuracy, HART communication integrity, and ModuleBus interface operation. In-stock units are available for immediate shipment with fast global lead times. For technical support or order inquiries, contact [email protected] or call +86 18359268345.
