ABB AO845 3BSE023676R1 Analog Output Module

Product Details

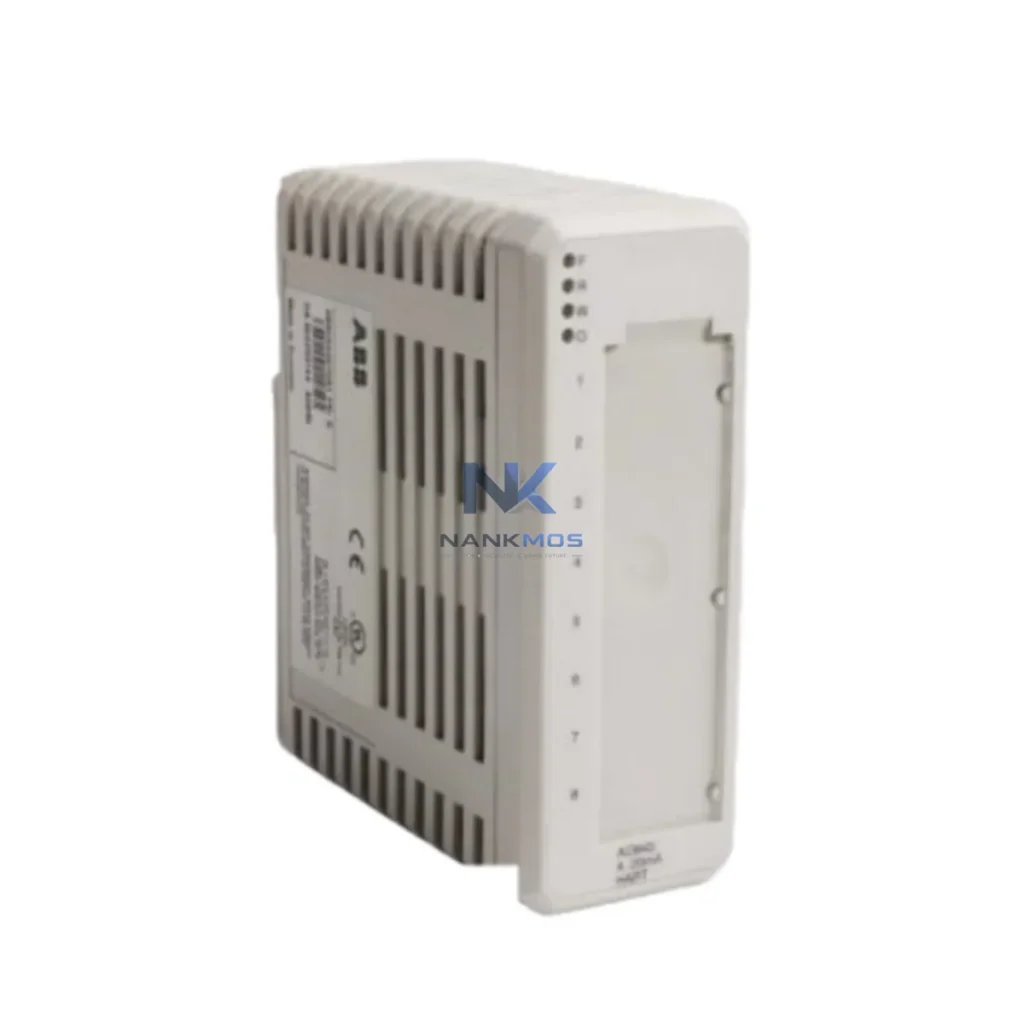

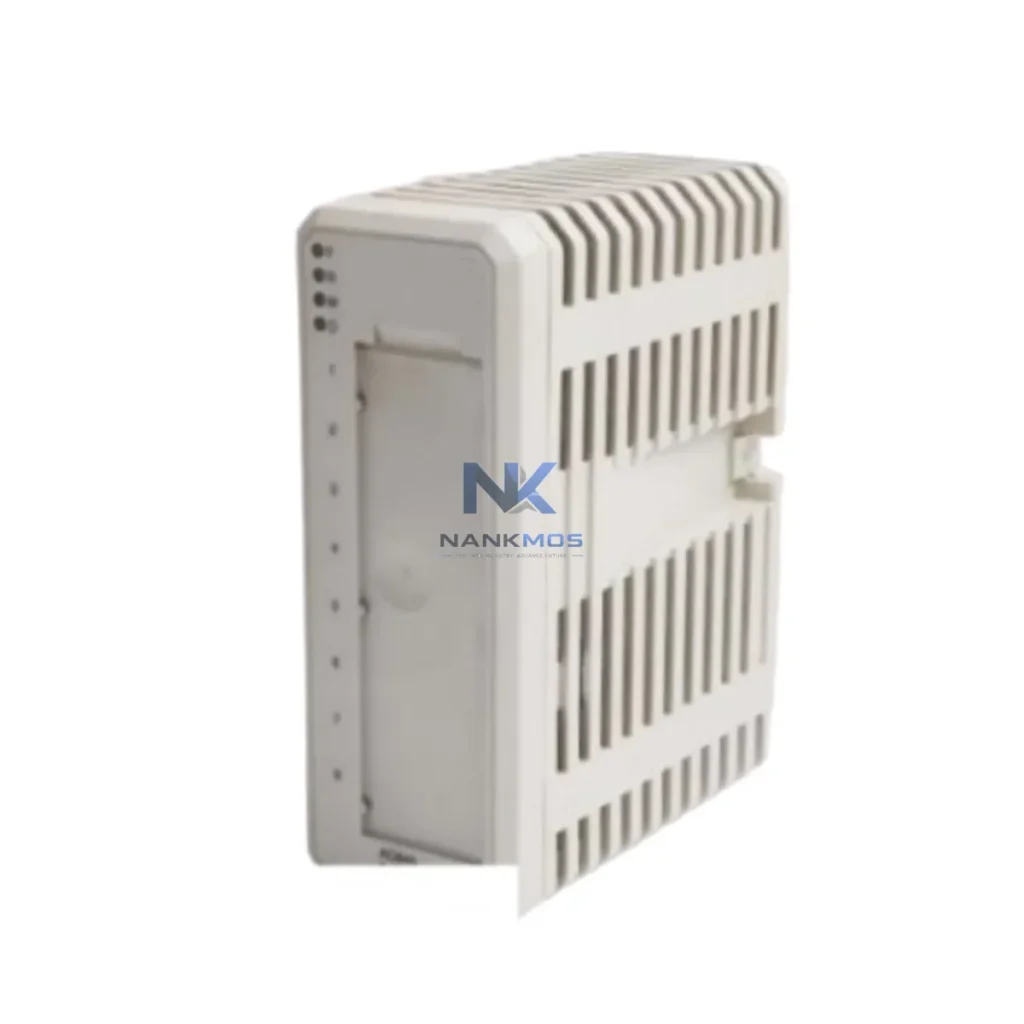

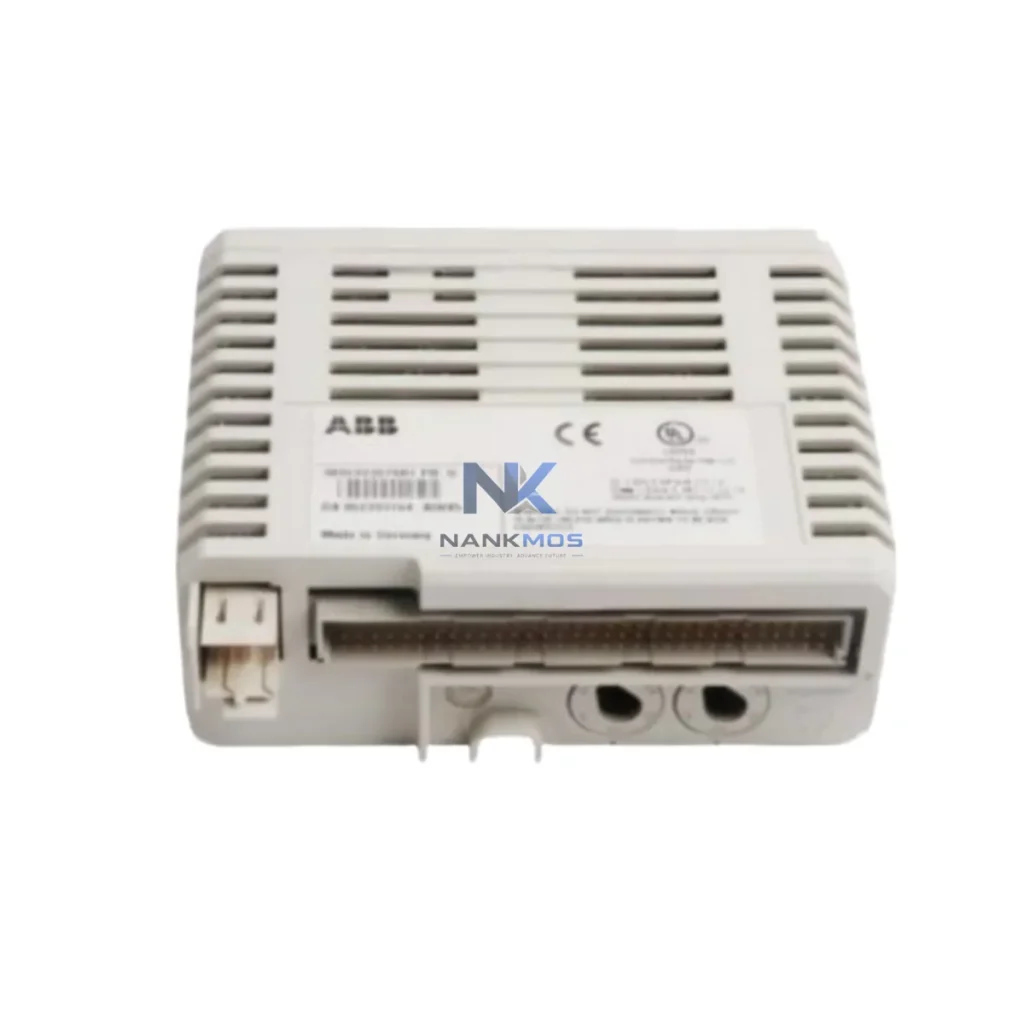

AO845 3BSE023676R1 Product Description

The ABB AO845 (3BSE023676R1) is a high-precision analog output module engineered for seamless integration within the ABB S800 I/O system — one of the most widely deployed distributed I/O platforms in process automation and industrial control architecture. Designed to operate in close coordination with the AC800M controller family, the AO845 delivers stable, repeatable 4–20 mA or 0–10 V analog output signals across demanding industrial environments, including oil and gas, power generation, chemical processing, water treatment, and advanced manufacturing.

In a fully layered control architecture, the AO845 does not function as an isolated component. It is a precision output node embedded within a multi-tier automation hierarchy — receiving setpoint commands from the control layer, converting digital process values into calibrated analog signals, and driving field actuators with the accuracy required for closed-loop process control. Its role spans the boundary between the I/O layer and the execution layer, making it a critical element in any system where signal fidelity, channel isolation, and deterministic output response are non-negotiable.

The AO845 3BSE023676R1 achieves its full performance potential when deployed as part of a coordinated ABB automation platform. In a typical AC800M-based DCS architecture, the control layer is anchored by processors such as the PM864 or PM866 — redundant CPU modules that execute control logic and manage I/O communication via the S800 ModuleBus. The AO845 connects to these controllers through TB820V2 or TB840A communication interface modules, which serve as the physical and logical bridge between the controller and the distributed I/O cluster.

On the input side, the AO845 works in close coordination with analog input modules such as the AI845 (3BSE023675R1) — an 8-channel analog input module from the same S800 series — to form a complete closed-loop signal chain. Digital I/O modules including the DI810 (3BSE008508R1) and DO810 (3BSE008510R1) complement the analog layer by handling discrete status signals, interlock logic, and binary command outputs within the same I/O cluster.

For applications requiring redundant I/O, the AO845 can be paired with a redundant module configuration supported by the TB845 base unit, ensuring that a single module failure does not interrupt process output. This redundancy architecture is particularly critical in power plant control, refinery operations, and continuous chemical processes where unplanned output interruptions carry significant safety and economic consequences.

At the communication layer, the AC800M controller interfaces with plant-level SCADA and historian systems via CI854 (PROFIBUS DP Master) or CI857 (PROFINET IO Controller) communication interface modules, enabling the AO845's output data to be monitored, trended, and archived at the supervisory level. For fieldbus-connected field devices, the CI840A (FOUNDATION Fieldbus HSE) module extends the communication architecture to intelligent transmitters and positioners operating on FF H1 segments.

The HMI layer, typically implemented with ABB Panel 800 series operator panels or third-party SCADA workstations running ABB 800xA, provides real-time visualization of analog output setpoints, actual output values, and channel diagnostic status — all sourced from the AO845's built-in diagnostics and communicated upstream through the ModuleBus. Power integrity across the I/O cluster is maintained by SD823 or SD831 power supply modules, which provide regulated 24 VDC to the S800 I/O station and ensure that analog output accuracy is not compromised by power rail fluctuations.

This multi-layer integration — spanning the control layer (AC800M CPU), I/O layer (AO845, AI845, DI810), communication layer (CI854, CI857), power layer (SD823), and HMI layer (Panel 800 / 800xA) — defines the Contextual Integration approach that makes the AO845 a system-consistent, architecture-native component rather than a generic analog output device.

Power Generation: In thermal and hydroelectric power plants, the AO845 drives turbine governor valve positioners, boiler feedwater control valves, and excitation system setpoints. Its 16-bit resolution and channel isolation ensure that small setpoint adjustments translate accurately to field actuator positions, supporting tight frequency and voltage regulation under variable load conditions.

Oil, Gas & Petrochemical: Refinery and upstream processing facilities deploy the AO845 to control flow control valves, pressure regulators, and heat exchanger bypass valves. In SIL-rated applications, the module's channel isolation and diagnostic capabilities support functional safety architectures when integrated with ABB's safety-rated I/O and controller platforms.

Water & Wastewater Treatment: Municipal and industrial water treatment plants use the AO845 to modulate chemical dosing pumps, aeration blower speed references (via VFD analog inputs), and filter backwash valve positions. The module's wide operating temperature range and DIN rail mounting make it suitable for both climate-controlled control rooms and field-mounted enclosures.

Mining & Metallurgy: In ore processing, smelting, and rolling mill applications, the AO845 provides analog setpoints to drive controllers, furnace temperature regulators, and conveyor speed references. Its robust design tolerates the vibration, dust, and electromagnetic interference common in heavy industrial environments.

Packaging & Discrete Manufacturing: High-speed packaging lines and assembly systems use the AO845 to control servo drive analog references, tension control systems, and proportional valve outputs. The module's fast update rate and deterministic output response support the cycle-time requirements of high-throughput production environments.

Marine & Offshore: Vessel automation and offshore platform control systems deploy S800 I/O modules including the AO845 for engine room automation, ballast control, and dynamic positioning systems, where compact DIN rail mounting and wide temperature tolerance are essential.

Q1: Is the AO845 3BSE023676R1 compatible with all AC800M controller variants, and does it require any special configuration for redundant I/O operation? The AO845 is fully compatible with all AC800M processor modules, including PM851, PM856, PM860, PM861, PM864, and PM866, when connected via a TB820V2 or TB840A communication interface. For redundant I/O operation, the module must be installed in a TB845 base unit configured for redundant mode, and the corresponding redundancy settings must be enabled in ABB Control Builder M. No hardware modifications are required — redundancy is managed entirely through software configuration and the S800 ModuleBus protocol.

Q2: What are the key considerations for installing and commissioning the AO845 in an existing S800 I/O cluster, and how is channel-level diagnostics accessed during startup? During installation, ensure the S800 I/O cluster base unit (TB820V2 or TB840A) is powered down before inserting the AO845. After insertion, the module is automatically recognized by the AC800M controller during the next I/O scan cycle. Channel configuration — including output range selection (4–20 mA, 0–20 mA, or 0–10 V) and fault response behavior — is performed in ABB Control Builder M via the module's function block parameters. Channel-level diagnostics, including open-circuit detection, output saturation, and communication fault status, are accessible in real time through the 800xA System or via the controller's diagnostic function blocks.

Q3: What does NANKMOS's 12-Month Warranty cover for the AO845 3BSE023676R1, and what is the typical lead time for in-stock units? NANKMOS provides a 12-Month Warranty on the AO845 3BSE023676R1 covering manufacturing defects, functional failures under normal operating conditions, and component-level faults identified during our pre-shipment functional test procedure. Each unit undergoes outgoing quality inspection before dispatch. In-stock units are typically shipped within 2–5 business days via DHL, FedEx, or UPS international express. For urgent project requirements or bulk procurement, please contact our technical sales team directly to confirm availability and arrange expedited shipping.
