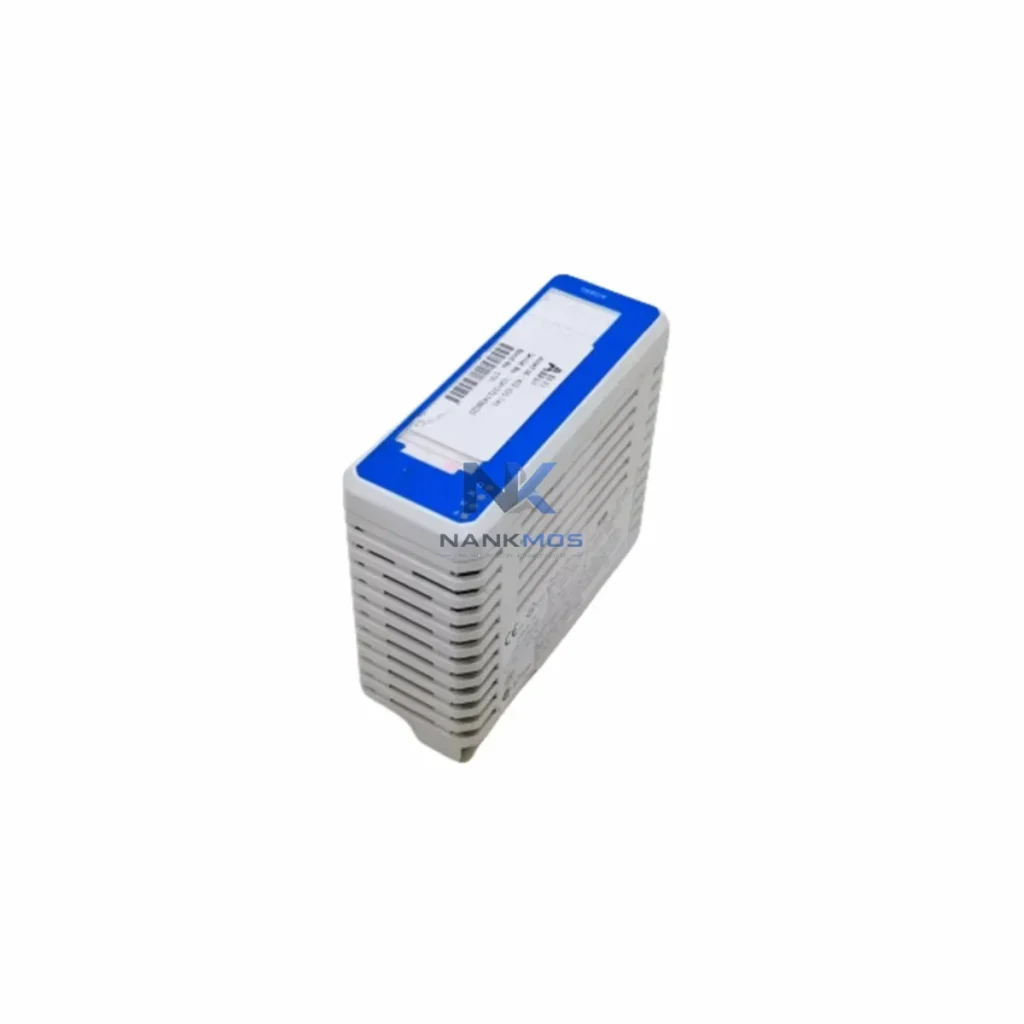

ABB AO890 3BSC690072R1 Analog Output Module

Product Details

AO890 3BSC690072R1 Product Description

The ABB AO890 3BSC690072R1 is a high-precision analog output module engineered for the AC800M Distributed Control System (DCS) platform. Designed to deliver accurate, low-latency signal conditioning across demanding industrial environments, the AO890 plays a central role in energy-aware automation architectures — translating digital control commands into precise analog signals that govern drive speed references, valve positioning, flow regulation, and motor torque setpoints. In smart production lines where every watt counts, the AO890 is a foundational component for reducing idle energy consumption, stabilising process rhythms, and maximising equipment utilisation rates.

Manufactured by ABB and originating from Sweden, the AO890 module is part of the S800 I/O family, purpose-built for integration with the AC800M controller. It supports 4–20 mA and 0–10 V output ranges, enabling seamless interfacing with ABB ACS880 variable frequency drives, ABB MNS motor control centres, and third-party servo amplifiers. Its galvanically isolated channels ensure signal integrity even in electrically noisy plant environments, protecting both the controller and downstream actuators from interference-induced energy inefficiencies.

In a fully integrated energy-optimisation architecture, the ABB AO890 3BSC690072R1 sits at the intersection of control intelligence and field-level actuation. The AC800M controller — running on PM864 or PM866 processor modules — issues setpoint commands that the AO890 converts into precise analog signals, directly governing the speed reference inputs of ABB ACS880 variable frequency drives. By delivering clean, stable 4–20 mA references, the AO890 eliminates the signal jitter that causes drives to hunt between speed setpoints, a common source of unnecessary energy consumption and mechanical wear.

On the input side, the AO890 works in tandem with ABB AI890 analog input modules, which collect real-time feedback from current transformers, pressure transmitters, and flow sensors. Together, these modules form a closed-loop energy monitoring chain: the AI890 reads actual process conditions, the AC800M calculates the optimal operating point, and the AO890 delivers the corrected output signal — all within a single scan cycle. This tight feedback loop is essential for load management strategies that seek to keep motors operating within their peak-efficiency bands rather than at fixed, energy-wasteful speeds.

For facilities running ABB Symphony Plus or third-party SCADA systems via OPC-UA or Modbus TCP gateways, the AO890's outputs can be mapped to energy dashboards that track real-time kWh consumption per production unit. When paired with ABB PM564 power monitoring modules or dedicated energy meters on the MCC bus, operators gain granular visibility into which drives and actuators are consuming disproportionate energy — enabling targeted interventions before inefficiencies compound into significant cost overruns.

The AO890 also integrates naturally with ABB CP600 HMI panels, where operators can visualise analog output trends alongside motor current draw and drive thermal status. This real-time visibility supports proactive load shedding decisions during peak tariff periods, reducing demand charges without interrupting production. In servo-driven assembly lines, the AO890's outputs can feed torque reference signals to ABB MicroFlex e190 servo drives, enabling precise cycle-time control that eliminates the energy-wasting acceleration and deceleration spikes common in fixed-speed systems.

Communication integrity is maintained through the S800 I/O bus architecture, which supports hot-swap module replacement without controller restart — a critical feature for continuous-process industries where unplanned downtime translates directly into energy and production losses. The ABB TB820 ModuleBus modem extends the S800 I/O bus over longer distances, allowing the AO890 to be deployed in remote field cabinets while maintaining deterministic communication with the AC800M controller. For safety-instrumented systems, the AO890 can coexist with ABB AI835A safety analog input modules on the same rack, supporting integrated safety and energy management without additional hardware overhead.

Modern manufacturing facilities face mounting pressure to reduce specific energy consumption — the ratio of energy used per unit of output — without sacrificing throughput or product quality. The ABB AO890 3BSC690072R1 addresses this challenge at the signal level, where imprecise or unstable analog outputs are a frequently overlooked source of energy waste.

When a drive receives a noisy or drifting speed reference, it compensates by drawing additional current to maintain torque stability — a phenomenon that increases both energy consumption and thermal load on the motor and drive cooling systems. The AO890's 12-bit resolution and galvanic isolation eliminate this problem at the source, delivering clean references that allow drives to operate at their designed efficiency curves. In a facility running 20 or more variable-speed drives, the cumulative energy saving from eliminating reference signal noise can be substantial — often exceeding 3–5% of total drive energy consumption.

Beyond direct drive control, the AO890 supports production line rhythm optimisation by enabling smooth, coordinated speed transitions across multiple drive axes. Rather than stepping between fixed speed presets — which causes energy-intensive acceleration transients — the AC800M can use the AO890's outputs to implement ramp-controlled speed profiles that minimise peak current draw and reduce mechanical stress on couplings, gearboxes, and conveyor systems. This approach extends equipment service life, reduces maintenance-related downtime, and lowers the thermal load on motor windings — all of which contribute to a lower total cost of ownership.

For predictive maintenance programmes, the AO890's role in closed-loop control means that deviations between commanded and actual process values — captured by the AI890 input modules and logged by the AC800M historian — can serve as early indicators of actuator degradation, valve wear, or pump cavitation. By detecting these anomalies before they cause process upsets, maintenance teams can schedule interventions during planned downtime windows rather than responding to emergency failures — a shift that dramatically reduces both energy waste from inefficient operation and the cost of unplanned production stoppages.

Every unit of the ABB AO890 3BSC690072R1 supplied by NANKMOS is sourced from verified supply channels, subjected to outgoing functional testing, and shipped with a 12-Month Warranty covering manufacturing defects and operational failures under normal industrial use conditions. In-stock units are available for immediate despatch, supporting urgent maintenance and retrofit projects where lead time is critical.

Q1: How does the AO890 contribute to measurable energy savings in a VFD-driven system? The AO890 delivers stable, high-resolution 4–20 mA or 0–10 V references to variable frequency drives such as the ABB ACS880, eliminating the signal instability that causes drives to hunt between setpoints and draw excess current. In multi-drive installations, this precision can reduce aggregate drive energy consumption by 3–5%, with additional savings from smoother acceleration profiles that lower peak demand charges.

Q2: Which ABB AC800M controller variants are compatible with the AO890? The AO890 is compatible with the full AC800M controller range, including PM860, PM861, PM864, and PM866 processor modules. It connects via the standard S800 I/O bus and is configured through ABB Control Builder M software. No additional interface hardware is required for standard installations.

Q3: Can the AO890 replace an existing analog output module from a different S800 I/O generation? The AO890 is designed for direct replacement of earlier S800 analog output modules within the same rack. Channel configuration is managed in software, and the module supports hot-swap replacement without controller restart, minimising production interruption during maintenance. Verify channel count and signal range requirements against your existing configuration before ordering.

Q4: What does the 12-Month Warranty cover, and what is the typical lead time for in-stock units? The 12-Month Warranty covers manufacturing defects and operational failures under normal industrial operating conditions, commencing from the date of shipment. In-stock units at NANKMOS are available for same-day or next-business-day despatch following order confirmation. Each unit undergoes outgoing functional testing prior to shipment to verify analog output accuracy and channel isolation integrity.
