ABB AO920S 3KDE175531L9200 Analog Output Module

Product Details

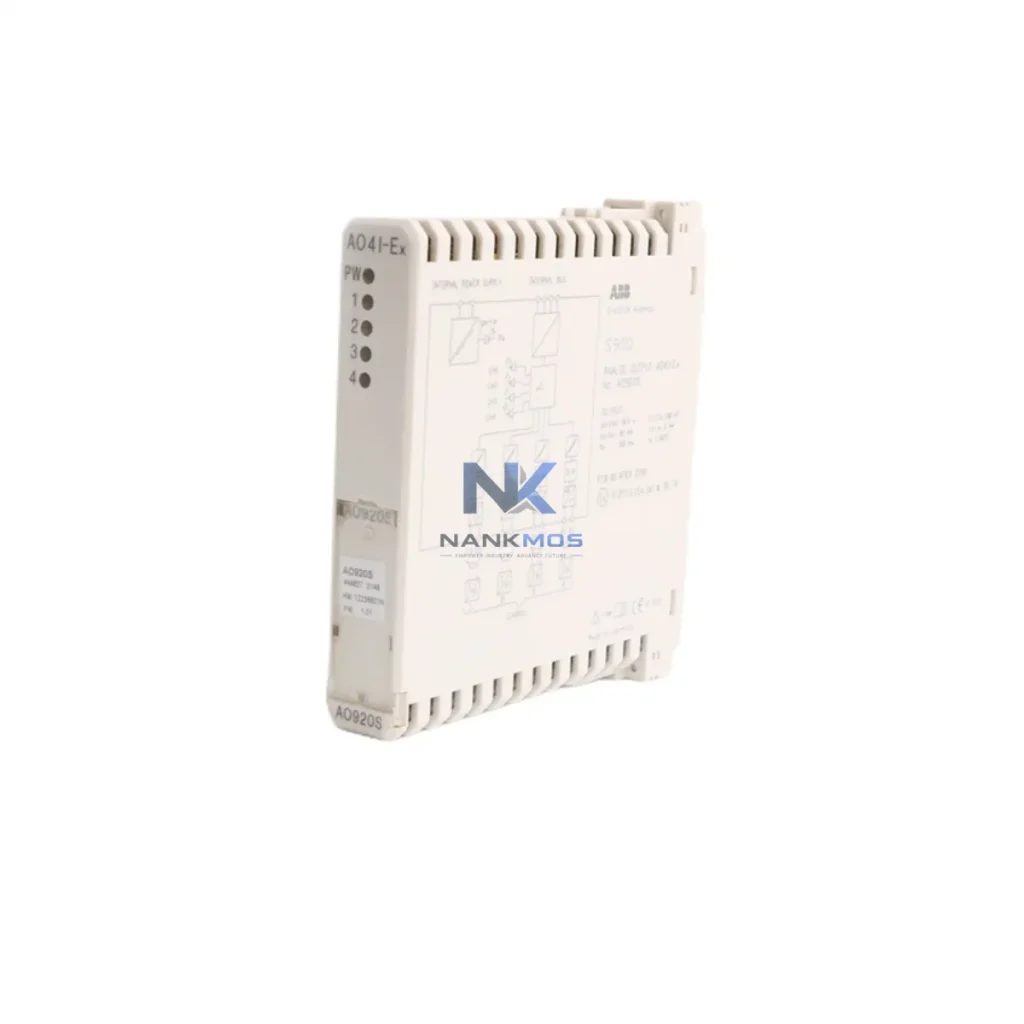

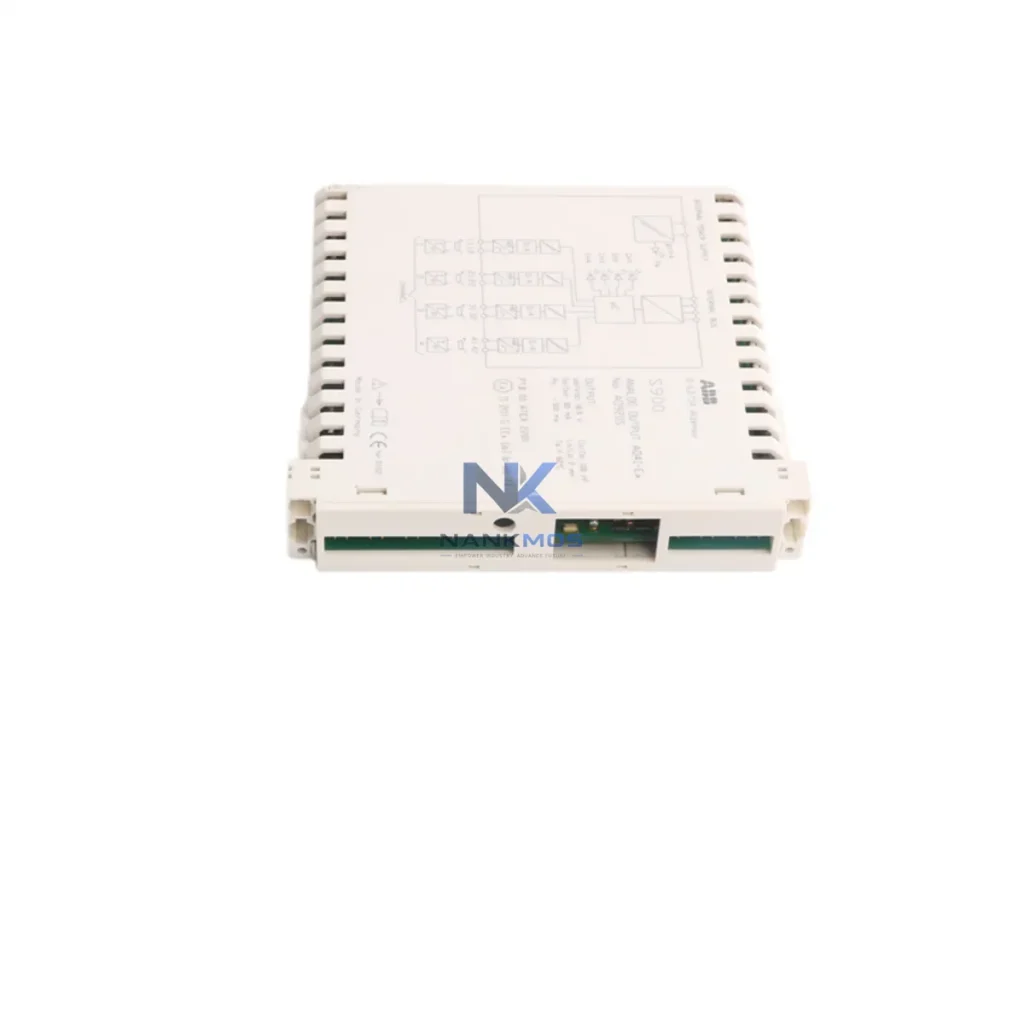

AO920S 3KDE175531L9200 Product Description

The ABB AO920S 3KDE175531L9200 is a precision isolated analog output module engineered for the Advant Master AC 400 Distributed Control System. Designed to bridge the gap between digital control logic and field-level actuators, this module delivers stable, high-resolution 4–20 mA analog signals across demanding industrial environments. In smart factory architectures where data integrity and signal continuity are non-negotiable, the AO920S serves as a critical node in the plant-wide data chain — converting digital setpoints from the DCS controller into precise analog commands for control valves, variable frequency drives, and positioners on the process floor.

Within a connected automation site, the AO920S integrates directly with the ABB Advant Controller AC 450 or AC 410 processor modules, receiving setpoint data via the Advant Fieldbus 100 (AF 100) backplane communication bus. This internal bus architecture ensures deterministic, low-latency signal delivery from the SCADA layer down to the field device — a fundamental requirement for closed-loop process control in chemical, oil and gas, power generation, and pulp and paper industries. The module's galvanic isolation between each output channel and the system bus protects both the controller and field instruments from ground loops and transient voltage spikes, maintaining signal fidelity across long cable runs in electrically noisy plant environments.

In a typical smart factory data flow, process setpoints originate in the ABB System 800xA or Advant OCS SCADA/DCS platform, where operators define target values for flow rates, pressure, temperature, or valve position. These setpoints are transmitted via the plant Ethernet backbone — often running on an ABB Industrial Ethernet switch or a managed Layer 2/3 switch supporting PROFINET or Modbus TCP — down to the AC 450 controller. The controller processes the control algorithm and writes the output value to the AO920S module over the AF 100 bus. The AO920S then converts this digital value into a calibrated 4–20 mA signal, which drives field devices such as Fisher or Samson control valve positioners, ABB ACS880 variable frequency drives, or Endress+Hauser flow transmitters configured in reverse-acting mode.

For remote diagnostics and predictive maintenance, the AO920S output status — including channel health, output value, and fault flags — is continuously polled by the AC 450 controller and surfaced in the System 800xA Asset Monitor or Advant OCS operator station. Maintenance engineers can monitor live output values, detect open-circuit or short-circuit conditions on individual channels, and trigger alarm notifications without leaving the control room. This remote visibility eliminates the need for manual field checks during normal operation and dramatically reduces mean time to repair (MTTR) when faults do occur. Integration with ABB Ability™ Condition Monitoring further enables trend analysis of output drift over time, supporting proactive calibration scheduling before process deviations occur.

The AO920S also plays a key role in multi-loop control architectures where cascade or ratio control strategies require coordinated analog outputs across multiple field devices. In such configurations, the module works in concert with ABB AI920 analog input modules — which collect 4–20 mA feedback signals from field transmitters — and ABB DI910 or DO910 digital I/O modules that handle discrete status signals from limit switches, solenoid valves, and motor starters. Together, these I/O modules form a tightly integrated signal processing layer within the Advant Master rack, ensuring that every control loop has both the measurement feedback and the output authority needed for stable, accurate process regulation.

For facilities undergoing digital transformation toward IIoT-enabled operations, the AO920S-equipped Advant Master system can be connected to edge gateway devices — such as the ABB Edge Connect or third-party Moxa MGate protocol converters — that extract real-time I/O data from the DCS and publish it to cloud-based analytics platforms via MQTT or OPC-UA. This enables data visualization dashboards in tools like ABB Ability™ Operations Management System or third-party SCADA platforms, giving plant managers and remote engineers live insight into analog output performance, process trends, and equipment health across multiple production lines simultaneously.

A complete smart factory data chain built around the AO920S begins at the sensor and transmitter layer. Field instruments — such as Endress+Hauser Promag electromagnetic flow meters, Rosemount 3051 pressure transmitters, and ABB TSP temperature sensors — feed 4–20 mA measurement signals into ABB AI920 analog input modules mounted in the same Advant Master rack. The AC 450 controller reads these inputs, executes PID or advanced control algorithms, and writes calculated setpoints back to the AO920S analog output channels. The AO920S then drives downstream actuators: ABB ACS880 variable frequency drives receive speed reference signals for pump and fan control, while Fisher FIELDVUE DVC6200 digital valve controllers receive position setpoints for precise flow regulation.

At the network layer, the AC 450 controller communicates upstream to the ABB System 800xA server via a redundant Industrial Ethernet ring topology, typically implemented using ABB or Hirschmann managed industrial switches with RSTP or MRP ring redundancy protocols. This ensures that a single cable fault does not interrupt the data path between the field I/O layer and the SCADA/DCS server. The System 800xA platform aggregates real-time data from all Advant Master racks across the plant, presenting operators with unified process graphics, trend displays, and alarm management screens on Advant OCS operator workstations.

For facilities integrating legacy Advant Master systems with modern IIoT infrastructure, Moxa MGate MB3480 Modbus-to-Ethernet gateways or ABB Edge Connect devices can be deployed to extract live I/O data from the DCS and forward it to cloud analytics platforms. This data path enables remote monitoring dashboards, KPI tracking, and predictive maintenance analytics without requiring a full DCS migration — preserving the investment in existing AO920S and AI920 I/O infrastructure while adding the connectivity benefits of Industry 4.0 architectures.

Many industrial sites operating legacy DCS platforms face a common set of connectivity challenges: protocol fragmentation between older fieldbus systems and modern Ethernet-based networks, data silos that prevent SCADA systems from accessing real-time I/O values, and limited remote diagnostic capability that forces maintenance teams to perform manual field inspections. The AO920S, as part of the Advant Master I/O ecosystem, addresses these challenges through its deterministic AF 100 backplane communication, which ensures that output values are updated at consistent scan rates regardless of network load on the plant Ethernet backbone.

Protocol unification is achieved by pairing the Advant Master system with protocol gateway devices that translate AF 100 data into Modbus TCP, PROFINET, or OPC-UA — enabling seamless integration with third-party SCADA platforms, MES systems, and cloud-based analytics tools. Data silos are eliminated by connecting the System 800xA historian to plant-wide data aggregation platforms, ensuring that analog output trends, alarm histories, and equipment health data are accessible to operations, maintenance, and management teams from a single unified data source. Remote diagnostics capabilities — surfaced through the System 800xA Asset Monitor — allow engineers to detect output channel faults, verify signal integrity, and initiate corrective actions from the control room or via remote VPN access, reducing unplanned downtime and improving overall equipment effectiveness (OEE).

Q: What communication protocol does the ABB AO920S 3KDE175531L9200 use?A: The AO920S communicates via the Advant Fieldbus 100 (AF 100) backplane bus within the Advant Master AC 400 rack. For integration with external Ethernet-based networks or SCADA systems, protocol gateways supporting Modbus TCP or OPC-UA are used to bridge the AF 100 data to plant-wide network infrastructure.

Q: Is the AO920S compatible with ABB System 800xA and third-party SCADA platforms?A: Yes. When connected via an AC 450 or AC 410 controller, the AO920S output data is natively accessible in ABB System 800xA and Advant OCS. Integration with third-party SCADA platforms such as Wonderware, Ignition, or Siemens WinCC is achievable via OPC-UA or Modbus TCP gateways connected to the Advant Master system.

Q: How does the AO920S support remote diagnostics and predictive maintenance?A: The AC 450 controller continuously polls each AO920S channel for output value, channel health status, and fault flags. This data is surfaced in the System 800xA Asset Monitor, enabling remote engineers to detect open-circuit, short-circuit, or out-of-range conditions without physical field access. Integration with ABB Ability™ Condition Monitoring supports long-term trend analysis and proactive calibration scheduling.

Q: What warranty and stock availability does NANKMOS offer for the AO920S 3KDE175531L9200?A: NANKMOS provides a 12-Month Warranty on the ABB AO920S 3KDE175531L9200, covering functional defects under normal operating conditions. Units are in stock and have passed pre-shipment functional testing. Global shipping is available with lead times confirmed at order placement. Contact [email protected] or +86 18359268345 for availability and pricing.
