AX521 Product Description

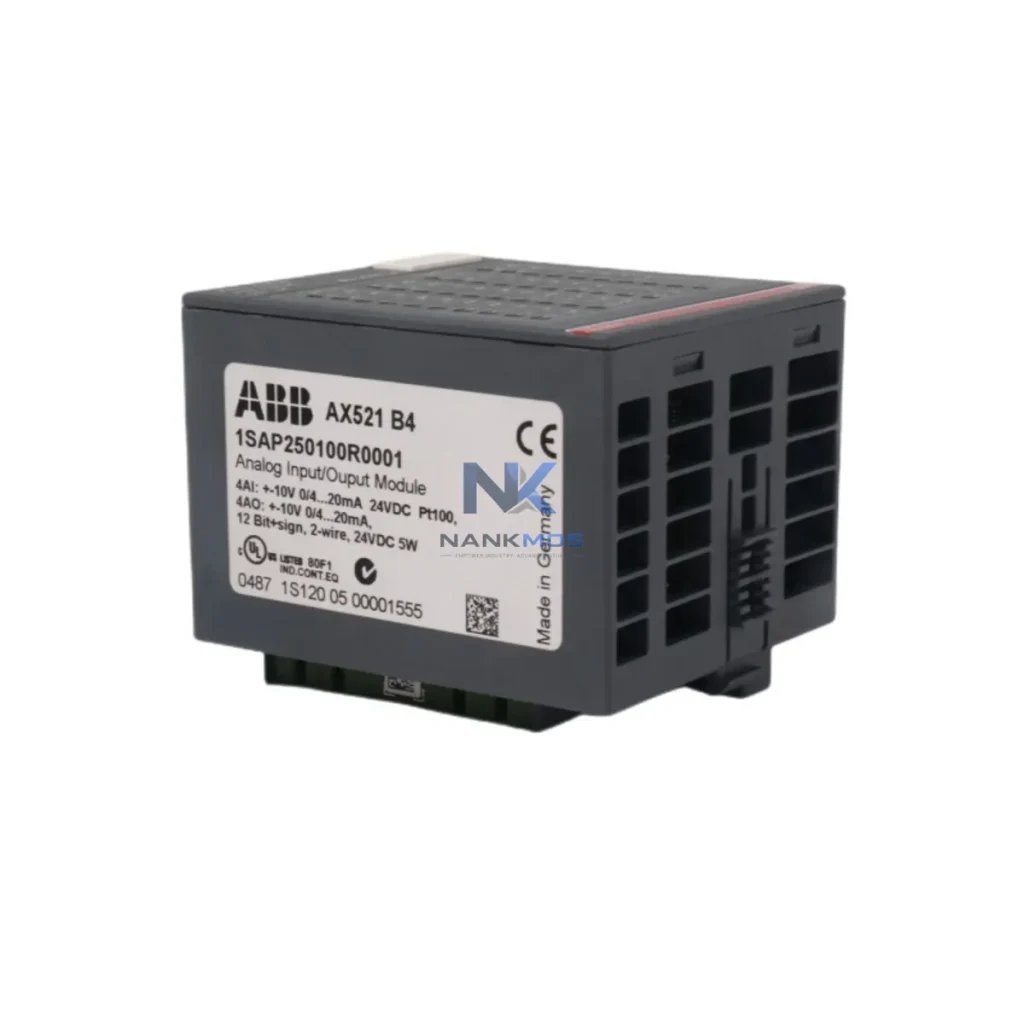

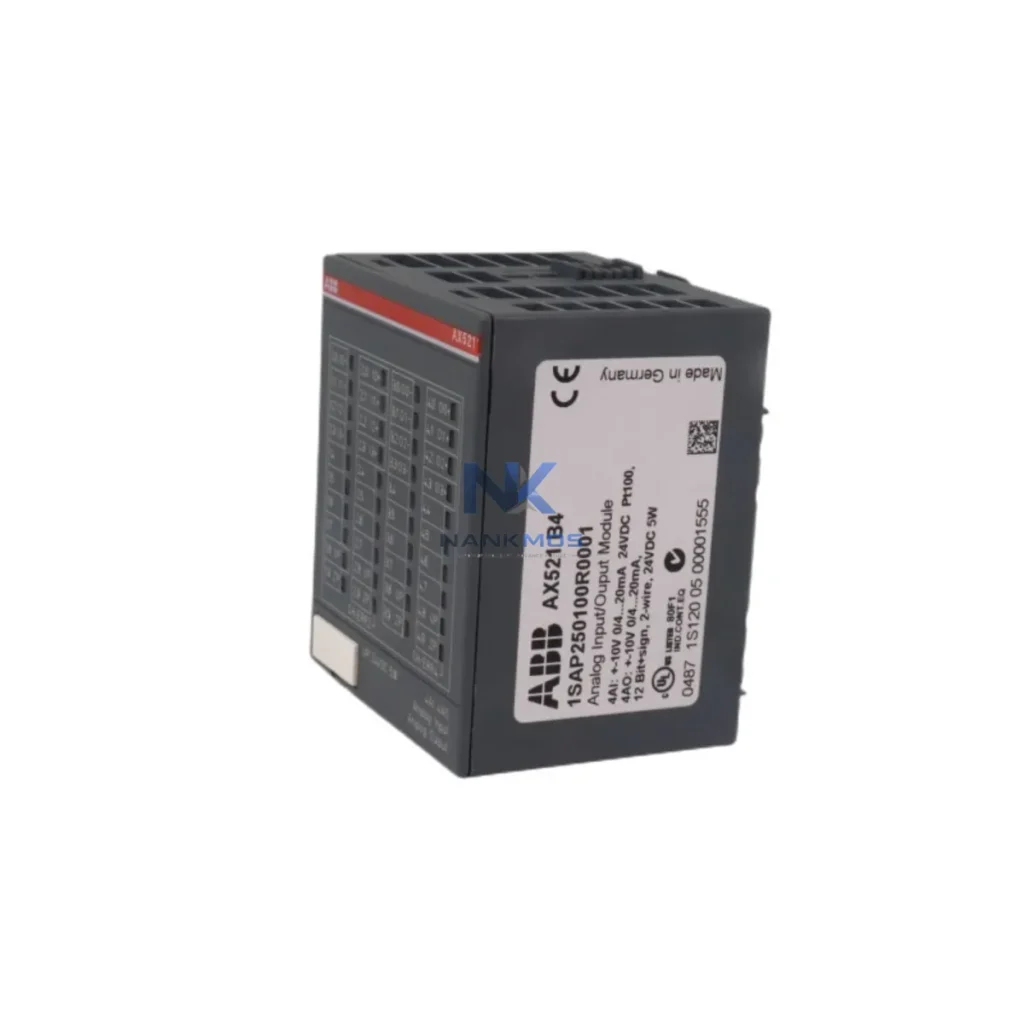

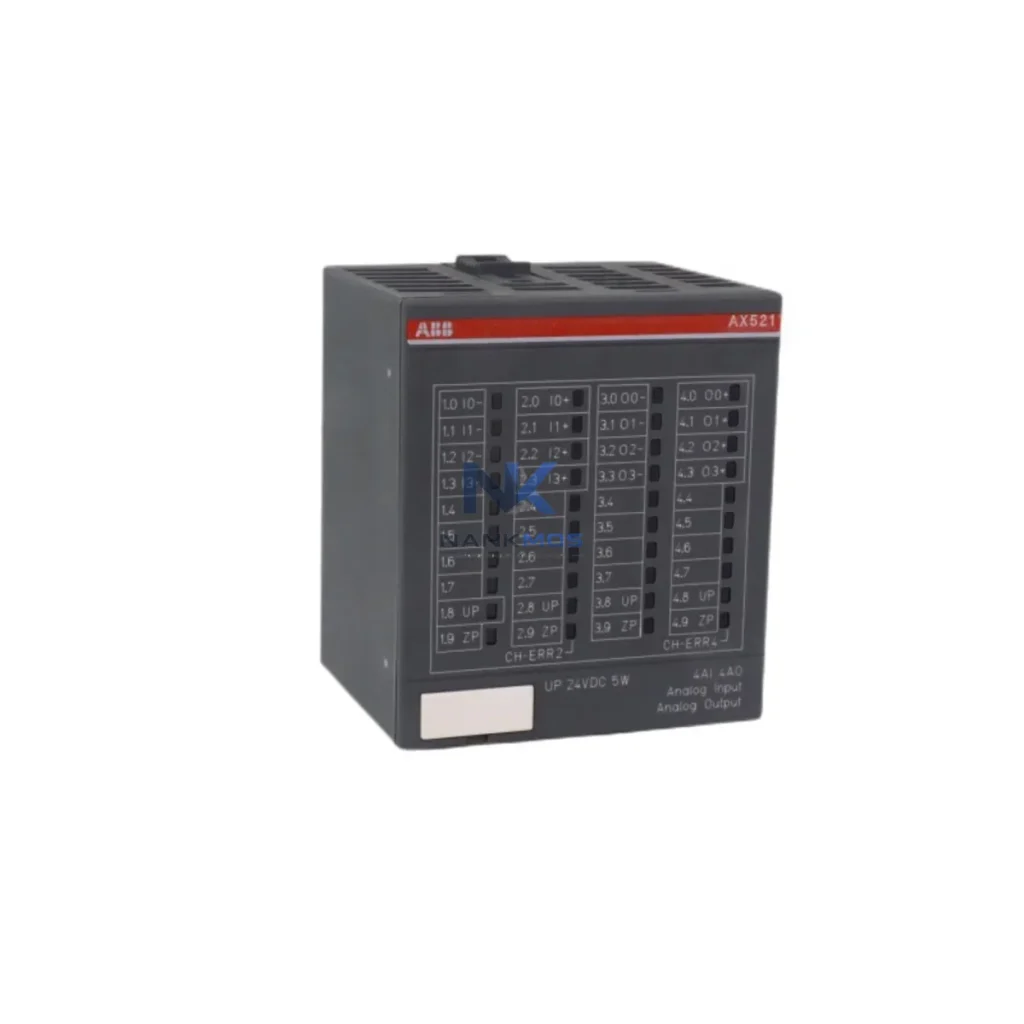

The ABB AX521 is a high-density analog I/O module engineered for the AC500 PLC platform, designed to bridge field-level sensor signals with upper-tier SCADA and HMI systems across distributed automation networks. In modern smart factory architectures, the AX521 functions as a critical signal acquisition node—capturing 4–20 mA and 0–10 V analog inputs from process sensors, conditioning them with 12-bit resolution, and forwarding digitized values through the AC500 backplane bus to the CPU for real-time protocol conversion and network transmission. Whether deployed in energy management systems, packaging lines, or chemical process plants, the AX521 ensures that analog field data flows seamlessly into PROFIBUS DP and Modbus communication streams, enabling operators to monitor, diagnose, and optimize production from a centralized SCADA console.

In a typical smart factory deployment, the AX521 sits at the field layer of the automation pyramid, directly interfacing with process sensors that measure temperature, pressure, flow rate, and vibration. Once the analog signals are digitized, they travel through the AC500 backplane to an ABB PM571 PLC CPU, which executes the control logic and packages the data for upstream communication. From the CPU, the data stream passes through an ABB CS513 PROFIBUS communication module or a CI501 communication interface, which converts the backplane protocol into PROFIBUS DP or Modbus TCP frames suitable for industrial network transmission.

At the network layer, industrial Ethernet switches—managed gigabit units with PROFINET or Modbus TCP support—route the data packets to supervisory systems. An ABB CP600 HMI panel mounted on the operator station provides local visualization of real-time process values, while a higher-tier SCADA system, such as ABB Ability System 800xA, aggregates data from multiple PLCs across the plant for centralized monitoring, alarm management, and historical trending. For facilities requiring remote diagnostics, an edge gateway module can publish selected AX521 channel data to a cloud-based IoT platform, enabling maintenance teams to detect signal drift, open-circuit faults, or module health status without physically visiting the cabinet.

The AX521 also works in concert with complementary I/O modules on the same AC500 rack. Digital input modules such as the ABB DI524 handle discrete signals from proximity switches and limit detectors, while analog output modules like the ABB AO523 drive control valves and variable frequency drives—such as the ABB ACS580 series—closing the loop between measurement and actuation. When the system requires expansion beyond a single rack, additional AC500 I/O modules can be added without additional CPU overhead, ensuring that every new sensor integrated into the line connects seamlessly into the existing data chain without disrupting the communication architecture.

Many industrial sites struggle with fragmented data silos—where analog sensor readings remain trapped in local controllers, invisible to supervisory systems. The AX521 addresses this gap by standardizing analog signal acquisition within the AC500 ecosystem, ensuring that every channel is mapped to a named tag in the PLC project structure and automatically exposed to PROFIBUS or Modbus communication layers. This eliminates the need for manual data polling or custom serial bridges, reducing integration time and the risk of address-mapping errors.

For protocol incompatibility scenarios—where legacy equipment speaks Modbus RTU but the plant network runs PROFIBUS DP—the AX521's host CPU can perform protocol conversion natively, acting as a transparent gateway between field devices and the supervisory network. This capability is particularly valuable in brownfield retrofits, where existing sensors and actuators can be integrated into a modern SCADA architecture without replacing the entire control panel.

Remote monitoring and alarm tracking are further enhanced by the module's diagnostic registers. Channel-level fault flags—such as wire-break detection, out-of-range signals, and configuration mismatches—are reported to the CPU in real time, enabling the SCADA system to generate targeted alarms and maintenance work orders. This level of visibility transforms the production line from a black box into a transparent, auditable process where every analog value can be traced, trended, and analyzed for predictive maintenance insights.

System expansion is equally straightforward. Adding a second AX521 module to an existing AC500 rack requires only a configuration update in the engineering software—no rewiring of the communication backbone or reconfiguration of the SCADA tag database. This plug-and-expand architecture supports phased smart factory rollouts, allowing plants to scale their data acquisition infrastructure incrementally as new production cells come online. NANKMOS maintains consistent stock availability for the AX521 and compatible AC500 modules, with each unit undergoing functional shipment testing—including channel continuity verification and backplane communication checks—before dispatch, ensuring reliable performance from day one of installation.

Q: What communication latency can I expect when using the AX521 with PROFIBUS DP? A: The AX521 exchanges data with the AC500 CPU via the backplane bus in a deterministic cyclic scan, typically completing within 1–2 ms per channel. Upstream PROFIBUS DP transmission adds a bus cycle time of 1–5 ms depending on baud rate and network load, resulting in end-to-end latency well within the tolerance of most process control loops.

Q: Is the AX521 compatible with Modbus TCP networks, or does it only support PROFIBUS? A: The AX521 itself communicates through the AC500 backplane bus. Protocol compatibility—whether PROFIBUS DP, Modbus RTU, or Modbus TCP—is determined by the AC500 CPU and any installed communication interface modules. As long as the host CPU supports the target protocol, AX521 channel data can be mapped and transmitted across that network.

Q: How does the module handle network stability during signal interference? A: The AX521 employs hardware-based signal filtering and isolation on each analog channel, suppressing electromagnetic interference common in industrial environments. At the network level, the AC500 CPU's communication modules support standard PROFIBUS and Modbus error-checking mechanisms, including CRC validation and retry logic, ensuring data integrity even in electrically noisy cabinets.

Q: Does the AX521 come with a warranty and shipment testing? A: Yes. Every AX521 unit shipped by NANKMOS undergoes functional testing prior to dispatch, including channel continuity verification and backplane communication checks. The module is backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.
