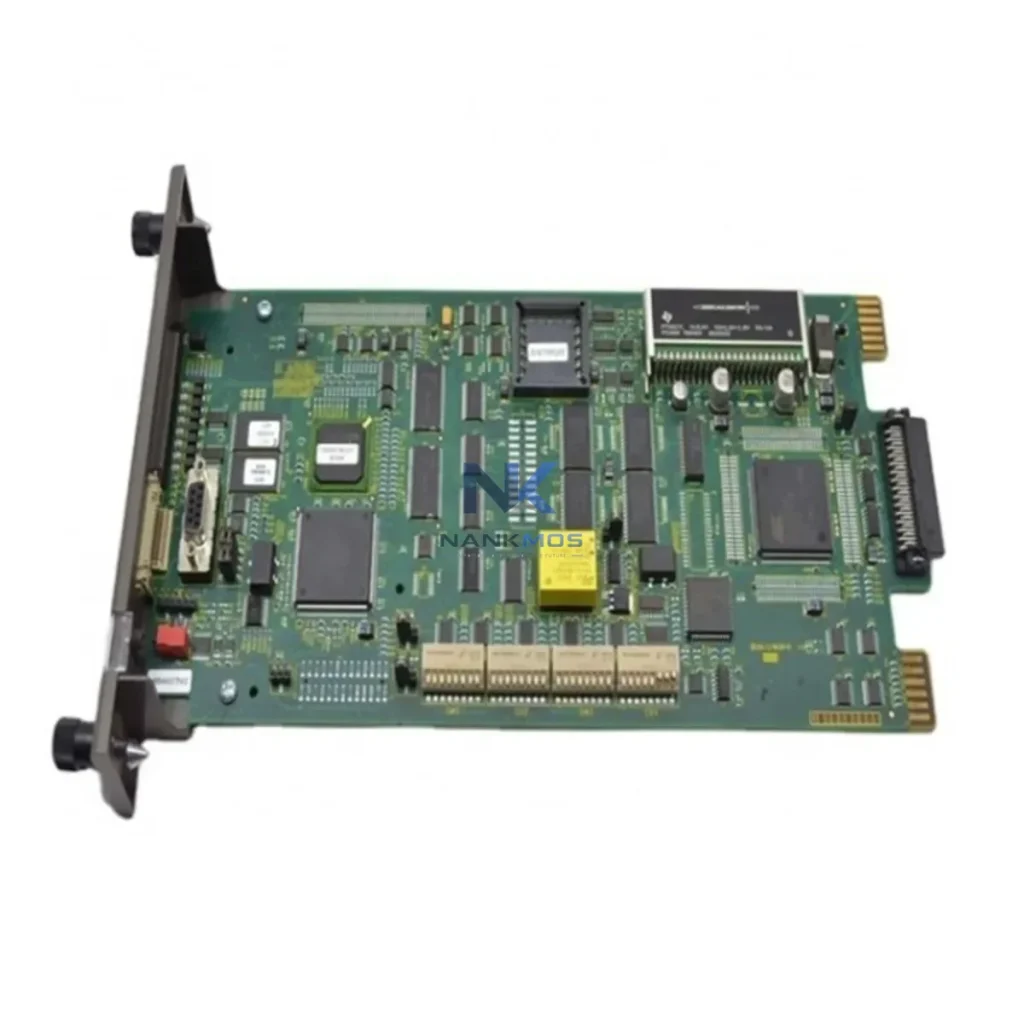

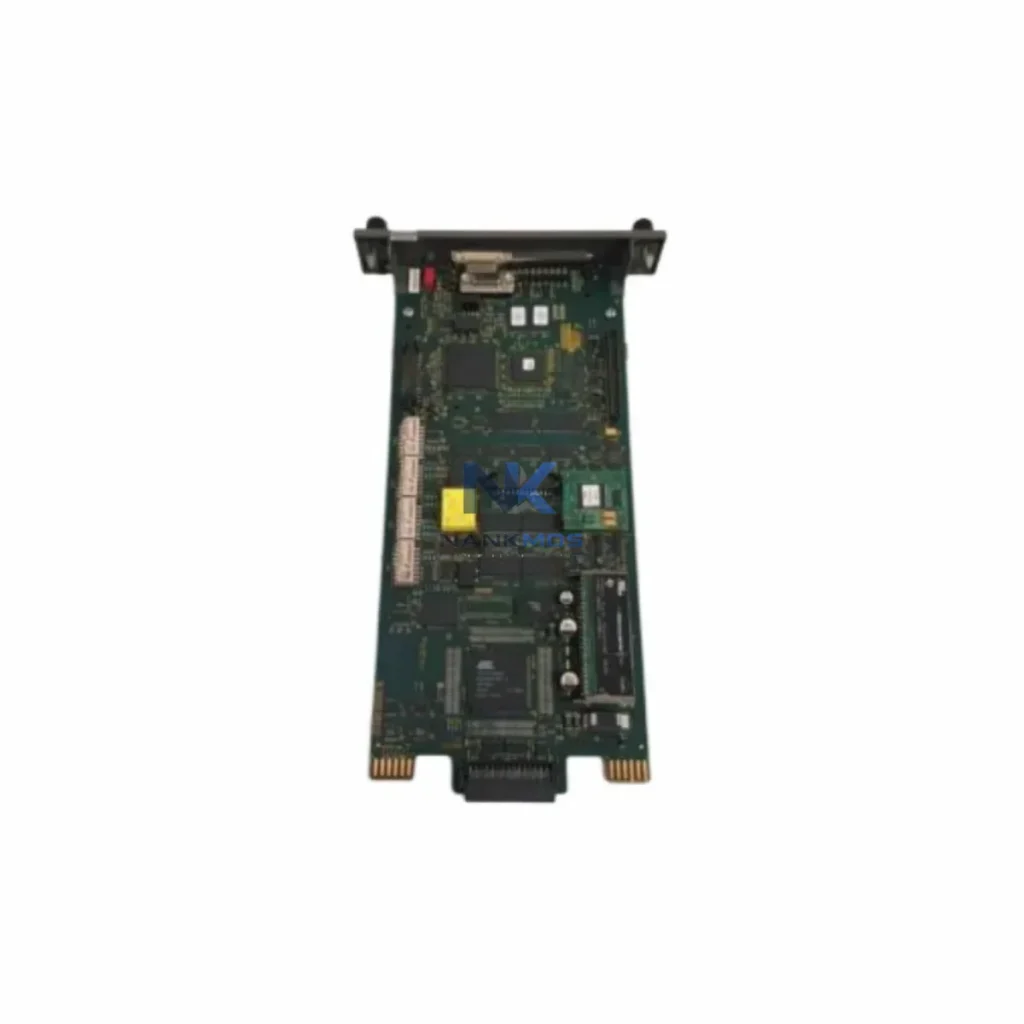

ABB BRC400 P-HC-BRC-40000000 Bridge Controller

Product Details

BRC400 P-HC-BRC-40000000 Product Description

The ABB BRC400 P-HC-BRC-40000000 Bridge Controller is a critical communication node within the ABB AC800M distributed control architecture. It serves as the fieldbus interface between the AC800M PM866 or PM891 controller modules and remote S800 I/O stations, enabling deterministic, high-integrity signal exchange across the control layer and I/O layer.

In a fully integrated System 800xA or Symphony Plus environment, the BRC400 operates alongside the TB840A PROFIBUS DP Termination Unit and TB807 ModuleBus Modem to establish optical or electrical fieldbus segments. The controller communicates upstream with the AC800M CPU via the internal ModuleBus backplane, while downstream it manages up to 12 S800 I/O modules — including the AI810 Analog Input Module, AO810V2 Analog Output Module, DI810 Digital Input Module, and DO810 Digital Output Module — ensuring synchronized signal acquisition and actuation across the process.

Power integrity for the BRC400 and its associated I/O station is maintained by the SD821 or SD823 Power Supply Unit, which provides regulated 24 VDC to the S800 carrier assembly. For redundant fieldbus architectures, a paired BRC400 configuration is deployed with dual PROFIBUS DP paths, eliminating single points of failure in high-availability process control applications. The CI854B PROFIBUS DP Interface Module on the controller side complements this redundancy by managing fieldbus master functions and automatic path switchover.

System-level diagnostics are accessible through ABB Control Builder M engineering software, where the BRC400 reports station health, communication cycle times, and I/O module status in real time. Integration with the OPC Server for AC800M and 800xA Information Management layer allows plant historians and SCADA systems to consume process data without additional protocol conversion. For installations requiring network-level connectivity, the CI873AK Ethernet Adapter Module extends the control network to PROFINET-capable field devices, maintaining architectural consistency across mixed-protocol environments.

The BRC400 is also compatible with the TP830 Termination Panel for marshalling cabinet installations, supporting structured wiring practices that reduce commissioning time and improve long-term maintainability. All hardware ships pre-tested and is covered under a 12-Month Warranty, with stock available for immediate dispatch to support both planned capital projects and urgent replacement requirements.

Power Generation & Utilities: In thermal and hydroelectric power plants, the BRC400 bridges the AC800M controller to remote S800 I/O stations monitoring turbine speed, generator excitation, and auxiliary system interlocks. Its redundant fieldbus capability ensures continuous control loop integrity during planned maintenance windows.

Oil, Gas & Petrochemical: Refinery and upstream processing facilities deploy the BRC400 within SIL-rated control cabinets to manage analog signals from pressure transmitters, flow meters, and temperature sensors. The module's deterministic PROFIBUS DP cycle supports tight PID loop performance in distillation column and reactor control applications.

Water & Wastewater Treatment: Municipal and industrial water treatment plants use the BRC400 to extend AC800M control reach across geographically distributed pump stations and filtration units. Optical ModuleBus variants provide noise immunity in electrically harsh environments near variable-frequency drives and motor control centers.

Mining & Metals Processing: Conveyor systems, crusher controls, and flotation cell automation in mining operations rely on the BRC400 for reliable I/O expansion. The module's wide operating temperature range and DIN rail mounting make it suitable for both surface and underground control room installations.

Pharmaceutical & Food Processing: Batch process control systems in regulated manufacturing environments benefit from the BRC400's deterministic communication and online diagnostic capability, supporting 21 CFR Part 11 audit trail requirements when integrated with System 800xA batch management.

Marine & Offshore: Vessel automation and offshore platform control systems use the BRC400 within AC800M-based integrated automation systems (IAS) for engine room monitoring, ballast control, and cargo management, where compact form factor and robust communication are essential.

Q1: How many S800 I/O modules can one BRC400 P-HC-BRC-40000000 support, and can it be used in a redundant fieldbus configuration? Each BRC400 supports up to 12 S800 I/O modules per remote station. For redundant fieldbus architectures, two BRC400 units are deployed in a paired configuration on dual PROFIBUS DP segments. The AC800M controller's CI854B interface manages automatic path switchover, ensuring uninterrupted I/O communication in the event of a single fieldbus failure. This configuration is fully supported within System 800xA and Symphony Plus engineering environments.

Q2: Is the BRC400 compatible with both optical and electrical ModuleBus, and what are the installation distance implications? Yes. The BRC400 P-HC-BRC-40000000 supports both electrical ModuleBus (short-range, within the same cabinet cluster) and optical ModuleBus via the TB807 ModuleBus Modem (long-range, up to several hundred meters). Optical variants are recommended for installations where electrical noise from drives, transformers, or high-current switchgear may degrade signal integrity. Selection between optical and electrical variants should be made during the engineering design phase based on cabinet layout and cable routing constraints.

Q3: What does the 12-Month Warranty cover, and what is the typical lead time for replacement units? The 12-Month Warranty covers hardware defects and functional failures under normal operating and storage conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized modification. NANKMOS maintains in-stock inventory of the BRC400 P-HC-BRC-40000000 to support both planned procurement and emergency replacement scenarios. Units are pre-tested prior to dispatch and can typically be shipped within 1–3 business days. For critical spares programs or volume procurement, contact [email protected] for availability confirmation and lead time commitments.
