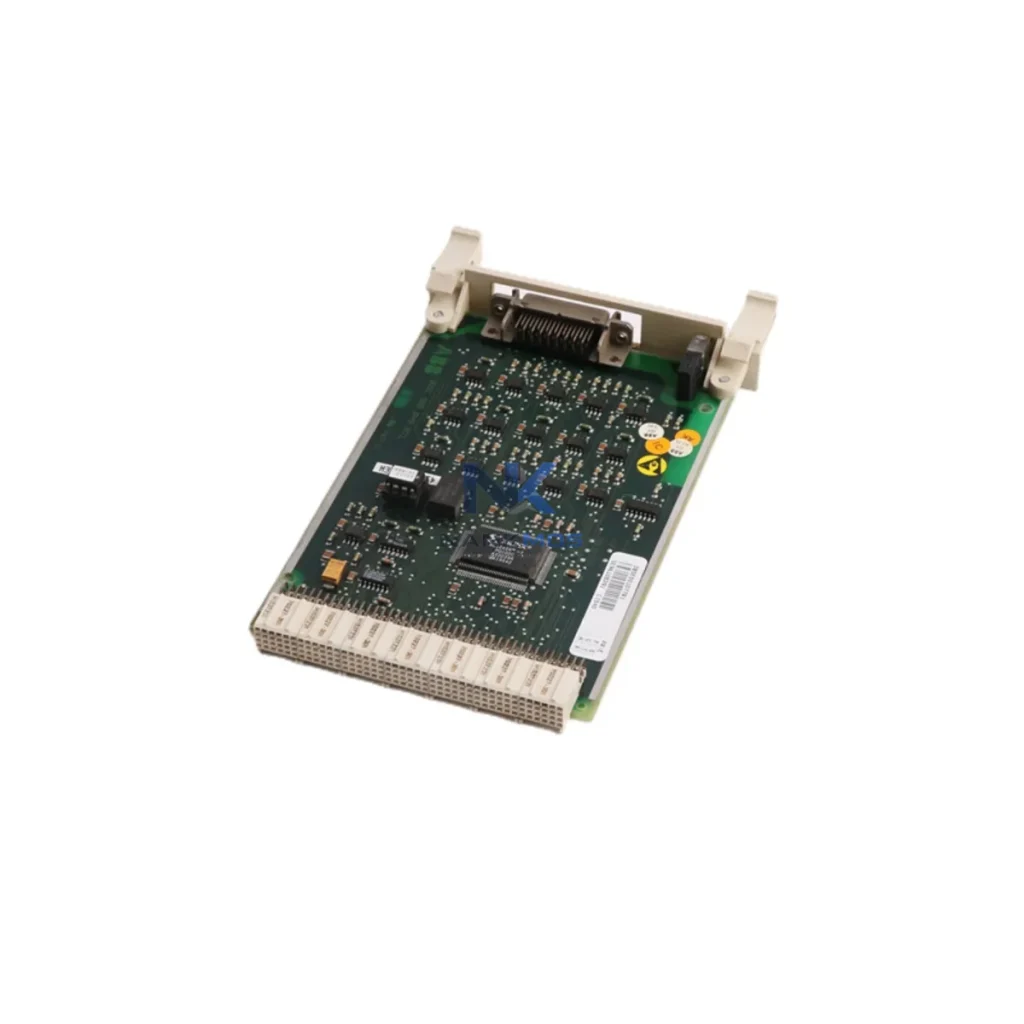

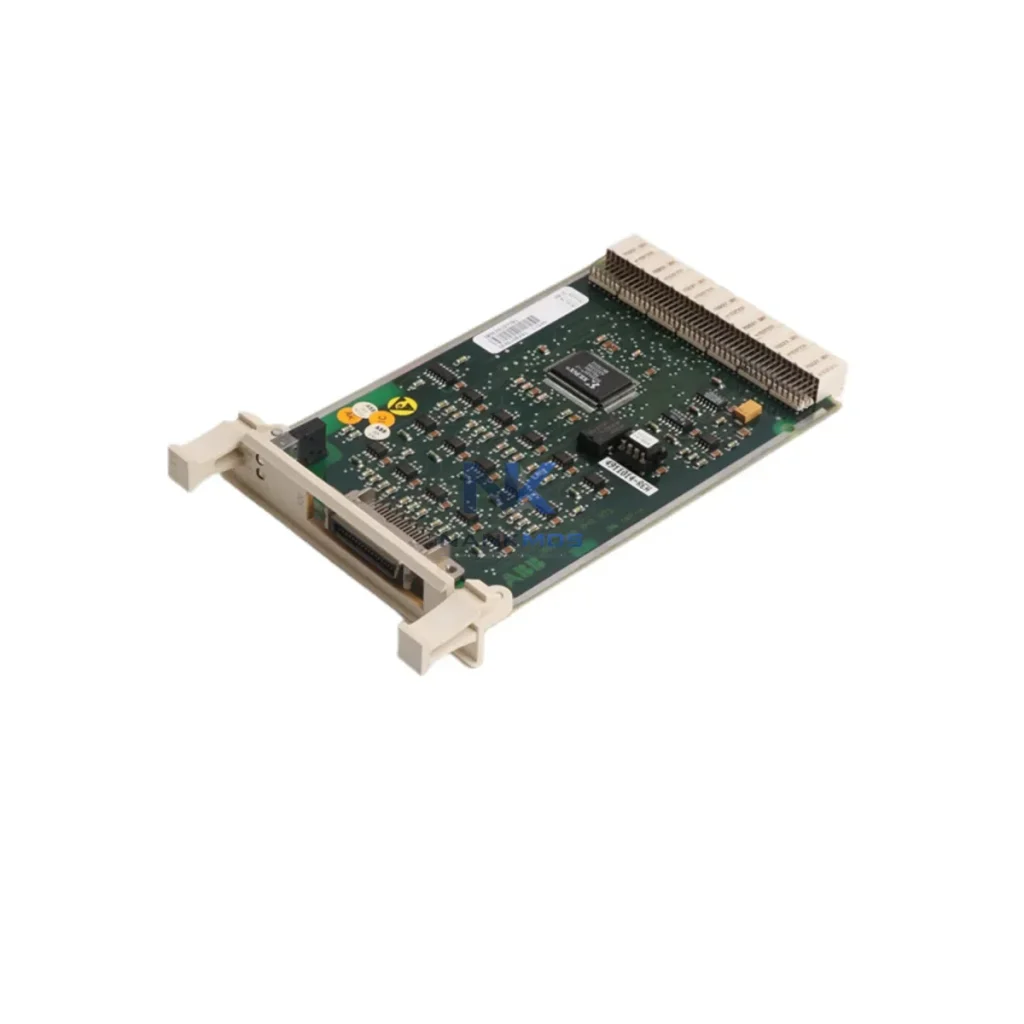

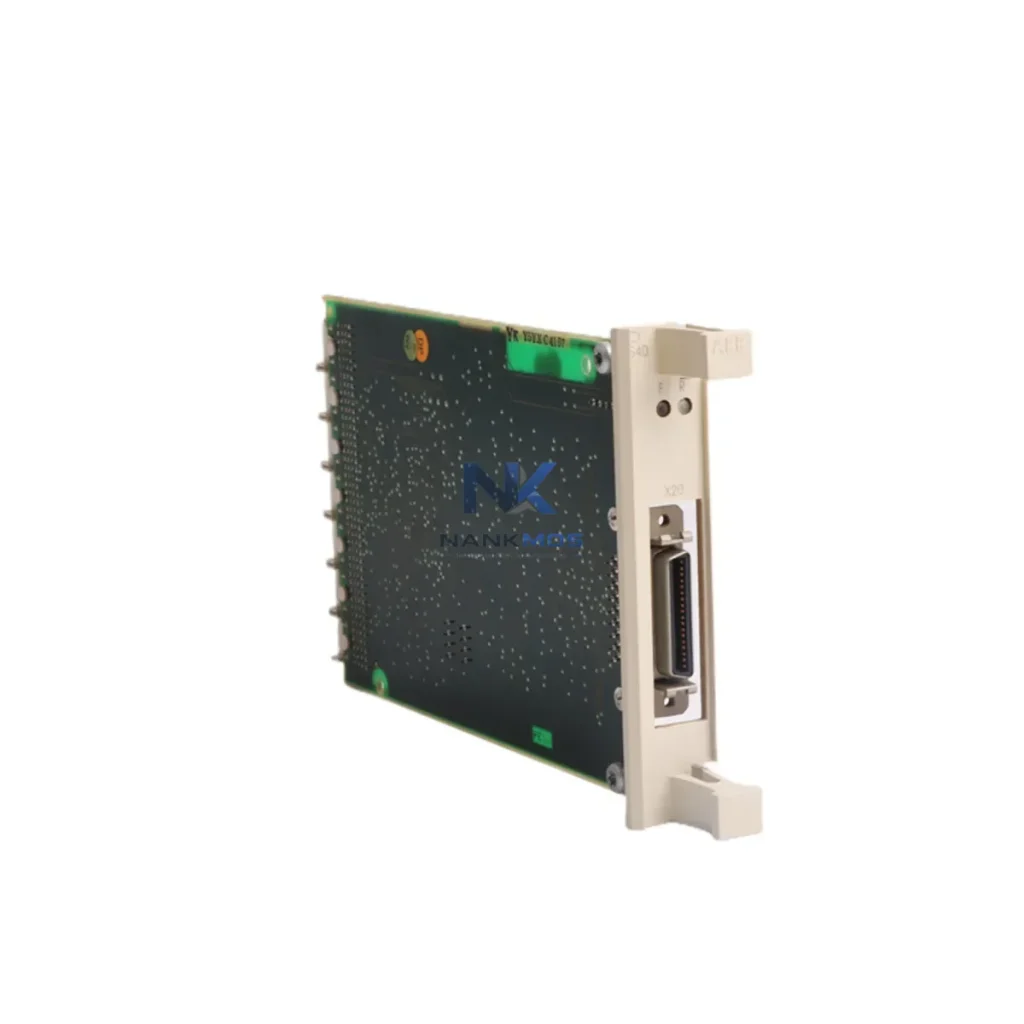

ABB CI540 3BSE001077R1 I/O Bus Extension Module

Product Details

CI540 3BSE001077R1 Product Description

The ABB CI540 (3BSE001077R1) is a dedicated S100 I/O Bus Extension Module engineered for the ABB AC500 programmable logic controller platform. Designed to extend the local S100 I/O bus beyond the base CPU rack, the CI540 enables engineers to expand distributed I/O capacity without compromising signal integrity, scan cycle determinism, or system-level diagnostics. In multi-rack AC500 deployments — common in power distribution substations, water treatment SCADA systems, chemical process lines, and heavy manufacturing cells — the CI540 serves as the structural link that preserves the electrical and logical continuity of the I/O bus across physical rack boundaries.

Unlike generic bus extenders, the CI540 is purpose-built for the AC500 architecture, ensuring full compatibility with the PM5xx and PM5xx-ETH CPU families and the complete S100 I/O module range. Its integration into the control cabinet follows the same DIN-rail mounting convention as all AC500 components, minimizing installation complexity and reducing commissioning time on new projects or retrofit upgrades.

The CI540 3BSE001077R1 derives its full value when understood within the layered architecture of an AC500-based automation platform. At the control layer, the ABB PM554-T-ETH or PM564-T-ETH CPU module acts as the system master, executing the application program and managing all I/O scan cycles. The CI540 extends the S100 I/O bus from the CPU's local rack to a secondary expansion rack, allowing engineers to add additional ABB DI524 digital input modules, DO524 digital output modules, AI523 analog input modules, or AO523 analog output modules without relocating the CPU or reconfiguring the communication topology.

At the power layer, the ABB CP502 or CP503 power supply modules provide regulated 24 VDC to both the CPU rack and the expansion rack. Proper power distribution across racks — with the CI540 maintaining bus continuity — ensures that voltage drops or transient loads on the expansion rack do not propagate back to the CPU rack, preserving scan cycle stability under dynamic load conditions.

At the communication layer, the AC500 platform supports PROFIBUS DP, Modbus TCP/IP, EtherNet/IP, and CANopen via dedicated communication modules such as the CI590-CS31-HA or CI501-PNIO. The CI540 operates transparently beneath this communication layer — it does not consume a communication slot and does not require any protocol-level configuration, making it invisible to the application program while physically extending the I/O capacity of the system.

At the HMI layer, ABB CP600 series operator panels connect to the AC500 CPU via Ethernet or serial interfaces, providing real-time visualization of process variables sourced from I/O modules distributed across both the master and expansion racks. The CI540 ensures that signals from remote I/O modules are presented to the CPU with the same deterministic timing as local I/O, supporting accurate HMI refresh rates and alarm response times.

For redundancy-critical applications, the AC500 platform supports CPU redundancy configurations using paired PM5xx modules with synchronized memory. In these architectures, the CI540 must be present in both the active and standby rack configurations to ensure that the standby CPU has full visibility of the I/O bus during switchover events. This makes the CI540 a structural component of the redundancy design, not merely an expansion accessory.

At the field device layer, the expanded I/O capacity enabled by the CI540 supports connection of additional sensors, actuators, motor starters, and protection relays. In combination with ABB S800 I/O modules for high-density analog applications or TB5xx terminal bases for field wiring termination, the CI540 allows a single AC500 CPU to manage significantly larger field device counts without migrating to a distributed I/O topology over PROFIBUS or PROFINET — reducing system complexity and eliminating the latency associated with remote I/O communication cycles.

Power Distribution & Substation Automation: In medium-voltage switchgear panels and substation automation systems, the CI540 enables a single AC500 CPU to monitor protection relay status, breaker positions, transformer tap positions, and busbar voltage measurements across multiple marshalling racks within the same control cabinet. This eliminates the need for a separate remote I/O gateway and reduces the number of communication nodes that must be maintained over the system lifecycle.

Water & Wastewater Treatment: Municipal water treatment SCADA systems frequently require large I/O counts for pump station monitoring, valve control, flow measurement, and chemical dosing. The CI540 allows a single AC500 controller to manage all process I/O within a pump station control panel, with the expansion rack accommodating additional analog input modules for flow transmitters and level sensors without requiring a second PLC or a PROFIBUS remote I/O drop.

Chemical & Petrochemical Process Control: In batch reactor control systems and continuous process lines, the CI540 supports expansion of the AC500 I/O bus to accommodate additional temperature, pressure, and flow measurement channels. The module's wide operating temperature range (-25°C to +70°C) and IP20 protection class make it suitable for installation in climate-controlled control rooms adjacent to process areas.

Packaging & Assembly Lines: High-speed packaging lines require deterministic I/O scan cycles to coordinate conveyor drives, reject mechanisms, vision system triggers, and label applicators. The CI540 maintains the synchronous scan behavior of the S100 I/O bus across the expansion rack, ensuring that all I/O modules — regardless of their physical rack location — are scanned within the same CPU cycle.

Mining & Metals Processing: In ore processing plants and smelting facilities, the CI540 supports expansion of AC500 control systems managing crusher drives, conveyor systems, dust suppression, and process cooling. The module's industrial temperature rating and DIN-rail form factor are compatible with the harsh electrical environments typical of mining control rooms.

Q1: How many CI540 modules can be used in a single AC500 system, and what is the maximum I/O expansion supported? The number of CI540 modules and the maximum I/O expansion capacity depend on the specific AC500 CPU variant in use. PM5xx series CPUs support a defined maximum number of S100 I/O modules across all racks. Each CI540 occupies one slot in the master rack and enables one expansion rack. Engineers should consult the AC500 system data sheet (document 3ADR010066) for the exact rack and module count limits applicable to their CPU variant. NANKMOS can provide pre-sales technical support to verify compatibility for specific project configurations.

Q2: Is the CI540 3BSE001077R1 compatible with all AC500 CPU generations, and are there firmware requirements? The CI540 is designed for the AC500 V2 platform and is compatible with PM5xx and PM5xx-ETH CPU modules running current ABB Automation Builder firmware. Compatibility with earlier AC500 V1 CPUs (PM5xx-series first generation) should be verified against the ABB hardware compatibility matrix. NANKMOS supplies the CI540 with its original firmware version and recommends verifying the CPU firmware revision against ABB's published compatibility tables prior to installation. All units supplied by NANKMOS are covered by a 12-Month Warranty and are tested for basic electrical continuity and bus interface integrity before shipment.

Q3: What is the lead time for the CI540 3BSE001077R1, and what does the 12-Month Warranty cover? NANKMOS maintains stock of the CI540 3BSE001077R1 and can typically ship within 1–3 business days of order confirmation. The 12-Month Warranty covers manufacturing defects and electrical failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or mechanical impact. For warranty claims, NANKMOS provides a direct RMA process with technical support. Contact [email protected] or +86 18359268345 for stock confirmation, technical pre-sales queries, or warranty service requests.
