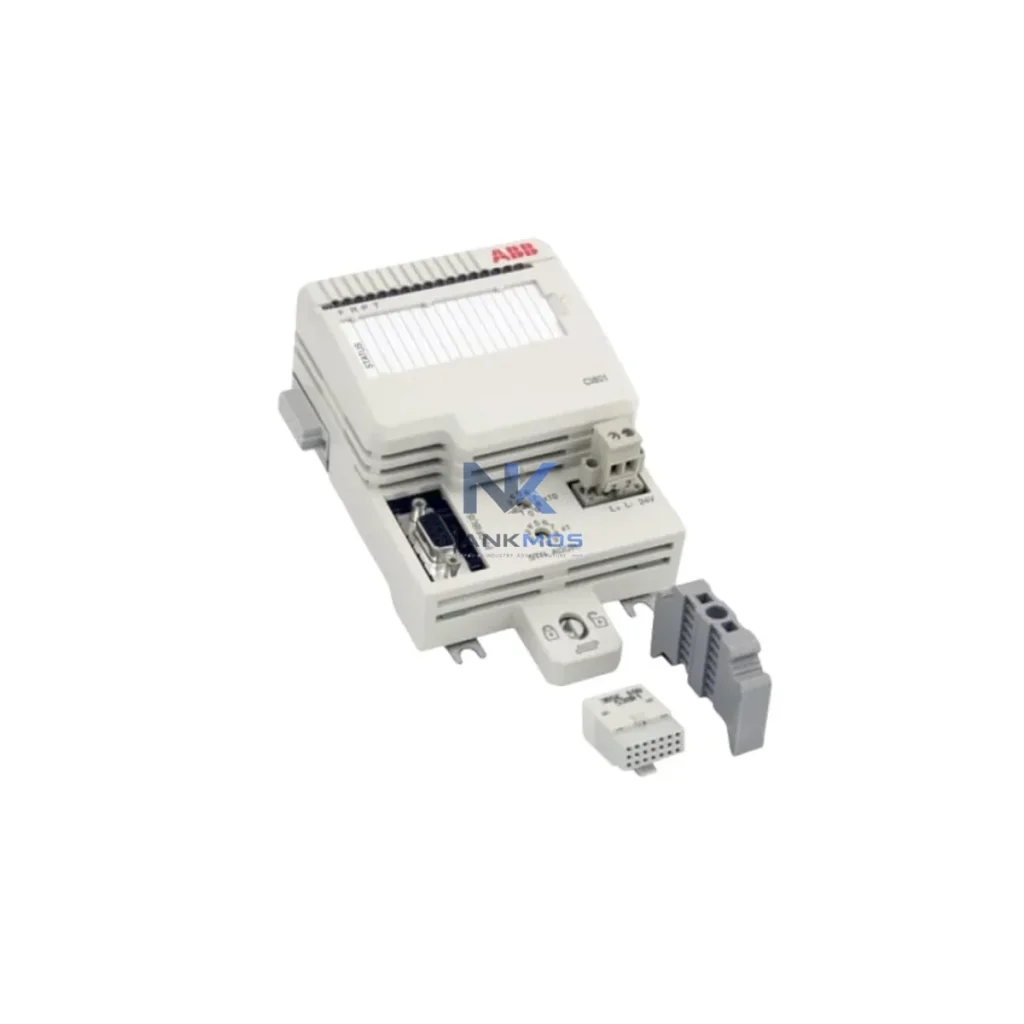

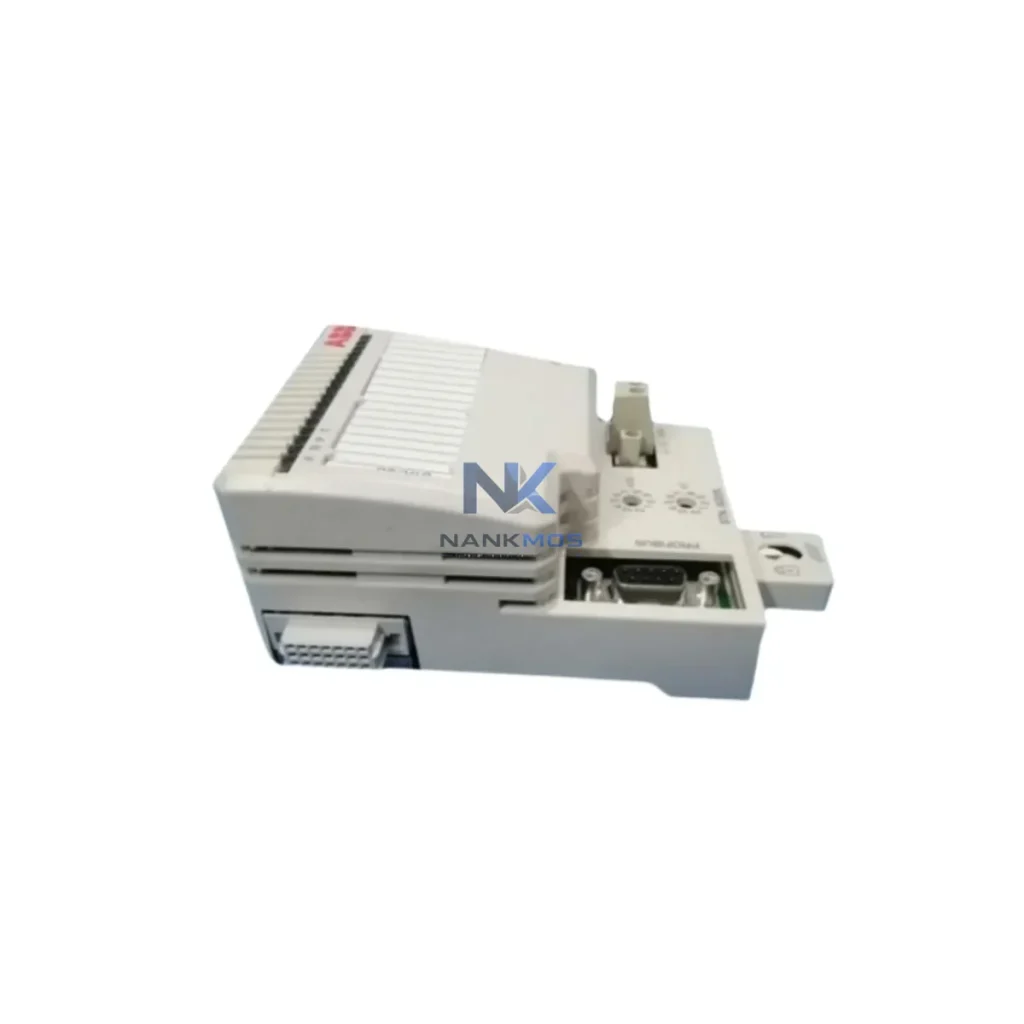

ABB CI801 3BSE038540R1 Communication Module

Product Details

CI801 3BSE038540R1 Product Description

The ABB CI801 3BSE038540R1 is a PROFIBUS DP communication module engineered for the AC800M controller platform, delivering precision fieldbus connectivity that underpins energy-aware industrial automation. In modern manufacturing environments where energy costs and equipment utilization directly impact profitability, the CI801 serves as a critical data bridge between the control layer and field devices — enabling real-time load monitoring, drive coordination, and adaptive energy management across the production line.

Designed and manufactured in Sweden to ABB's rigorous industrial standards, the CI801 3BSE038540R1 supports high-speed PROFIBUS DP communication at up to 12 Mbit/s, allowing the AC800M PLC to poll drive status, motor feedback, and energy consumption data from dozens of field nodes simultaneously. This communication density is essential for factories seeking to reduce idle-state energy draw, optimize motor start sequences, and synchronize multi-axis drive systems without introducing latency that disrupts production rhythm.

Every unit supplied by NANKMOS is sourced from verified inventory channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty — ensuring that your automation infrastructure remains operational and your energy optimization strategy stays on schedule.

The CI801 3BSE038540R1 operates at the intersection of control intelligence and field-level energy data. When integrated into an AC800M-based control architecture, it enables the PLC to communicate directly with ABB ACS880 variable frequency drives and ACS580 general-purpose drives over PROFIBUS DP, retrieving real-time parameters such as output frequency, motor current, torque demand, and thermal load. This data stream allows the control program to implement adaptive speed profiles — reducing motor energy consumption during low-demand production intervals without sacrificing throughput.

In servo-driven assembly lines, the CI801 coordinates with ABB MicroFlex e190 servo drives and third-party PROFIBUS-compatible servo controllers, synchronizing axis motion data with the AC800M's motion control library. This tight integration eliminates redundant acceleration cycles that waste energy and accelerate mechanical wear. Paired with ABB's S800 I/O modules — such as the AI810 analog input module and DI810 digital input module — the CI801 enables the PLC to aggregate sensor feedback from current transformers, pressure transducers, and temperature sensors distributed across the production floor.

For energy monitoring at the system level, the CI801 facilitates communication between the AC800M and power measurement devices such as the ABB M2M DMTME series multifunction energy meters or compatible third-party power analyzers connected via PROFIBUS DP. This allows the SCADA layer — whether running ABB System 800xA, Wonderware, or an equivalent industrial platform — to log energy consumption per production cell, identify inefficient load profiles, and trigger demand-response actions automatically.

The module also supports integration with ABB CP600 series HMI panels, enabling operators to visualize drive status, energy KPIs, and alarm states from a single interface. When combined with ABB TB820V2 PROFIBUS DP optical bus terminators and repeaters in large plant topologies, the CI801 maintains signal integrity across extended cable runs — preserving the communication reliability that energy optimization algorithms depend on.

Factories deploying the ABB CI801 3BSE038540R1 gain a structured pathway to measurable energy reduction. By enabling the AC800M to actively monitor and respond to drive-level energy data, production engineers can implement load-shedding routines that automatically reduce motor speed during conveyor idle periods, stagger motor start sequences to avoid peak demand spikes, and flag drives operating outside their efficiency envelope for predictive maintenance intervention.

The PROFIBUS DP network managed by the CI801 supports deterministic communication cycles, which means energy management commands — such as speed setpoint adjustments or torque limit updates — reach the target drive within a guaranteed time window. This determinism is critical for production lines where energy optimization must not introduce timing variability that disrupts downstream processes or causes quality deviations.

Thermal load management is another direct benefit. By continuously reading motor temperature feedback and drive thermal status via PROFIBUS DP, the AC800M can implement dynamic derating strategies — reducing drive output before thermal protection trips, avoiding unplanned shutdowns, and extending the service life of both the drive and the connected motor. Fewer thermal trips mean fewer production interruptions, lower maintenance costs, and a more predictable energy consumption profile across shifts.

For facilities pursuing ISO 50001 energy management certification or internal carbon reduction targets, the CI801's role as a real-time data conduit between field drives and the SCADA/MES layer provides the granular consumption data required for energy audits, baseline establishment, and continuous improvement reporting. The module's compatibility with the AC800M's redundancy configurations also supports high-availability production environments where energy optimization cannot come at the cost of uptime.

NANKMOS maintains ready stock of the CI801 3BSE038540R1, with each unit passing pre-shipment functional verification before dispatch. The 12-month warranty covers operational defects and ensures that your energy control infrastructure is protected from day one of deployment.

Q1: How does the CI801 3BSE038540R1 contribute to energy savings on a production line?The CI801 enables the AC800M PLC to communicate in real time with PROFIBUS DP-connected drives, motors, and energy meters. This allows the control system to implement adaptive speed control, load shedding, and demand-response strategies that reduce unnecessary energy consumption during low-production intervals — directly lowering electricity costs and thermal stress on equipment.

Q2: Which ABB AC800M processor modules are compatible with the CI801?The CI801 3BSE038540R1 is compatible with the AC800M controller family, including PM851, PM856, PM860, PM861, PM864, and PM866 processor modules. It slots into the AC800M baseplate and is configured via ABB Control Builder software. For specific firmware compatibility, consult the ABB AC800M Hardware Unit Manual or contact NANKMOS for application support.

Q3: Can the CI801 replace an existing PROFIBUS communication module in a running system?Yes. The CI801 3BSE038540R1 is a direct replacement for compatible ABB AC800M PROFIBUS DP modules. NANKMOS recommends verifying the existing module's firmware version and PROFIBUS configuration file (GSD) before substitution. Each replacement unit supplied by NANKMOS is pre-tested to confirm PROFIBUS DP master functionality, reducing commissioning time and minimizing production downtime during the swap.

Q4: What does the 12-month warranty cover, and how is stock availability managed?NANKMOS's 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Stock is maintained in verified inventory with traceability documentation. Pre-shipment testing confirms PROFIBUS communication integrity, power-up behavior, and module identification before dispatch. For urgent requirements or volume orders, contact NANKMOS directly to confirm lead times and reserve stock.
