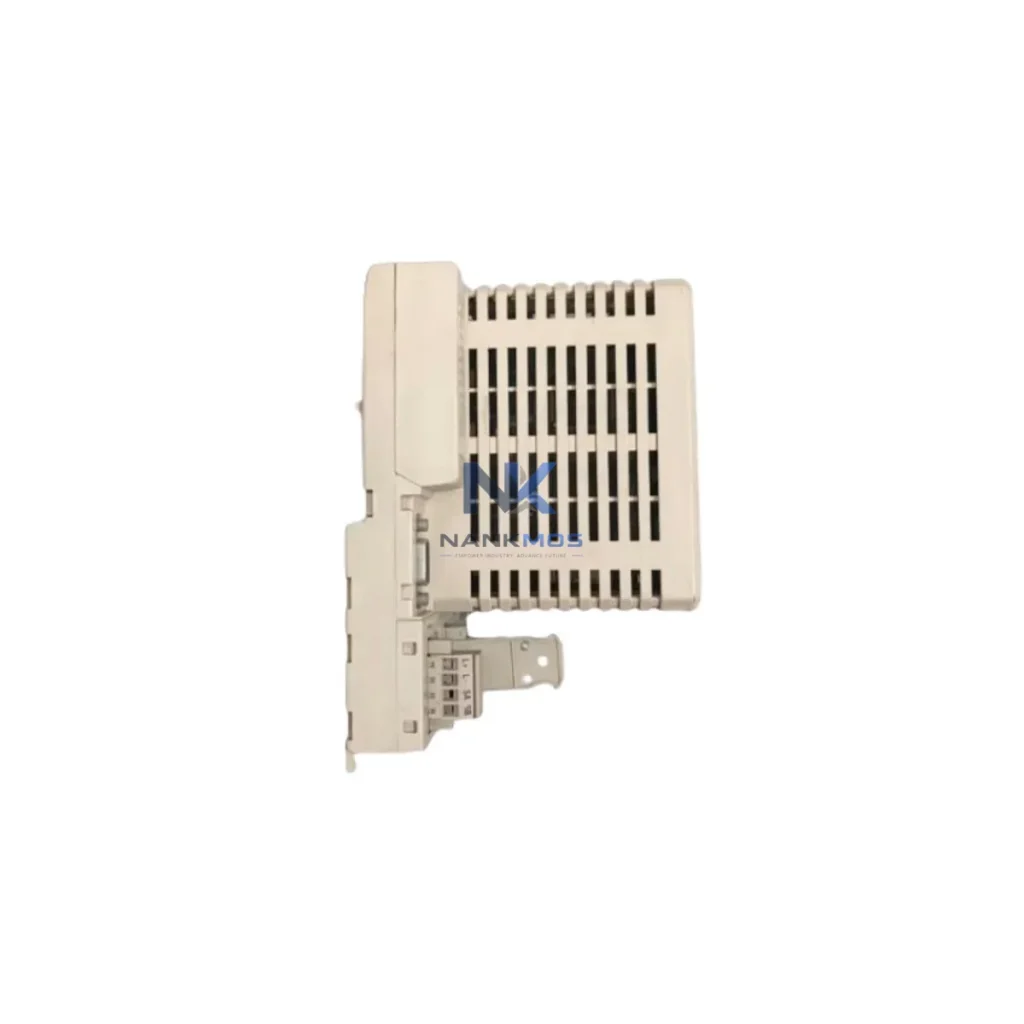

ABB CI810B 3BSE020520R1 Fieldbus Communication Interface

Product Details

CI810B 3BSE020520R1 Product Description

The ABB CI810B (3BSE020520R1) is a high-performance fieldbus communication interface module engineered for seamless integration within the ABB AC800M distributed control system platform. Designed to serve as the communication backbone between the AC800M controller and field-level PROFIBUS DP networks, the CI810B enables deterministic, high-speed data exchange across multi-node industrial architectures. Its role within the control hierarchy spans the communication layer, I/O layer, and diagnostic layer — making it a critical component in any scalable, redundant, and maintainable automation deployment.

The CI810B is not a standalone device — it is an architectural enabler. Within a complete AC800M-based automation platform, the CI810B operates in close coordination with a layered set of modules and subsystems that together define system performance, reliability, and scalability.

At the controller layer, the CI810B interfaces directly with the ABB PM861A or PM864A processor modules, which serve as the central execution engines for the AC800M rack. These CPUs manage scan cycles, program execution, and inter-module communication, while the CI810B extends their reach into the PROFIBUS DP field network. In redundant controller configurations, a paired PM866A processor with hot-standby capability ensures zero-interruption failover — and the CI810B's communication continuity is preserved across switchover events.

On the power layer, the ABB SD821 or SD823 power supply modules provide stable 24VDC rail power to the AC800M backplane, ensuring that the CI810B and all co-resident modules receive clean, regulated power. Voltage transients or supply interruptions at this layer directly affect fieldbus timing and node synchronization, making power module selection a critical architectural decision.

For I/O integration, the CI810B communicates with distributed ABB S800 I/O modules — including AI810 analog input, AO810 analog output, DI810 digital input, and DO810 digital output modules — deployed in remote I/O stations across the plant floor. These modules connect to the PROFIBUS DP segment managed by the CI810B, enabling centralized control of distributed field signals without additional gateway hardware.

At the communication layer, the CI810B can coexist within a broader network architecture that includes ABB CI854A PROFIBUS DP interfaces and CI857 HART communication interfaces, allowing simultaneous management of multiple fieldbus segments from a single AC800M rack. This multi-interface architecture supports complex process plants where different field device types — PROFIBUS, HART, and Foundation Fieldbus — must be integrated under a unified control strategy.

For HMI and SCADA connectivity, the AC800M platform typically pairs with ABB 800xA System operator stations or third-party SCADA systems via OPC DA/UA, with the CI810B's PROFIBUS data transparently mapped into the 800xA information model. This enables operators to monitor field device diagnostics, valve positions, transmitter health, and loop status from a unified engineering and operations interface.

In cabinet-level design, the CI810B rack is often co-located with ABB SACE series circuit breakers, CM589 communication modules, and signal isolators such as the ABB ISOCON series, ensuring that field signal integrity is maintained from the terminal block through to the controller backplane. Proper signal isolation at the I/O boundary is essential for noise immunity in high-interference environments such as motor control centers, variable frequency drive panels, and high-voltage switchgear rooms.

The CI810B is deployed across a wide range of heavy industrial and process control environments where communication reliability, system scalability, and long-term maintainability are non-negotiable requirements.

Oil, Gas & Petrochemical: In upstream and downstream process facilities, the CI810B manages PROFIBUS DP communication to field instruments including pressure transmitters, flow meters, control valves, and motor starters. Its deterministic communication timing supports safety-critical loop control where response latency must remain within defined SIL boundaries.

Power Generation & Utilities: In thermal, hydro, and combined-cycle power plants, the CI810B integrates with turbine control systems, excitation controllers, and protection relay networks. Its compatibility with AC800M redundant controller configurations ensures that communication failures do not propagate into plant-level control disruptions.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use the CI810B to coordinate distributed pump stations, dosing systems, and filtration control loops. The module's ability to manage up to 125 PROFIBUS DP slave nodes per segment makes it well-suited for large-scale, geographically distributed water infrastructure.

Mining & Minerals Processing: In ore processing, conveyor control, and crusher automation, the CI810B provides robust communication in high-vibration, high-dust environments. Its industrial-grade design and DIN rail mounting ensure reliable operation in harsh electrical enclosures typical of mining control rooms.

Marine & Offshore: Vessel automation and offshore platform control systems increasingly rely on AC800M-based architectures for propulsion control, ballast management, and safety system integration. The CI810B's compact form factor and backplane-powered design reduce wiring complexity in space-constrained marine control panels.

Packaging & Discrete Manufacturing: High-speed packaging lines and assembly systems use the CI810B to synchronize motion controllers, servo drives, vision systems, and safety PLCs over PROFIBUS DP, enabling coordinated multi-axis control with deterministic cycle times.

Q1: Is the CI810B compatible with both AC800M and AC800M High Integrity (HI) controller platforms?The CI810B is designed for the standard AC800M platform. For AC800M HI (High Integrity) safety controller applications, ABB provides dedicated safety-rated communication interfaces. However, the CI810B can coexist in the same control cabinet as HI controllers when used in non-safety I/O segments, provided proper segregation of safety and standard I/O is maintained per IEC 61511 engineering guidelines. Always verify compatibility with your specific AC800M firmware version and system configuration tool (Control Builder M) before deployment.

Q2: Can the CI810B support PROFIBUS DP redundancy (dual-ring or dual-master configurations)?The CI810B supports controller-level redundancy through the AC800M hot-standby architecture, where the active and standby CPUs share fieldbus state. For physical PROFIBUS DP media redundancy (dual-cable ring topology), additional PROFIBUS repeaters or media redundancy switches are required at the network infrastructure level. In high-availability applications, pairing the CI810B with a redundant PM866A controller and a PROFIBUS DP optical ring topology provides both controller and communication path redundancy.

Q3: What is the warranty coverage and sourcing lead time for the CI810B 3BSE020520R1?All CI810B 3BSE020520R1 units supplied by NANKMOS are covered by a 12-Month Warranty from the date of shipment. Each unit undergoes pre-shipment functional testing to verify communication initialization, backplane interface integrity, and PROFIBUS DP node enumeration. For in-stock units, global shipping is available within 3–5 business days. For urgent maintenance and unplanned downtime scenarios, expedited sourcing and priority dispatch are available — contact our engineering team at [email protected] or +86 18359268345 for real-time inventory confirmation.
