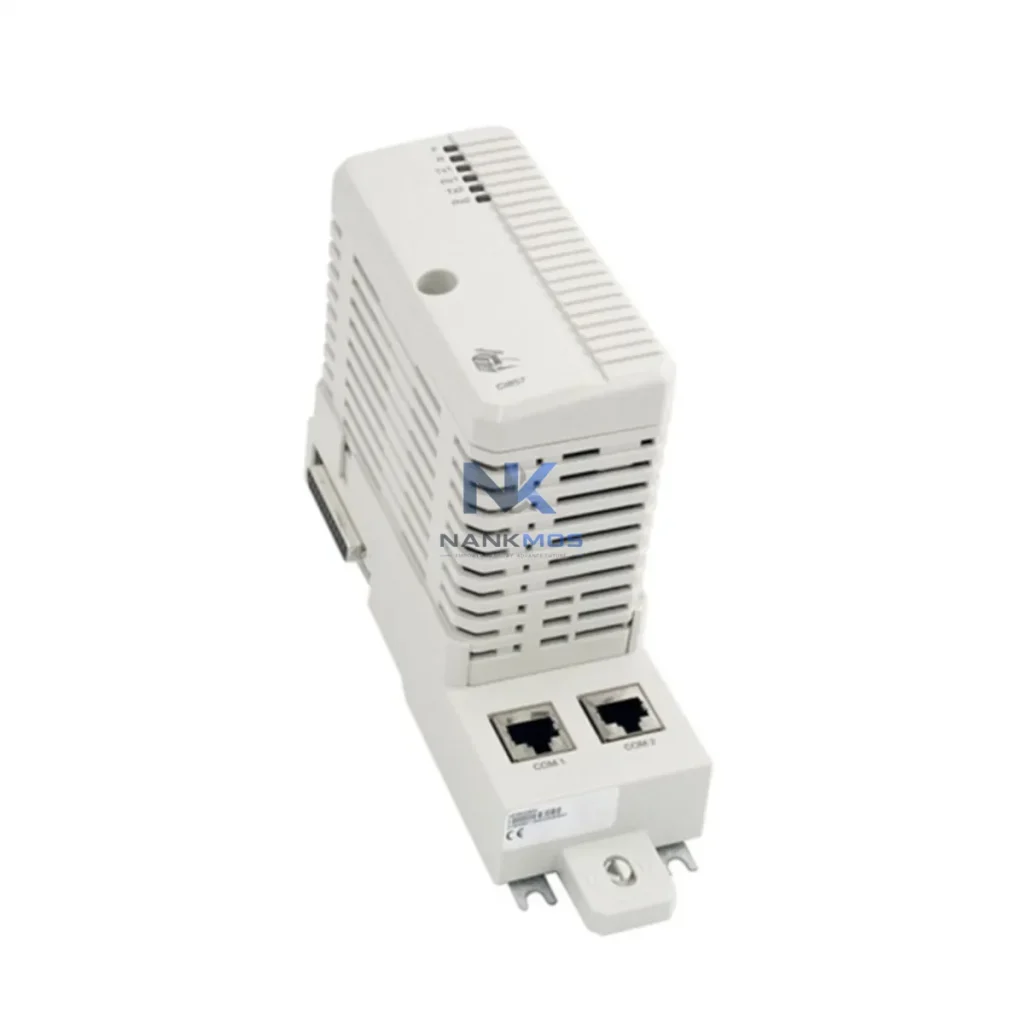

ABB CI857K01 3BSE018144R1 Communication Interface Module

Product Details

CI857K01 3BSE018144R1 Product Description

The ABB CI857K01 (3BSE018144R1) is a dedicated INSUM Ethernet Communication Interface Module engineered for seamless integration within the AC800M Distributed Control System (DCS) architecture. Designed to bridge the AC800M controller platform with Ethernet-based field networks and intelligent motor control centers (MCCs), the CI857K01 delivers deterministic, high-integrity communication across multi-layer industrial automation environments. Its role within the control hierarchy extends from the controller layer through the communication layer to the field device layer, enabling unified supervision, real-time diagnostics, and scalable network expansion across demanding process industries.

In modern industrial automation architectures, communication reliability is as critical as processing power. The CI857K01 addresses this by providing a dedicated Ethernet gateway function within the AC800M rack system, ensuring that motor starters, soft starters, and intelligent switchgear connected via INSUM protocol are fully visible to the supervisory control layer. This eliminates communication bottlenecks, reduces wiring complexity, and supports centralized fault diagnostics — all essential for high-availability plant operations in power generation, water treatment, petrochemical, and marine applications.

When deployed alongside the PM866 or PM891 AC800M Controller Modules, the CI857K01 operates as a transparent communication bridge, forwarding real-time motor status, energy consumption data, and fault codes to the DCS historian and SCADA layer without introducing latency. The module installs directly into the S800 I/O or AC800M rack system, sharing the backplane bus with other communication and I/O modules such as the CI854A PROFIBUS DP Interface, CI858 DNP3 Interface, and CI860 FOUNDATION Fieldbus HSE Interface — enabling a unified, multi-protocol communication architecture within a single rack enclosure.

System architects integrating the CI857K01 into brownfield or greenfield projects benefit from its compatibility with the ABB Ability System 800xA engineering environment, where module configuration, network topology mapping, and live diagnostics are managed through a single software platform. This integration supports structured commissioning workflows, reduces engineering hours during startup, and provides a consistent diagnostic interface for long-term maintenance teams. The module's Ethernet port supports standard TCP/IP networking, allowing it to interface with plant-level Ethernet switches such as the ABB AF100 or third-party managed switches configured for industrial VLAN segmentation.

From a redundancy and availability perspective, the CI857K01 supports hot-standby controller configurations when paired with redundant PM866 or PM891 modules and the TP830 Termination Panel. In redundant architectures, communication continuity is maintained during controller switchover events, ensuring that field device status and control outputs remain uninterrupted. This is particularly critical in continuous process industries such as oil refining, chemical production, and offshore platform automation, where unplanned communication loss can trigger costly process shutdowns or safety system activations.

The module's signal flow architecture ensures that Ethernet frames from the INSUM MCC network are decoded, validated, and forwarded to the AC800M controller's application layer in real time. Fault detection, motor trip events, and energy metering data are timestamped and logged, supporting post-event analysis and predictive maintenance workflows. When integrated with the ABB S800 I/O system — including AI810 Analog Input Modules, DI810 Digital Input Modules, and AO810 Analog Output Modules — the CI857K01 contributes to a complete signal chain from field sensor to control room display, maintaining signal integrity across the full automation hierarchy.

For projects requiring modular expansion, the CI857K01's rack-based installation allows additional communication modules to be added without disrupting existing network segments. This modularity supports phased plant expansions, where new motor control centers or process units are integrated into the existing DCS architecture incrementally. Combined with the TB820 ModuleBus Optical Interface and CI840A PROFIBUS DP Redundant Interface, the AC800M rack can support simultaneous multi-protocol communication across PROFIBUS, Ethernet, and INSUM networks — providing the communication flexibility required by complex, multi-vendor plant environments.

The CI857K01 achieves its full operational value when deployed as part of a coordinated AC800M automation platform. At the controller layer, the PM866K02 or PM891K01 AC800M Controller Modules provide the processing backbone, executing control logic and managing communication scheduling across all connected interface modules. The CI857K01 occupies a dedicated slot in the AC800M rack, sharing the backplane with CI854A PROFIBUS DP Interface Modules that connect to field instruments, valve positioners, and remote I/O stations across the plant network.

At the I/O layer, AI810 8-Channel Analog Input Modules and DI810 16-Channel Digital Input Modules aggregate field signals from pressure transmitters, flow meters, temperature sensors, and motor status contacts. These signals are processed by the AC800M controller and correlated with motor operational data received via the CI857K01 from the INSUM MCC network, enabling unified process and electrical supervision within a single control application. AO810 Analog Output Modules and DO810 Digital Output Modules complete the signal chain, issuing control commands to control valves, motor starters, and actuators based on integrated process logic.

At the communication layer, the CI860 FOUNDATION Fieldbus HSE Interface and CI858 DNP3 Interface extend the AC800M's network reach to FOUNDATION Fieldbus field devices and substation automation systems respectively, while the CI857K01 maintains dedicated Ethernet connectivity to the INSUM MCC network. The TB820 ModuleBus Optical Interface supports extended I/O rack configurations over fiber optic links, enabling remote I/O placement in large plant layouts without signal degradation. Industrial Ethernet switches configured for VLAN segmentation ensure network traffic isolation between the INSUM segment, the PROFIBUS gateway segment, and the plant-level control network.

At the HMI and supervisory layer, ABB System 800xA operator workstations provide unified visualization of motor status, energy consumption trends, and process variables sourced from both the CI857K01 INSUM network and the S800 I/O system. The TP830 Termination Panel supports structured field wiring termination, reducing installation time and improving long-term maintainability. For power supply redundancy, dual SD821 or SD822 Power Supply Modules in the AC800M rack ensure continuous module operation during single power supply failures, maintaining communication integrity across all installed interface modules including the CI857K01.

In power generation facilities, the CI857K01 enables centralized supervision of motor-driven auxiliary systems including cooling water pumps, fuel oil transfer pumps, and forced draft fans connected via INSUM-compatible MCCs. Real-time motor current, voltage, and trip status data are forwarded to the AC800M DCS, supporting load management, predictive maintenance scheduling, and compliance reporting without requiring additional field wiring or dedicated communication converters.

In water and wastewater treatment plants, the module integrates pump station motor control centers into the plant-wide DCS, providing operators with unified visibility of pump run status, fault conditions, and energy consumption across multiple pump stations. This integration supports automated pump sequencing, duty/standby rotation logic, and remote fault acknowledgment — reducing operator workload and improving system availability in unmanned or remotely monitored installations.

In petrochemical and refining applications, the CI857K01 supports integration of large motor-driven compressors, agitators, and process pumps into the AC800M safety and control architecture. Combined with ABB's System 800xA Safety layer, motor operational data from the INSUM network can be incorporated into safety instrumented function (SIF) logic, providing additional process protection inputs without duplicating field wiring infrastructure.

In marine and offshore automation, the module's compact rack-mounted form factor and wide operating temperature range support installation in space-constrained control panels aboard vessels and offshore platforms. Integration with the AC800M Marine DCS variant enables unified propulsion auxiliary, ballast, and cargo pump supervision from a single control system, reducing panel footprint and simplifying classification society documentation requirements.

Q1: Is the CI857K01 compatible with both AC800M and System 800xA engineering environments?Yes. The CI857K01 is fully supported within the ABB System 800xA engineering environment, which provides the configuration tools, network topology editors, and live diagnostic interfaces required for commissioning and ongoing maintenance. It integrates transparently with AC800M controller applications, and its INSUM network configuration is managed through the 800xA Control Builder engineering tool without requiring separate configuration software.

Q2: Can the CI857K01 be used in redundant AC800M controller architectures?Yes. When the AC800M system is configured with redundant PM866 or PM891 controller modules, the CI857K01 maintains communication continuity during controller switchover events. The INSUM Ethernet network connection remains active through the switchover process, ensuring that motor status data and control commands are not interrupted during redundancy failover — a critical requirement for continuous process and power generation applications.

Q3: What are the stock availability and warranty terms for the CI857K01?The CI857K01 (3BSE018144R1) is maintained in stock and available for immediate shipment. All units are covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Pre-shipment functional testing is performed on all units, and full technical documentation including installation guides and system compatibility references is provided with each order. For volume requirements or project-specific lead time inquiries, contact [email protected] or +86 18359268345.
