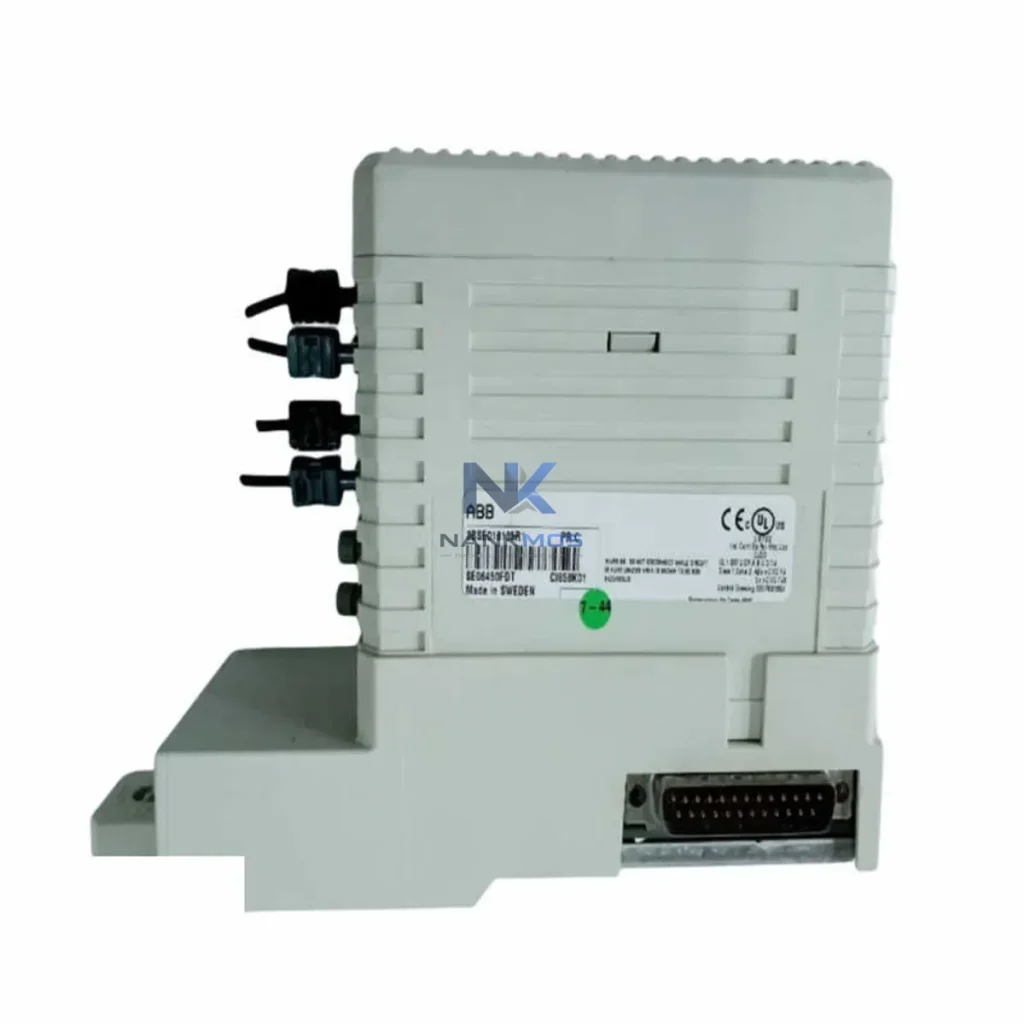

ABB CI858K01 3BSE018135R1 Communication Interface Module

Product Details

CI858K01 3BSE018135R1 Product Description

The ABB CI858K01 (order number 3BSE018135R1) is a PROFIBUS DP communication interface module engineered for seamless integration within the AC800M distributed control system platform. Designed to operate as a PROFIBUS DP master or slave, the CI858K01 bridges the AC800M controller backplane with field-level devices, I/O networks, and third-party subsystems across demanding industrial environments. Its role within the control architecture extends beyond simple protocol conversion — it defines the communication backbone that sustains signal integrity, deterministic data exchange, and system-wide diagnostic visibility across the full automation hierarchy.

In modern process automation architectures, communication reliability between the control layer and the field layer is a non-negotiable engineering requirement. The CI858K01 fulfills this requirement by providing a dedicated, high-speed PROFIBUS DP channel that offloads fieldbus management from the CPU, preserving controller cycle time for critical process logic. This architectural separation between computation and communication is a hallmark of ABB's AC800M platform design philosophy, enabling engineers to scale communication capacity independently of processing resources.

The CI858K01 achieves its full engineering value when deployed within a complete AC800M control architecture. The module slots directly into the AC800M controller chassis alongside processor modules such as the PM864AK01 or PM866AK02, which handle real-time process execution while the CI858K01 manages all PROFIBUS DP fieldbus transactions independently. This division of responsibility ensures that fieldbus latency or network events do not propagate into the controller scan cycle, maintaining deterministic control performance even under high I/O load conditions.

On the I/O layer, the CI858K01 communicates with distributed S800 I/O stations — including modules such as the AI810 analog input module, AO810V2 analog output module, DI810 digital input module, and DO810 digital output module — mounted on TB820V2 ModuleBus optical port units. These S800 I/O clusters can be distributed across the plant floor, connected to the CI858K01 via PROFIBUS DP segments with appropriate termination resistors and repeaters where cable distances exceed standard limits.

For power distribution integrity, the AC800M rack relies on dedicated power supply modules such as the SD821 or SD822 to deliver stable 24 VDC to the controller backplane and all installed interface modules including the CI858K01. Redundant power configurations using dual SD821 units are common in high-availability process control installations, ensuring that a single power supply failure does not interrupt fieldbus communication or controller operation.

In architectures requiring gateway connectivity to higher-level SCADA or DCS networks, the CI858K01 PROFIBUS segment can be bridged to Ethernet-based supervisory layers using communication gateways such as the CI854AK01 (PROFIBUS DP to Ethernet) or integrated with the AC800M's built-in Ethernet port for direct OPC DA/UA connectivity. This layered communication design supports both legacy PROFIBUS field devices and modern Ethernet-based supervisory systems within a single unified control architecture.

HMI integration is typically achieved through ABB's Panel 800 series operator terminals or third-party SCADA platforms connected via the AC800M Ethernet interface, with the CI858K01 providing transparent access to all PROFIBUS DP field device data through the controller's process database. Engineers can configure, monitor, and diagnose all PROFIBUS slave devices directly from the engineering workstation using ABB's Control Builder M software, which provides full GSD-based device configuration, live diagnostic views, and fieldbus segment health monitoring.

Process Manufacturing & Chemical Plants: In continuous process environments, the CI858K01 connects the AC800M controller to PROFIBUS DP-compatible field instruments including flow transmitters, pressure sensors, control valves, and motor starters distributed across multiple process units. The module's support for up to 125 slave nodes per segment allows a single CI858K01 to serve an entire process area, reducing wiring infrastructure costs while maintaining centralized diagnostic visibility from the control room.

Power Generation & Utilities: Power plant automation systems frequently deploy AC800M controllers with CI858K01 interfaces to manage turbine control auxiliaries, switchgear interlocking, and balance-of-plant I/O. The PROFIBUS DP protocol's deterministic timing characteristics make the CI858K01 suitable for applications where control response time is critical, such as burner management systems and generator excitation control auxiliaries.

Oil & Gas and Petrochemical: Offshore platforms and onshore processing facilities use the CI858K01 within SIL-rated control architectures where PROFIBUS DP connectivity to safety-rated field devices is required. The module's robust operating temperature range and vibration tolerance support installation in control panels located in classified hazardous areas when housed in appropriate enclosures.

Water & Wastewater Treatment: Municipal and industrial water treatment plants deploy AC800M systems with CI858K01 modules to manage distributed pump stations, valve actuators, and analytical instruments across geographically dispersed sites. The PROFIBUS DP network's long cable reach capability — up to 1,200 meters at 93.75 kbps without repeaters — supports plant-wide I/O distribution without intermediate junction boxes.

Mining, Metals & Minerals Processing: Conveyor systems, crusher controls, and flotation cell automation in mining operations benefit from the CI858K01's ability to maintain reliable fieldbus communication in electrically noisy environments. Proper cable shielding, grounding, and segment termination practices ensure signal integrity across long PROFIBUS runs in large-footprint mining facilities.

Q1: How many CI858K01 modules can be installed in a single AC800M controller, and what is the maximum PROFIBUS DP node capacity per system?The AC800M controller chassis supports multiple communication interface slots depending on the PM-series processor module selected. A single AC800M controller can host up to four CI858K01 modules simultaneously, each supporting up to 125 PROFIBUS DP slave nodes per segment. With four CI858K01 modules installed, a single AC800M controller can address up to 500 PROFIBUS DP slave devices across four independent fieldbus segments, providing substantial I/O expansion capacity without requiring additional controller hardware. Segment repeaters can further extend node counts and cable distances where plant topology requires it.

Q2: Is the CI858K01 compatible with redundant AC800M controller configurations, and how does fieldbus communication behave during controller switchover?Yes. The CI858K01 is fully supported in redundant AC800M controller configurations using paired PM864 or PM866 processor modules with the CI858K01 installed in both primary and standby controller chassis. During a controller switchover event, the standby CI858K01 assumes PROFIBUS DP master responsibility with minimal disruption to field device communication. ABB's redundancy architecture maintains synchronized process data between primary and standby controllers, ensuring that the switchover is transparent to field devices and does not trigger spurious output changes or alarm floods in the supervisory system.

Q3: What is the warranty coverage for the CI858K01 3BSE018135R1, and what pre-shipment testing is performed?Every CI858K01 3BSE018135R1 unit supplied by NANKMOS carries a 12-Month Warranty covering hardware defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes functional verification testing to confirm PROFIBUS DP communication capability, backplane interface integrity, and LED diagnostic indicator operation. Units are shipped in anti-static packaging with appropriate physical protection to prevent transit damage. In-stock units are available for immediate dispatch with fast global shipping to support urgent project timelines and unplanned maintenance requirements.
