ABB CP630-WEB 1SAP530200R0001 HMI Control Panel

Product Details

CP630-WEB 1SAP530200R0001 Product Description

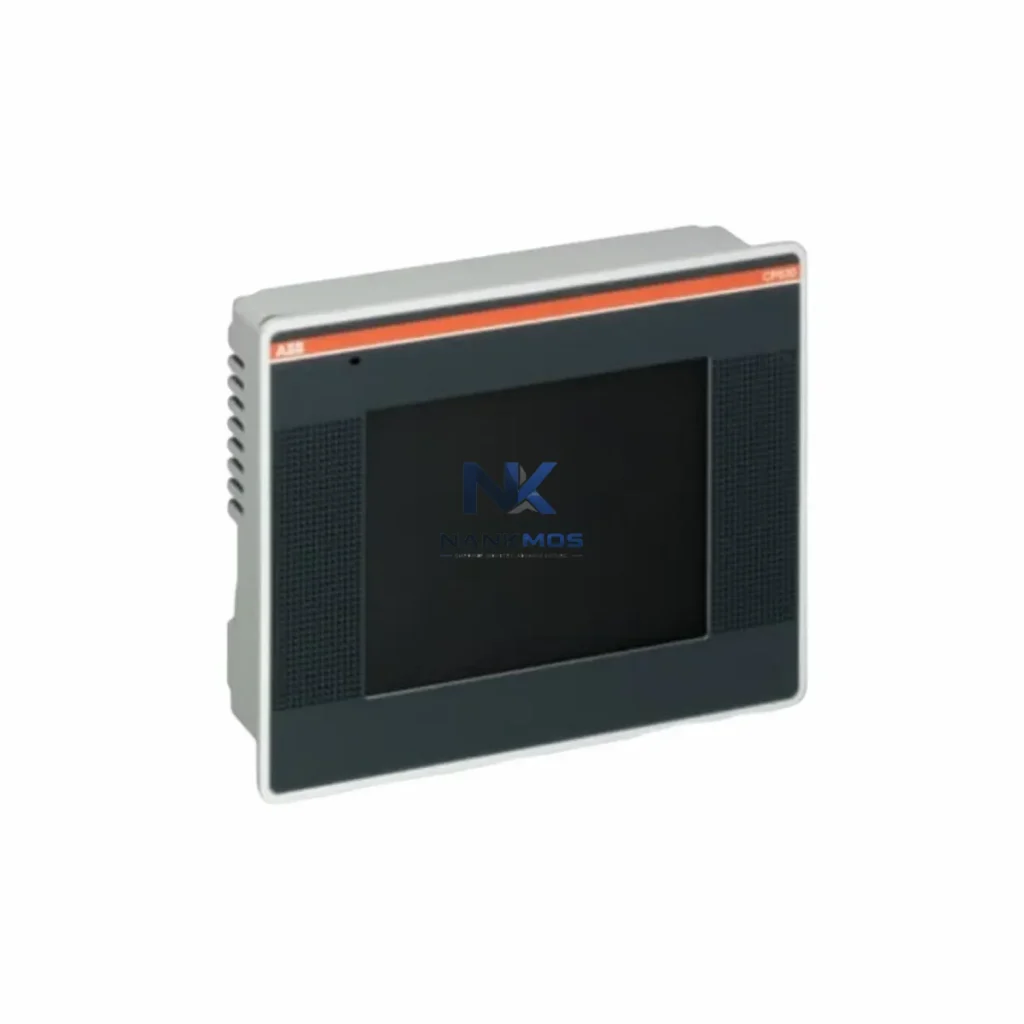

The ABB CP630-WEB 1SAP530200R0001 is a web-enabled Human-Machine Interface (HMI) panel engineered for integration with ABB's AC500 PLC platform. Designed for demanding industrial environments, this HMI serves as the central visualization and control node in energy-aware automation architectures. With its high-resolution display, embedded web server, and robust communication stack, the CP630-WEB enables operators to monitor real-time energy consumption, manage load distribution, and respond to process deviations before they escalate into costly downtime or energy waste.

In modern smart production lines, the HMI is no longer a passive display — it is an active participant in energy optimization. The CP630-WEB connects directly to the AC500 PLC backplane, receiving live data from power monitoring modules, motor control centers, and field-level sensors. Operators can visualize energy flow across production zones, identify high-consumption equipment, and trigger load-shedding sequences directly from the panel. This closed-loop visibility between the HMI and the control layer is fundamental to achieving measurable reductions in energy expenditure without sacrificing throughput.

Every unit supplied by NANKMOS undergoes pre-shipment functional testing and is backed by a 12-month warranty, ensuring reliable deployment in critical production environments.

The CP630-WEB is most effective when deployed as part of a tightly integrated automation stack. In a typical energy-optimized production cell, the HMI interfaces with the ABB AC500 PM564-ETH PLC as the primary logic controller, receiving structured data from I/O expansion modules such as the ABB TU515 terminal unit and digital input modules in the DC532 series. This data pipeline allows the CP630-WEB to present granular, zone-level energy metrics to operators in real time.

On the drive side, the CP630-WEB works in coordination with ABB ACS580 variable frequency drives controlling conveyor motors, pump systems, and compressor units. By displaying drive output frequency, motor load percentage, and energy consumption trends on a single screen, operators can identify inefficient operating points and adjust setpoints without navigating multiple subsystems. Integration with ABB PSTX soft starters further reduces inrush current during motor start sequences, a key contributor to peak demand charges in high-cycle production environments.

For power quality and energy metering, the CP630-WEB can be configured to display data from ABB M2M energy meters or third-party power monitoring modules connected via Modbus RTU or PROFIBUS DP. This allows the HMI to serve as a unified energy dashboard, aggregating consumption data from multiple measurement points across the production floor. When paired with an ABB Ability™ SCADA or a third-party SCADA platform via OPC-UA or Modbus TCP, the CP630-WEB becomes a node in a plant-wide energy management system, feeding historical trend data upward for analysis and reporting.

At the field level, the HMI receives status signals from temperature sensors, pressure transmitters, and flow meters wired through the AC500 I/O rack. Abnormal readings — such as elevated motor winding temperatures or unexpected pressure drops — trigger configurable alarms on the CP630-WEB display, enabling operators to intervene before thermal overload conditions develop. This predictive awareness reduces both unplanned downtime and the energy penalty associated with restarting cold equipment. Communication with industrial Ethernet switches and PROFIBUS DP segment couplers ensures that the HMI remains synchronized with all nodes in the automation network, including remote I/O stations and distributed control panels.

Factory energy waste is rarely the result of a single inefficient component — it is the cumulative effect of poor visibility, delayed response, and uncoordinated equipment operation. The CP630-WEB addresses this at the operator interface level, where decisions are made in real time. By presenting energy consumption data alongside process KPIs — cycle time, throughput rate, reject rate — the HMI enables operators to correlate energy use with production output and identify periods of high consumption relative to low productivity.

Idle-state energy management is one of the most impactful applications of the CP630-WEB in production line optimization. When integrated with the AC500 PLC's timer and event logic, the HMI can display and confirm automated shutdown sequences for non-critical equipment during planned breaks, shift changes, or low-demand periods. Conveyor drives, auxiliary pumps, and lighting circuits can be staged down in a controlled sequence, reducing standby power draw without disrupting production readiness. The HMI provides the operator with a clear confirmation interface, ensuring that energy-saving actions are logged and auditable.

Thermal load management is another area where the CP630-WEB delivers measurable value. By monitoring motor operating temperatures and drive heat sink conditions through the AC500 I/O network, the HMI can alert operators to equipment running above optimal thermal thresholds. Early intervention — adjusting load distribution, increasing ventilation, or scheduling preventive maintenance — prevents thermal derating of drives and motors, which directly impacts energy efficiency. A motor operating at thermal derating consumes more energy per unit of mechanical output; eliminating this condition through proactive HMI-driven monitoring restores full drive efficiency and extends equipment service life.

Production line rhythm stability — maintaining consistent cycle times across all stations — is a critical factor in energy efficiency. Irregular cycle times cause downstream equipment to operate in burst-and-wait patterns, increasing peak current draw and reducing overall line efficiency. The CP630-WEB's trend logging and alarm management capabilities allow production engineers to identify rhythm disruptions early, correlate them with specific equipment or process variables, and implement corrective actions before they propagate across the line. This systematic approach to line balancing, supported by real-time HMI data, is a proven method for reducing energy consumption per unit produced.

NANKMOS maintains verified inventory of the CP630-WEB 1SAP530200R0001, with each unit pre-shipment tested for display integrity, communication port functionality, and power supply stability. Fast global dispatch and a 12-month warranty make this HMI a reliable choice for both new installations and replacement projects in active production environments.

Q1: How does the CP630-WEB 1SAP530200R0001 contribute to energy savings on a production line? The CP630-WEB provides real-time visualization of energy consumption, motor load, and process variables across the production line. By giving operators immediate access to this data, it enables faster identification of energy waste — such as motors running at unnecessary speeds, equipment idling during non-productive periods, or thermal overload conditions reducing drive efficiency. When integrated with the AC500 PLC and connected drives, the HMI supports automated load management sequences that reduce standby energy draw during shift changes and planned breaks.

Q2: Is the CP630-WEB compatible with third-party PLCs, SCADA systems, and energy meters? The CP630-WEB is optimized for the ABB AC500 PLC platform but supports standard industrial communication protocols including Modbus RTU, Modbus TCP, PROFIBUS DP, and Ethernet/IP. This allows integration with third-party energy meters, power monitoring modules, and SCADA platforms. For full energy management functionality — including trend logging, alarm escalation, and demand response — deployment within the ABB AC500 ecosystem is recommended.

Q3: What is the recommended replacement or upgrade path for legacy ABB HMI panels? The CP630-WEB is a direct upgrade candidate for earlier ABB CP600 series panels. Project migration is supported through ABB's Automation Builder engineering software, which allows existing HMI projects to be adapted for the CP630-WEB with minimal rework. For sites running older PROFIBUS-based HMI panels, the CP630-WEB's dual communication capability (PROFIBUS DP + Ethernet) enables a phased migration without requiring simultaneous network infrastructure upgrades.

Q4: What testing and warranty coverage does NANKMOS provide for the CP630-WEB? Every CP630-WEB 1SAP530200R0001 unit shipped by NANKMOS undergoes pre-shipment testing covering display functionality, communication port verification, power supply stability, and firmware integrity. Units are supplied with a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions. NANKMOS maintains verified stock for fast dispatch, supporting both planned procurement and urgent replacement requirements globally.
