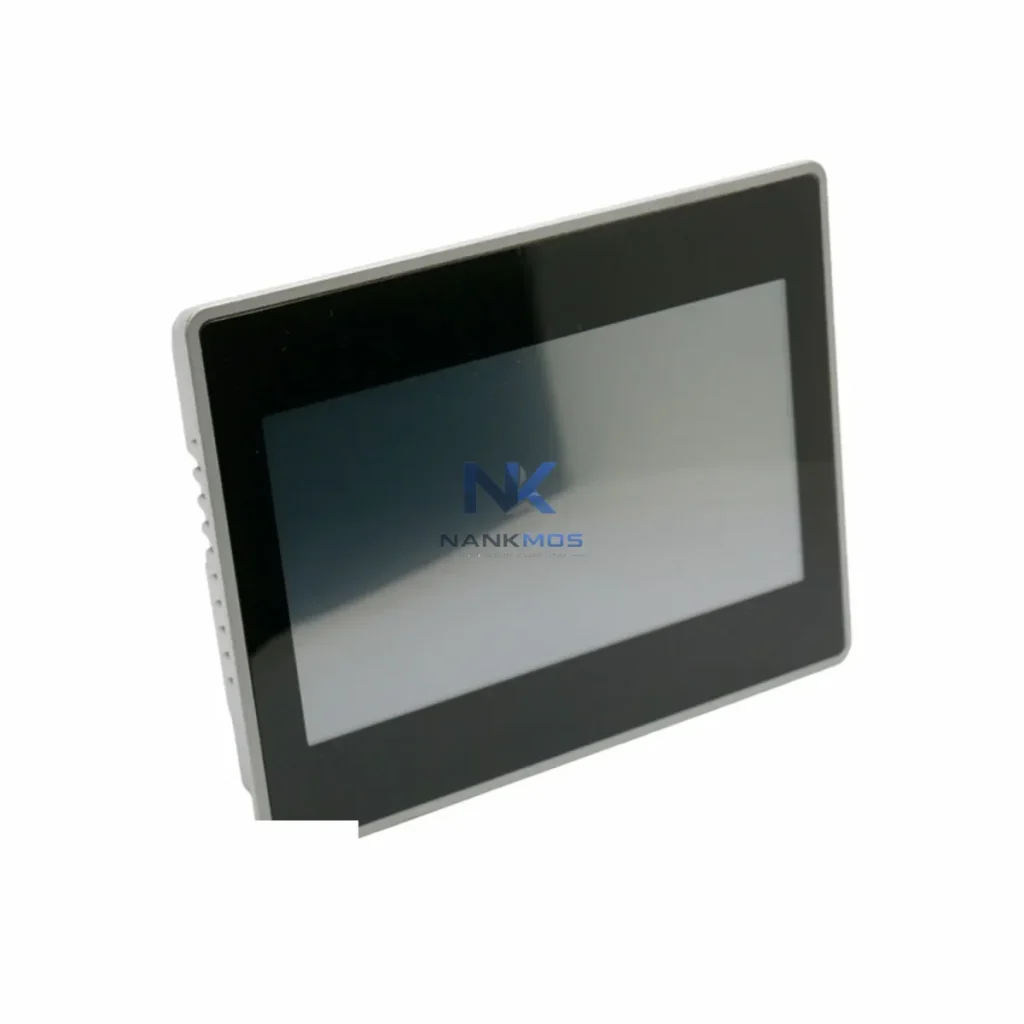

ABB CP6407 HMI Panel

Product Details

CP6407 Product Description

The ABB CP6407 is a high-performance Human-Machine Interface panel engineered within the AC500 automation platform to deliver precise energy control, real-time load visibility, and production-line efficiency across demanding industrial environments. Designed for energy-conscious plant operators, the CP6407 bridges operator interaction with intelligent energy management — enabling facilities to reduce idle consumption, stabilize equipment cycle times, and extend asset service life without sacrificing throughput.

Built to IEC 61131-3 standards and fully compatible with ABB's AC500 PLC ecosystem, the CP6407 supports seamless integration with distributed I/O modules, variable frequency drives, servo drive systems, and power monitoring modules. Its high-resolution display and configurable touch interface allow operators to visualize energy flows, monitor drive load curves, and respond to thermal alerts in real time — all from a single panel surface.

The CP6407 is purpose-built to serve as the operator interface layer within a power-aware automation architecture. In a typical smart production line, the panel connects directly to an ABB AC500 PM595 PLC, which orchestrates real-time energy scheduling across multiple machine zones. The CP6407 displays live data from ABB ACSM1 servo drive systems and ABB ACS880 variable frequency drives, allowing operators to monitor motor load curves, identify over-torque conditions, and adjust speed references to minimize reactive power draw.

For distributed energy monitoring, the CP6407 integrates with ABB B23 power measurement modules via Modbus TCP, pulling kWh consumption data per production cell and displaying trend graphs directly on the HMI screen. This eliminates the need for separate SCADA workstations during routine energy audits. When connected to ABB CI590-CS31-HA communication modules, the panel extends its reach to remote I/O clusters — including ABB TU516 terminal units and DC532 digital I/O modules — enabling zone-level load shedding commands to be issued directly from the operator interface.

In motor-intensive applications such as compressor control or conveyor management, the CP6407 works alongside ABB ACS355 compact drives and ABB PSR soft starters to coordinate ramp-up sequences that prevent inrush current spikes. Operators can configure start-delay interlocks and load-priority logic through the panel's built-in function key mapping, reducing peak demand charges without manual intervention from the control room. Temperature sensors and vibration transducers connected through the AC500 I/O bus feed real-time condition data to the CP6407 display, enabling predictive maintenance alerts before thermal overload events occur.

For facilities running ABB Ability™ Energy Manager or third-party SCADA platforms via OPC-UA, the CP6407 acts as a local data concentrator — buffering process values and energy metrics during network interruptions and synchronizing upon reconnection. This ensures energy reporting continuity even in environments with intermittent connectivity.

Industrial facilities face mounting pressure to reduce energy costs while maintaining production throughput. The ABB CP6407 addresses this challenge by placing energy intelligence directly at the operator level. Rather than relying on centralized energy management systems alone, the CP6407 enables line-level operators to make informed decisions about load sequencing, drive speed adjustment, and equipment standby scheduling — all without leaving the machine station.

When integrated with ABB's AC500 automation platform, the CP6407 supports configurable energy dashboards that display real-time kW consumption per production zone, cumulative shift energy totals, and efficiency KPIs such as output-per-kWh. Operators can set threshold alerts that trigger visual and audible warnings when energy consumption exceeds baseline targets, enabling immediate corrective action before waste accumulates.

Thermal load management is a critical factor in high-density production environments. The CP6407 supports drive thermal status visualization for connected ABB ACS880 and ACS355 units, displaying heatsink temperatures and derating warnings that allow operators to reduce drive load before forced shutdowns occur. This proactive approach reduces unplanned downtime, extends drive service intervals, and lowers cooling system demand — contributing to a measurable reduction in facility-wide thermal load.

Production line cycle time stability is another area where the CP6407 delivers measurable value. By providing operators with real-time feedback on drive response times, PLC scan cycle performance, and I/O communication latency, the panel helps identify bottlenecks that cause irregular machine pacing. Stable cycle times translate directly into predictable energy consumption profiles, making it easier to optimize shift-level energy budgets and reduce peak demand penalties.

All units are supplied from verified inventory, undergo pre-shipment functional testing, and are backed by a 12-Month Warranty covering manufacturing defects and operational failures under normal industrial use conditions.

Q1: How does the ABB CP6407 contribute to measurable energy savings on a production line?The CP6407 provides real-time energy consumption visualization at the operator level, enabling immediate load adjustments, drive speed optimization, and idle-state shutdowns. When paired with ABB AC500 PLCs and ACS880 drives, facilities typically achieve 8–15% reductions in machine-level energy consumption through improved operator awareness and faster response to inefficiency alerts.

Q2: Is the CP6407 compatible with third-party PLCs, SCADA systems, and drives outside the ABB ecosystem?Yes. The CP6407 supports Modbus RTU/TCP, PROFIBUS DP, and Ethernet-based protocols, enabling integration with Siemens S7, Schneider Modicon, and Rockwell ControlLogix platforms, as well as third-party SCADA systems via OPC-UA. Drive compatibility extends to any VFD or servo system with standard Modbus or PROFIBUS communication capability.

Q3: What is the recommended replacement or upgrade path for legacy HMI panels in existing AC500 installations?The CP6407 is a direct form-fit replacement for earlier ABB CP600 series panels in most AC500 cabinet configurations. Migration requires updating the HMI project file using ABB Automation Builder software. No PLC program changes are required for standard I/O and drive visualization functions. Pre-configured energy dashboard templates are available to accelerate commissioning.

Q4: What does the 12-Month Warranty cover, and what is the typical lead time for in-stock units?The 12-Month Warranty covers all manufacturing defects, component failures, and operational malfunctions arising under normal industrial operating conditions. In-stock units are available for immediate dispatch with pre-shipment functional testing completed. Standard lead time for verified stock is 3–7 business days depending on destination. Contact [email protected] or +86 18359268345 for current availability and expedited shipping options.
