CR82350010 B36D4P-07028 CR82350042 B6305Q-02454 3HAC16331-1 Product Description

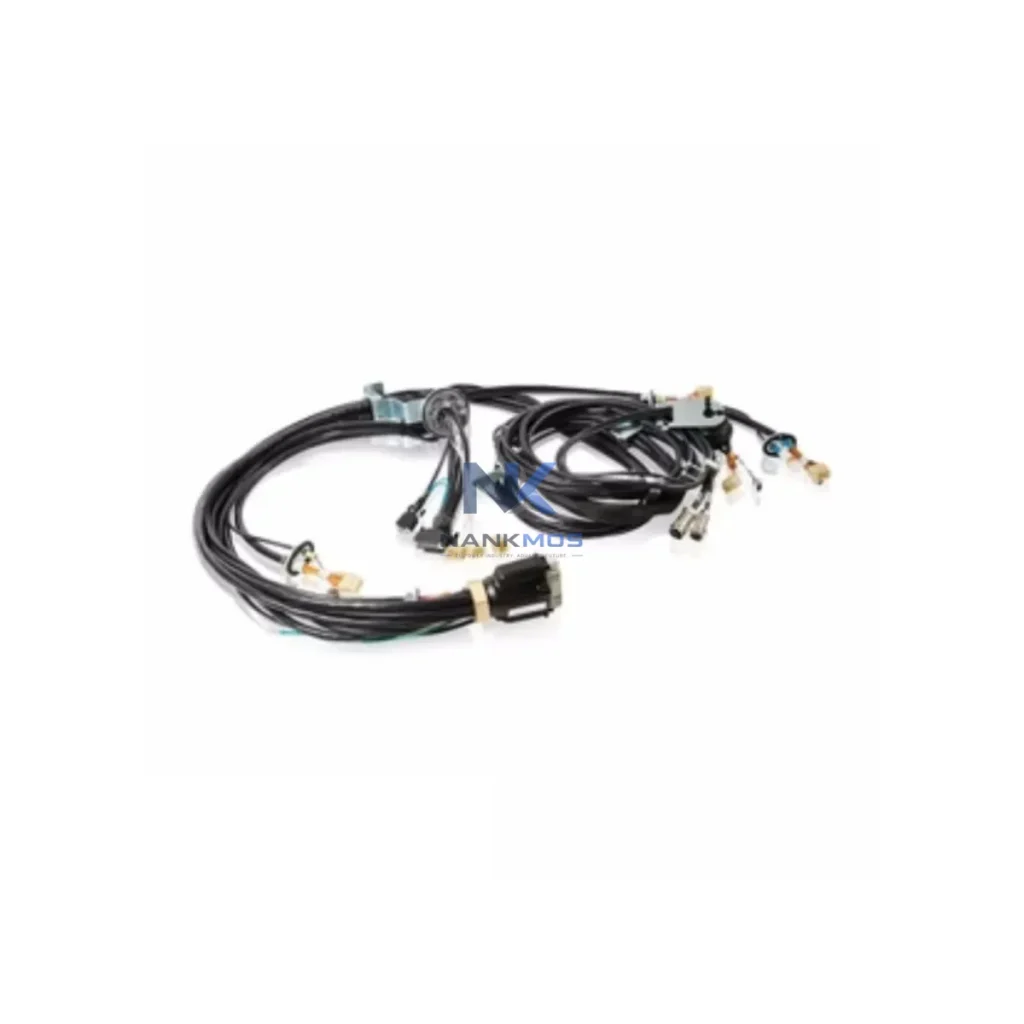

The ABB 3HAC16331-1 is a factory-matched manipulator cable harness engineered specifically for the IRB 6600 and IRB 6650 robot series, covering axes 1 through 4 (Ax1–Ax4). Designed as an integral component of ABB's modular robot architecture, this cable harness ensures signal continuity, mechanical durability, and system-level compatibility across the full motion envelope of the IRB 6600 platform. For industrial automation engineers managing high-payload robotic cells in manufacturing, automotive, foundry, or heavy-duty material handling environments, the 3HAC16331-1 represents a precision-engineered replacement that preserves the original control architecture without requiring reconfiguration or software adaptation.

In a complete ABB robotic control system, the cable harness occupies a critical position within the signal and power distribution layer. It bridges the IRC5 controller cabinet — housing the main computer unit (MCU), axis computer boards, and drive modules — with the mechanical arm's servo motors and resolver feedback circuits. Any degradation in this harness directly impacts motion accuracy, torque response, and safety circuit integrity. The 3HAC16331-1 is manufactured to ABB's OEM specifications, ensuring full compatibility with the IRC5 single-cabinet and IRC5 panel-mounted controller variants used across IRB 6600/6650 installations worldwide.

The 3HAC16331-1 cable harness functions as the physical nervous system connecting the IRC5 controller's drive and signal processing layers to the IRB 6600's lower arm servo motors. Within a fully integrated ABB robotic cell, this harness works in concert with a coordinated set of platform components. The IRC5 Main Computer Unit (DSQC 639) generates motion trajectories and distributes axis commands through the Axis Computer Board (DSQC 668), which translates digital motion profiles into analog drive signals. These signals travel through the 3HAC16331-1 harness to the axis 1–4 servo motors, with resolver feedback returning positional data along the same cable bundle.

On the power distribution side, the IRC5 Drive Module and ABB PSU (DSQC 661) supply regulated DC power to the servo amplifiers, with the harness routing motor power conductors rated for the IRB 6600's high-payload torque demands (up to 175 kg payload variants). The Safety Board (DSQC 400) monitors emergency stop circuits and axis brake release signals, all of which pass through dedicated conductors within the 3HAC16331-1 bundle. For installations requiring upper arm signal continuity, the complementary 3HAC16332-1 upper arm cable harness (Ax5–Ax6) pairs directly with this unit to complete the full manipulator wiring architecture.

In multi-robot cells managed by ABB's MultiMove configuration, the IRC5 controller coordinates motion across multiple IRB 6600 units simultaneously. Harness integrity across all axes is essential for synchronized path accuracy. Engineers integrating the IRB 6600 with ABB FlexPositioners or external servo axes via the DSQC 2000 drive system will find that the 3HAC16331-1's shielded conductor design minimizes EMI cross-talk in dense multi-axis installations. For fieldbus-integrated cells using PROFIBUS DP or DeviceNet communication modules mounted in the IRC5 cabinet, the harness's signal shielding maintains resolver feedback accuracy even in electrically noisy environments typical of automotive stamping or foundry applications.

Maintenance engineers performing scheduled harness inspections should cross-reference the ABB RobotWare event log for resolver error codes (event 50xxx series) that indicate harness degradation before mechanical failure occurs. Pairing the 3HAC16331-1 replacement with a simultaneous inspection of the 3HAC17484-1 dress pack and 3HAC028357-001 cable guide ensures a complete lower arm restoration that extends service intervals and preserves motion repeatability (±0.05 mm) across the robot's rated lifecycle.

Automotive Manufacturing: In body-in-white welding lines and press-tending cells, the IRB 6600 operates at high duty cycles with frequent axis reversals. The 3HAC16331-1's robust conductor insulation and strain-relief terminations are engineered for the mechanical fatigue demands of 24/7 automotive production. Harness replacement during planned maintenance shutdowns prevents unscheduled downtime that can cost automotive OEMs tens of thousands per hour.

Foundry & Heavy Industry: IRB 6600 Foundry Plus variants deployed in die casting, forging, and metal pouring applications expose cable harnesses to elevated temperatures, metal splash, and vibration. The 3HAC16331-1's IP-rated construction and high-temperature insulation materials maintain signal integrity in these demanding environments, supporting continuous operation in foundry cells where robot uptime is directly tied to casting throughput.

Petrochemical & Process Industries: In hazardous area robotic installations where IRB 6600 units perform inspection, valve actuation, or material transfer tasks, harness integrity is a safety-critical requirement. Signal faults in resolver feedback circuits can trigger uncontrolled axis motion, making OEM-specification replacement harnesses essential for process safety compliance.

Packaging & Palletizing Lines: High-speed palletizing applications using the IRB 6600's full 2.55 m reach and 175 kg payload capacity demand consistent resolver feedback accuracy across millions of motion cycles. The 3HAC16331-1 supports the motion repeatability required for layer-pattern palletizing without positional drift over extended production runs.

Shipbuilding & Heavy Fabrication: Large-structure welding and cutting applications in shipyards deploy IRB 6600 robots on linear tracks and gantry systems. Extended cable harness routing in these installations places additional mechanical stress on the Ax1–Ax4 bundle, making periodic replacement with OEM-matched components essential for maintaining weld seam accuracy and arc stability.

Q1: Is the 3HAC16331-1 compatible with both IRB 6600 and IRB 6650 variants, and does it require any software reconfiguration after installation? The 3HAC16331-1 is a direct OEM replacement compatible with all standard IRB 6600 and IRB 6650 variants (including 175/2.55, 200/2.75, and 125/3.2 payload/reach configurations) when paired with the IRC5 controller. Installation is a contextual drop-in replacement — no RobotWare parameter changes, axis calibration offsets, or SMB (Serial Measurement Board) reconfiguration are required beyond the standard fine calibration procedure outlined in ABB's manipulator maintenance manual. This ensures minimal downtime during scheduled harness replacement.

Q2: How does NANKMOS ensure harness quality, and what does the 12-Month Warranty cover? Every 3HAC16331-1 unit dispatched by NANKMOS undergoes pre-shipment continuity testing, insulation resistance verification, and connector integrity inspection. The 12-Month Warranty covers manufacturing defects, connector failures, and conductor insulation breakdown under normal operating conditions. Warranty claims are processed directly through NANKMOS with replacement dispatch prioritized to minimize robot downtime. For critical production environments, NANKMOS recommends maintaining one spare harness in local inventory to support immediate swap-out during unplanned failures.

Q3: What is the recommended replacement interval, and how should the 3HAC16331-1 be integrated into a long-term maintenance strategy? ABB recommends inspecting the Ax1–Ax4 cable harness every 20,000 operating hours or during annual maintenance shutdowns, whichever occurs first. In high-cycle applications (automotive, foundry), proactive replacement at 15,000 hours is advisable to prevent resolver signal degradation from causing motion errors or safety circuit faults. NANKMOS maintains consistent stock availability to support planned maintenance schedules, with lead times confirmed at order placement. Integrating harness replacement into a broader IRC5 preventive maintenance plan — alongside drive module inspection, SMB battery replacement, and axis brake testing — maximizes robot availability and extends the IRB 6600's productive service life.
