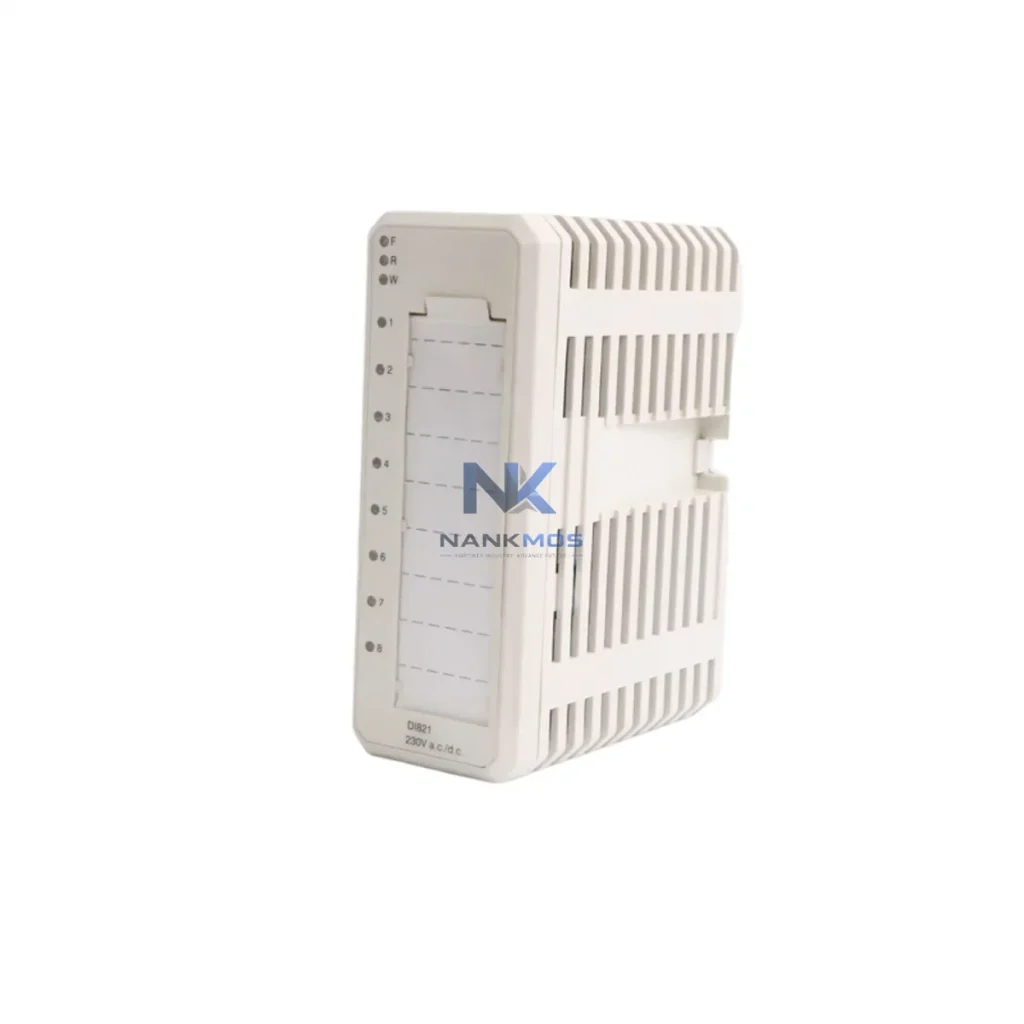

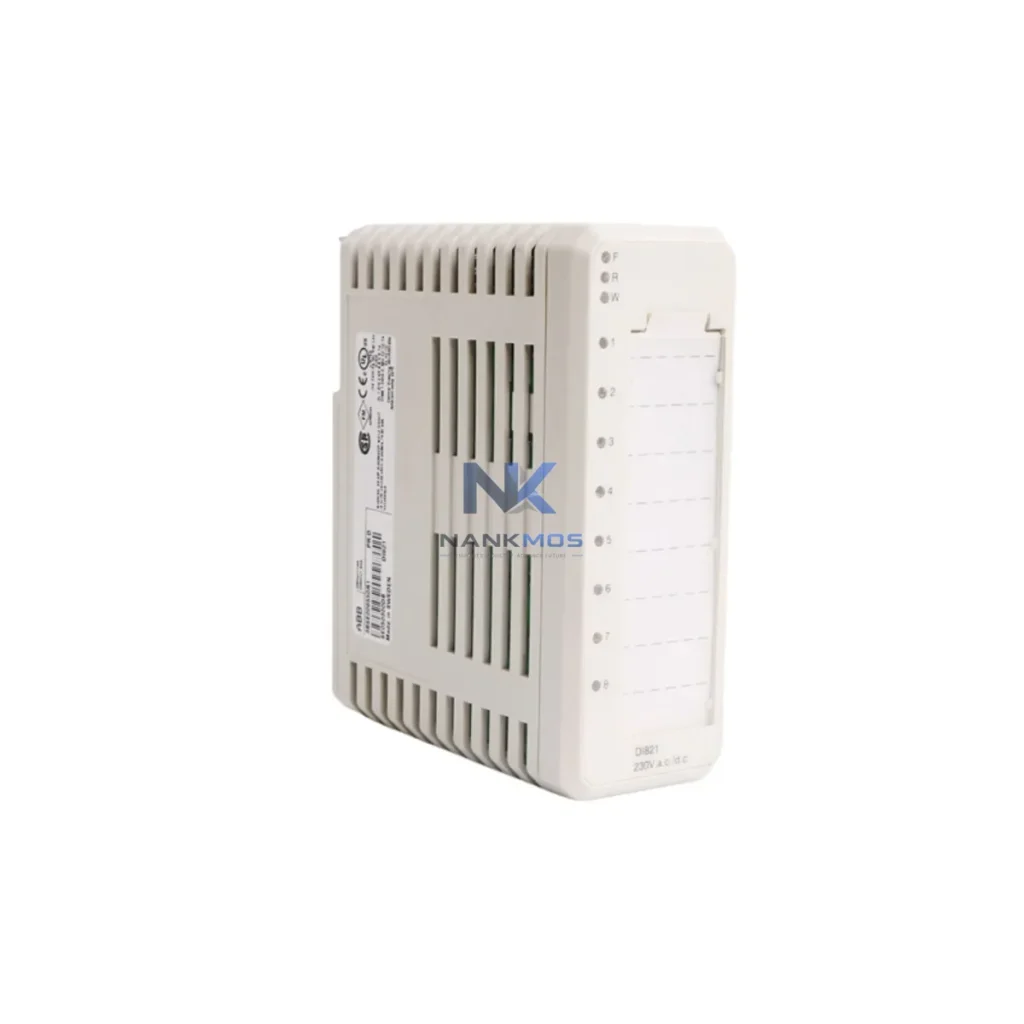

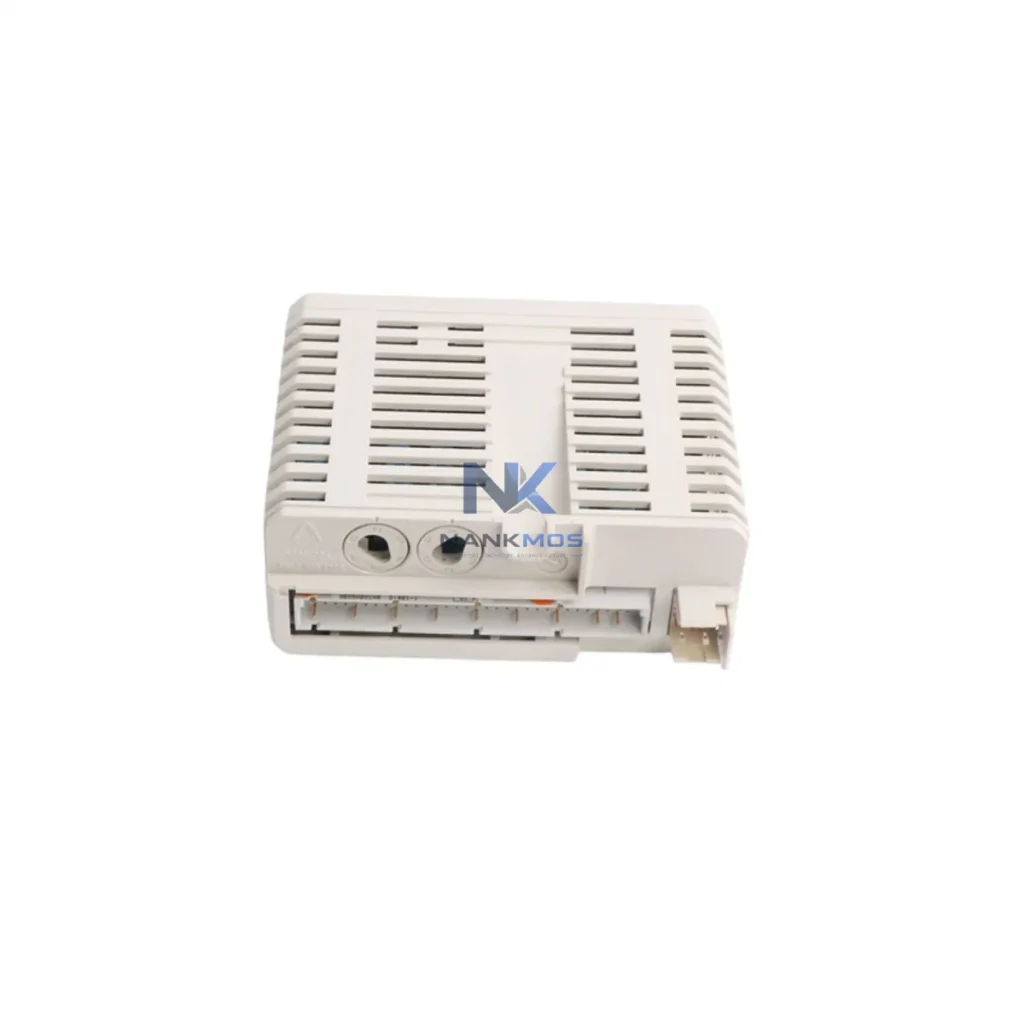

ABB DI821 3BSE008550R1 Digital Input Module

Product Details

DI821 3BSE008550R1 Product Description

The ABB DI821 (3BSE008550R1) is a high-density digital input module engineered for the S800 I/O system, designed to operate seamlessly within ABB's AC800M Distributed Control System architecture. As a Profibus DP-compatible field device, the DI821 serves as a critical data acquisition node in smart factory environments — capturing discrete field signals from sensors, limit switches, proximity detectors, and safety interlocks, then transmitting structured digital data across the industrial network to PLC controllers, SCADA platforms, and HMI visualization layers. With 16 configurable digital input channels, the module delivers deterministic signal processing and low-latency data transfer, making it an essential component in process automation, energy management, and continuous manufacturing applications.

In a fully integrated smart factory, the DI821 3BSE008550R1 operates at the field layer, where it collects binary status signals from distributed sensors, motor contactors, valve position switches, and emergency stop circuits. These signals are transmitted via the S800 ModuleBus to the CI820 Profibus DP Fieldbus Adapter, which bridges the field I/O network to the AC800M controller backplane. The AC800M processes the incoming digital states in real time, executing control logic and forwarding structured data upstream to the plant's SCADA system — typically ABB System 800xA or a third-party platform such as Wonderware or Ignition.

Within this data chain, the DI821 works in close coordination with complementary S800 modules. Analog signals from transmitters and flow meters are handled by the AI810 and AI820 analog input modules, while discrete output commands are executed through the DO810 and DO820 digital output modules. For applications requiring mixed I/O density, the DI821 is often deployed alongside the DI810 16-channel module or the DI840 redundant digital input module in high-availability process lines. The CI854 PROFINET I/O adapter and CI857 PROFIBUS DP adapter extend the network reach of the S800 rack to Ethernet-based SCADA backbones, enabling seamless data handoff to MES and ERP layers.

At the edge, ABB's PM866 and PM891 AC800M processor modules aggregate I/O data from multiple S800 racks distributed across the plant floor. This aggregated data is then forwarded to the 800xA Information Management server, where historians log every digital state transition with millisecond-level timestamps. Operators monitoring the HMI — whether on ABB's Panel 800 operator terminals or remote web clients — receive live alarm status, interlock conditions, and equipment health indicators derived directly from the DI821's input channels. For facilities integrating variable frequency drives, the DI821 provides run/fault feedback signals from ABB ACS880 drives, closing the control loop between the drive layer and the supervisory system.

In remote diagnostic scenarios, the AC800M's OPC UA server exposes DI821 channel data to cloud-based analytics platforms and remote engineering workstations, enabling predictive maintenance teams to monitor input signal quality, detect contact bounce anomalies, and identify wiring degradation before failures occur. This end-to-end connectivity — from field sensor through Profibus DP network, AC800M controller, SCADA historian, and remote diagnostic dashboard — represents the complete industrial data chain that the DI821 3BSE008550R1 anchors at the field acquisition layer.

Many industrial facilities face persistent challenges with fragmented field data: legacy sensors communicating over proprietary protocols, digital input modules that lack network transparency, and control systems that cannot surface real-time equipment status to SCADA or MES platforms. The DI821 3BSE008550R1 directly addresses these gaps within ABB's S800 ecosystem.

Protocol fragmentation is resolved through the CI820 and CI854 fieldbus adapters, which translate ModuleBus signals from the DI821 into Profibus DP or PROFINET frames compatible with third-party PLCs and SCADA gateways. Data silos are eliminated by integrating the DI821 into the AC800M's unified I/O namespace, where every input channel is addressable by the 800xA system, OPC UA clients, and remote diagnostic tools simultaneously. For sites requiring remote monitoring of geographically distributed assets — substations, pump stations, or offshore platforms — the DI821's data can be tunneled through ABB's Remote Service Gateway to centralized NOC dashboards, providing alarm visibility and interlock status without requiring on-site personnel.

Production line transparency is achieved by mapping DI821 input states to 800xA faceplates and trend displays, giving process engineers a real-time view of every discrete field device. Alarm tracking is enhanced through the 800xA Alarm Management module, which correlates DI821 input transitions with process events, enabling root-cause analysis and reducing mean time to repair. For facilities planning system expansion, the S800 I/O architecture supports hot-swap module replacement and rack extension without process interruption, ensuring that adding new DI821 modules to a growing plant does not require control system downtime.

Q1: What communication protocol does the ABB DI821 3BSE008550R1 use, and is it compatible with third-party SCADA systems? The DI821 communicates via the S800 ModuleBus and connects to the plant network through Profibus DP fieldbus adapters such as the CI820 or CI854 PROFINET adapter. This makes it compatible with any SCADA platform supporting Profibus DP or OPC UA data access, including Wonderware System Platform, Ignition, and Siemens WinCC, in addition to ABB's native System 800xA.

Q2: How does the DI821 support remote diagnostics and predictive maintenance? When integrated with the AC800M controller and 800xA Information Management, the DI821's channel data is exposed via OPC UA to remote engineering tools and cloud analytics platforms. Maintenance teams can monitor input signal quality, detect intermittent contact faults, and receive alarm notifications remotely — reducing unplanned downtime and eliminating unnecessary site visits.

Q3: Can the DI821 3BSE008550R1 be replaced without shutting down the control system? Yes. The S800 I/O system supports hot-swap module replacement. The DI821 can be removed and reinserted while the S800 rack remains powered and the AC800M controller continues executing its control program. The module automatically re-initializes and resumes data transmission upon reinsertion, minimizing process interruption during maintenance.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the DI821 3BSE008550R1? All DI821 3BSE008550R1 units supplied by NANKMOS carry a 12-Month Warranty covering hardware defects and functional failures. Each unit undergoes pre-shipment functional testing to verify channel integrity, communication handshake with Profibus DP adapters, and power consumption within specification. Units are shipped with original packaging where available, and full traceability documentation is provided upon request.
