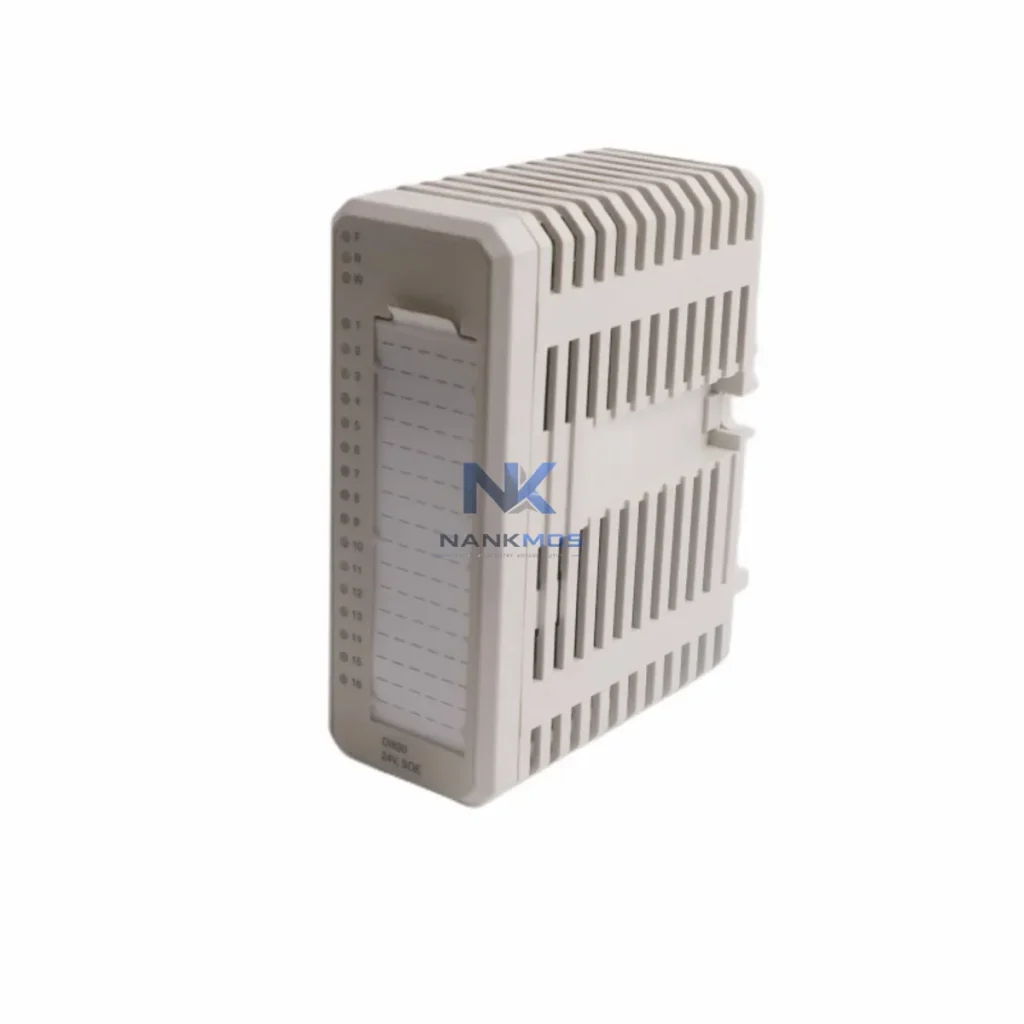

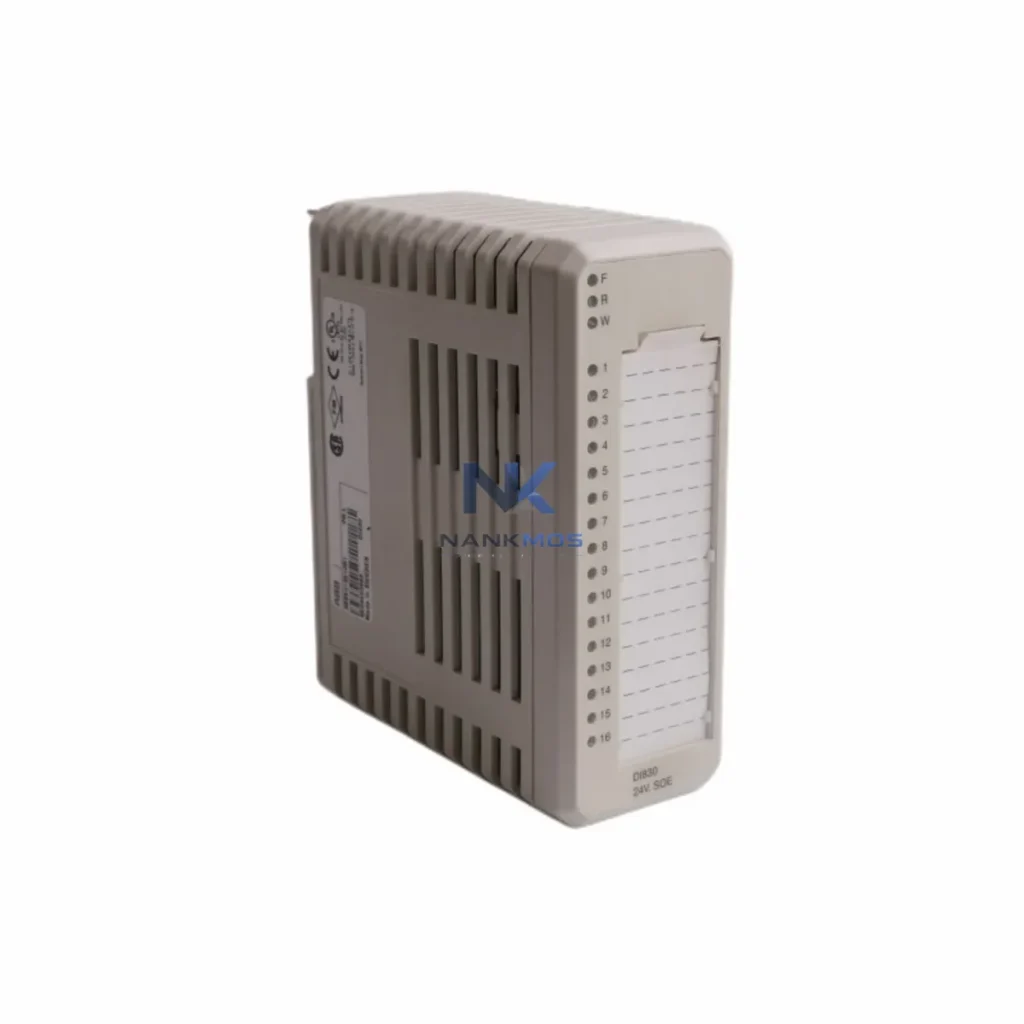

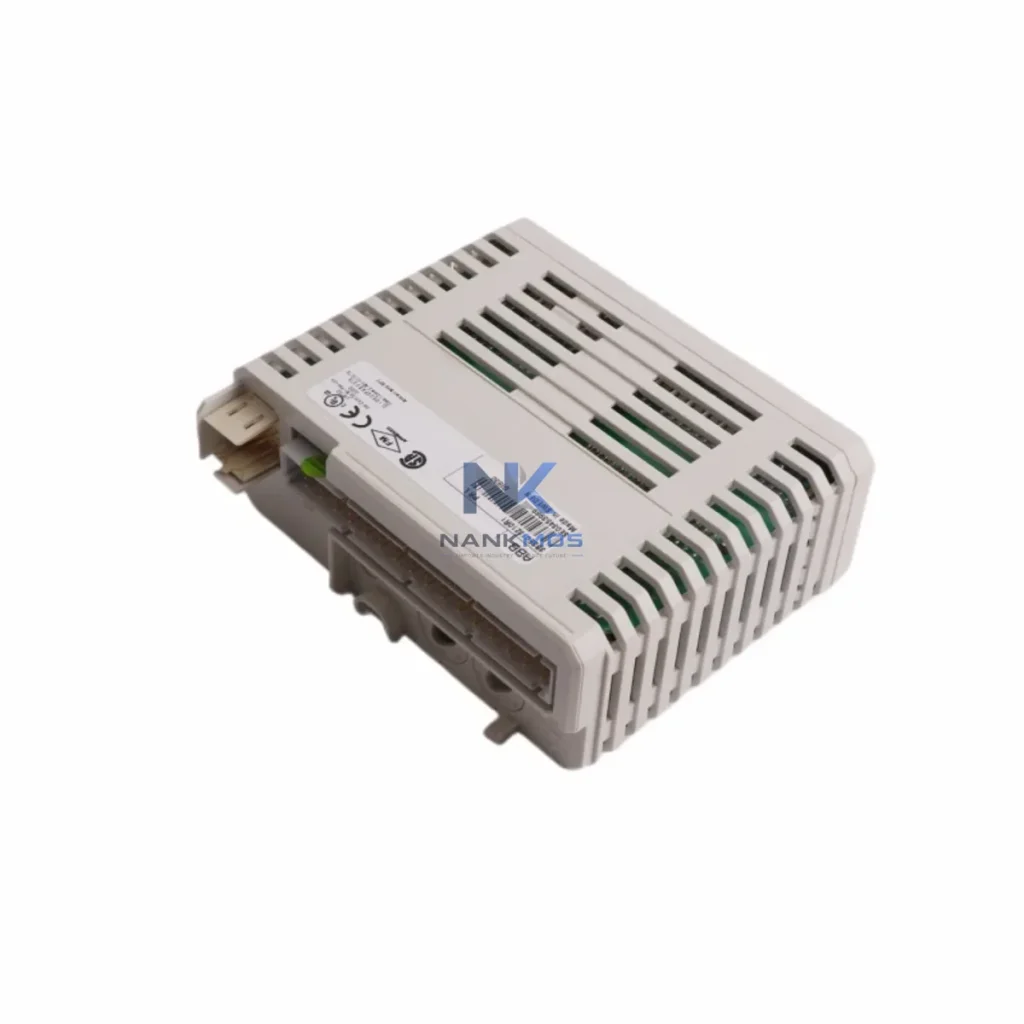

ABB DI830 3BSE013210R1 Digital Input Module

Product Details

DI830 3BSE013210R1 Product Description

The ABB DI830 3BSE013210R1 is a high-density digital input module engineered for the AC800M controller platform, delivering reliable field-level signal acquisition across demanding industrial environments. Designed to serve as a critical node in the smart factory data chain, the DI830 bridges physical process signals — from limit switches, proximity sensors, pushbuttons, and relay contacts — into the structured digital data streams that feed PLC controllers, SCADA systems, and HMI visualization layers. With native Profibus DP communication support and Sequence of Events (SOE) timestamping capability, this module ensures that every discrete signal transition is captured, time-stamped, and transmitted with the precision required for real-time process monitoring, alarm management, and post-event analysis.

In a connected factory architecture, the DI830 operates as a front-end data acquisition node within the AC800M I/O subsystem. Field sensors and actuator feedback signals are wired directly to the module's 32 digital input channels, where signal conditioning and isolation protect the control system from electrical noise and transient disturbances common in industrial environments. The conditioned digital states are then communicated upstream via the S800 I/O bus to the AC800M processor module — such as the PM864A or PM891 — which aggregates, processes, and routes the data across the plant network. From there, the structured process data flows into ABB's System 800xA distributed control system or third-party SCADA platforms via OPC DA/UA gateways, enabling operators to monitor discrete input states in real time from centralized control rooms or remote engineering workstations.

The SOE functionality of the DI830 3BSE013210R1 is particularly valuable in high-speed process environments where the sequence and timing of discrete events must be reconstructed accurately after a trip or fault condition. By timestamping each input transition with 1 ms resolution, the module enables root-cause analysis tools within System 800xA or third-party historian platforms to reconstruct event chains across multiple I/O nodes — including companion modules such as the DI831, DO810, and AI830A — providing maintenance engineers with the precise data needed to identify the initiating cause of a process upset. This capability directly supports the shift from reactive to predictive maintenance strategies in smart manufacturing environments.

Remote diagnostics are a core strength of the DI830 within the AC800M architecture. Module health status, channel-level diagnostics, and communication fault flags are continuously reported back to the AC800M controller and surfaced through the System 800xA asset monitoring layer. Maintenance personnel can interrogate module status, verify wiring integrity, and identify open-circuit or short-circuit conditions on individual input channels without physical access to the field cabinet — a critical capability for geographically distributed plants, offshore installations, and facilities operating under reduced staffing models. Integration with ABB's Remote Service platform further extends this capability, enabling ABB-certified engineers to perform remote firmware validation, configuration audits, and diagnostic reviews over secure network connections.

Within a broader smart factory data flow design, the DI830 3BSE013210R1 connects seamlessly with the wider S800 I/O family. A typical automation cell might combine the DI830 for discrete input acquisition with the AI830A for analog process variable measurement, the DO810 for discrete output control, and the AO810V2 for analog setpoint transmission — all communicating through a shared S800 I/O bus connected to the AC800M controller. The controller's Ethernet port connects to the plant's industrial network infrastructure, where managed industrial Ethernet switches route process data to the System 800xA server, historian databases, and MES integration layers. For plants requiring protocol bridging to legacy Modbus RTU or HART field devices, communication modules such as the CI854A Profibus DP master or the CI857 HART multiplexer can be added to the AC800M rack, extending the data acquisition reach without disrupting the existing control architecture.

The DI830's role in data visualization and operational transparency is equally significant. Real-time discrete input states are mapped to dynamic process graphics within System 800xA or third-party HMI platforms, giving operators immediate visual confirmation of valve positions, motor run/stop status, interlock states, and safety system activations. Alarm management systems configured within the SCADA layer can trigger notifications based on DI830 input transitions, routing alerts to operator workstations, mobile devices, or email distribution lists — ensuring that abnormal process conditions are detected and responded to within defined response time targets. Historical trending of discrete input states, combined with analog process data from companion AI modules, supports the continuous improvement cycles that define Industry 4.0 manufacturing operations.

Every ABB DI830 3BSE013210R1 unit supplied by NANKMOS undergoes pre-shipment functional verification, including power-on testing, communication link validation, and channel integrity checks. Units are shipped in original or equivalent protective packaging with full documentation support. Stock is maintained for immediate dispatch, with global logistics coverage supporting urgent project timelines. All units are backed by a 12-month warranty covering manufacturing defects and operational failures under normal industrial service conditions.

In a fully integrated smart factory deployment, the DI830 3BSE013210R1 anchors the discrete signal acquisition layer of the AC800M control node. Field-level sensors — including inductive proximity switches, photoelectric detectors, and pressure switch contacts — connect directly to the DI830's 32 input channels mounted on a TB820V2 baseunit. The S800 I/O bus carries the aggregated digital state data to the AC800M processor, where control logic executes in real time. The PM864A or PM891 processor module communicates with the plant Ethernet backbone through its built-in 100 Mbit/s port, routing process data to the System 800xA server cluster.

Within the same control cabinet, analog process variables from temperature transmitters and flow meters are acquired by the AI830A analog input module, while discrete output commands to solenoid valves and motor starters are issued through the DO810 digital output module. For drive control integration, the AC800M communicates with ABB ACS880 variable frequency drives via Profibus DP, with the CI854A communication interface module managing the drive network segment. Remote I/O extensions in distant field panels are connected via the S800 Remote I/O architecture, with fiber-optic links maintaining signal integrity over long cable runs.

At the SCADA and HMI layer, System 800xA aggregates all process data — discrete inputs from the DI830, analog measurements from AI modules, and drive status from the ACS880 network — into unified process displays. OPC UA server functionality within System 800xA exposes the live process dataset to MES platforms, energy management systems, and cloud-based analytics engines. Edge gateway devices installed at the plant network boundary perform protocol translation for legacy Modbus RTU field instruments, ensuring that older assets contribute their data to the unified factory information model without requiring hardware replacement. The complete data chain — from DI830 field input to cloud dashboard — operates with end-to-end latency well within the requirements of real-time process monitoring and alarm management applications.

Many industrial sites operate with fragmented automation architectures where discrete field signals are acquired by standalone PLCs or legacy relay logic panels that lack network connectivity, creating data islands that prevent plant-wide visibility. The DI830 3BSE013210R1, deployed within the AC800M platform, directly addresses this challenge by providing a standards-based, network-integrated discrete input acquisition layer that feeds directly into System 800xA or OPC UA-compatible SCADA platforms.

Protocol inconsistency is a persistent challenge in brownfield automation upgrades. Sites may have existing Modbus RTU field devices, HART-enabled transmitters, and newer Profibus DP networks operating in parallel, with no unified data aggregation layer. The AC800M's modular communication architecture — supporting CI854A for Profibus DP, CI857 for HART, and CI858 for Modbus — allows the DI830 to coexist with legacy field devices within a single controller platform, eliminating the need for separate protocol converters and reducing network complexity.

Remote monitoring and alarm management gaps are addressed through the DI830's SOE capability and the AC800M's remote diagnostic architecture. Maintenance teams can configure alarm thresholds and event filters within System 800xA, ensuring that only actionable alerts are escalated to operator workstations or mobile notification systems. Remote access to module diagnostics via ABB's Remote Service platform allows engineering teams to perform configuration audits and fault investigations without site visits, reducing maintenance costs and response times for geographically distributed facilities.

System scalability is built into the S800 I/O architecture. Additional DI830 modules, analog input modules, and output modules can be added to existing TB820V2 basunits or new baseunit strings without controller replacement, supporting phased capacity expansion aligned with production growth. The AC800M's redundancy options — including redundant processor modules and redundant I/O bus configurations — ensure that the expanded system maintains the availability levels required for continuous process operations.

Q: What communication protocol does the ABB DI830 3BSE013210R1 use, and is it compatible with third-party SCADA systems? A: The DI830 communicates via the S800 I/O bus using Profibus DP protocol to the AC800M controller. The AC800M exposes process data through OPC DA and OPC UA interfaces, making it compatible with all major SCADA and HMI platforms including Wonderware, Ignition, WinCC, and iFIX, as well as ABB's own System 800xA.

Q: How does the SOE timestamping feature support remote diagnostics and fault analysis? A: The DI830's 1 ms SOE timestamping records the precise time of each input state transition. These timestamped events are stored in the AC800M event buffer and forwarded to the System 800xA historian or third-party event logging systems, enabling maintenance engineers to reconstruct the exact sequence of events leading to a process trip — remotely, without requiring physical access to the field cabinet.

Q: Can the DI830 be added to an existing AC800M system without replacing the controller? A: Yes. The DI830 mounts on standard S800 TB820V2 basunits and is recognized automatically by the AC800M controller upon configuration update in the Control Builder M engineering tool. Existing I/O configurations are preserved, and the new module channels are added incrementally — supporting phased system expansion without process interruption during planned maintenance windows.

Q: What warranty and pre-shipment testing does NANKMOS provide for the DI830 3BSE013210R1? A: Every DI830 3BSE013210R1 unit is subject to pre-shipment functional verification including power-on testing, S800 bus communication validation, and channel integrity checks. All units are covered by a 12-month warranty against manufacturing defects and operational failures under normal industrial service conditions. Stock is maintained for immediate dispatch with global shipping support.
