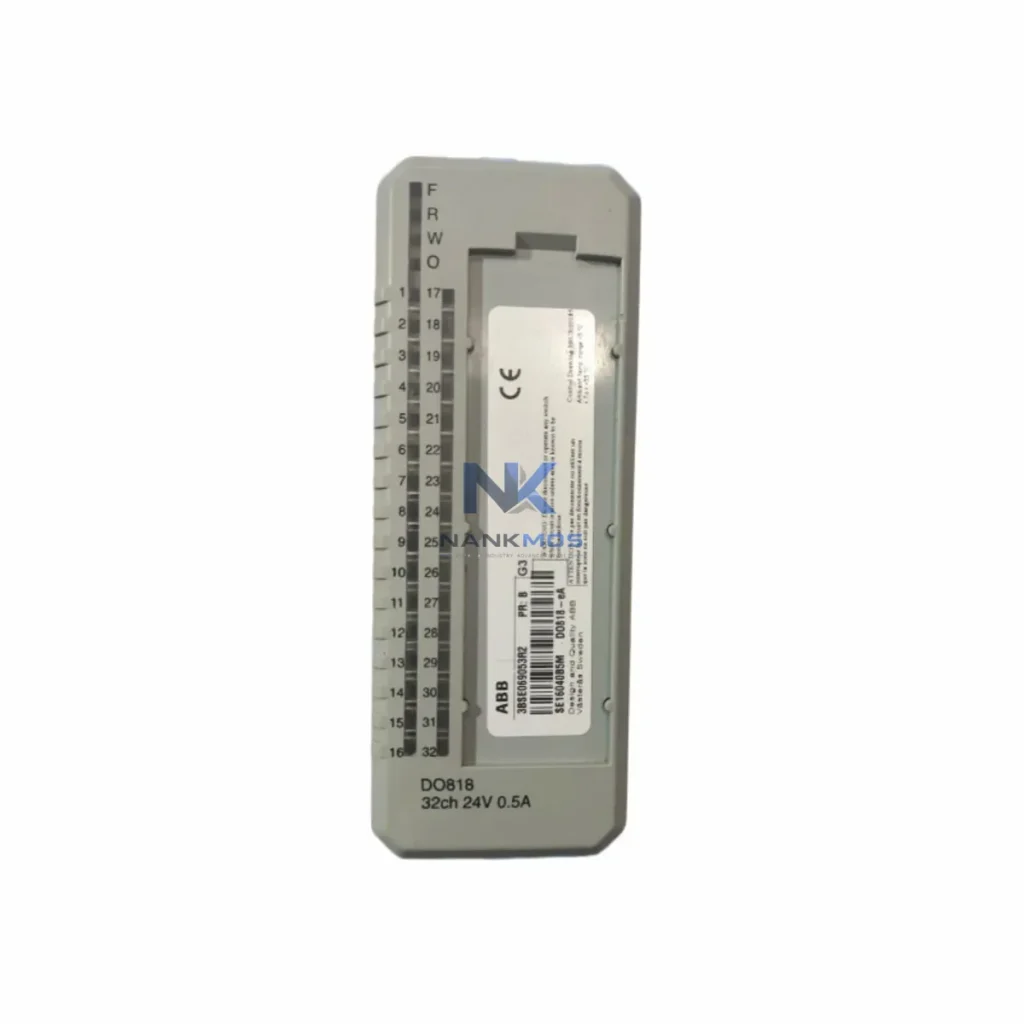

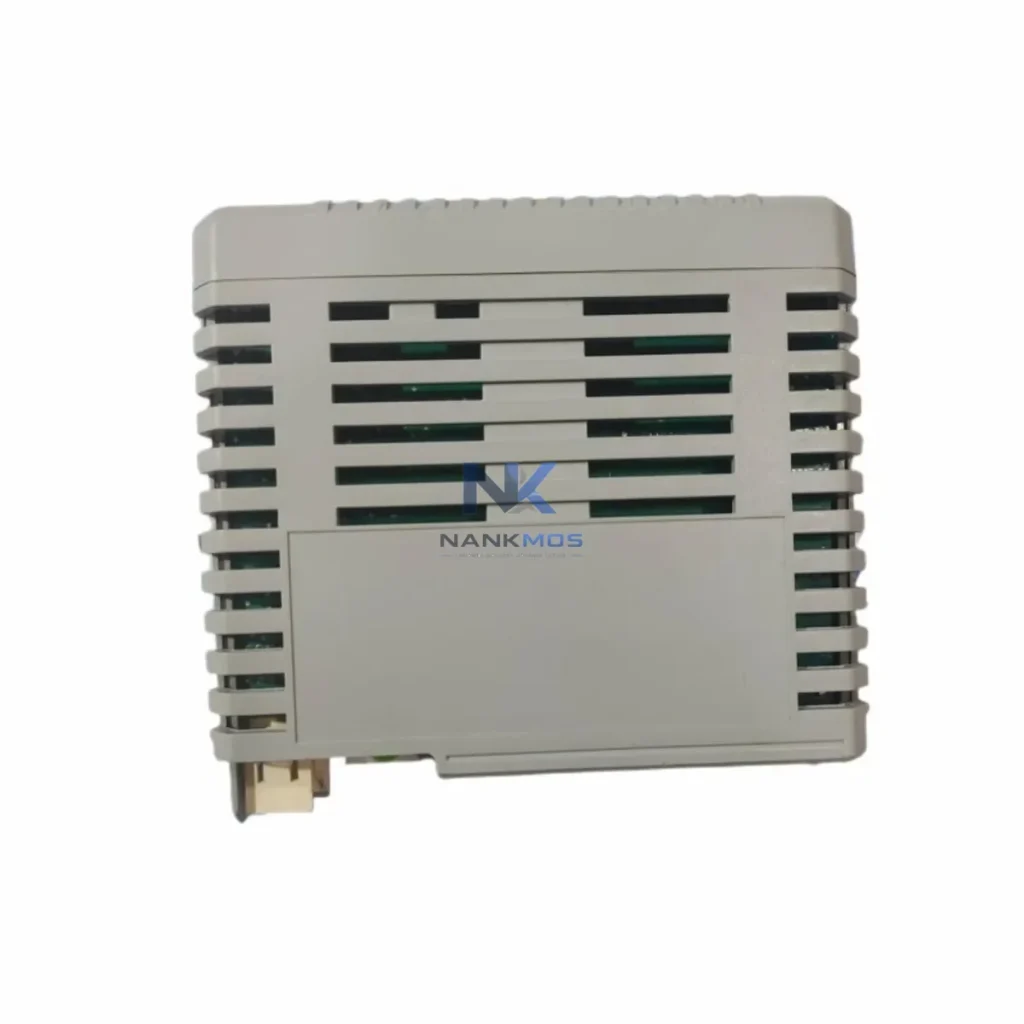

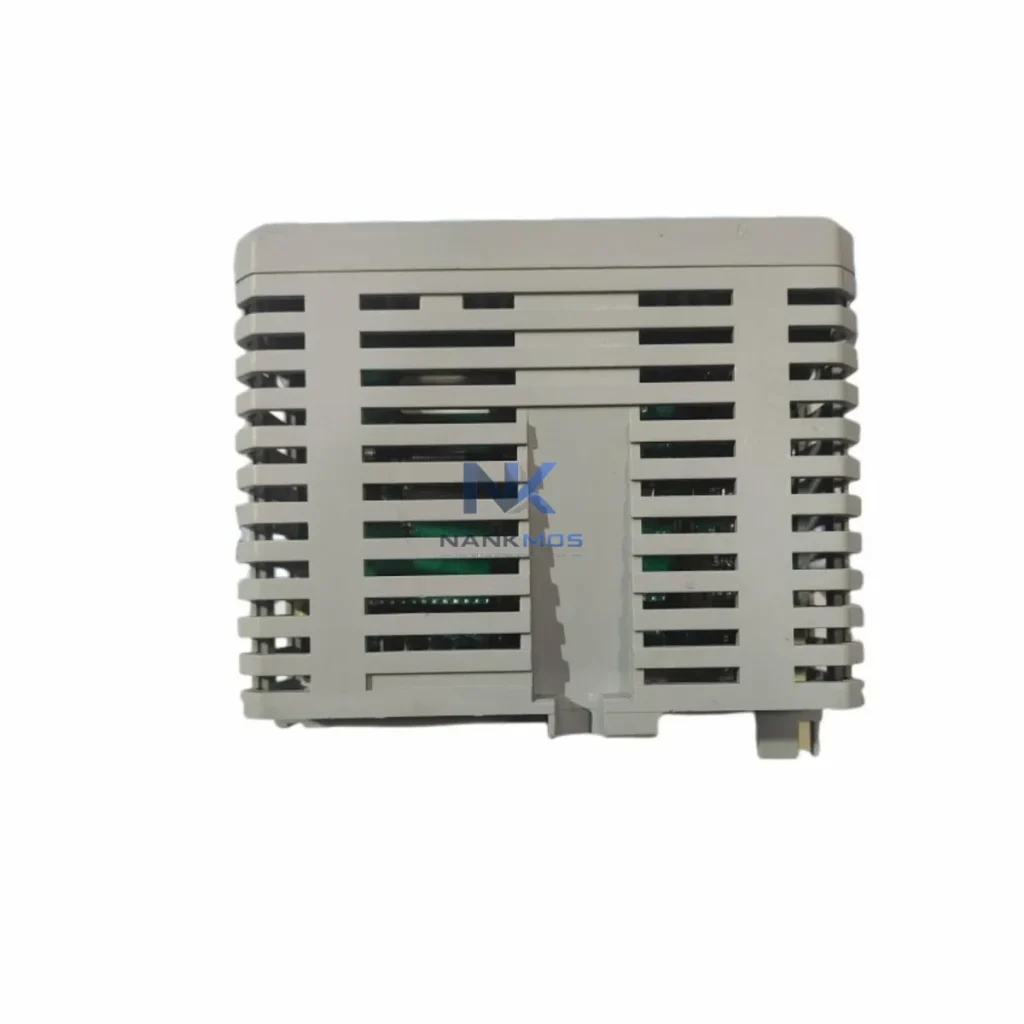

ABB DO818 3BSE069053R1 Digital Output Module

Product Details

DO818 3BSE069053R1 Product Description

The ABB DO818 3BSE069053R1 is a 24-channel digital output module engineered for the ABB AC800M Distributed Control System platform. Designed to operate within the S800 I/O architecture, it serves as a critical data-link node between the process controller and field actuators — translating digital command signals from the AC800M CPU into precise, high-speed switching actions across solenoid valves, motor starters, relay coils, and indicator panels on the production floor. In smart factory environments where every millisecond of response time and every byte of diagnostic data matters, the DO818 3BSE069053R1 delivers the deterministic output performance that modern industrial automation demands.

At the heart of its connectivity role, the DO818 communicates over ABB's proprietary ModuleBus — a high-speed, noise-immune serial backplane protocol that links S800 I/O modules to the CI854A or CI858 PROFIBUS DP communication interface modules. This layered architecture allows the AC800M controller to manage hundreds of distributed I/O points across a plant network while maintaining sub-millisecond cycle synchronization. When integrated with a CI854A PROFIBUS DP master, the DO818 becomes part of a fully transparent data chain: field-level switching states are reported back to the SCADA layer in real time, enabling operators to monitor output status, detect open-circuit faults, and trigger alarm workflows without leaving the control room.

In a typical smart factory data flow, the DO818 3BSE069053R1 sits at the execution layer of a multi-tier architecture. Upstream, an ABB AC800M PM866 or PM891 processor module issues cyclic output commands based on logic executed in Control Builder M. These commands travel through the ModuleBus backplane to the DO818, which drives 24 individual 24 VDC digital outputs with load current capacity suitable for direct actuation of field devices. Simultaneously, the module's built-in diagnostics — including per-channel open-load detection and short-circuit protection — feed status data back upstream to the controller, which forwards it via PROFIBUS DP to the plant's ABB 800xA System or third-party SCADA platforms such as Wonderware InTouch or Ignition by Inductive Automation. This closed-loop data path ensures that every output state change is logged, timestamped, and available for trend analysis, alarm management, and remote diagnostics.

The DO818's role extends naturally into edge integration scenarios. When paired with an ABB AC800M with an integrated OPC UA server or a dedicated industrial edge gateway — such as the ABB Edge Connect or a third-party device running on IEC 62541 — output status data from the DO818 can be published to cloud-based MES or ERP platforms. This enables production managers to correlate actuator switching cycles with batch records, energy consumption data from ABB ACS880 variable frequency drives, and quality inspection results from vision systems — all within a unified digital twin environment. The result is a fully connected production line where the DO818 is not merely a switching device but an active contributor to the plant's data intelligence layer.

For facilities running mixed-protocol environments, the DO818 3BSE069053R1 integrates cleanly alongside PROFIBUS PA field instruments, Foundation Fieldbus H1 segments bridged via linking devices, and Modbus RTU legacy equipment connected through protocol converters. In such architectures, the AC800M acts as the central protocol mediator, with the DO818 providing the deterministic digital output layer that legacy fieldbus devices cannot match in terms of cycle time and diagnostic transparency. Engineers deploying ABB S800 I/O expansions — including the AI810 analog input module, DI810 digital input module, AO810V2 analog output module, and TB820V2 ModuleBus modem — will find the DO818 a natural fit within the same I/O station, sharing the same power supply rail, termination base, and configuration namespace in Control Builder M.

Remote diagnostics and predictive maintenance are increasingly central to smart factory operations, and the DO818 3BSE069053R1 supports both through its integration with ABB 800xA's Asset Optimization and Batch Management modules. Maintenance teams can configure threshold-based alerts for output channel faults, schedule preventive inspection routines based on switching cycle counts, and access historical fault logs through the 800xA Information Management server — all without physical access to the I/O cabinet. For multi-site operations, this capability extends across WAN connections, allowing central engineering teams to diagnose field-level output issues at remote plants in real time.

Every DO818 3BSE069053R1 unit supplied by NANKMOS undergoes pre-shipment functional verification, including output channel continuity checks, ModuleBus communication handshake testing, and visual inspection against ABB factory quality standards. Units are shipped with full electrostatic discharge protection packaging and are backed by a 12-month warranty covering manufacturing defects and communication failures. Stock is maintained on-hand for immediate dispatch, supporting urgent replacement requirements in live production environments where downtime costs are measured in thousands of dollars per hour.

A complete smart factory data chain built around the DO818 3BSE069053R1 typically begins at the sensor and actuator layer, where field devices — pressure transmitters, proximity switches, solenoid valves, and motor contactors — connect to the S800 I/O station. The DO818 handles the output side of this layer, while companion modules such as the ABB DI810 digital input module and AI810 analog input module capture process feedback signals on the same ModuleBus backplane. The TB820V2 ModuleBus modem extends the I/O station over longer distances, allowing distributed cabinet installations across large process cells.

At the control layer, the ABB AC800M PM866 processor executes the automation logic and manages cyclic data exchange with all connected S800 I/O modules. The CI854A PROFIBUS DP communication interface module bridges the ModuleBus backplane to the plant's PROFIBUS DP network segment, where additional field devices — including ABB ACS880 variable frequency drives with PROFIBUS option boards, PROFIBUS PA pressure and flow transmitters, and third-party remote I/O stations — share the same network backbone. This unified PROFIBUS segment feeds into the AC800M's data model, which aggregates all field signals into a coherent process image updated every controller scan cycle.

At the supervisory layer, the ABB 800xA Distributed Control System provides the HMI, alarm management, historian, and asset optimization functions that transform raw I/O data into actionable plant intelligence. Operators interact with DO818 output states through 800xA faceplates, while engineers use the system's built-in diagnostic views to monitor channel health across all S800 I/O stations. For facilities requiring edge-to-cloud connectivity, an industrial edge gateway running OPC UA publishes selected DO818 status tags to cloud MES platforms, enabling remote production monitoring and digital twin synchronization without modifying the core DCS architecture.

Many industrial sites operating legacy DCS platforms face a common set of data challenges: protocol fragmentation between PROFIBUS, Modbus, and proprietary backplane buses; data silos that prevent SCADA systems from accessing field-level diagnostic information; and limited remote visibility into output channel health during unattended night shifts or multi-site operations. The DO818 3BSE069053R1, deployed within a properly configured AC800M and 800xA architecture, directly addresses each of these gaps.

Protocol fragmentation is resolved through the AC800M's multi-protocol communication architecture, which supports simultaneous PROFIBUS DP, Modbus TCP, OPC UA, and IEC 61850 connections through dedicated communication interface modules. The DO818 contributes to this unified data model by providing deterministic, diagnostics-rich digital output data that the AC800M can expose to any connected protocol without additional middleware. Data silos are eliminated because every DO818 channel state — including fault flags, switching counts, and last-change timestamps — is available in the AC800M's process image and can be mapped to any SCADA tag in the 800xA configuration.

Remote diagnostics are enabled through the 800xA system's built-in remote access capabilities, which allow authorized engineers to connect to the DCS from any location and inspect DO818 channel diagnostics in real time. Alarm tracking is supported through the 800xA Alarm and Event server, which logs every DO818 fault event with full context — including the affected channel, fault type, duration, and operator acknowledgment history. System expansion is straightforward: additional S800 I/O stations, including further DO818 modules, can be added to the PROFIBUS DP segment without modifying the existing network topology, supporting phased production line expansions with minimal engineering effort.

Q1: What is the communication latency between the DO818 3BSE069053R1 and the AC800M controller? The DO818 communicates over the ModuleBus backplane at high speed, with typical I/O update cycles in the range of 1–10 ms depending on the AC800M controller scan rate configuration. For time-critical applications, the AC800M supports fast task cycles down to 1 ms, ensuring that DO818 output updates are synchronized with the controller's execution cycle without perceptible delay.

Q2: Is the DO818 3BSE069053R1 compatible with third-party SCADA systems beyond ABB 800xA? Yes. When the AC800M is configured with an OPC DA or OPC UA server, all DO818 channel data — including output states and diagnostic flags — is accessible to any OPC-compatible SCADA or HMI platform, including Wonderware InTouch, Ignition by Inductive Automation, Siemens WinCC, and GE iFIX. PROFIBUS DP-based SCADA systems can also access DO818 data directly through the CI854A communication interface module.

Q3: How does the DO818 support network stability in high-noise industrial environments? The ModuleBus backplane protocol used by the DO818 is designed for high electromagnetic immunity, with differential signal transmission and hardware-level error detection that ensures reliable communication even in environments with significant electrical noise from variable frequency drives, welding equipment, and high-current motor starters. The module also supports hot-swap replacement on compatible S800 I/O stations, minimizing network disruption during maintenance operations.

Q4: What does the 12-month warranty cover, and what pre-shipment testing is performed? Every DO818 3BSE069053R1 supplied by NANKMOS is covered by a 12-month warranty against manufacturing defects and communication failures from the date of shipment. Pre-shipment testing includes output channel continuity verification across all 24 channels, ModuleBus communication handshake confirmation, and visual inspection for physical damage or component anomalies. Units failing any test criterion are quarantined and not dispatched. Warranty claims are processed directly through NANKMOS with replacement units dispatched from in-stock inventory to minimize customer downtime.
