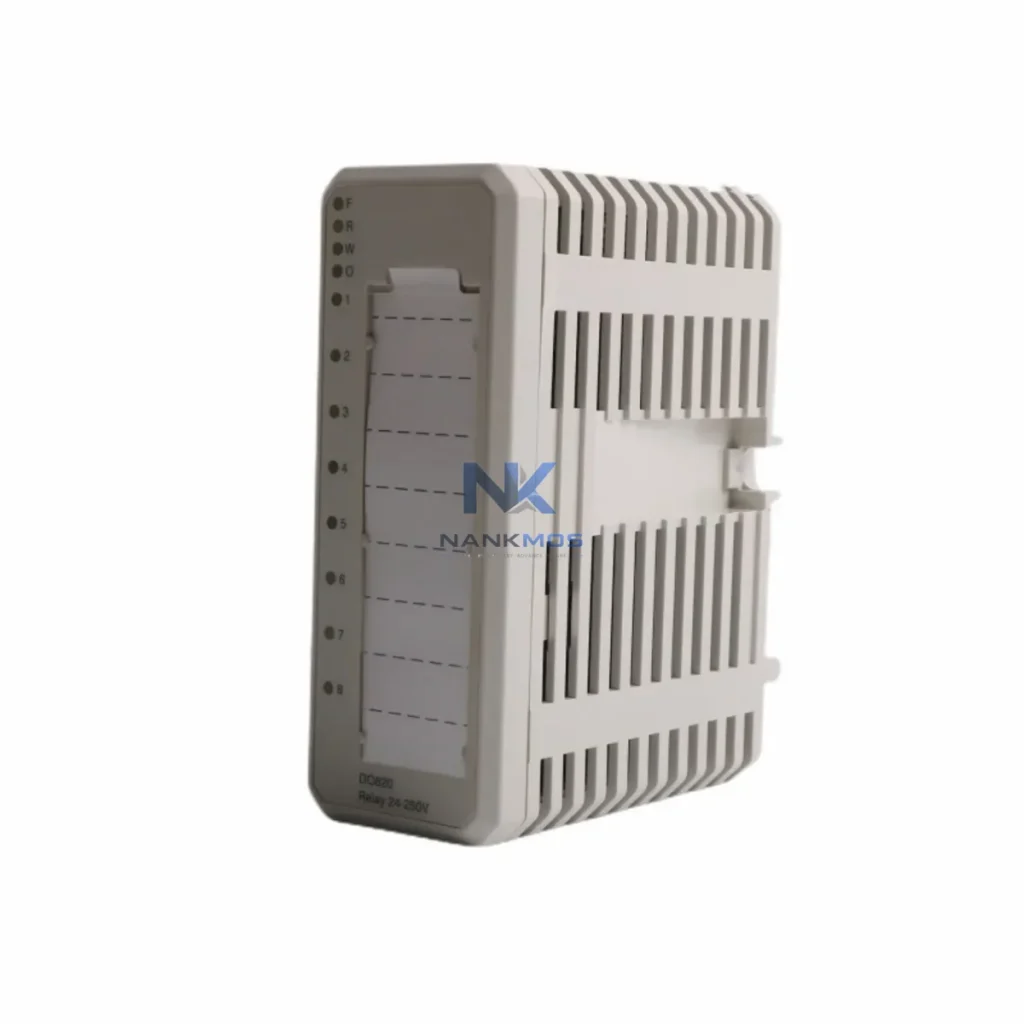

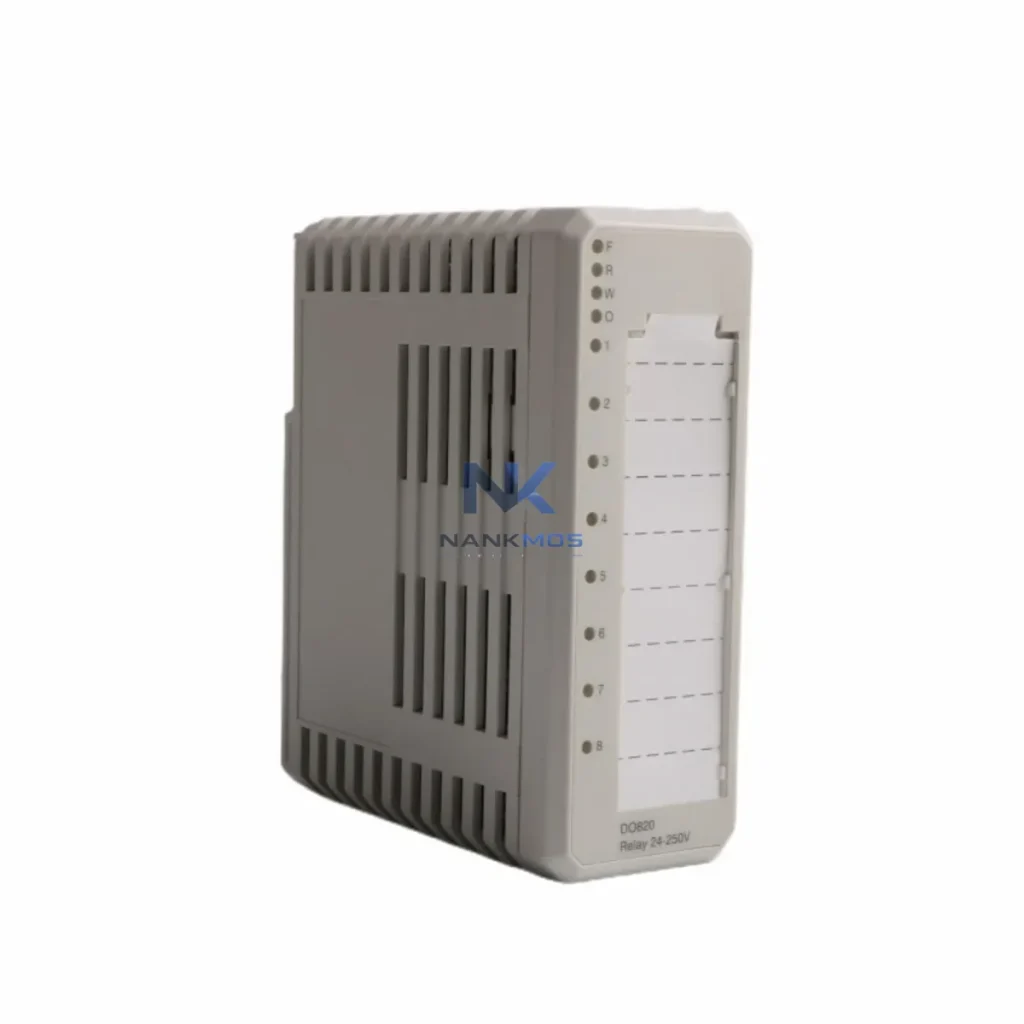

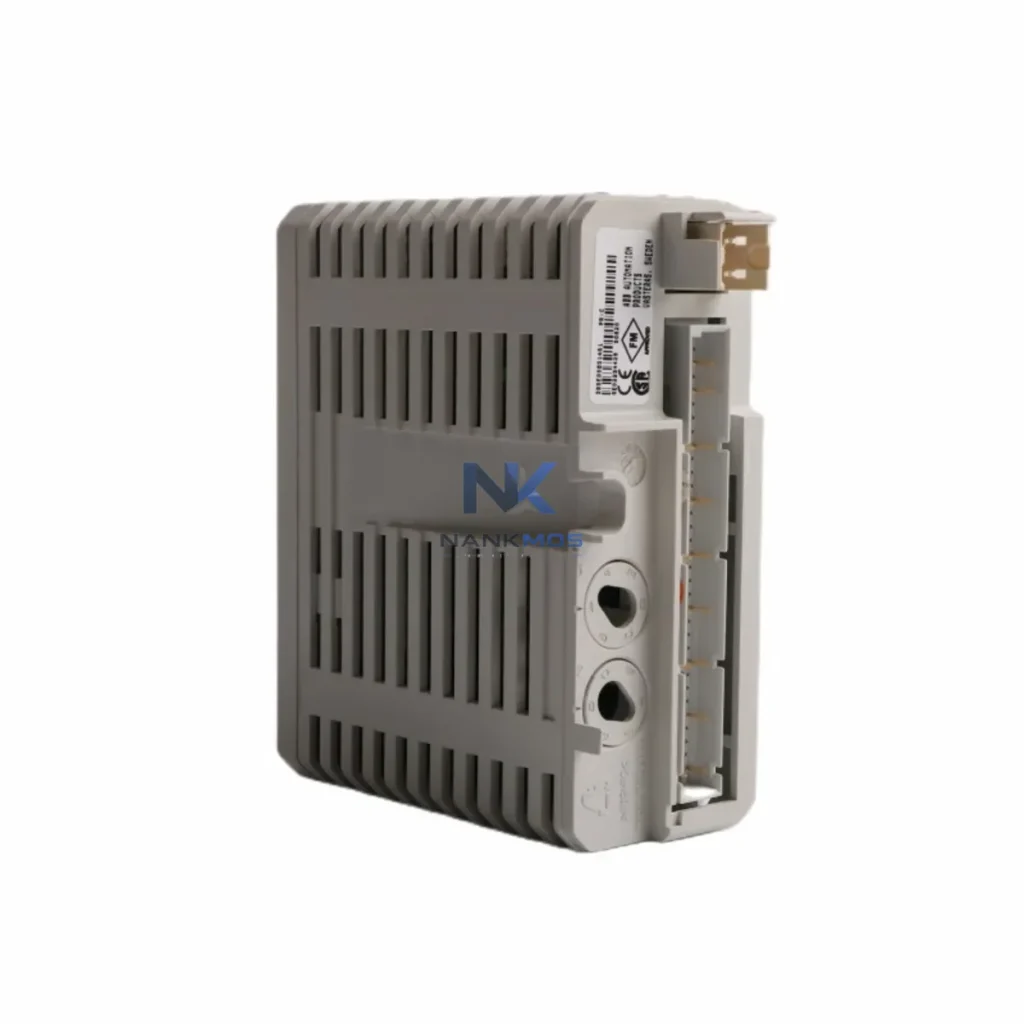

ABB DO820 3BSE008514R1 Digital Output Module

DO820 3BSE008514R1 Product Description

The ABB DO820 (catalog reference 3BSE008514R1) is a high-density digital output module engineered for the ABB S800 I/O system, one of the most widely deployed distributed I/O platforms in process automation. Designed to operate as a native execution-layer component within the ABB AC800M DCS architecture, the DO820 delivers 16 channels of 24V DC digital output, enabling precise on/off control of field actuators, solenoid valves, motor starters, indicator lamps, and relay coils across demanding industrial environments. Its modular design, DIN-rail mounting compatibility, and plug-and-play integration with the S800 I/O bus make it a reliable and scalable choice for both greenfield installations and brownfield system expansions.

Within the ABB System 800xA control architecture, the DO820 connects directly to an S800 I/O station via the ModuleBus, a high-speed serial backplane that links I/O modules to the AC800M CPU without requiring individual field wiring to the controller. This architecture eliminates the need for point-to-point wiring between the controller and each output channel, significantly reducing cabinet wiring complexity and commissioning time. The ModuleBus also enables the AC800M controller to perform continuous channel-level diagnostics on the DO820, detecting open-load faults, short-circuit conditions, and module communication errors in real time — without interrupting the control loop.

The DO820 is most effective when deployed as part of a fully integrated ABB System 800xA or Extended Automation platform. In a typical S800 I/O station, the DO820 is mounted alongside complementary modules — such as the AI810 analog input module for 4–20mA sensor signals, the DI810 digital input module for field device status feedback, and the AO810V2 analog output module for control valve positioning — all sharing the same ModuleBus backplane and communicating with the AC800M PM866 or PM891 CPU processor module.

At the communication layer, the S800 I/O station connects to the AC800M controller via a CI854 PROFIBUS DP communication interface or a CI840A PROFINET interface, enabling the DO820's output channels to be addressed and controlled from the controller's function block application. For remote I/O installations — such as field junction boxes in hazardous areas or geographically distributed process units — the S800 I/O station can be connected via fiber-optic ModuleBus extenders, maintaining signal integrity over distances exceeding 100 meters without signal degradation.

At the HMI and supervisory layer, the DO820's channel states and diagnostic data are surfaced in ABB System 800xA's Operator Workplace, where process operators can monitor actuator states, acknowledge output faults, and force output channels during commissioning or maintenance. For facilities running third-party SCADA platforms such as Wonderware System Platform or OSIsoft PI, the AC800M controller's OPC DA/UA server interface enables real-time DO820 channel data to be published to the historian and displayed on custom dashboards.

In redundant control architectures, the DO820 can be paired with a redundant AC800M controller pair (PM866 + PM866 in hot-standby configuration) and a redundant CI854 PROFIBUS interface, ensuring that digital output commands continue to be executed even during a controller switchover event. Signal isolators and surge protection terminal blocks on the field wiring side further protect the DO820's output transistors from voltage transients generated by inductive loads such as solenoid valves and motor contactors.

The DO820 is deployed across a broad range of process industries where reliable, high-density digital output control is essential. In oil and gas upstream and midstream facilities, it controls wellhead shutdown valves, emergency blowdown actuators, and flare ignition systems, where its channel-level fault diagnostics and SIL-capable architecture support functional safety requirements under IEC 61511. In power generation plants — including coal, gas, and nuclear facilities — the DO820 manages auxiliary system actuators such as cooling water valve solenoids, lube oil pump starters, and turbine bypass valve controls, where its high channel density reduces cabinet footprint in space-constrained turbine control rooms.

In chemical and petrochemical processing plants, the DO820 controls reactor feed valve actuators, agitator motor starters, and product routing valves across multi-unit process trains, where its ModuleBus diagnostics enable maintenance teams to identify and replace faulty output channels without shutting down adjacent process units. In water and wastewater treatment facilities, it manages pump station motor starters, UV disinfection system controls, and sluice gate actuators across geographically distributed pump stations connected via fiber-optic S800 I/O extensions.

For mining and mineral processing operations, the DO820 controls conveyor belt drive starters, crusher feed gate actuators, and flotation cell agitator controls in dusty, high-vibration environments, where its robust module housing and wide operating temperature range ensure reliable operation without air conditioning. In pharmaceutical and food processing facilities, its clean-room-compatible design and deterministic output response support GMP-compliant batch control applications managed by ABB System 800xA Batch.

Q1: Is the DO820 compatible with both AC800M and older AC800F or Advant OCS controller platforms?The DO820 is natively designed for the ABB S800 I/O system and is fully compatible with the AC800M controller family (PM860, PM861, PM864, PM866, PM891). Compatibility with older AC800F or Advant OCS platforms depends on the specific communication interface module used in the I/O station. NANKMOS can advise on interface module selection and firmware compatibility based on your existing controller platform and software version.

Q2: Can the DO820 be used in SIL-rated safety applications?The DO820 can be applied in safety instrumented systems when used in conjunction with ABB's S800 I/O safety-rated modules and the AC800M High Integrity (HI) controller. For SIL 1 and SIL 2 applications, the DO820 must be configured with appropriate diagnostic coverage and proof-test intervals as defined in the ABB System 800xA Safety Manual. NANKMOS recommends consulting the ABB functional safety documentation and engaging a certified functional safety engineer for SIL-rated installations.

Q3: What does the 12-Month Warranty cover, and how quickly can replacement units be supplied?The 12-Month Warranty covers all manufacturing defects and component failures under normal operating conditions from the date of shipment. NANKMOS maintains in-stock inventory of DO820 modules and related S800 I/O components — including AI810, DI810, AO810V2, and CI854 interface modules — to support rapid replacement and minimize process downtime. All units are pre-tested prior to shipment with functional verification of all 16 output channels. For urgent requirements, expedited shipping is available to most global destinations.
