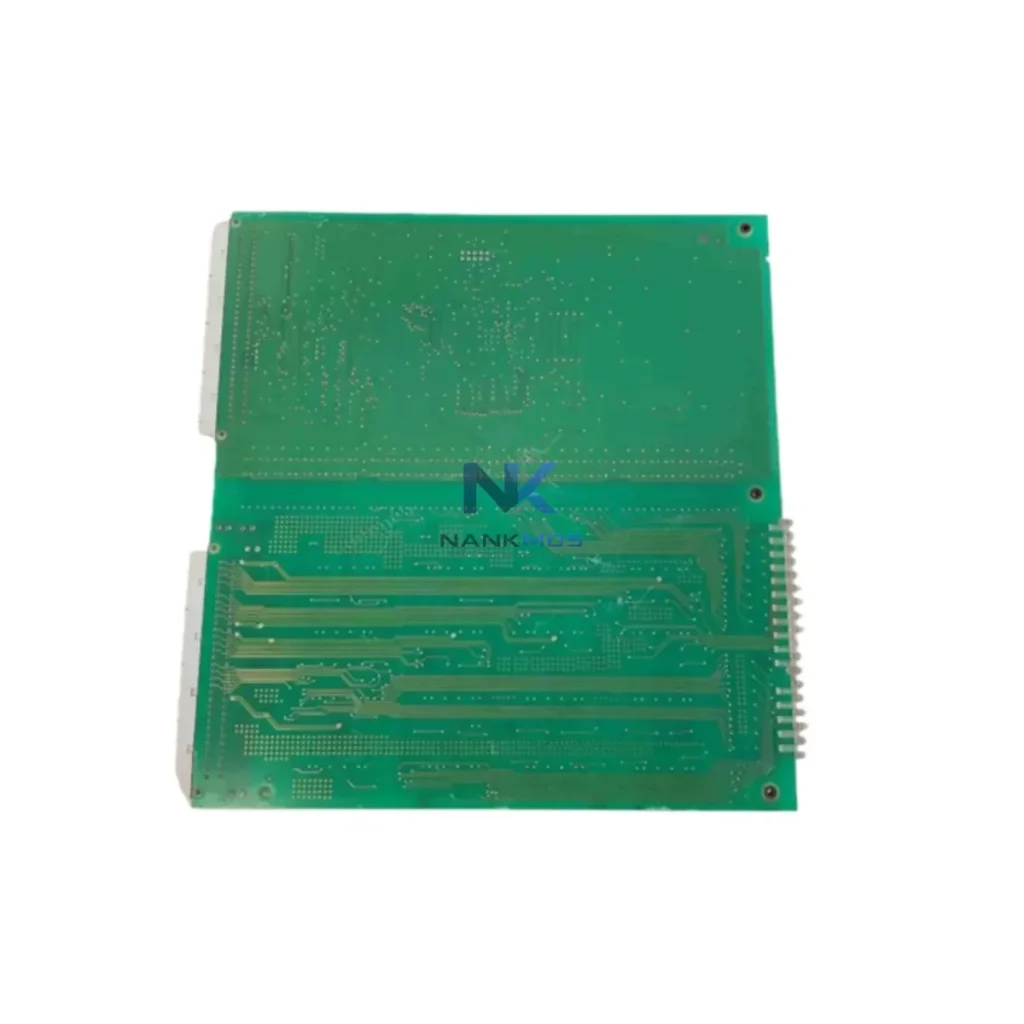

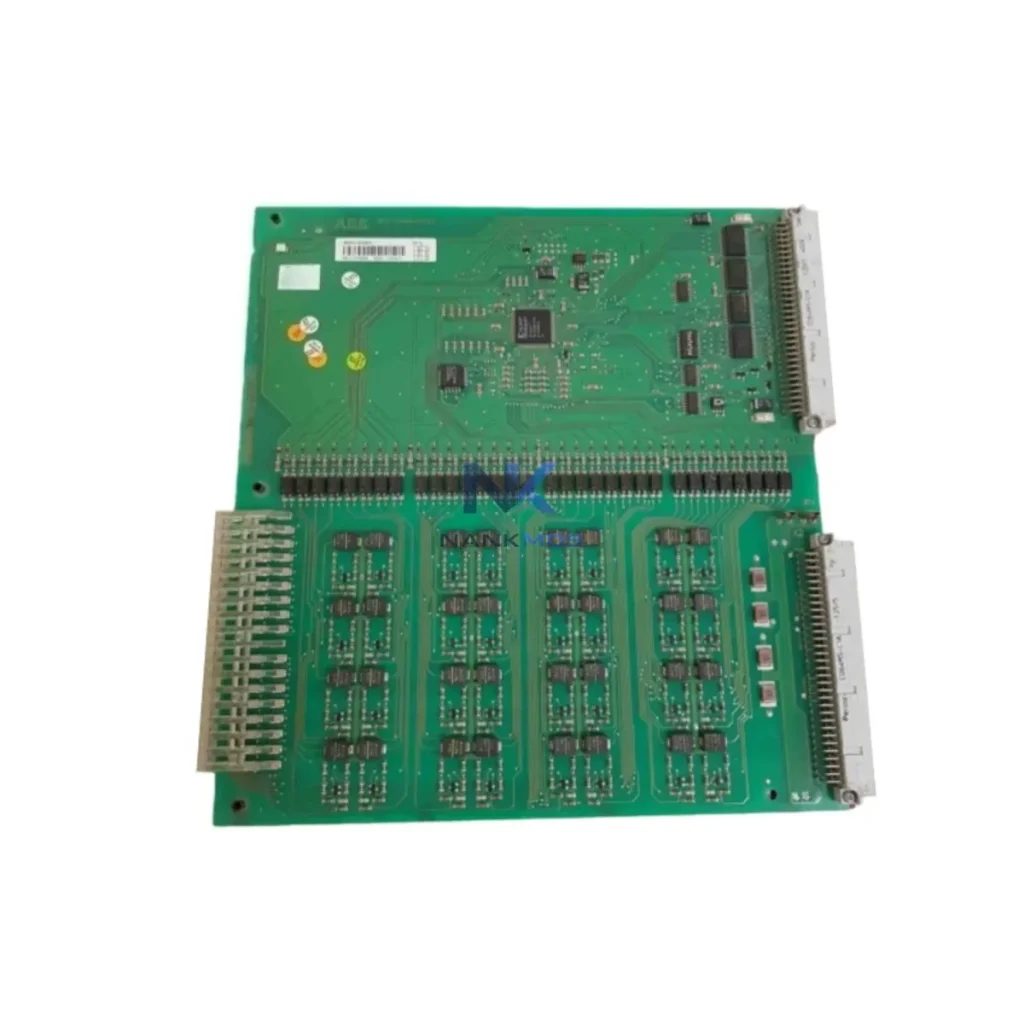

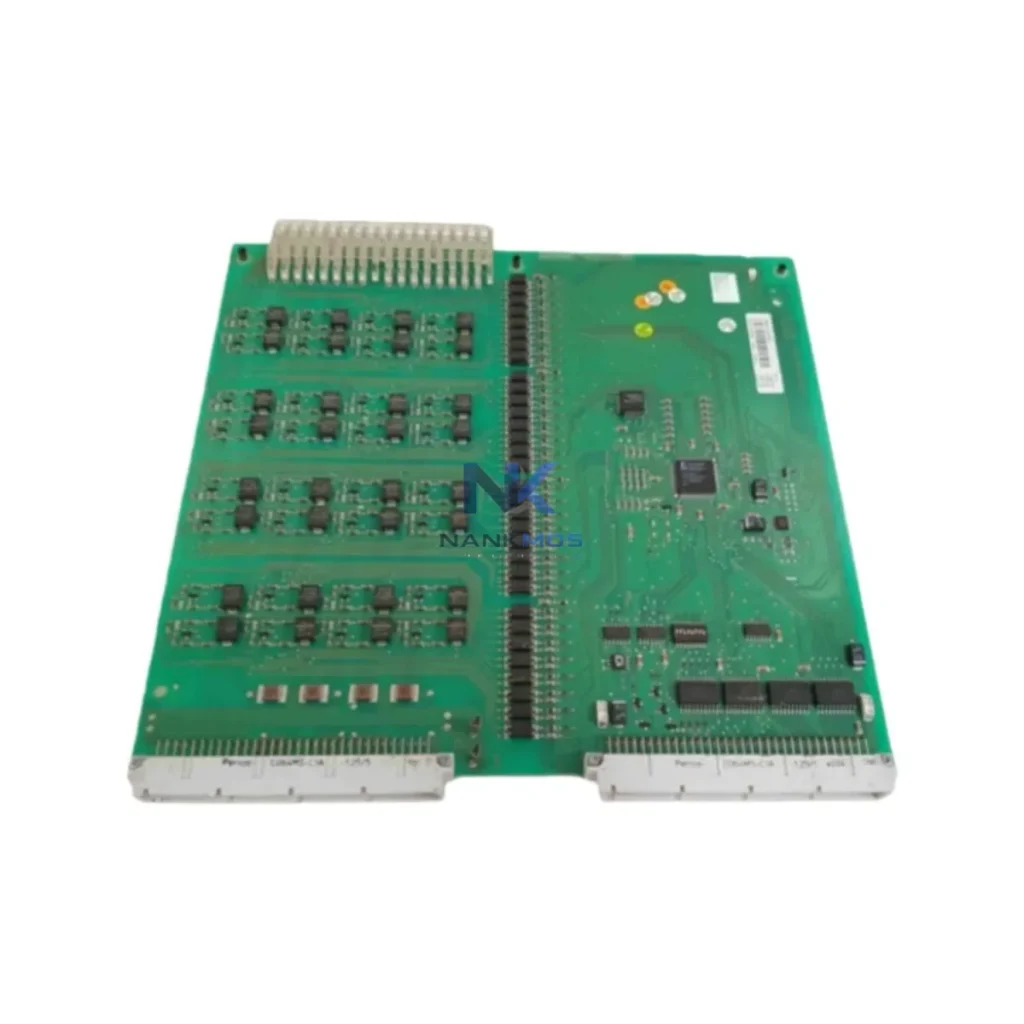

ABB DSDI120AV1 3BSE018296R1 Digital Input Board

Product Details

DSDI120AV1 3BSE018296R1 Product Description

The ABB DSDI120AV1 (3BSE018296R1) is a high-density 32-channel digital input board engineered for the ABB Symphony Plus distributed control system (DCS). Designed to serve as a critical node in the industrial data chain, this module bridges field-level signal acquisition with upper-layer control and monitoring platforms — enabling seamless data flow from sensors and actuators through to SCADA, HMI, and enterprise MES systems. In smart factory environments where real-time visibility and network stability are non-negotiable, the DSDI120AV1 delivers the protocol-level reliability and communication depth that modern automation demands.

In a fully connected smart factory, the ABB DSDI120AV1 operates at the heart of the field-to-control data pipeline. At the signal acquisition layer, discrete inputs from proximity sensors, limit switches, push buttons, and safety interlocks are captured across all 32 channels simultaneously. These signals are then transmitted via the PROFIBUS DP bus to the Symphony Plus controller — typically an ABB AC800M or ABB AC870P process controller — where they are processed in real time for logic execution and alarm evaluation.

Within the Symphony Plus backplane architecture, the DSDI120AV1 works in close coordination with analog counterparts such as the ABB DSAI130AV1 analog input board and the ABB DSDO120AV1 digital output board, forming a complete I/O cluster that handles both discrete and continuous process variables. This modular I/O design allows engineers to scale the system incrementally — adding channels as production lines expand — without disrupting existing network segments or reconfiguring the PROFIBUS DP topology.

Data collected by the DSDI120AV1 flows upward through the DCS network to ABB System 800xA, the integrated SCADA and HMI platform that provides operators with real-time dashboards, trend visualization, and alarm management. The tight integration between the digital input board and the 800xA environment means that every field event — a valve position change, a motor run signal, a safety trip — is logged with millisecond-level timestamp accuracy and made available for historical analysis and compliance reporting.

For remote monitoring and diagnostics, the DSDI120AV1's status and channel health data are accessible through the Symphony Plus engineering workstation and can be forwarded via OPC UA or Modbus TCP gateways — such as the ABB CI854AK01 PROFIBUS DP communication interface — to edge computing nodes or cloud-based analytics platforms. This enables maintenance teams to perform predictive diagnostics, identify signal degradation trends, and schedule preventive interventions without requiring physical access to the control cabinet.

In multi-network factory environments, the DSDI120AV1 integrates smoothly with industrial Ethernet switches — such as managed Layer 2/3 switches supporting PROFINET and EtherNet/IP — that segment and prioritize automation traffic. When paired with remote I/O modules like the ABB S800 I/O series deployed at distributed field stations, the system creates a resilient, redundant data backbone capable of sustaining continuous operation even during partial network failures. Variable frequency drives (VFDs) connected to the same PROFIBUS DP segment can report run status and fault codes directly into the same data stream, giving SCADA operators a unified view of both discrete and drive-level process states.

Every unit shipped by NANKMOS undergoes pre-shipment functional testing to verify channel integrity, bus communication handshake, and signal response accuracy. Stock is maintained in our warehouse for immediate dispatch, and all units are covered by a 12-month warranty from the date of delivery.

Protocol Fragmentation: Many legacy automation sites run a mix of PROFIBUS DP, Modbus RTU, and proprietary fieldbus protocols that cannot communicate natively. The DSDI120AV1, operating natively on PROFIBUS DP within the Symphony Plus ecosystem, eliminates the need for external protocol converters at the I/O level — reducing latency, simplifying wiring, and improving data integrity across the control network.

Data Silos and Production Transparency: When field signals are trapped in isolated I/O racks without network connectivity to SCADA or MES, production managers lose visibility into real-time machine states. By integrating the DSDI120AV1 into the Symphony Plus DCS, all 32 digital input channels become immediately visible in the 800xA operator interface, breaking down data silos and enabling line-level transparency from a single engineering workstation.

Remote Monitoring and Alarm Tracking: Unplanned downtime caused by undetected field faults is a persistent challenge in distributed manufacturing sites. The DSDI120AV1 supports continuous channel diagnostics that feed alarm and event data into the Symphony Plus alarm management system. Operators receive real-time notifications when input signals fall outside expected states, and maintenance engineers can remotely interrogate channel status via the PROFIBUS DP diagnostic interface — reducing mean time to repair (MTTR) without dispatching field technicians.

System Expansion Without Disruption: As production capacity grows, adding new I/O points to an existing DCS can be disruptive if the architecture is not designed for modularity. The DSDI120AV1 slots directly into the Symphony Plus I/O carrier without requiring controller reconfiguration or bus re-addressing, making it the preferred choice for phased factory expansions and brownfield upgrades.

Q1: What communication protocol does the ABB DSDI120AV1 use, and is it compatible with third-party PROFIBUS DP masters? The DSDI120AV1 operates on the PROFIBUS DP protocol and is designed primarily for use within the ABB Symphony Plus DCS architecture. While PROFIBUS DP is an open standard, full functionality — including diagnostic data and parameterization — is optimized when used with ABB Symphony Plus controllers such as the AC800M or AC870P. Compatibility with third-party PROFIBUS DP masters should be validated against the module's GSD file prior to integration.

Q2: How does the DSDI120AV1 support remote diagnostics and predictive maintenance? The module provides channel-level diagnostic data accessible through the Symphony Plus engineering environment and PROFIBUS DP diagnostic services. This data can be forwarded to remote monitoring platforms via OPC UA or Modbus TCP gateways, enabling maintenance teams to track signal health, detect wiring faults, and schedule preventive maintenance based on real-time channel status — without requiring physical access to the I/O cabinet.

Q3: Can the DSDI120AV1 be added to an existing Symphony Plus system without disrupting current operations? Yes. The DSDI120AV1 is designed for hot-insertion into the Symphony Plus I/O carrier in systems that support this feature, and its PROFIBUS DP address can be configured offline before installation. This allows the module to be added to an existing bus segment with minimal disruption to running processes, making it well-suited for phased expansions and brownfield upgrades.

Q4: What does the 12-month warranty cover, and how does NANKMOS handle pre-shipment testing? All DSDI120AV1 units supplied by NANKMOS are covered by a 12-month warranty from the date of delivery, covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes functional verification including PROFIBUS DP communication handshake testing, channel signal response checks, and visual inspection for physical integrity. Units that do not pass testing are quarantined and not dispatched.
