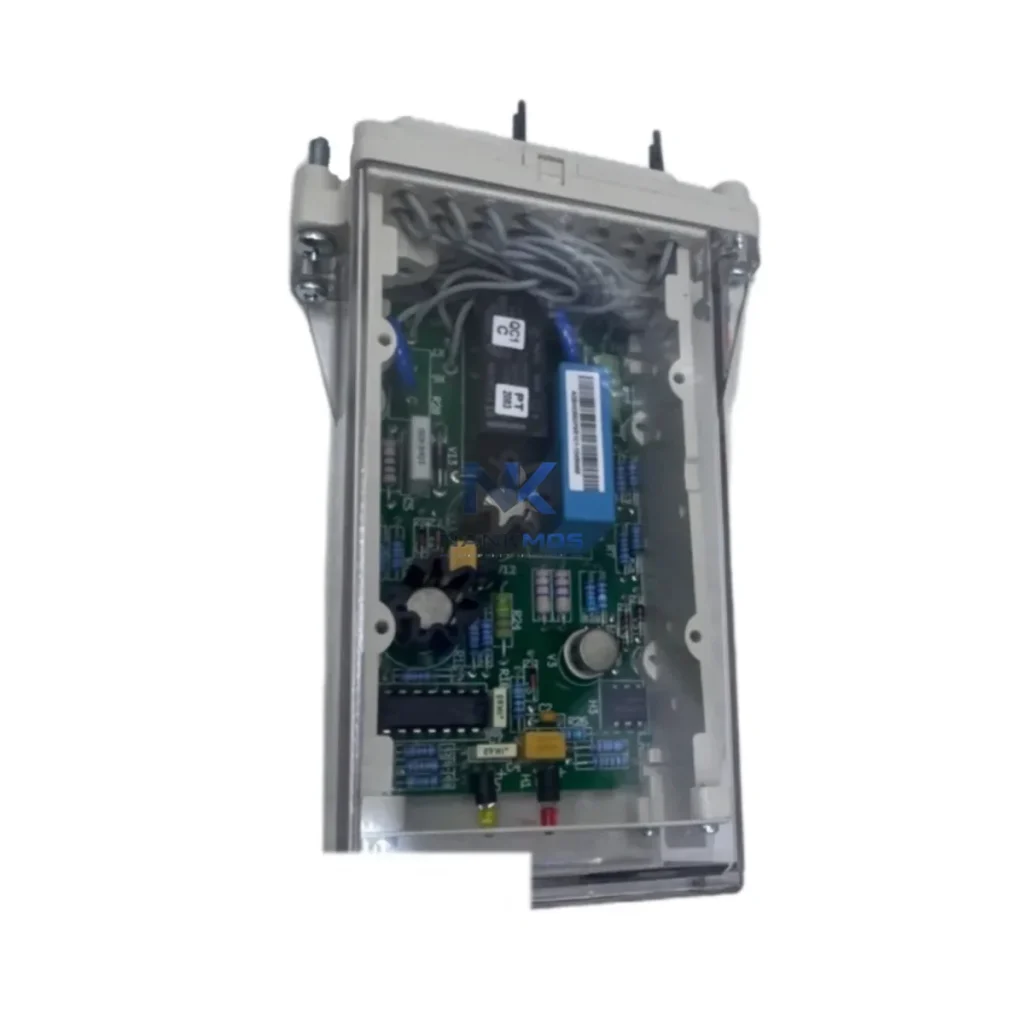

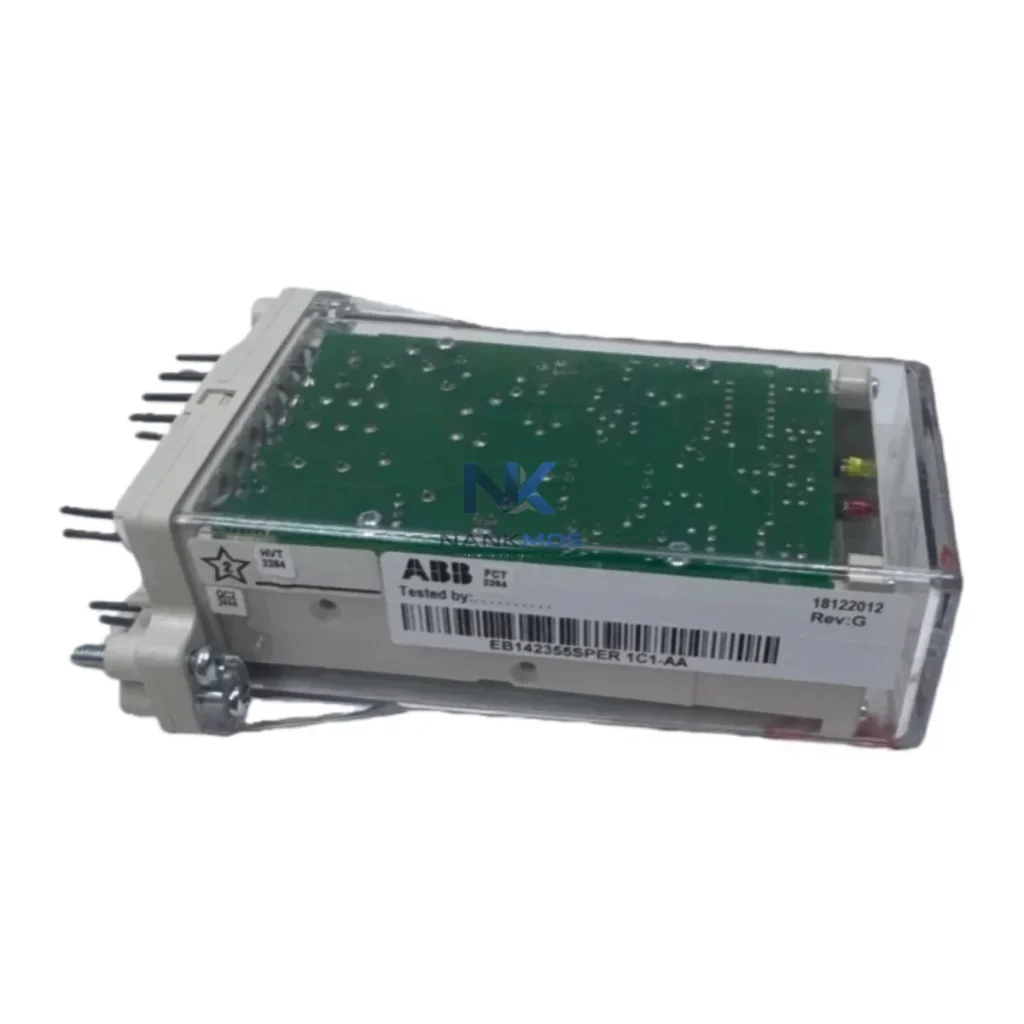

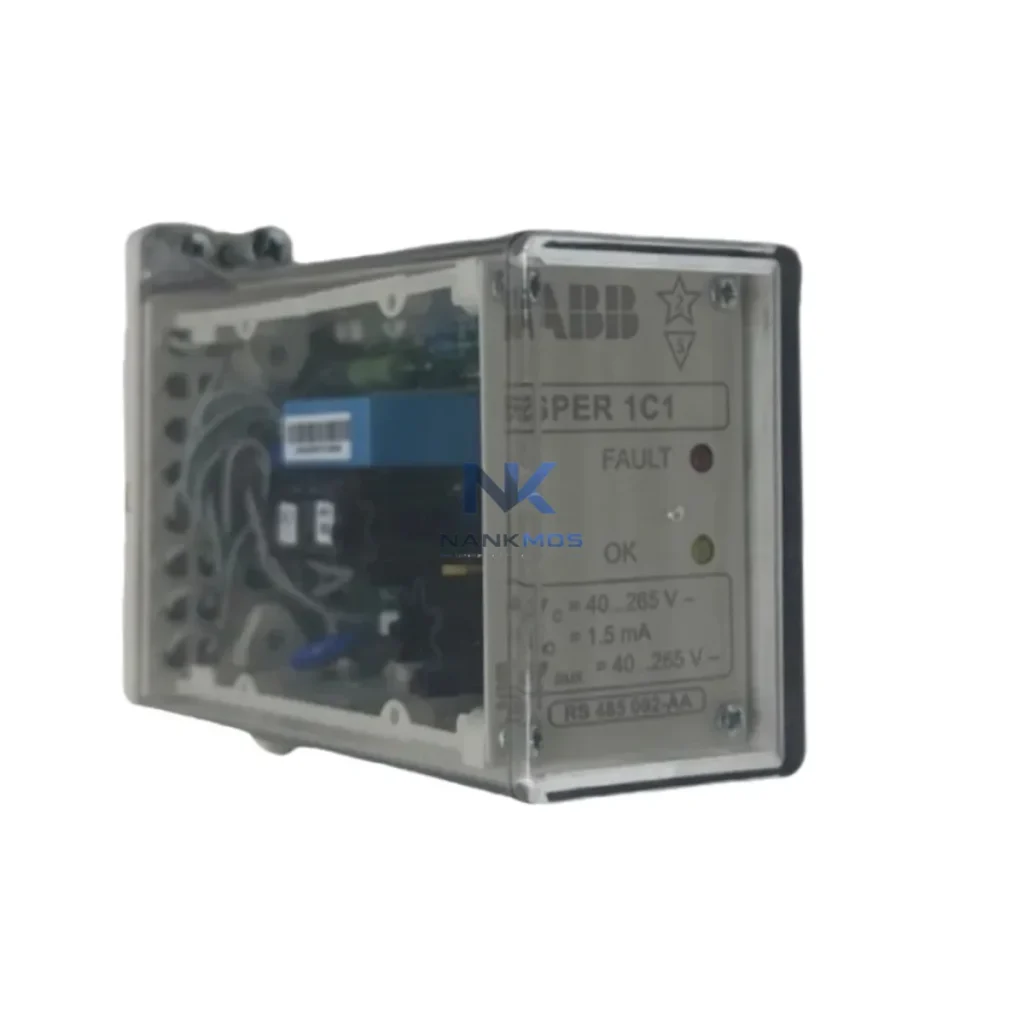

ABB EB142355SPER 1C1-AA Trip Circuit Supervision Relay

Product Details

EB142355SPER 1C1-AA Product Description

The ABB EB142355SPER-1C1-AA is a high-performance Trip Circuit Supervision Relay engineered for the ABB REF 542 protection and control platform. Designed to operate at the intersection of field-level protection and plant-wide communication networks, this relay delivers continuous supervision of trip circuit integrity while simultaneously feeding real-time status data into SCADA, HMI, and edge computing layers. In modern smart factory and substation automation environments, where every millisecond of undetected circuit failure translates into production loss or safety risk, the EB142355SPER-1C1-AA provides the data link reliability that automation engineers demand.

In a fully connected smart factory architecture, the ABB EB142355SPER-1C1-AA sits at the protection layer, continuously monitoring the trip coil circuit of circuit breakers and feeding supervision status upstream through the REF 542 IED's IEC 61850 communication stack. The data journey begins at the field device level: current transformers, voltage sensors, and binary input modules feed raw electrical signals into the REF 542 platform. The EB142355SPER-1C1-AA processes these signals and generates structured GOOSE messages that travel across the station bus — typically an ABB FOX515 or compatible industrial Ethernet switch — to the station-level gateway.

At the gateway layer, an ABB COM600 series communication gateway or equivalent IEC 61850-to-Modbus protocol converter aggregates supervision data from multiple REF 542 IEDs across the switchgear lineup. This aggregated data stream is then forwarded to the plant SCADA server — commonly running ABB MicroSCADA Pro or ABB System 800xA — where operators gain a real-time dashboard view of every trip circuit's health status. Simultaneously, the data is mirrored to an ABB Panel Builder 800 HMI terminal on the switchroom floor, giving local technicians instant visual feedback without requiring SCADA access.

For remote diagnostic scenarios, the supervision data passes through an industrial 4G/LTE edge gateway — such as an ABB-compatible Moxa MGate or Advantech ECU series — enabling remote engineers to monitor trip circuit continuity from a control room hundreds of kilometers away. This remote visibility is critical for unmanned substations and distributed energy resource (DER) sites where on-site inspection is costly. The edge gateway also buffers event logs locally, ensuring no data is lost during network interruptions, and synchronizes with the central historian once connectivity is restored.

Within the protection coordination chain, the EB142355SPER-1C1-AA works alongside ABB REF 542 overcurrent protection modules, REF 543 feeder protection relays, and REM 543 motor protection relays to form a cohesive protection and supervision network. Binary output signals from the trip circuit supervision function can trigger alarm outputs to a remote I/O module connected to the plant DCS, ensuring that a failed trip circuit immediately raises an alarm in the distributed control system before a fault event occurs. This pre-fault alerting capability is the cornerstone of predictive maintenance strategies in smart manufacturing environments.

Data visualization is handled at multiple layers: raw event data is stored in the REF 542's internal event buffer, forwarded to the SCADA historian for trend analysis, and displayed on the HMI as color-coded circuit health indicators. Integration with ABB Ability™ Asset Suite or third-party CMMS platforms via OPC-UA allows maintenance teams to correlate trip circuit supervision alarms with work order generation, closing the loop between real-time monitoring and maintenance execution.

One of the most persistent challenges in industrial automation sites is the coexistence of legacy serial-based protection relays alongside modern IEC 61850-capable IEDs. The ABB EB142355SPER-1C1-AA within the REF 542 platform addresses this directly: its multi-protocol support — spanning IEC 61850, Modbus RTU, and DNP3 — allows it to communicate with both legacy SCADA systems using serial polling and modern Ethernet-based control architectures simultaneously. This eliminates the data island problem where older relays generate protection events that never reach the plant historian or SCADA dashboard.

Remote monitoring gaps are equally addressed. In sites where trip circuit failures historically went undetected until a breaker failed to operate during a fault, the EB142355SPER-1C1-AA provides continuous online supervision with configurable alarm thresholds. Alarm events are time-stamped with millisecond precision and transmitted via GOOSE messaging to the station HMI and SCADA within single-digit milliseconds, enabling operators to dispatch maintenance before a protection failure occurs.

Production line transparency is enhanced through integration with plant MES and ERP systems via the SCADA middleware layer. Supervision status data, combined with energy metering data from ABB EQ meters and power quality analyzers, gives plant managers a complete picture of electrical infrastructure health — a key requirement for ISO 50001 energy management compliance and IEC 62443 cybersecurity frameworks in smart factory environments.

System expansion is straightforward: the REF 542 platform supports hot-swappable I/O modules and additional communication cards, allowing the EB142355SPER-1C1-AA's supervision function to scale as new feeders and circuit breakers are added to the switchgear lineup without requiring a complete relay replacement or SCADA reconfiguration.

Q1: What communication protocols does the ABB EB142355SPER-1C1-AA support for SCADA integration?The EB142355SPER-1C1-AA operates within the ABB REF 542 IED, which natively supports IEC 61850 (GOOSE and MMS), Modbus RTU over RS-485, and DNP3. This multi-protocol capability ensures compatibility with both legacy SCADA systems using serial polling and modern Ethernet-based control platforms, eliminating the need for additional protocol converters in most installations.

Q2: How does the trip circuit supervision function minimize communication latency in alarm reporting?The REF 542 platform transmits trip circuit supervision alarms as IEC 61850 GOOSE messages, which are broadcast directly over the station Ethernet bus without requiring a server poll cycle. This peer-to-peer messaging architecture delivers alarm notifications to the HMI and SCADA within single-digit milliseconds, meeting the stringent latency requirements of protection-class automation systems.

Q3: Can the EB142355SPER-1C1-AA integrate with third-party SCADA and HMI systems beyond ABB's own platforms?Yes. While the REF 542 is optimized for ABB MicroSCADA Pro and System 800xA, its IEC 61850 and Modbus RTU interfaces are fully open-standard, enabling integration with third-party SCADA platforms such as Schneider Electric EcoStruxure, Siemens WinCC, and GE iFIX via standard protocol drivers or OPC-UA gateways. Remote diagnostic access is also achievable through any DNP3-compatible SCADA master station.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the EB142355SPER-1C1-AA?Every ABB EB142355SPER-1C1-AA unit supplied by NANKMOS is covered by a 12-month warranty and undergoes pre-shipment functional testing to verify communication interface integrity, binary I/O operation, and relay output continuity. Stock is maintained for fast global dispatch, and full traceability documentation is provided with each shipment to support site commissioning and quality audit requirements.
