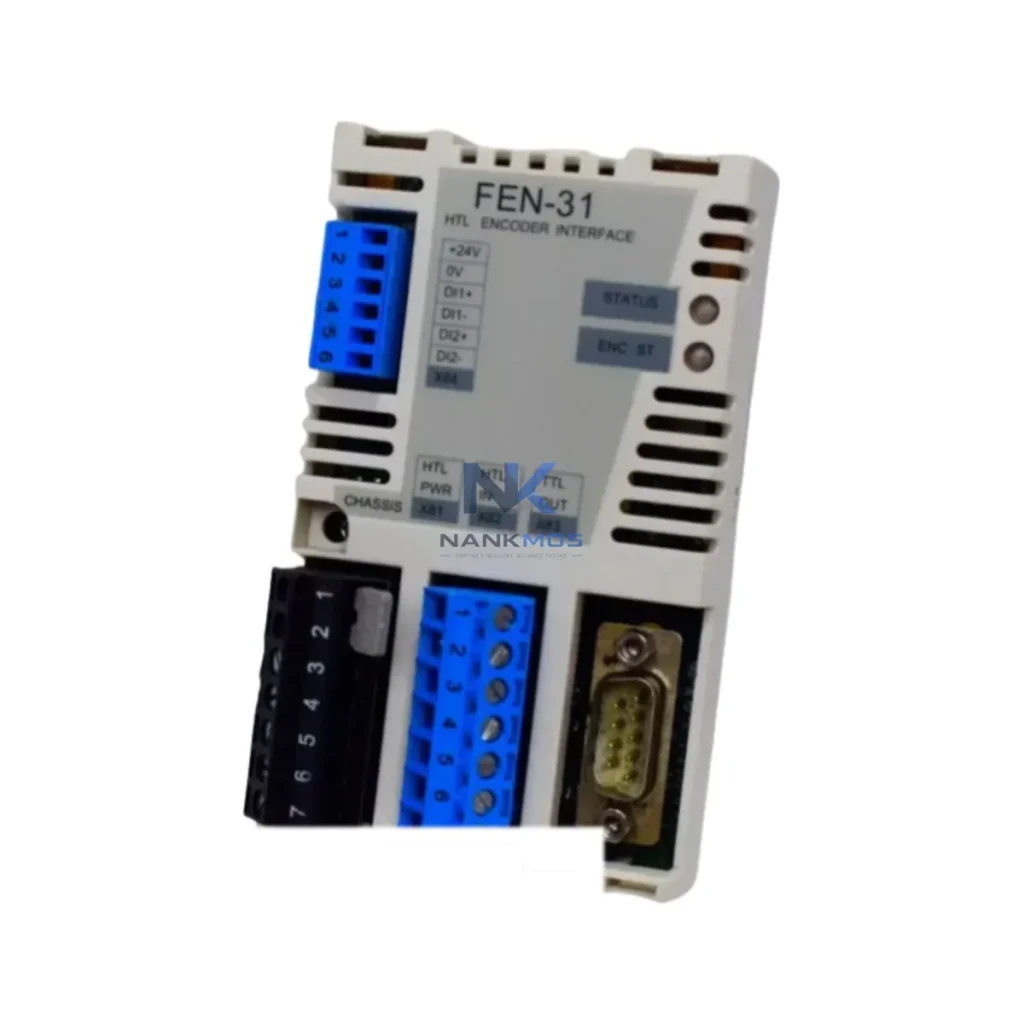

ABB FEN-31 68978840 Drive Encoder Interface Module

Product Details

FEN-31 68978840 Product Description

The ABB FEN-31 68978840 is a precision encoder interface module engineered for seamless integration within ABB's ACS880 industrial drive platform. Designed to serve as a critical feedback node in closed-loop motion control architectures, the FEN-31 bridges the gap between rotating machinery and the drive's control layer, enabling accurate speed, position, and direction feedback across demanding industrial environments. Whether deployed in power generation, petrochemical processing, water treatment, mining conveyors, or marine propulsion systems, this module delivers the signal integrity and system consistency required for high-performance automation.

In modern industrial control architectures, encoder feedback is not an isolated function — it is a foundational layer that underpins the entire control hierarchy. The FEN-31 operates within a layered system where the control layer (ACS880 drive CPU), the I/O layer (encoder signal acquisition), the communication layer (DDCS or fieldbus), and the protection layer (motor thermal and overcurrent monitoring) must all function in coordinated synchrony. The FEN-31 ensures that encoder pulses are accurately captured, conditioned, and transmitted to the drive's main control board, maintaining signal stability even under high electromagnetic interference conditions typical of industrial switchgear environments.

The FEN-31 68978840 is most effective when deployed as part of a fully integrated ABB ACS880 drive system. In a typical control cabinet architecture, the ACS880 main drive unit serves as the central processing node, with the FEN-31 occupying one of the available option slots to extend the drive's feedback capability. Alongside the FEN-31, engineers commonly deploy the FENA-21 Ethernet adapter module for PROFINET or EtherNet/IP connectivity, enabling real-time drive status data to flow into SCADA or DCS platforms. The FDIO-01 digital I/O extension module complements the FEN-31 by expanding discrete signal handling for auxiliary control functions such as brake control, run permissive, and fault acknowledgment.

For multi-drive installations, the ACS880-07 cabinet-built drive provides the structural backbone, housing multiple drive units with shared DC bus architecture. In these configurations, the FEN-31 ensures that each motor axis maintains independent, accurate speed feedback, preventing cross-axis interference. The FPBA-01 PROFIBUS DP adapter is frequently paired with the FEN-31 in legacy plant environments where PROFIBUS remains the primary fieldbus standard, allowing the ACS880 to participate in existing automation networks without gateway overhead.

Power quality and supply stability are addressed through the ACH580 HVAC drive or dedicated line filters and du/dt filters installed upstream of the ACS880. The FCAN-01 CANopen adapter supports machine-level control networks in packaging lines and material handling systems. For safety-critical applications, the FSO-12 safety functions module works in conjunction with the FEN-31 to implement STO (Safe Torque Off) and SS1 (Safe Stop 1) functions, ensuring that encoder-confirmed speed data is used in safety logic evaluation. Terminal blocks, cable shields, and EMC ferrite cores complete the installation, ensuring that the FEN-31's differential encoder signals remain clean across long cable runs in electrically noisy environments.

Power Generation: In turbine governor control systems, the FEN-31 provides precise shaft speed feedback to the ACS880 drive controlling boiler feed pumps and cooling water circulation. Accurate encoder data ensures that pump speed tracks setpoint commands from the DCS with minimal deviation, supporting grid frequency stability and thermal efficiency targets.

Petrochemical & Oil and Gas: Compressor and pump drives in hazardous area installations rely on the FEN-31 for closed-loop speed regulation. The module's robust signal conditioning handles the long cable distances typical of offshore platforms and refinery motor control centers, where encoder cables may run 50–100 meters from the motor to the drive cabinet.

Water Treatment: Variable speed drives controlling aeration blowers, sludge pumps, and centrifuge drives benefit from the FEN-31's accurate feedback, enabling energy-optimized flow control and reducing mechanical wear through smooth speed ramping. Integration with SCADA via the FENA-21 Ethernet module allows remote monitoring of drive and encoder health.

Mining & Minerals Processing: Conveyor belt drives, crusher drives, and hoist systems in mining operations demand high torque accuracy at low speeds. The FEN-31 enables the ACS880 to deliver full torque from zero speed, a critical requirement for loaded conveyor starts and hoist positioning applications.

Marine Propulsion & Auxiliary Systems: Thruster drives and winch control systems on vessels use the FEN-31 to maintain precise speed and position feedback under variable load conditions. The module's compact plug-in form factor suits the space-constrained drive cabinets typical of marine electrical rooms.

Packaging & Discrete Manufacturing: In servo-like positioning applications on packaging lines, the FEN-31 enables the ACS880 to perform electronic line shafting and registration control, synchronizing multiple drive axes without a dedicated motion controller, reducing system cost and cabinet complexity.

Q1: Is the FEN-31 68978840 compatible with all ACS880 drive frame sizes and option slot configurations? The FEN-31 is designed for ABB ACS880 drives equipped with standard option slots (slot 1, 2, or 3). It is compatible with ACS880-01, ACS880-07, and ACS880-17 variants. Before installation, verify the drive's option slot availability and firmware version to ensure full encoder feedback functionality is enabled. Multiple option modules can coexist in the same drive, allowing the FEN-31 to operate alongside communication adapters such as the FENA-21 or FPBA-01 without conflict.

Q2: What encoder types and signal standards does the FEN-31 support, and how should cable shielding be managed in high-EMI environments? The FEN-31 supports HTL (High Threshold Logic) and TTL (Transistor-Transistor Logic) incremental encoders with differential A, B, and Z channel outputs. For installations in high-EMI environments such as motor control centers or switchgear rooms, use shielded twisted-pair encoder cables with the shield grounded at the drive end only. Maintain physical separation between encoder cables and power cables, and use ferrite cores at the drive entry point to suppress common-mode noise. Maximum recommended encoder cable length is 150 meters for TTL signals and 300 meters for HTL signals.

Q3: What warranty and supply assurance does NANKMOS provide for the FEN-31 68978840, and how is pre-shipment testing conducted? All FEN-31 68978840 units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify encoder signal acquisition, option slot communication, and power supply integrity before dispatch. In-stock units are available for immediate shipment, supporting urgent maintenance and unplanned replacement scenarios. For bulk procurement or project-based supply, contact NANKMOS for lead time confirmation and volume pricing.
