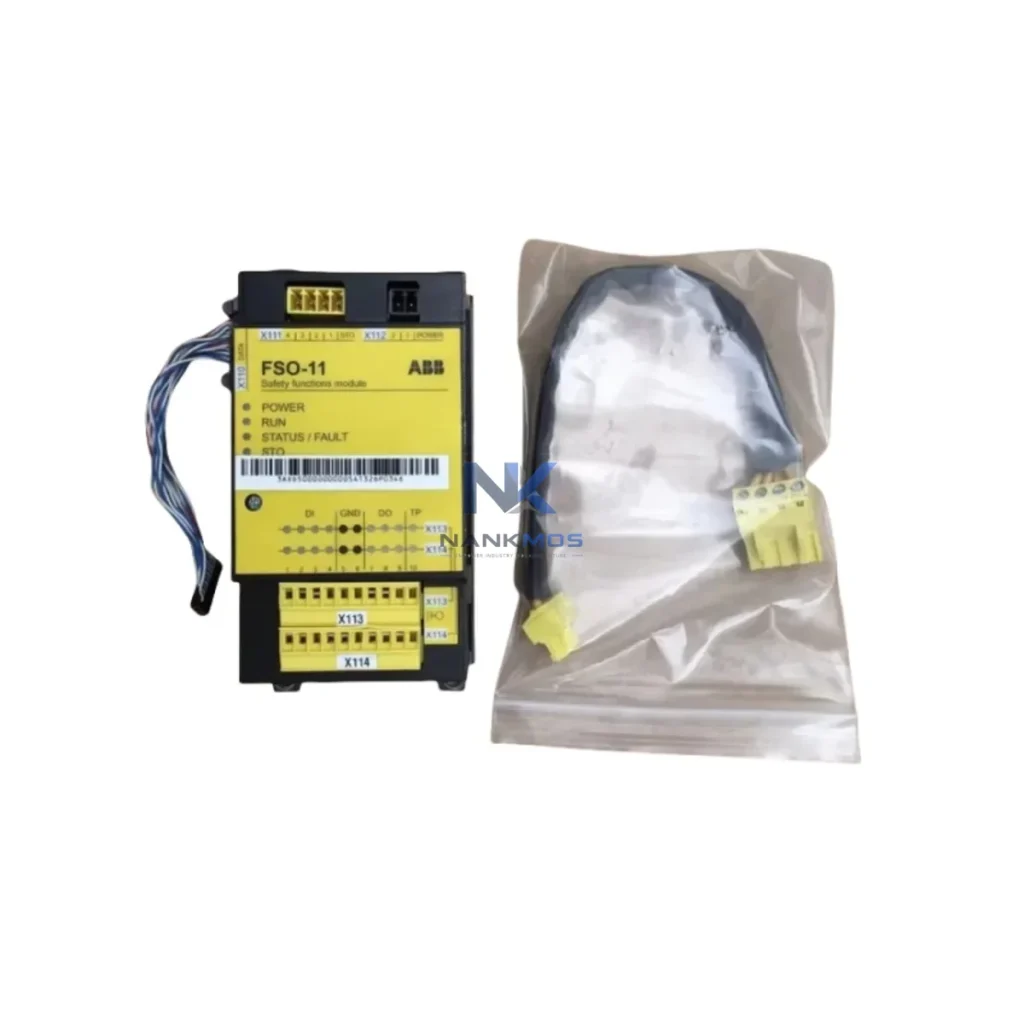

ABB FSO-11 Safety Function Module

Product Details

FSO-11 Product Description

The ABB FSO-11 is a dedicated safety function module engineered for seamless Contextual Integration within ABB's ACS880 and ACS580 variable speed drive platforms. Designed to fulfill IEC 61508 SIL 2 and IEC 62061 requirements, the FSO-11 delivers hardware-enforced safety logic directly at the drive level — eliminating the latency and wiring complexity associated with external safety relays or standalone safety PLCs. In modern industrial control architectures, where functional safety must be distributed across control, I/O, communication, and execution layers simultaneously, the FSO-11 represents a critical node in the safety chain.

Unlike generic safety modules, the FSO-11 is factory-matched to the ACS880 drive's internal control board via a dedicated option slot, ensuring deterministic response times for safety functions including Safe Torque Off (STO), Safe Stop 1 (SS1), Safe Stop 2 (SS2), Safe Operating Stop (SOS), Safe Limited Speed (SLS), Safe Maximum Speed (SMS), Safe Direction (SDI), and Safe Brake Control (SBC). This breadth of integrated safety functions allows engineers to architect multi-zone safety systems without adding external safety logic controllers for each drive axis.

In a layered industrial control system, the FSO-11 operates at the intersection of the control layer and the execution layer. The ACS880 drive — acting as the execution layer — receives motion commands from an upper-level PLC or DCS such as the ABB AC500 Safety PLC or ABB System 800xA DCS. The FSO-11 intercepts safety-critical signals from the safety PLC via FSoE (Fail-Safe over EtherCAT) or hardwired STO inputs, and enforces the appropriate safe state at the motor shaft level within the required response time. This architecture ensures that safety logic is enforced at the closest possible point to the physical process, reducing the risk of signal propagation failures across long cable runs or fieldbus segments.

From a communication layer perspective, the FSO-11 supports FSoE protocol over the FENA-21 EtherNet/IP and Modbus TCP adapter or the FEIP-21 PROFINET adapter, enabling integration into safety-rated fieldbus networks without additional safety gateways. When paired with the FENA-21 communication adapter and an ABB AC500-S Safety PLC, the FSO-11 participates in a fully certified FSoE safety network, where each node's safety integrity is independently verified and monitored. This eliminates the need for dedicated hardwired safety loops between the safety PLC and each drive, significantly reducing panel wiring density and commissioning time.

At the I/O layer, the FSO-11 provides two configurable safe digital inputs (SDI1, SDI2) and two safe digital outputs (SDO1, SDO2), allowing direct connection to safety-rated sensors such as light curtains, emergency stop buttons, door interlock switches, and two-hand control devices. These I/O channels are independently monitored for short-circuit, cross-fault, and open-circuit conditions, with diagnostic coverage exceeding 99% as required for SIL 2 applications. The module's self-diagnostic routines run continuously in the background, reporting fault codes to the ACS880 drive's control panel (ACS-AP-I or ACS-AP-W) and to the connected SCADA or DCS via the drive's fieldbus interface.

For power layer considerations, the FSO-11 draws its operating power directly from the ACS880 drive's internal 24 VDC auxiliary supply, eliminating the need for a separate external power feed to the safety module. This simplifies panel design and reduces the number of power distribution terminals required in the control cabinet. In redundant power architectures — where dual 24 VDC PSU modules such as the ABB CP-E 24/5.0 or CP-E 24/10.0 are used — the FSO-11 benefits from the drive's internal power monitoring, ensuring that a single power supply failure does not compromise the safety function's availability.

In HMI and diagnostic layer integration, the FSO-11's safety status is fully visible through the ACS880 drive's primary control panel and through ABB's Drive Composer Pro commissioning tool. Safety function parameters, response time settings, and diagnostic history logs can be read and written via the Drive Composer Pro interface over USB or Ethernet, enabling rapid commissioning and fault analysis without requiring physical access to the drive's option slot. For remote monitoring applications, the FSO-11's safety status signals can be mapped to the drive's fieldbus process data words, making them available to the plant's SCADA system or historian in real time.

The FSO-11 is particularly well-suited for applications in the manufacturing, energy, petrochemical, water treatment, mining, and metals industries, where functional safety requirements are mandated by local regulations and international standards. In packaging line applications, the FSO-11 enables zone-selective SLS and SOS functions, allowing operators to enter a machine zone at reduced speed without triggering a full production stop. In pump and fan applications within water treatment or HVAC systems, the FSO-11's STO function provides a certified means of preventing unexpected motor restart during maintenance, replacing traditional mechanical lockout-tagout procedures with an electronically verified safe state.

Every ABB FSO-11 unit supplied by NANKMOS undergoes a comprehensive pre-shipment functional test covering STO activation response time, safe input channel diagnostics, FSoE communication handshake verification, and parameter checksum validation. Units are supplied with original ABB firmware, factory calibration data, and a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. NANKMOS maintains ready stock of FSO-11 modules to support urgent project timelines, with same-day dispatch available for in-stock units.

The FSO-11 achieves its full architectural value when deployed as part of a coordinated ABB automation platform. In a typical ACS880 multi-drive cabinet installation, the FSO-11 works in concert with the FENA-21 EtherNet/IP and Modbus TCP adapter to carry FSoE safety telegrams alongside standard process data on a single Ethernet cable, eliminating the need for a separate safety fieldbus infrastructure. The FEIP-21 PROFINET adapter serves the same role in PROFINET-based architectures, enabling the FSO-11 to participate in PROFIsafe safety networks managed by a Siemens S7-300F or S7-1500F safety PLC without requiring ABB-proprietary safety controllers.

At the control layer, the ABB AC500-S Safety PLC (PM573-ETH or PM591-ETH with SM560-S safety module) acts as the FSoE master, coordinating safety functions across multiple FSO-11 nodes in a multi-axis drive system. The AC500-S communicates with the FSO-11 via FSoE over EtherNet/IP, with each FSO-11 assigned a unique FSoE address configured through Drive Composer Pro. For non-safety process control, the ABB AC500 PM573-ETH PLC handles standard I/O coordination, speed references, and process interlocks, communicating with the ACS880 drive via Modbus TCP or PROFINET.

In the power layer, ABB CP-E 24/10.0 DIN rail power supply modules provide the 24 VDC auxiliary power for the ACS880 control board and FSO-11, with redundant PSU configurations using the ABB CP-A RU redundancy module to ensure uninterrupted safety function availability during a single PSU failure. At the I/O layer, ABB TU515 and TU516 terminal units paired with S800 I/O modules (AI810, DI810, DO810) handle analog and digital process signals, feeding process data to the AC500 PLC while the FSO-11 independently monitors safety-rated sensor inputs. For HMI integration, the ABB CP600 series HMI panels (CP607 or CP615) display drive status, safety function state, and fault history, providing operators with a unified view of the drive and safety system without requiring a separate safety HMI terminal.

Manufacturing & Packaging Lines: In high-speed packaging machinery, the FSO-11 enables zone-selective SLS (Safe Limited Speed) functions, allowing maintenance personnel to enter a machine zone at a certified reduced speed (e.g., 10% of nominal) without triggering a full line stop. The SOS (Safe Operating Stop) function holds the motor shaft in a stationary position while the drive remains energized, enabling rapid restart after the operator exits the zone — reducing production downtime compared to traditional STO-based safety stops that require a full drive restart sequence.

Power Generation & Energy: In wind turbine pitch control and hydroelectric generator excitation systems, the FSO-11's STO and SS1 functions provide certified means of stopping rotor motion during grid fault events or emergency shutdown sequences. The FSoE communication link ensures that safety commands from the plant's safety PLC reach the drive within the required response time, even under high network load conditions.

Petrochemical & Process Industries: In compressor and pump drive applications within ATEX Zone 2 environments, the FSO-11's STO function replaces traditional contactor-based motor isolation, reducing the number of high-current switching devices in the control panel and improving mean time between failures (MTBF) for the safety circuit. The FSO-11's diagnostic outputs can be wired to the plant's safety instrumented system (SIS) to provide real-time confirmation of the safe state.

Water Treatment & HVAC: In variable-flow pump and fan systems, the FSO-11's STO function provides a certified means of preventing unexpected motor restart during filter maintenance or impeller inspection, replacing mechanical lockout-tagout procedures with an electronically verified and logged safe state that satisfies OSHA 1910.147 and IEC 60204-1 requirements.

Mining & Metals: In conveyor belt and hoist drive applications, the FSO-11's SBC (Safe Brake Control) function monitors the mechanical brake engagement signal and verifies that the brake is applied before releasing the STO signal, preventing uncontrolled load movement during maintenance or emergency stops. The SS1 (Safe Stop 1) function provides a controlled deceleration ramp before applying STO, protecting mechanical components from shock loads associated with abrupt torque removal.

Q1: Is the FSO-11 compatible with both ACS880 single drives and ACS880 multi-drive cabinet systems?Yes. The FSO-11 is compatible with ACS880-01 single drives (frame sizes R1–R9), ACS880-07 cabinet drives, and ACS880-17 regenerative drives. In multi-drive cabinet systems, each drive module requires its own FSO-11 module installed in the drive's option slot. FSoE addressing is configured individually per drive via Drive Composer Pro, allowing the AC500-S safety PLC to address each FSO-11 independently within the same FSoE network segment.

Q2: Can the FSO-11 be used with a Siemens S7-1500F safety PLC via PROFINET/PROFIsafe?Yes, when paired with the FEIP-21 PROFINET adapter installed in the ACS880's option slot 2, the FSO-11 can participate in a PROFIsafe F-network managed by a Siemens S7-1500F or S7-300F safety PLC. The FSO-11 appears as a standard PROFIsafe F-device in the TIA Portal hardware configuration. Safety function parameters are still configured via ABB Drive Composer Pro, while the PROFIsafe F-address and watchdog time are set in TIA Portal. This cross-vendor integration is fully certified and does not require any additional safety gateways.

Q3: What does the 12-Month Warranty cover, and what is NANKMOS's stock availability policy for FSO-11?The 12-Month Warranty provided by NANKMOS covers manufacturing defects, firmware integrity failures, and functional failures of the FSO-11 module under normal operating conditions as defined in ABB's FSO-11 User Manual (3AXD50000015612). Warranty claims are processed within 5 business days, with advance replacement units dispatched from NANKMOS's warehouse upon fault confirmation. NANKMOS maintains a dedicated safety module inventory buffer for FSO-11 to support urgent project and MRO requirements, with same-day dispatch for in-stock units and a lead time commitment of 3–7 business days for replenishment orders. All units are pre-shipment tested and supplied with original ABB documentation and firmware.
