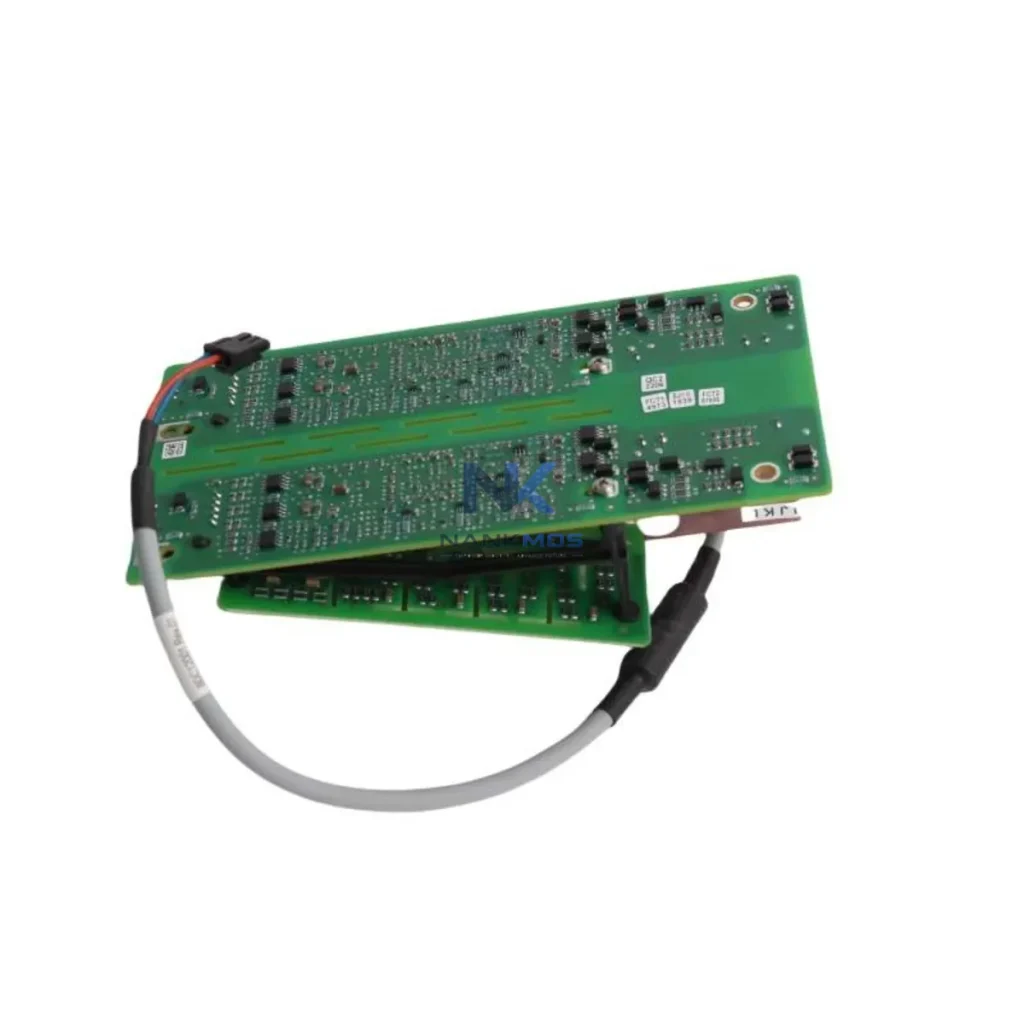

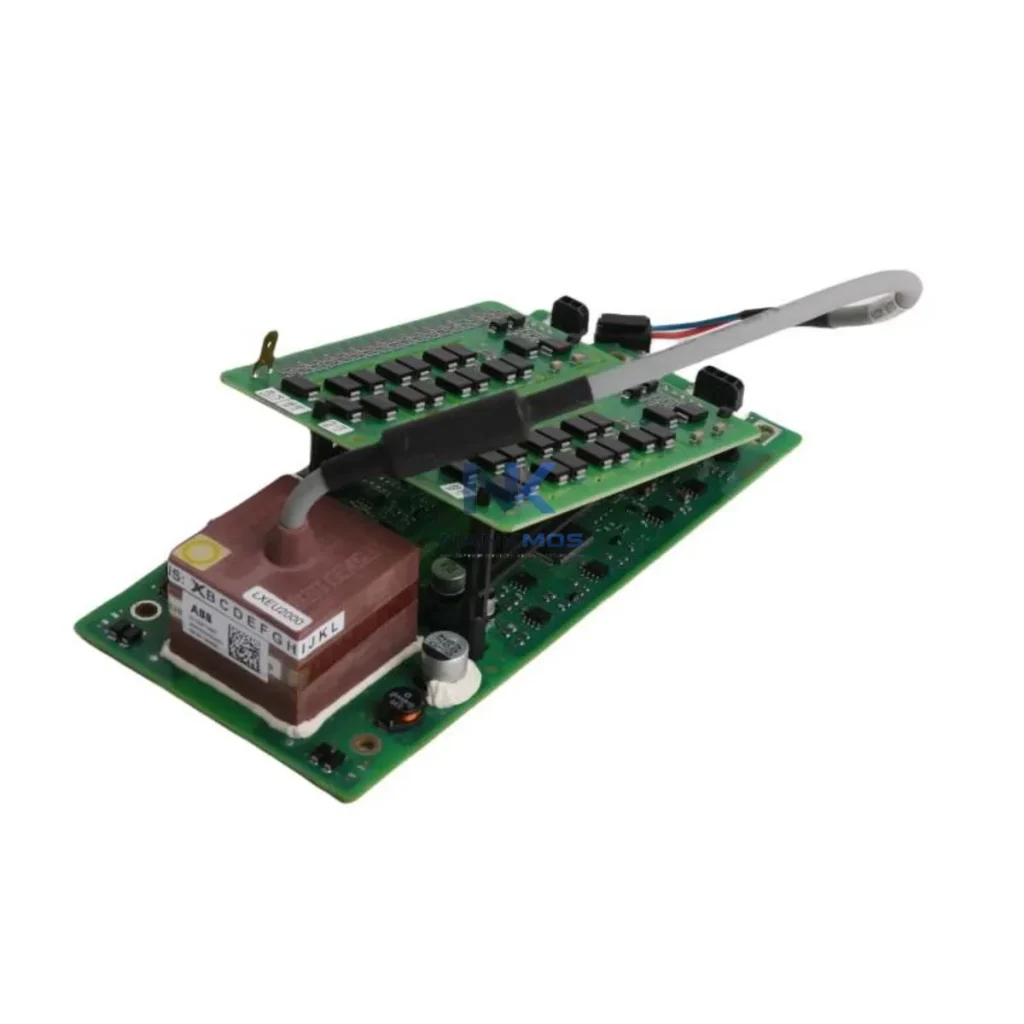

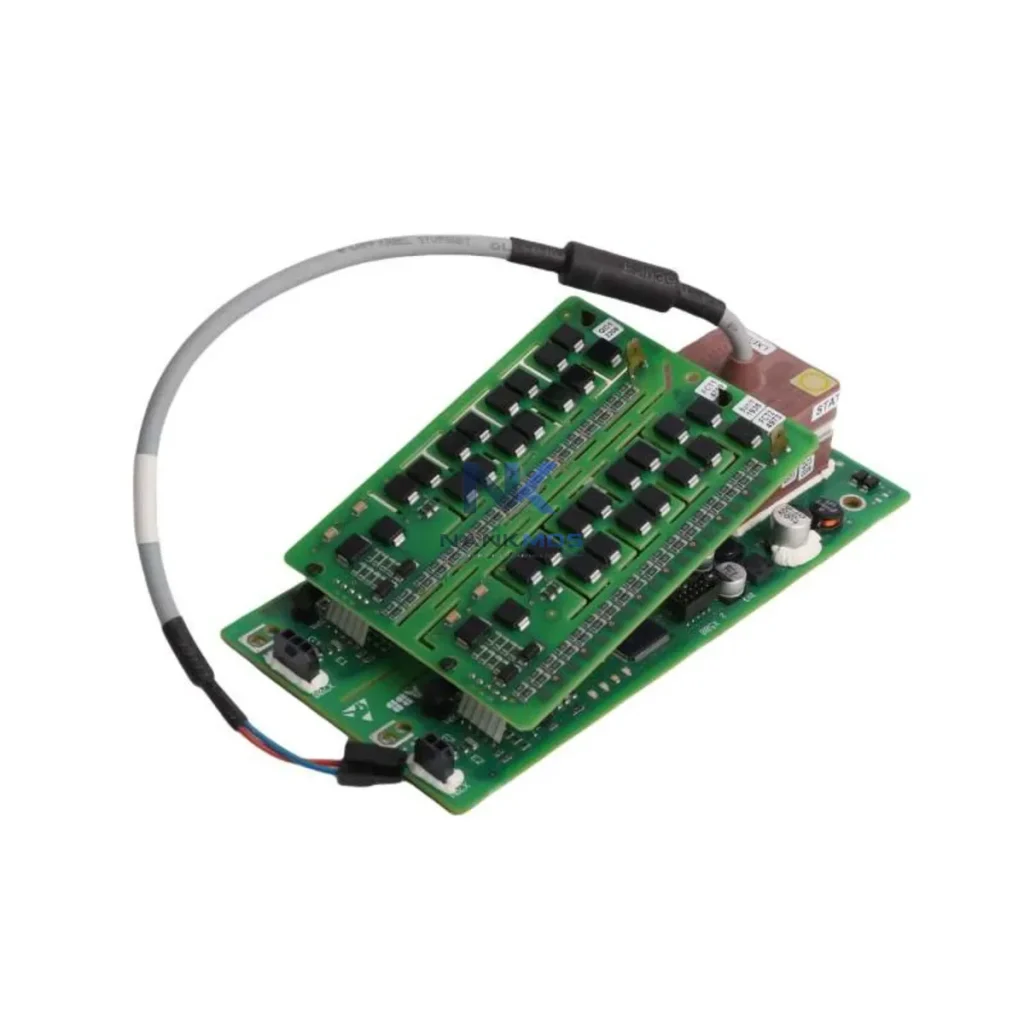

ABB GDC806C0003,3BHE044249R0003 Gate Driver Module

Product Details

GDC806C0003,3BHE044249R0003 Product Description

The ABB GDC806C0003 (alternate part number 3BHE044249R0003) is a precision gate driver module engineered for deployment within ABB UNITROL excitation and power conversion architectures. Designed to interface directly with thyristor and IGBT power stacks, this module delivers deterministic gate pulse timing, robust isolation, and fault-tolerant signal conditioning across multi-layer industrial control systems. Its role spans the power electronics layer, the control signal layer, and the protection layer — making it a critical node in any high-availability rotating machine or grid-tied converter installation.

In modern industrial automation, no component operates in isolation. The GDC806C0003 is conceived as a contextually integrated element within a broader control hierarchy that includes excitation controllers, AVR boards, firing pulse units, power supply modules, and supervisory SCADA systems. Its gate drive outputs are synchronized with upstream firing angle commands from the UNITROL 5000 or UNITROL 6000 excitation controller, ensuring phase-accurate thyristor triggering across all six pulse positions of a three-phase bridge rectifier. This synchronization is fundamental to voltage regulation stability, reactive power control, and generator protection in power plant and industrial drive applications.

The GDC806C0003 achieves its full performance potential when deployed as part of a coherent ABB UNITROL excitation system architecture. At the control layer, the UNITROL 5000 AVR board or UNITROL 6000 excitation controller generates firing angle references that are transmitted to the gate driver via the internal rack backplane. The SDCS-CON-4 control board or equivalent firing pulse unit coordinates the phase-locked loop (PLL) synchronization, ensuring that gate pulses are aligned with the AC supply frequency within microsecond tolerances.

Power supply integrity is maintained by the UNITROL PSTB power supply module, which provides regulated DC rails to both the control electronics and the gate driver isolation circuits. In redundant excitation configurations, a secondary UNITROL backup excitation channel or SDCS-PIN-205 power interface board can be paralleled to ensure uninterrupted gate drive capability during primary channel maintenance or fault conditions.

At the I/O and signal conditioning layer, the UNITROL IOEC I/O extension module aggregates analog and digital feedback signals — including thyristor junction temperature, DC bus voltage, and field current feedback — and routes them to the AVR for closed-loop regulation. The GDC806C0003 receives its enable and inhibit commands from this I/O layer, allowing the protection system to immediately suppress gate pulses upon detection of overcurrent, overvoltage, or thermal fault conditions.

For communication and supervisory integration, the UNITROL platform supports PROFIBUS DP, Modbus RTU/TCP, and IEC 61850 protocol gateways, enabling the excitation system — including gate driver status and fault registers — to be monitored and commanded from a plant-level DCS (Distributed Control System) or SCADA platform. The ABB AC800M controller or equivalent PLC can serve as the supervisory node, coordinating excitation response with turbine governor control, load dispatch, and grid protection relays.

In the HMI layer, the ABB Panel 800 operator terminal or a third-party industrial HMI provides real-time visualization of excitation current, field voltage, gate driver status, and alarm history. This visibility is essential during commissioning, load testing, and scheduled maintenance intervals, allowing engineers to verify gate pulse symmetry and firing angle accuracy without interrupting production.

Power Generation: In thermal, hydro, and gas turbine power plants, the GDC806C0003 drives the thyristor bridge of the generator excitation system, regulating terminal voltage and reactive power output in response to AVR commands. Its precise gate timing ensures stable voltage regulation under load transients, grid disturbances, and generator synchronization events.

Petrochemical & Oil and Gas: Large synchronous motors driving compressors, pumps, and blowers in refinery and LNG plant environments rely on excitation systems equipped with gate driver modules of this class. The GDC806C0003 supports continuous duty operation in high-ambient-temperature control rooms and MCC enclosures, with galvanic isolation protecting control electronics from high-voltage transients on the power bus.

Water Treatment & Pumping Stations: Municipal water supply and wastewater treatment facilities operating large synchronous pump motors benefit from the modular, rack-based architecture of the UNITROL excitation system. The GDC806C0003 enables rapid module swap during maintenance windows, minimizing pump downtime and supporting 24/7 operational continuity.

Mining & Metallurgy: Winding engines, ball mills, and ore conveyors driven by synchronous motors in mining operations demand excitation systems with high fault tolerance and rapid fault recovery. The gate driver's integrated protection inhibit function allows the excitation system to respond to motor fault conditions within milliseconds, protecting both the motor and the driven load.

Marine Propulsion & Offshore: Diesel-electric vessels and offshore platform power systems using synchronous generators and shaft generators integrate UNITROL excitation systems for voltage regulation and reactive power sharing between parallel generators. The GDC806C0003 supports the demanding vibration, humidity, and temperature cycling conditions of marine electrical rooms.

Q1: Is the GDC806C0003 compatible with both UNITROL 5000 and UNITROL 6000 excitation platforms? The GDC806C0003 is designed for deployment within the ABB UNITROL excitation product family. Compatibility with a specific UNITROL platform version depends on the rack configuration, backplane revision, and firmware version of the excitation controller. We recommend cross-referencing the module's hardware revision against the UNITROL system bill of materials or contacting our technical team with your excitation system nameplate data to confirm direct interchangeability. Our pre-shipment testing protocol validates gate pulse output characteristics prior to dispatch, and all units are covered by a 12-Month Warranty.

Q2: What is the recommended procedure for replacing a GDC806C0003 in a live excitation system? Module replacement should be performed during a planned maintenance window with the excitation system in manual control or with the generator offline. The replacement procedure involves de-energizing the gate driver supply rails, extracting the module from the rack backplane, inserting the replacement unit, and verifying gate pulse symmetry and firing angle calibration using the UNITROL commissioning tool or an oscilloscope connected to the thyristor gate-cathode terminals. All replacement modules supplied by NANKMOS are pre-tested and shipped with a 12-Month Warranty, reducing commissioning risk and ensuring immediate operational readiness.

Q3: How does NANKMOS ensure long-term supply availability for the GDC806C0003? NANKMOS maintains dedicated inventory of ABB UNITROL excitation modules, including the GDC806C0003 / 3BHE044249R0003, to support both planned maintenance programs and emergency replacement requirements. Our global logistics network enables fast dispatch to power plants, industrial facilities, and OEM integrators worldwide. Each unit undergoes pre-shipment functional testing and is covered by a 12-Month Warranty, providing procurement teams with the supply assurance and quality confidence required for critical infrastructure maintenance planning.
