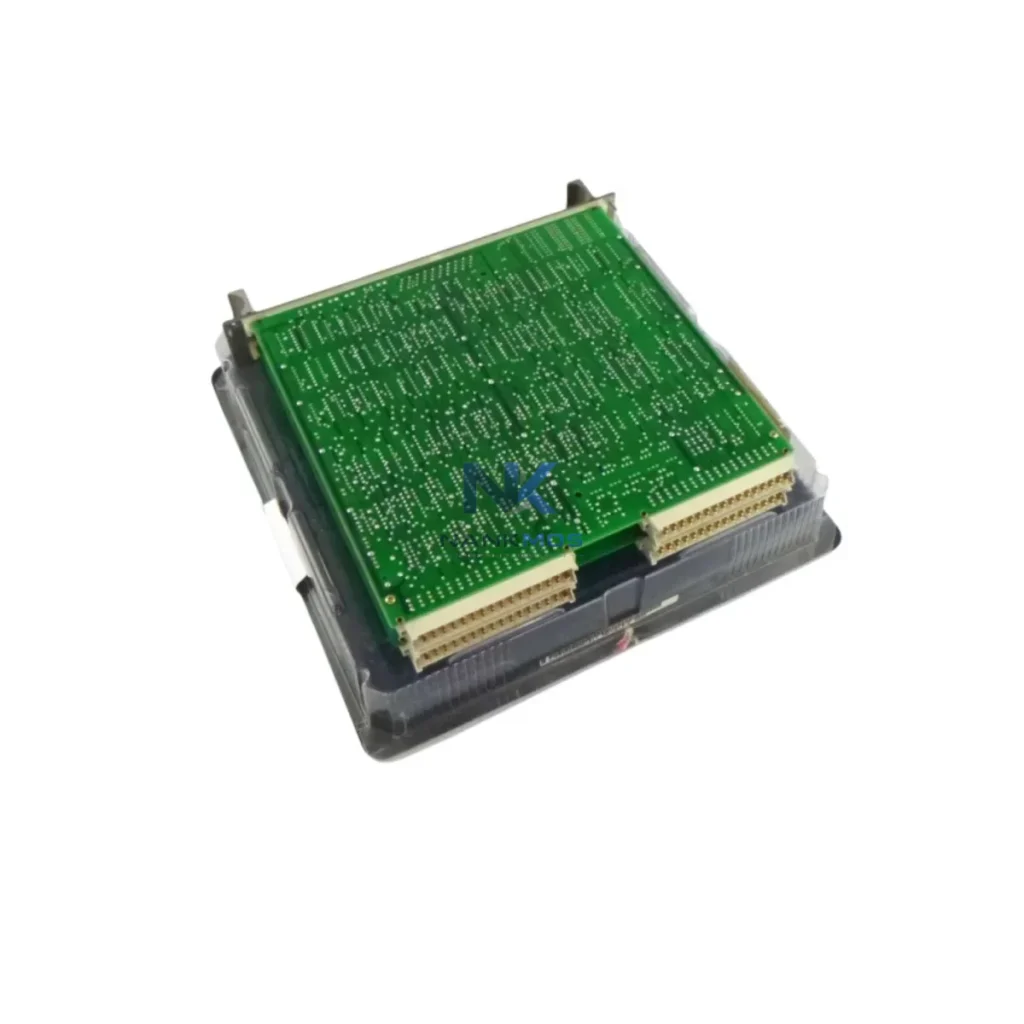

ABB GJR234100R1210 Communication Gateway

Product Details

GJR234100R1210 Product Description

The ABB GJR234100R1210 is a high-performance industrial network interface module engineered for the ABB Symphony Series distributed control architecture. Designed to bridge field-level devices with supervisory systems, this communication gateway delivers deterministic, low-latency data exchange across multi-protocol industrial environments — making it a foundational component in smart factory data link design. Whether deployed in power generation, oil & gas processing, chemical manufacturing, or discrete automation, the GJR234100R1210 ensures that every node in your control network communicates with precision and reliability.

In a modern smart factory, data integrity across every layer of the automation pyramid is non-negotiable. The ABB GJR234100R1210 sits at the heart of this architecture, acting as the protocol translation and network bridging engine between field instrumentation and upper-level control systems.

At the field level, sensors — including pressure transmitters, flow meters, and temperature probes — generate continuous process signals. These signals are collected by remote I/O modules and marshalled through PROFIBUS DP segments, where the GJR234100R1210 serves as the PROFIBUS master or slave interface, depending on the network topology. The module's deterministic communication cycle ensures that process values are delivered to the ABB Symphony DCS controller without jitter or data loss, even under high-load network conditions.

Within the Symphony DCS backbone, the GJR234100R1210 interfaces directly with ABB Harmony controllers and Advant OCS platforms, enabling seamless tag mapping and real-time process variable synchronization. Alongside the GJR234100R1210, companion modules such as the ABB GJR234100R0100 I/O interface card and the ABB DSAI130 analog input module are commonly deployed to extend the data acquisition layer across multi-loop control strategies.

For sites requiring Modbus TCP connectivity — such as linking legacy PLCs, third-party variable frequency drives (VFDs), or motor control centers to the DCS — the GJR234100R1210 provides transparent Modbus RTU-to-TCP conversion. This allows energy meters, soft starters, and intelligent motor protection relays to report operational data directly into the SCADA historian without requiring additional protocol converters.

At the network transport layer, managed industrial Ethernet switches — such as those in the ABB EthernetIP family or equivalent PROFINET-capable switches — carry the aggregated data upstream to the plant SCADA server. The GJR234100R1210's Ethernet port supports standard TCP/IP framing, enabling integration with OPC-UA servers, MES platforms, and cloud-based data visualization dashboards. Operators at HMI workstations running ABB 800xA or third-party SCADA platforms receive live process data with sub-second refresh rates, supporting real-time alarm management and trend analysis.

Edge gateway devices deployed at the cell controller level — such as ABB Edge Connect modules or compatible IIoT gateways — can subscribe to data published by the GJR234100R1210 via MQTT or OPC-UA, forwarding normalized datasets to cloud analytics platforms for predictive maintenance modeling. This positions the GJR234100R1210 not merely as a legacy communication bridge, but as an active participant in Industry 4.0 data pipelines.

For power distribution and energy monitoring applications, the GJR234100R1210 can interface with ABB REF615 protection relays and ABB M2M Ethernet gateways, enabling substation automation data to flow into the plant-wide SCADA system. Combined with ABB AC500 PLCs handling discrete logic and ABB ACS880 variable speed drives reporting motor performance data, the GJR234100R1210 creates a unified data fabric that spans from field device to enterprise dashboard — all within a single, coherent network architecture.

Protocol Fragmentation: Many industrial sites operate a mix of legacy PROFIBUS DP segments, Modbus RTU loops, and newer Industrial Ethernet zones. The GJR234100R1210 resolves this fragmentation by providing native multi-protocol support, eliminating the need for standalone protocol converters that introduce additional failure points and maintenance overhead.

Data Silos and Visibility Gaps: Without a capable network interface at the DCS level, field device data often remains trapped in isolated control loops, invisible to SCADA historians and MES systems. The GJR234100R1210 breaks down these silos by providing structured, tagged data delivery to upper-level systems, enabling plant-wide KPI dashboards and OEE calculations based on live process data.

Remote Monitoring and Diagnostics: Maintenance teams at distributed sites — refineries, water treatment plants, power substations — require remote access to device health data without dispatching field technicians. The GJR234100R1210 supports remote diagnostic readback through its SCADA interface, allowing engineers to monitor communication status, error counters, and network health from the control room or via VPN-connected engineering workstations.

Production Line Transparency: Real-time visibility into production line status — cycle times, batch completions, alarm states — depends on reliable data delivery from field devices to HMI and MES layers. The GJR234100R1210 ensures that process events are timestamped and delivered with sequence-of-events (SOE) accuracy, supporting root cause analysis and regulatory compliance reporting.

Alarm Tracking and System Expansion: As production capacity grows, new field devices and control loops must be integrated without disrupting existing network segments. The GJR234100R1210's modular design within the Symphony architecture supports incremental network expansion, allowing new PROFIBUS slaves or Modbus devices to be added to the network without reconfiguring the entire communication backbone.

Q1: What communication protocols does the ABB GJR234100R1210 support, and is it compatible with third-party PLCs? The GJR234100R1210 supports PROFIBUS DP, Modbus RTU, Modbus TCP, and Industrial Ethernet protocols. It is compatible with third-party PLCs and SCADA systems that support these standard protocols, making it suitable for multi-vendor automation environments beyond the ABB Symphony ecosystem.

Q2: How does the GJR234100R1210 handle communication latency in time-critical control loops? The module is engineered for deterministic communication with fixed cycle times on PROFIBUS DP segments, ensuring that process variable updates reach the DCS controller within defined latency bounds. For Modbus TCP connections, polling intervals are configurable to balance network load against data freshness requirements.

Q3: Can the GJR234100R1210 be integrated into an existing SCADA or HMI system without replacing the current DCS infrastructure? Yes. The GJR234100R1210 is designed for incremental integration. It can be added to an existing Symphony DCS backplane or connected via its Ethernet port to a SCADA server running OPC-DA or OPC-UA, providing data access to HMI platforms without requiring a full DCS migration or network redesign.

Q4: What does the 12-month warranty cover, and how does NANKMOS support pre-shipment testing? Every ABB GJR234100R1210 unit supplied by NANKMOS is covered by a 12-month warranty against manufacturing defects and functional failures. Prior to shipment, each unit undergoes functional verification testing to confirm communication interface integrity and protocol response. For technical support, warranty claims, or pre-sales configuration guidance, contact NANKMOS at [email protected] or +86 18359268345.
