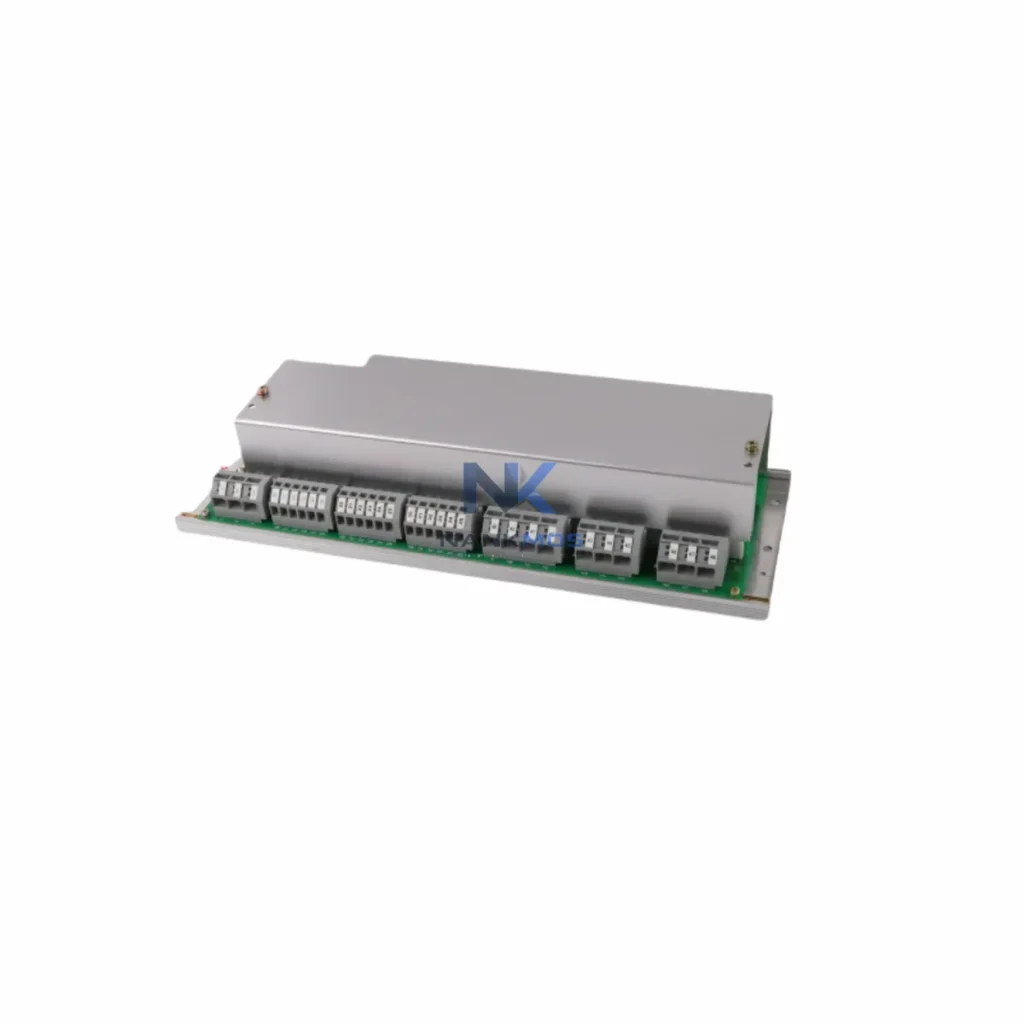

ABB HIEE205014R0001 UNC4673AV1 Analog Measuring Card

Product Details

HIEE205014R0001 UNC4673AV1 Product Description

The ABB HIEE205014R0001 UNC4673AV1 is a precision analog measuring card engineered for deployment within ABB's Unitrol excitation and voltage regulation platform. Designed to operate as a core signal acquisition module within the Automatic Voltage Regulator (AVR) control layer, this card delivers high-accuracy analog input processing that underpins generator excitation stability, reactive power management, and grid synchronization across power generation and heavy industrial environments. Its role within the broader control architecture extends well beyond isolated signal measurement — it functions as a critical interface between the physical electrical plant and the digital control domain, enabling real-time feedback loops that govern generator field current, terminal voltage, and power factor correction.

In modern power plant automation, the integrity of the analog measurement layer directly determines the responsiveness and reliability of the entire excitation control chain. The HIEE205014R0001 UNC4673AV1 is purpose-built to meet the demanding signal fidelity requirements of the Unitrol 5000 and Unitrol 6000 series AVR platforms, where measurement latency, noise immunity, and channel isolation are non-negotiable. By maintaining consistent analog signal conditioning across all operating conditions — including high-vibration turbine halls, thermally variable switchgear rooms, and EMI-dense generator control panels — this card ensures that the upstream control processors receive clean, calibrated data at all times.

The HIEE205014R0001 UNC4673AV1 does not operate in isolation. Its value is fully realized when considered within the layered architecture of the ABB Unitrol excitation system and the wider plant automation infrastructure. At the control layer, the card interfaces directly with the Unitrol processor board — such as the HIEE300936R0001 UNS0881B main CPU card — which executes the AVR regulation algorithms and issues field current setpoints based on the analog feedback this measuring card provides. The accuracy of the UNC4673AV1's signal conditioning directly determines the stability margin of the closed-loop voltage regulation.

At the I/O and signal acquisition layer, the UNC4673AV1 works in conjunction with other Unitrol I/O cards such as the HIEE205015R0001 UNC4674AV1 digital I/O module, which handles binary status signals, protection relay interlocks, and start/stop command interfaces. Together, these two cards form the complete input signal matrix for the Unitrol regulation core. For installations requiring redundant measurement paths — common in large hydro, thermal, or nuclear generating units — a secondary analog measuring card may be installed in a hot-standby configuration, with automatic switchover managed by the Unitrol supervisory logic.

The power supply layer is equally critical to measurement integrity. The HIEE300024R0001 UNS0868A power supply module provides the regulated DC rails that feed the analog front-end circuitry of the UNC4673AV1. Any ripple or transient on the supply rail will directly degrade measurement accuracy, making the quality of the power supply module a direct determinant of AVR regulation performance. In multi-exciter installations, the HIEE300025R0001 redundant power supply card may be deployed alongside the primary unit to ensure uninterrupted measurement operation during maintenance windows or supply faults.

At the communication and supervisory layer, the Unitrol system connects to the plant DCS or SCADA platform via the HIEE300937R0001 UNS0882B communication interface card, which supports MODBUS RTU, IEC 60870-5-103, and proprietary ABB protocols. This card relays the analog measurement data processed by the UNC4673AV1 upward to the plant historian, alarm management system, and operator HMI — typically an ABB CP600 series panel or a third-party SCADA workstation running ABB's System 800xA platform. The seamless data flow from analog measurement through to the HMI layer is what enables operators to monitor generator excitation state in real time and respond to grid disturbances within the required response time windows.

For protection coordination, the analog measurements from the UNC4673AV1 feed into the generator protection relay — commonly an ABB REG670 or REG216 generator protection IED — which uses terminal voltage and field current data to execute under-excitation limiting, over-excitation protection, and loss-of-field detection functions. This tight integration between the AVR measuring card and the protection layer is a defining characteristic of well-engineered excitation system architecture, ensuring that protection functions are always based on the same high-quality signal source as the regulation functions.

At the field and execution layer, the excitation output from the Unitrol system drives the generator field winding through a thyristor power converter or IGBT-based static exciter. The dynamic response of this converter — its rise time, current ripple, and thermal management — is directly influenced by the quality of the analog feedback provided by the HIEE205014R0001 UNC4673AV1. A well-calibrated measuring card enables tighter AVR gain settings, faster transient response, and reduced voltage overshoot during load rejection events.

Power Generation (Thermal, Hydro, Gas Turbine): The HIEE205014R0001 UNC4673AV1 is most commonly deployed in synchronous generator excitation systems at thermal power stations, hydroelectric plants, and gas turbine peaking units. In these environments, the card's analog measurement channels monitor generator terminal voltage, stator current, and reactive power output, providing the AVR with the real-time feedback required to maintain voltage stability during load swings, grid disturbances, and islanding events. Its compatibility with the Unitrol 5000 and 6000 platforms makes it a standard replacement and upgrade component for aging excitation systems across the global installed base of ABB-equipped generating units.

Industrial Power Systems (Steel, Petrochemical, Mining): Large industrial facilities operating captive power plants or synchronous motor drives also deploy Unitrol-based excitation systems, where the UNC4673AV1 provides the same high-accuracy analog measurement function in a more compact, process-integrated context. In steel mill drives, petrochemical compressor trains, and mine hoist systems, the excitation system must respond rapidly to load transients while maintaining power factor within utility contract limits — a requirement that places high demands on the analog measurement accuracy of the AVR input card.

Offshore and Marine Power Systems: Offshore platforms and large vessels operating closed-bus power systems with multiple synchronous generators rely on precise AVR coordination to maintain bus voltage stability during load shedding and generator paralleling operations. The HIEE205014R0001 UNC4673AV1, as part of the Unitrol excitation architecture, supports the reactive power sharing and voltage droop functions required for stable multi-generator operation in these isolated grid environments.

Renewable Energy Integration (Pumped Storage, Synchronous Condensers): As grid operators deploy synchronous condensers and pumped storage units to provide reactive power support and inertia to grids with high renewable penetration, the Unitrol excitation system — and by extension the UNC4673AV1 measuring card — plays a growing role in grid stability infrastructure. Accurate analog measurement of reactive power output is essential for the AVR to execute the fast reactive power dispatch commands issued by grid operators during frequency events.

Q1: Is the HIEE205014R0001 UNC4673AV1 compatible with both Unitrol 5000 and Unitrol 6000 platforms, and can it be used as a direct replacement in existing installations?

The UNC4673AV1 analog measuring card is designed for the ABB Unitrol excitation platform family. Compatibility with a specific Unitrol variant — 5000 or 6000 — depends on the backplane revision, firmware version, and system configuration of the target installation. Before installation, the existing Unitrol system documentation and card slot assignment should be reviewed to confirm mechanical and electrical compatibility. NANKMOS recommends cross-referencing the original system BOM and consulting the Unitrol hardware manual for the specific platform revision. Our technical team can assist with compatibility verification prior to dispatch.

Q2: What pre-shipment testing and quality assurance procedures are applied to the HIEE205014R0001 UNC4673AV1 before delivery, and what does the 12-Month Warranty cover?

Every HIEE205014R0001 UNC4673AV1 unit dispatched by NANKMOS undergoes functional verification and visual inspection prior to shipment. The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of dispatch. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the specified environmental envelope. Warranty claims are processed through our standard RMA procedure, with replacement or repair completed within the agreed service window. Detailed warranty terms are provided with each shipment.

Q3: What is the recommended approach for long-term spare parts management and inventory planning for Unitrol excitation system cards such as the UNC4673AV1?

For power plants and industrial facilities operating ABB Unitrol excitation systems, maintaining a strategic spare card inventory is strongly recommended given the long operational lifecycles of generating assets (20–40 years) and the potential for extended lead times on legacy ABB excitation components. A minimum of one spare UNC4673AV1 analog measuring card per excitation system is advisable, with additional spares for critical or multi-unit installations. NANKMOS maintains in-stock inventory of Unitrol excitation cards and can support both immediate replacement requirements and planned maintenance procurement programs. Contact our team to discuss volume pricing and long-term supply agreements.
