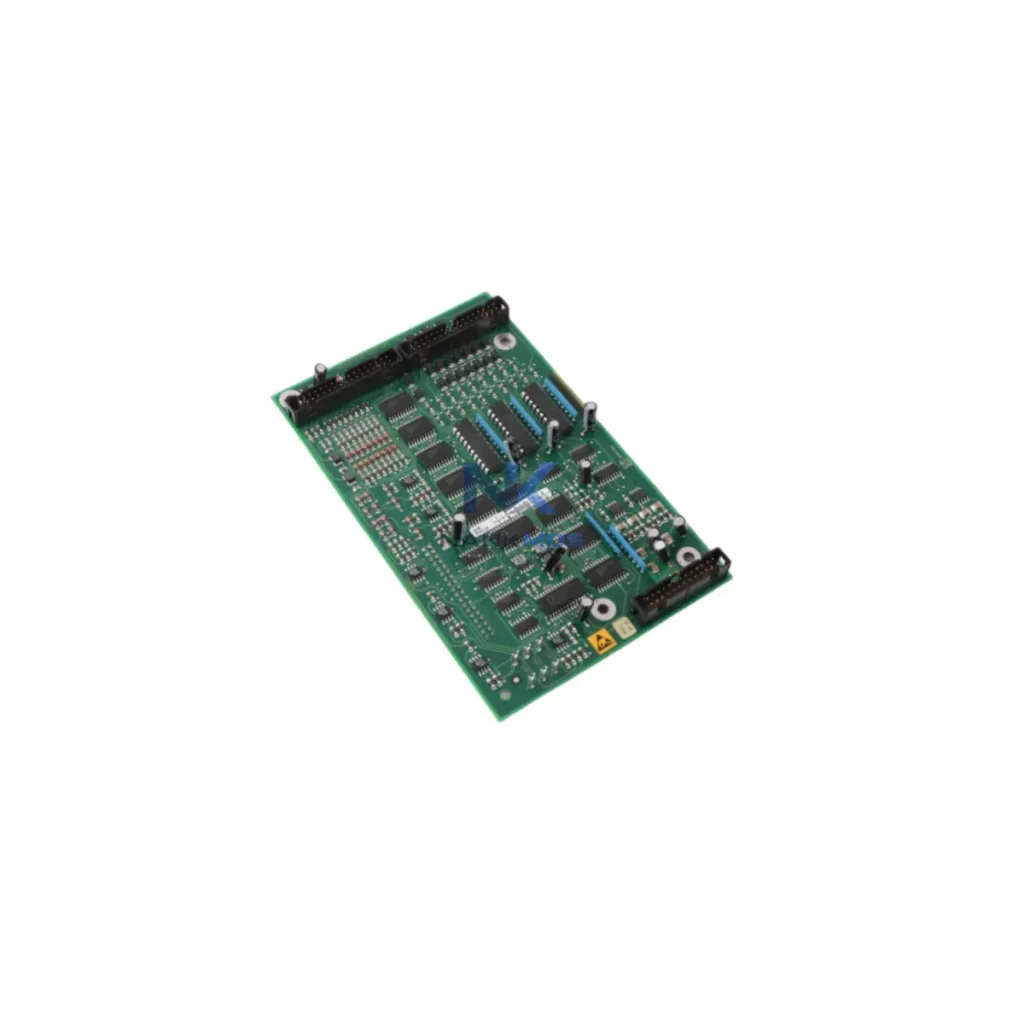

ABB HIEE405246R0002 UNS0867a-P Extension Card

Product Details

HIEE405246R0002 UNS0867a-P Product Description

The ABB HIEE405246R0002 UNS0867a-P is a precision-engineered extension card module designed for the ABB Unitrol excitation control platform. Purpose-built for energy-intensive industrial environments, this card extends the functional capacity of the Unitrol excitation system to deliver tighter voltage regulation, reduced reactive power losses, and measurable improvements in generator and motor drive efficiency. It is a critical component in power-aware automation strategies where energy consumption, thermal load management, and production line throughput must be optimized simultaneously.

Deployed across power generation facilities, heavy process industries, marine propulsion systems, and large-scale manufacturing plants, the HIEE405246R0002 integrates directly into the Unitrol 6000 and compatible Unitrol controller families. Its role in the excitation chain directly influences how efficiently a synchronous machine responds to load changes — reducing field current overshoot, minimizing reactive energy draw, and stabilizing terminal voltage under dynamic production conditions.

In modern smart production lines, energy efficiency is not a single-device achievement — it is a system-level outcome. The ABB HIEE405246R0002 extension card operates as part of a broader excitation and power management architecture that spans multiple control layers.

At the drive level, the HIEE405246R0002 works in coordination with the ABB Unitrol 6000 excitation controller, which governs field current regulation for synchronous generators and motors. When paired with ABB ACS880 series variable frequency drives (VFDs), the excitation system and drive system can be co-optimized to reduce total harmonic distortion (THD) and improve power factor across the production line. This combination is particularly effective in applications where motor loads vary significantly — such as compressor stations, pump systems, and rolling mills.

For real-time energy monitoring, the HIEE405246R0002 integrates into plants running ABB Ability™ Energy Manager or third-party SCADA platforms via the Unitrol communication interface. Power monitoring modules such as the ABB M2M gateway or compatible Modbus/PROFIBUS communication cards relay excitation status, reactive power data, and field current readings to the supervisory layer — enabling operators to detect inefficiencies before they escalate into thermal events or unplanned downtime.

On the PLC side, the excitation extension card's status outputs can be mapped to ABB AC500 PLC I/O modules, allowing the control program to adjust setpoints dynamically based on production demand. This closed-loop approach — where the PLC reads load conditions from ABB EL series I/O modules and adjusts excitation parameters through the Unitrol platform — reduces idle field current during low-demand periods and prevents over-excitation during peak load transitions.

HMI integration is equally important. Operators monitoring production lines through ABB CP600 HMI panels can visualize excitation status, reactive power trends, and energy consumption KPIs in real time. When combined with ABB SPAJ 140 C protection relays or equivalent generator protection units, the system provides a complete picture of machine health, enabling predictive maintenance scheduling based on actual thermal and electrical load data rather than fixed time intervals.

For facilities running mixed-brand environments, the HIEE405246R0002 can coexist with Siemens SIMATIC S7 PLCs or Schneider Electric Modicon M340 controllers through standardized Modbus RTU or PROFIBUS DP interfaces, ensuring compatibility across multi-vendor production architectures without requiring dedicated communication gateways.

The primary energy optimization value of the ABB HIEE405246R0002 lies in its ability to maintain precise excitation control under variable load conditions — a capability that directly translates into reduced reactive power consumption, lower thermal stress on generator windings, and more stable voltage profiles across the production line bus.

In facilities where synchronous generators or motors operate under fluctuating loads — such as batch processing plants, steel mills, or offshore platforms — uncontrolled excitation leads to reactive power swings that increase line losses, heat transformer cores, and reduce the effective capacity of the distribution system. The HIEE405246R0002 extension card, by expanding the Unitrol controller's processing and I/O capacity, enables finer-grained excitation response curves that suppress these reactive swings and maintain power factor closer to unity.

From a production line rhythm (takt time) perspective, voltage instability caused by poor excitation control is a hidden source of cycle time variation. Sensitive CNC machines, servo drives, and robotic cells are particularly vulnerable to voltage sags and swells. By stabilizing the excitation system with the HIEE405246R0002, plants can reduce the frequency of nuisance trips, protect downstream equipment from voltage stress, and maintain consistent production throughput without manual intervention.

Thermal load reduction is another measurable benefit. Over-excitation generates excess heat in generator windings and associated switchgear. The HIEE405246R0002 enables the Unitrol system to apply optimal excitation curves that keep winding temperatures within design limits — extending insulation life, reducing cooling energy consumption, and lowering the risk of thermal-related failures that cause unplanned downtime.

For predictive maintenance programs, the extension card's expanded I/O and signal processing capabilities allow the Unitrol platform to log excitation trends over time. Maintenance teams can use this data — exported via SCADA or energy management systems — to identify gradual degradation in excitation response, schedule proactive replacements, and avoid the high cost of emergency repairs during production runs.

All HIEE405246R0002 units supplied by NANKMOS are sourced from verified inventory channels, subjected to pre-shipment functional testing, and covered by a 12-Month Warranty. Stock is maintained for immediate dispatch, minimizing lead times for maintenance and retrofit projects.

Q1: What energy efficiency improvements can I expect from installing the HIEE405246R0002? The HIEE405246R0002 extends the Unitrol excitation controller's capacity to apply optimized field current curves, which reduces reactive power draw, improves power factor, and lowers thermal stress on generator windings. In variable-load applications, plants typically observe measurable reductions in reactive energy consumption and improved voltage stability across the production bus.

Q2: Is the HIEE405246R0002 compatible with my existing Unitrol excitation system? The HIEE405246R0002 (UNS0867a-P) is designed for the ABB Unitrol platform, including Unitrol 6000 and compatible Unitrol controller families. Before installation, verify your Unitrol controller firmware version and slot configuration against ABB's Unitrol hardware compatibility matrix. NANKMOS technical support can assist with compatibility verification prior to purchase.

Q3: Can this card replace a failed extension card in an existing Unitrol system without full system reconfiguration? In most cases, yes. The HIEE405246R0002 is a direct replacement card for the UNS0867a-P slot position within compatible Unitrol controllers. After physical installation, the Unitrol configuration tool is used to verify parameter mapping and I/O assignments. No full system reconfiguration is typically required for like-for-like replacements, though firmware compatibility should be confirmed.

Q4: What does the 12-Month Warranty cover, and how is pre-shipment testing conducted? All HIEE405246R0002 units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes functional verification testing to confirm signal integrity, communication interface operation, and power rail stability. Units that do not pass testing are not dispatched. Warranty claims are processed through NANKMOS directly — contact [email protected] for support.
